Acceleration M5 (L5) male to BNC male STYV 2 low noise cable shockproof carbon ink sensor test line 10 32UNF ultrasonic control
- Category: >>>
- Supplier: Shanghai Yuandao Electronic Co. Ltd.
Share on (62475178107):
Product Overview
Description
Note: connector and cable type,length an be changed based on customer's requirements
Product advantages:
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Product advantages:
1. Comply with RoHS requirements
2. Free samples (only shipping)
3. Competitive prices
4. High quality andhigh performance (2 years warranty)
5.Minimum order quantity 1
6. Fast delivery (1-3 days)
3. Welcome ODM & OEM
More product models
1) RF coaxial cable assemblies
2) RF connector with Andrew / LMR / RG cable series
3) Connector type:
N, SL16,IPEX(UFL),SMA, SMB, MCX,MMCX, F, BNC,TNC ,M5(L5),C2and others
4)Cabletype: STYV2,SFX086(RG405),SFX141(RG402),RG174,RG58,RG213,RG223,RG316,RG316D,RG303,RG142,RG400,RGLMR100, LMR195, LMR200,
LMR240, LMR400,and others
5) OEM / ODM orders are welcome
Product Description | ||

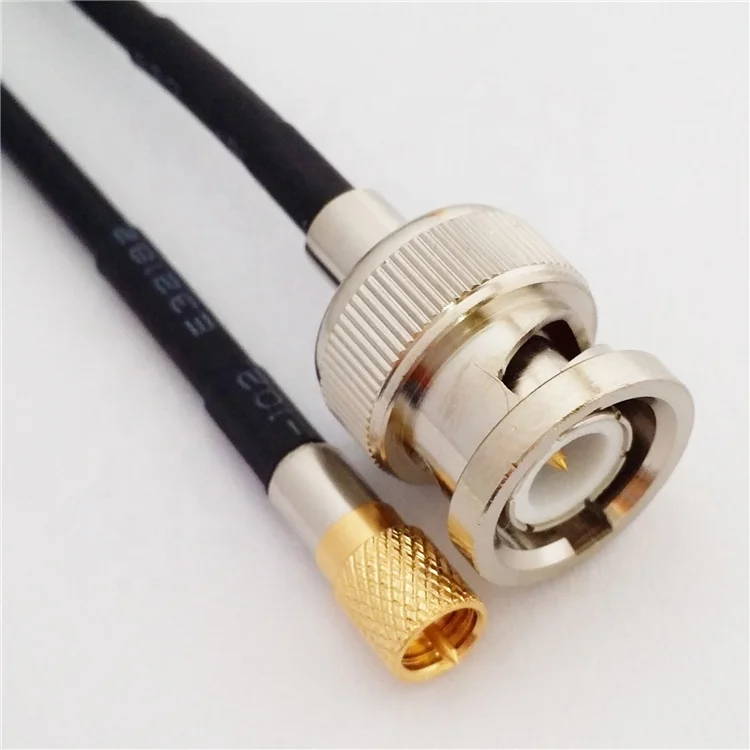

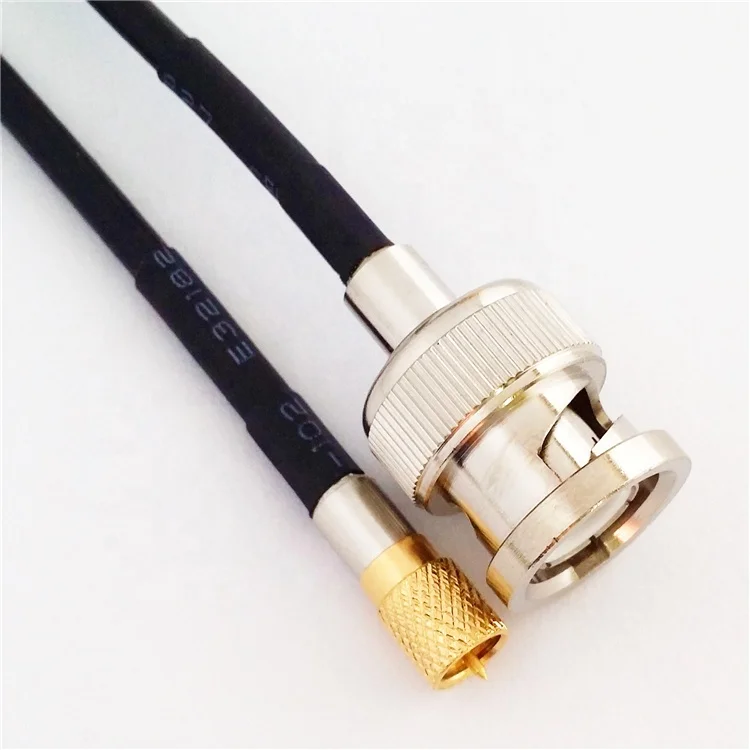

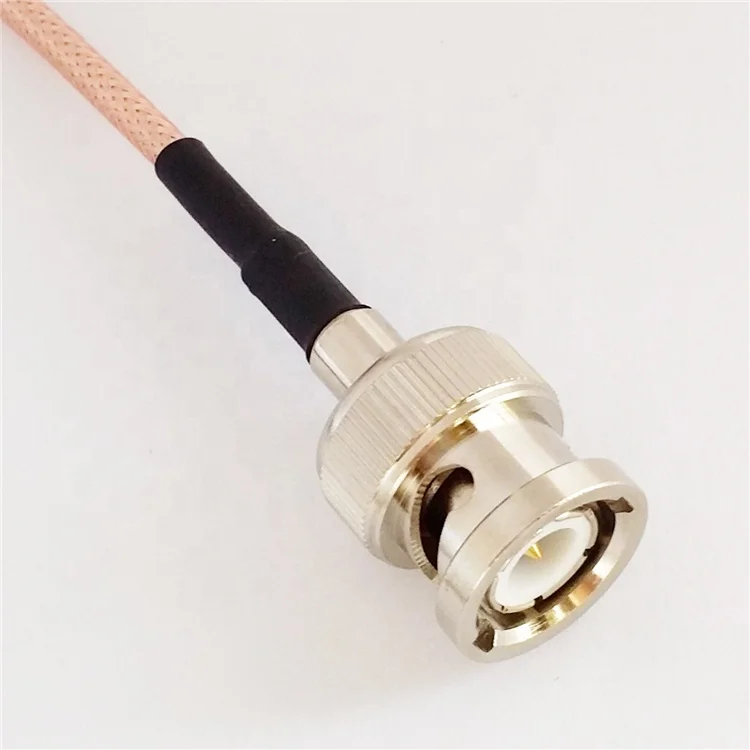

Poduct Name | RF cable M5 (L5) male to BNC male STYV-2 | |
Connector A | M5/L5 male (or customized) | |
Connector A | BNC male (or customized) | |
Cable Type | STYV-2 (or RG316 RG316D RG58 RG142 ) | |
Cable Length | 0.2M (Can be customized for your required length) | |
Cable OD | Ø3.0mm | |
Weight | 0.05KG | |
Operating Frequency | DC0-3GHz ( or 6GHZ 10GHZ 18GHZ) | |
V.S.W.R | ≤1.15 | |
Characteristic impedance | 50Ω | |
Package | Ploybag,carton | |
Details Images
RF cable M5 (L5) male to BNC male STYV-2 | ||||||
Product Description | ||||||
Electrical | ||||||
1 | Characteristic Impedance | 75ohm | ||||
2 | Frequency Range | DC-3GHz | ||||
3 | VSWR | ≤1.15(DC-3GHz) | ||||
4 | Dielectric Withstanding Voltage | ≥ 2500V | ||||
5 | Dielectric Resistance | ≥5000MΩ | ||||
6 | PIM3 | ≤ -160dBc | ||||
Mechanical | ||||||
1 | Durability | Mating cycles ≥500 | ||||
Material and plating | ||||||
Description | Material | Plating | ||||
1 | Body | Brass | Tri-alloy/Au/Ni | |||
2 | Insulator | PTFE | – | |||
3 | Center conductor | Brass | Ag/Au | |||
4 | Gasket | Silicon rubber | - | |||
5 | Other | Brass | Ni | |||
Environmental | ||||||
1 | Temperature Range | -40℃~+85℃ | ||||
2 | Waterproof | IP67 | ||||
Product Description | ||||
ltem | STYV-1 | STYV-2 | ||
Material of Inner Conductor | Cu | Cu | ||
Structure of Inner Conductor | 7/0.1mm | 7*0.12mm | ||
Material of Insulation | Solid PE | Solid PE | ||
Diameter of Insulation | 1.0mm | 1.52mm | ||
Semiconductor layer | graphite | graphite | ||
Noise index | ≤1MV | ≤1MV | ||
Material of Braiding(Shielding) | Bare Copper | Bare Copper | ||
Material of Jacket | PVC | PVC | ||
Diameter of Jacket | 2.05mm | 3.0mm | ||
Working temp | -20℃/70℃ | -20℃/70℃ | ||
Impedance | 50Ω±2 | 75Ω±2 | ||
Voltage | 1000V | 2000V | ||
Weight | 7.5KG/KM | 15KG/KM | ||
