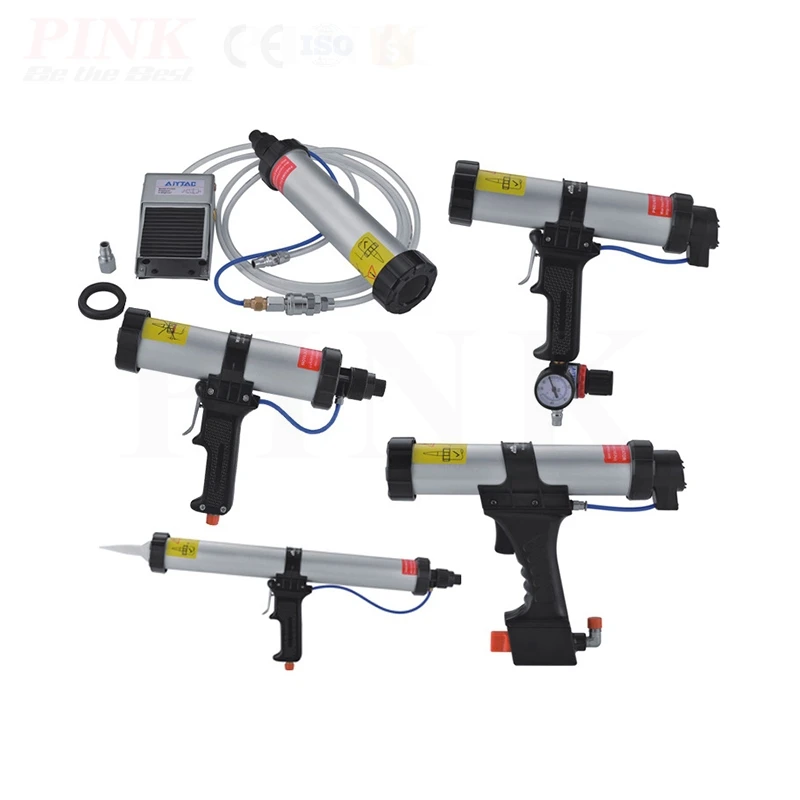

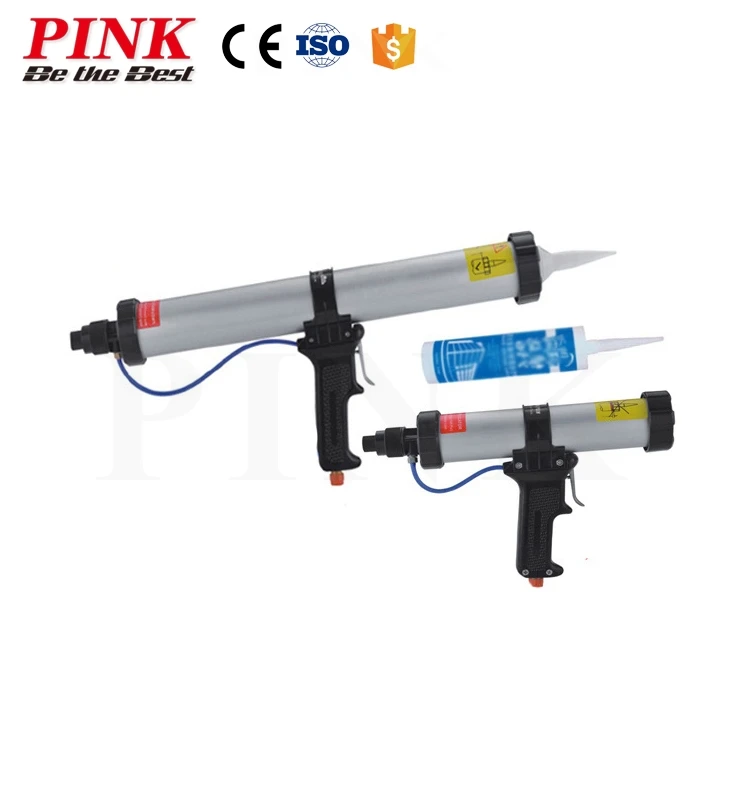

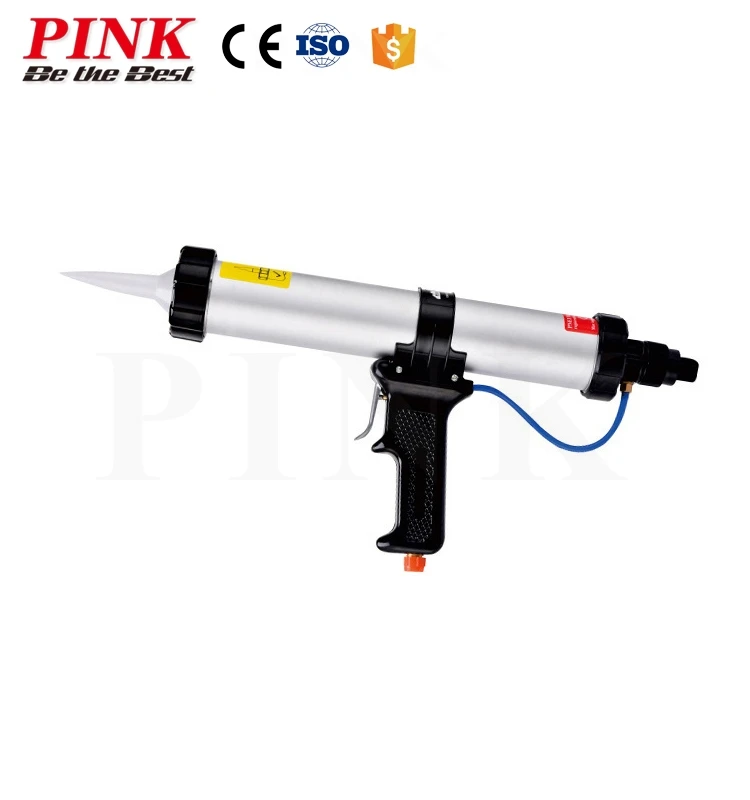

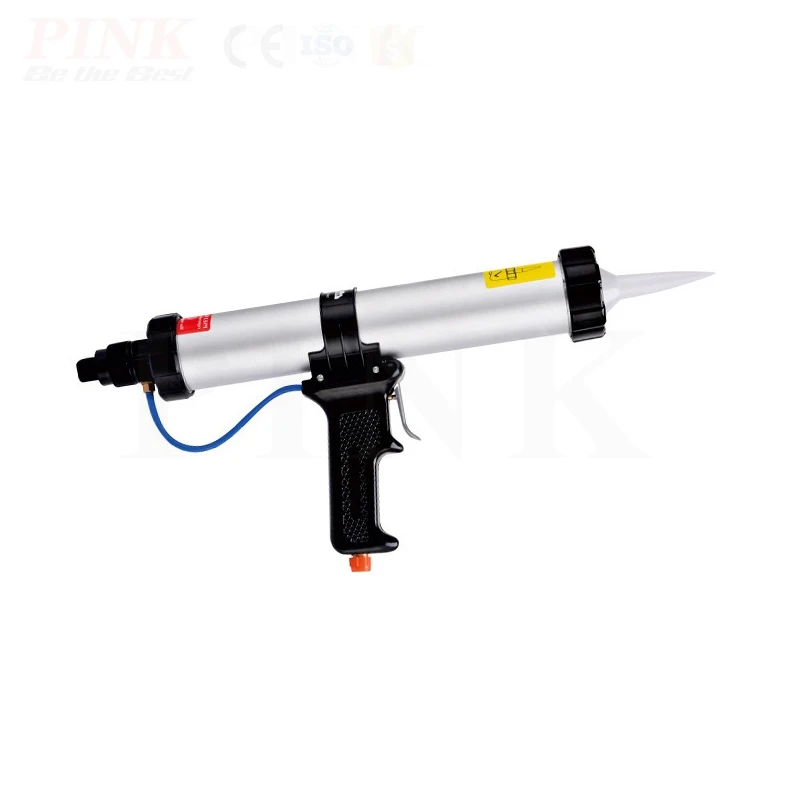

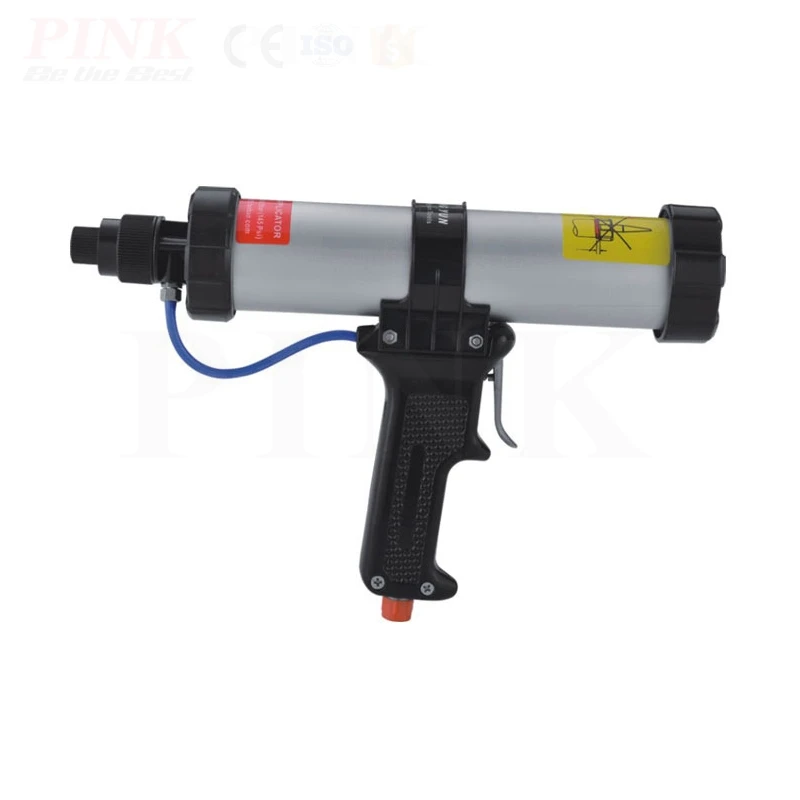

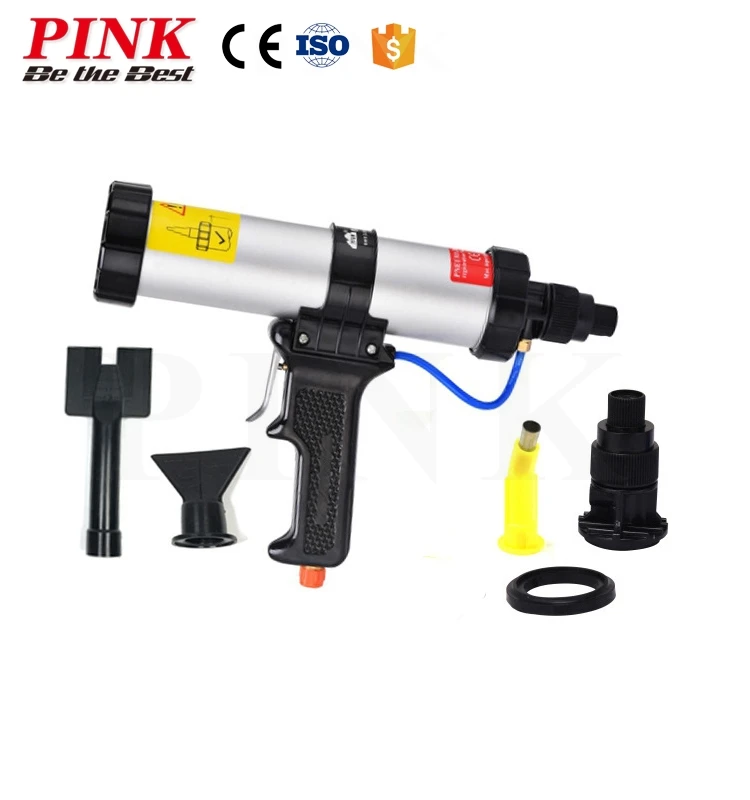

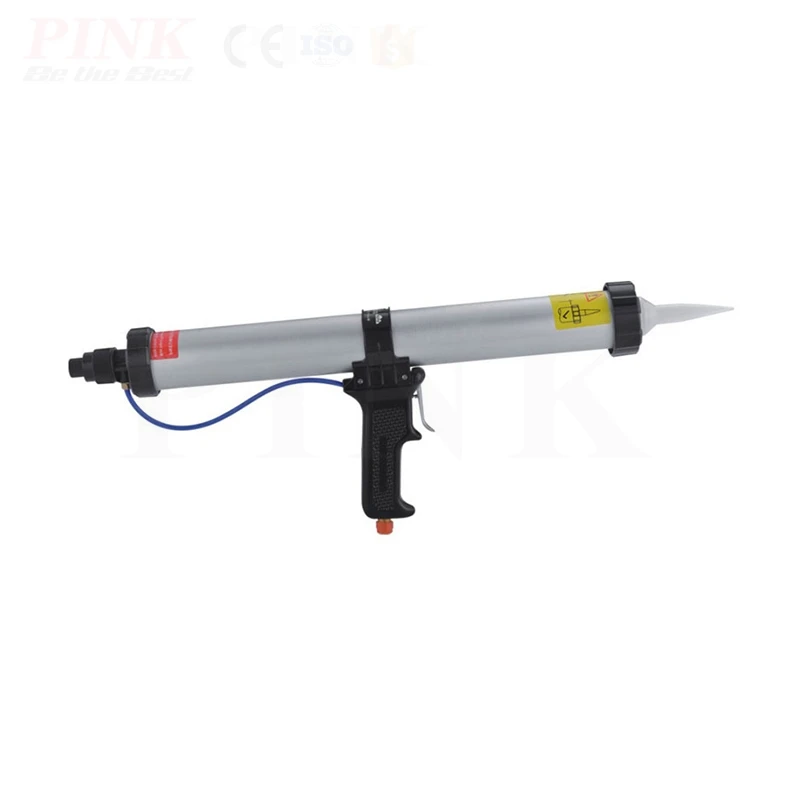

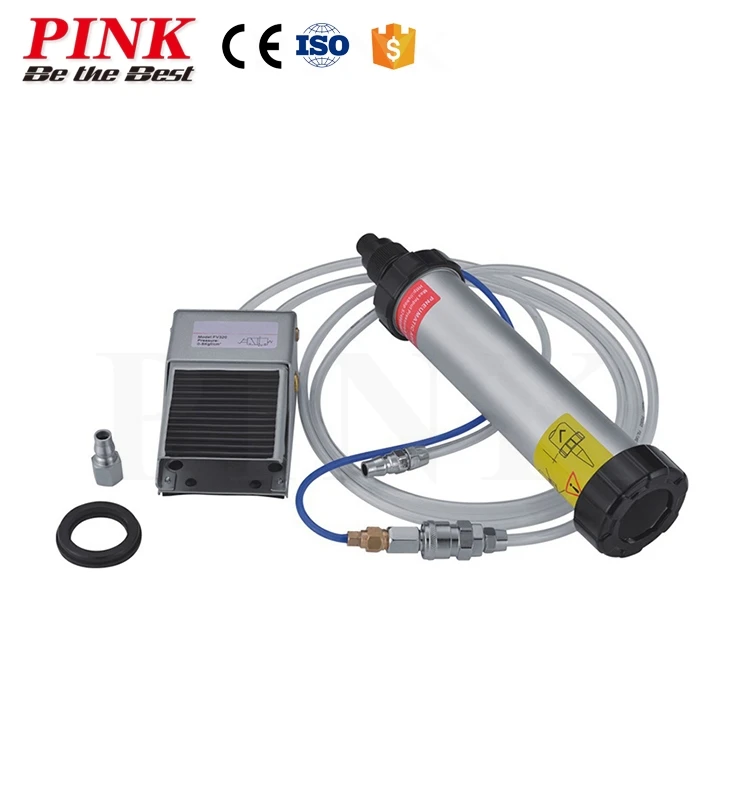

Pneumatic Air Caulking Gun

Product Overview

Description

Air Cartridge Gun Detail:
1.Capacity: 310,400,600ml
2.Working Pressure: 6.8bar
3.Size: 21.5*5.3,32*5.3,45*5.3cm
4.Material: plastic, aluminum, Metal
5.Thrust:145kgf
6.Weight: 1,1.5,2kg
10.Certificate: GS,CE, EMC,ROHS





Air Cartridge Gun Features and Functions:

1.Air Cartridge Gun Application: General glass assembles, such as glass, window, and door sealing, repairing and onding the joint of other construction materials, such as aluminum, tile, some plastic and wood.

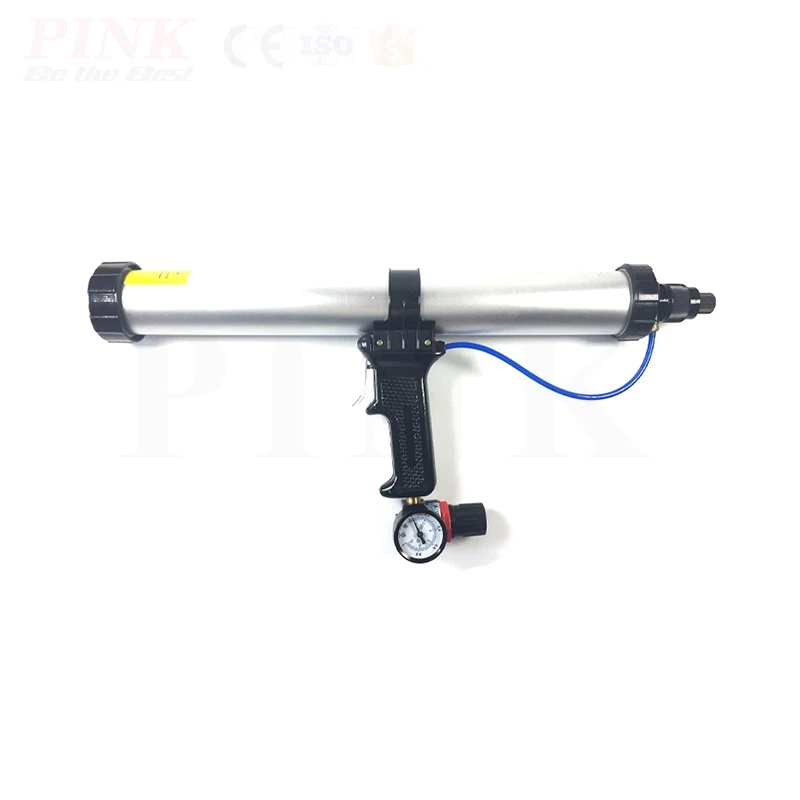

2.Air Cartridge Gun Integrated handle with professional stable quick-adjustment pressure regulator.
3.Air Cartridge Gun use high quality quick and automatic locking connective device,

 it is convenient for body and pipe connection or separation.

4.Air Cartridge Gun is a simple mechanical device using the principle of lever. When used in conjunction with a bucket or stick, the glue in the bucket can be easily pushed out of the tip, which greatly saves operating time.
5.Air Cartridge Gun is a kind of adhesive sealing and caulking tools, widely used in building decoration, electronic appliances, automobiles and auto parts, ships and containers and other industries.
6. Classification of glue guns: According to the type of glue packaging, it can be divided into soft packing glue (sausage soft glue) and hard glue (glass glue).

7.Pneumatic glue gun is used in automotive, electronics and construction industries; durable, labor-saving, high quality and efficient.

8.Pneumatic glue gun for barrel filling, available in 310ml, 400ml, 600ml specifications.

9.Pneumatic glue guns are widely used in building decoration, fish tank, solar electronics, automotive components and other industries. Building decoration, fish tank, solar energy, electronics, doors and windows, etc.



Features of pneumatic glue gun:
1.145kgf (1.45kN) thrust at 6.8 bar
2. Act directly on the bottom of the cartridge
3. Silencer is standard configuration (noise below 70dB)
4.Quick exhaust valve to minimize the overflow of glue
5. Rotatable tracheal joint makes operation more free and flexible
6. Perfectly suitable for indoor environment requiring low noise. At the same time, we also supply sausage-type (for soft glue) and dual-use (both soft and hard glue) pneumatic glue guns.



Note for pneumatic glue gun:
1. The pressure of the compressed air connected to the glue gun cannot exceed 145 p.s.i (10bar)
2. Do not connect compressed air before disassembling the glue gun.
3. To ensure that the glue gun works reliably, be sure to remove the residual glue after use according to the solvent recommended by the sealant manufacturer (not allowed to soak the glue gun in the solvent)
4. If air escapes slowly from the trigger valve, the exhaust valve will obviously fail. If this happens, the diaphragm inside the muffler exhaust valve should be replaced.
5. When using, the front cover must be tightened.
6. It is recommended to wear goggles when using all pneumatic tools.



Model	Product Name	Description	Packing Size(cm)	N.W(kg)	PCS/CTN	20' Loading Qty(pcs)	MOQ (pcs)
NEACG-01	Pneumatic Caulking Gun	Capacity:310ml Aluminum alloy black paint handle,white aluminum alloy gun body.Replaceable rubber muzzle,switch joint or gas-conduct nut attached.working pressure of 6.8 bar 145kgf (1.45kN) thrust.	54*54*37	10	10	2400	100
NEACG-02	Pneumatic Caulking Gun	Capacity:400ml Aluminum alloy black paint handle,white aluminum alloy gun body.Replaceable rubber muzzle,switch joint or gas-conduct nut attached. working pressure of 6.8 bar 145kgf (1.45kN) thrust.	54*54*61	13	10	1460	100
NEACG-03	Pneumatic Caulking Gun	Capacity: 600ml Aluminum alloy black paint handle,white aluminum alloy gun body.Replaceable rubber muzzle,switch joint or gas-conduct nut attached.working pressure of 6.8 bar 145kgf (1.45kN) thrust.	54*54*61	16	10	1460	100







If you are interested in our Pneumatic Caulking Gun, Air Cartridge Gun, please don't hesitate to contact us.
