600 ton automatic rubber hot vulcanizing machine rubber forming press machine rubber vulcanizer good quality
- Category: >>>
- Supplier: HENGYANG HUAYI MACHINERY CO. LTD.
Share on (62475348664):
Product Overview
Description
Product Description

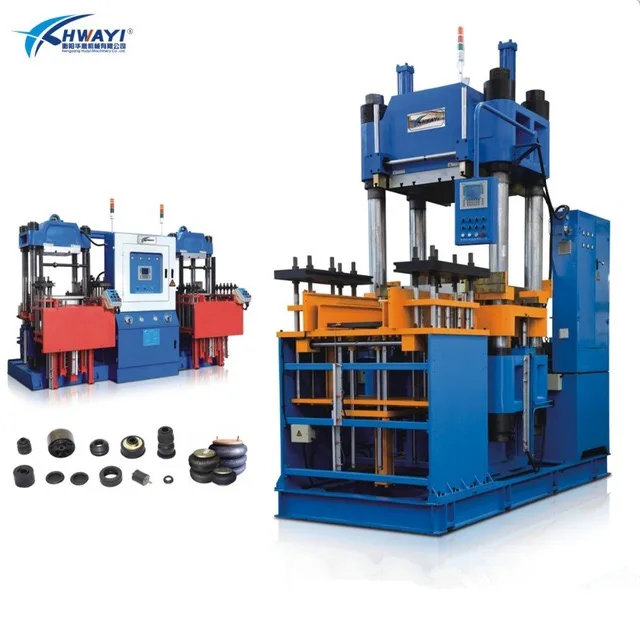

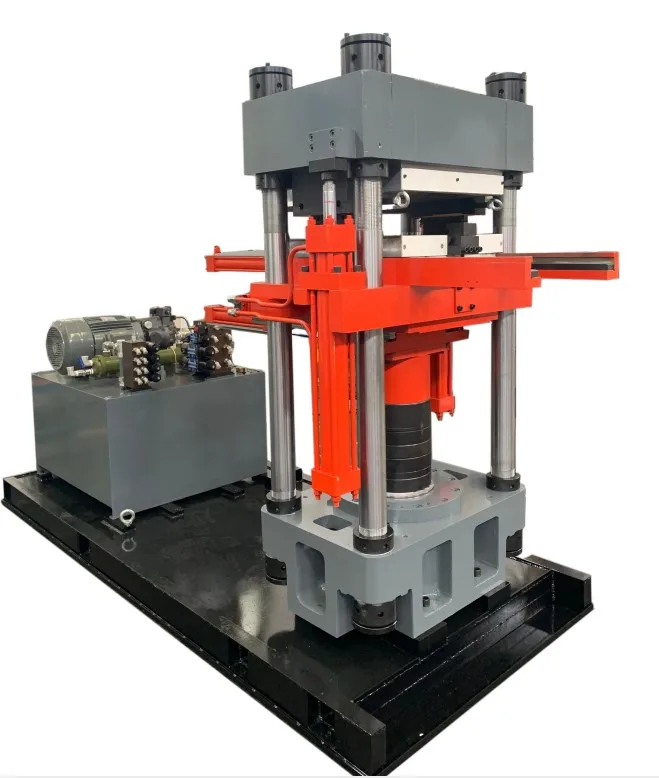

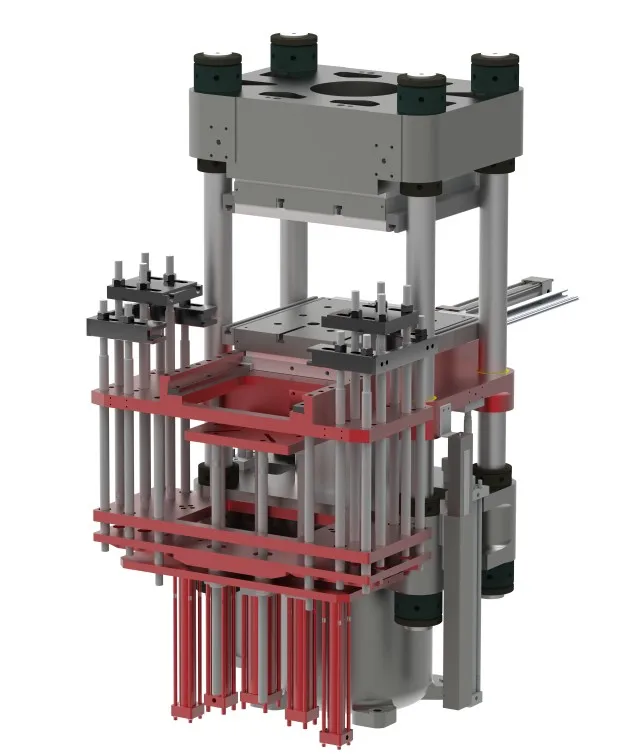

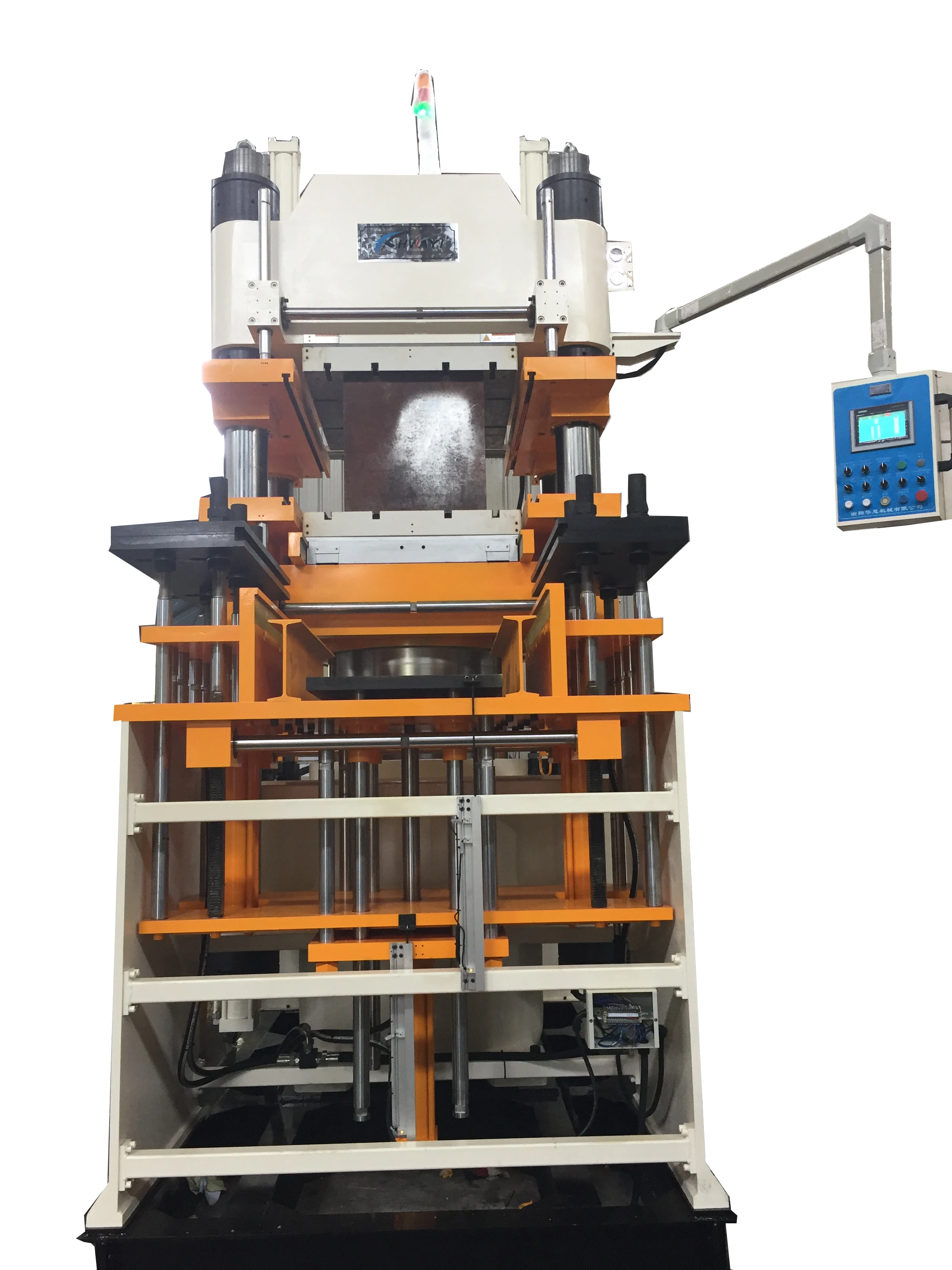

HYL-600P double working station Automatic MCU Compression Molding Machine is suitable for Vulcanizing Mold of natural rubber, acrylonitrile rubbers, ethylene-propylene diene copolymer, Chloroprene rubber adhesive, silicon.

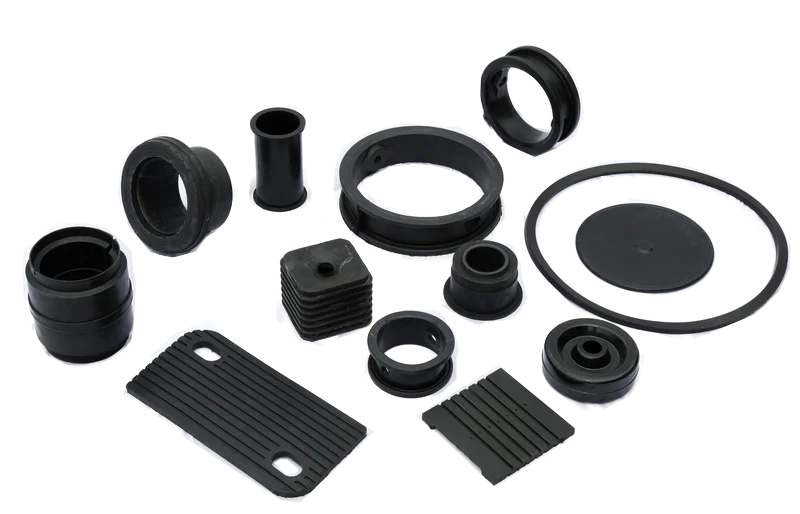

It is used for rubber products which produced by vulcanization, such skeleton oil seal, seal ring, organ sets ect, and also be used to the forming and shallow tensile technique of the bakelite thermosetting materials, magnetic material and powder metallurgy products.
Specifications | HYZ-600P |
3Clamping Force(kN) | 6000 |
Platen Size(mm)(Width*Length) | 900*1100 |
Dimension btwn Tiebar(mm) | 1300*700 |
Space of Platens(mm) | 900-1300 |
Max. Clamping Stroke(mm) | 800 |
Min. Mold Thickness(mm) | 110-510 |
Heating Power(KW) | 12*2 |
Total Power(KW) | 60 |
Dimensions(m)(L*W*H) | 3.5*3*4 |
Reference Weight(Ton) | 18 |
