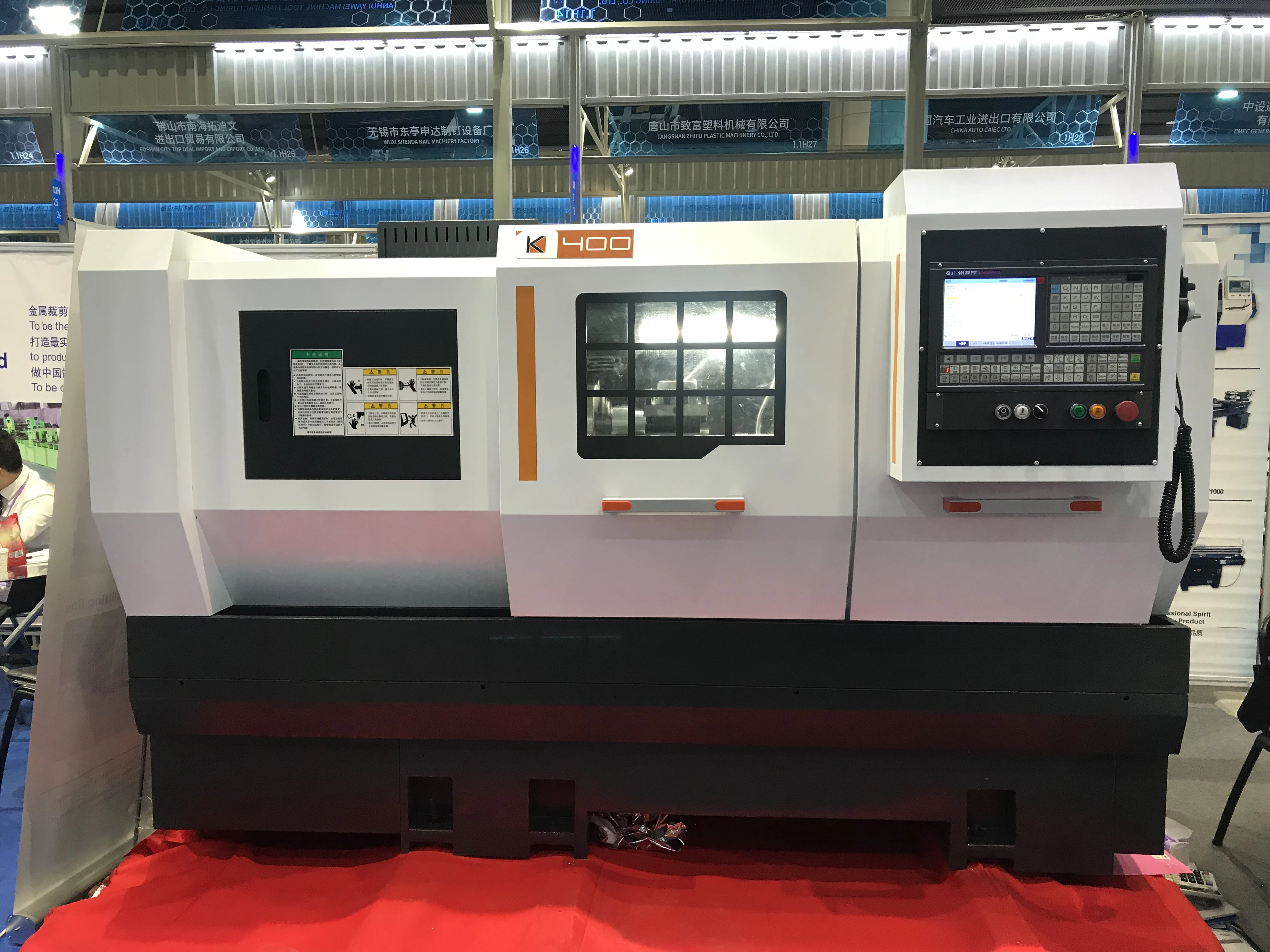

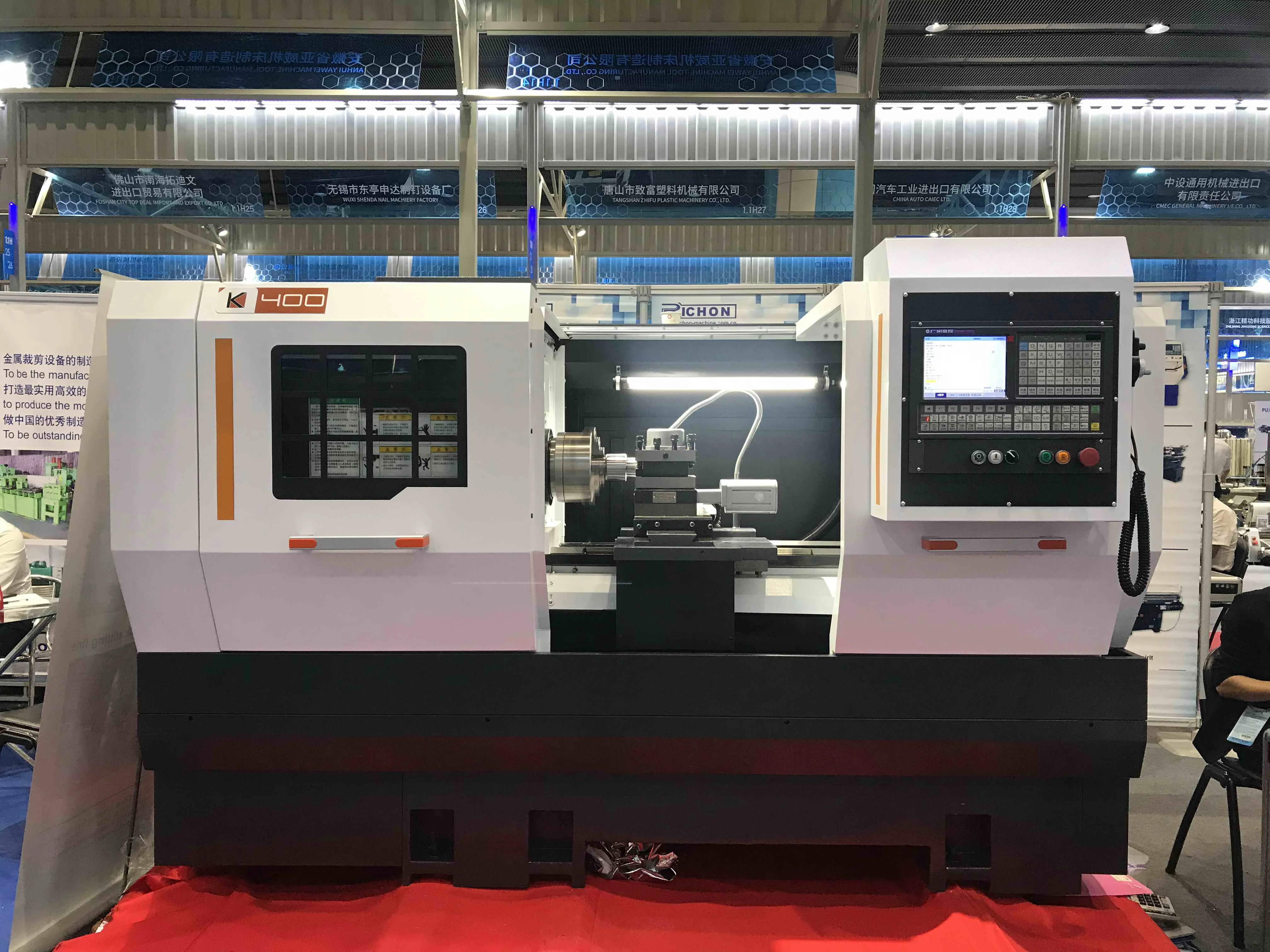

Horizontal CNC Lathe K400/750 mesin bubut torno para metal cnc lathe machine
- Category: >>>
- Supplier: Shenzhen Richon Industry Co. Ltd.
Share on (62475499650):
Product Overview
Description

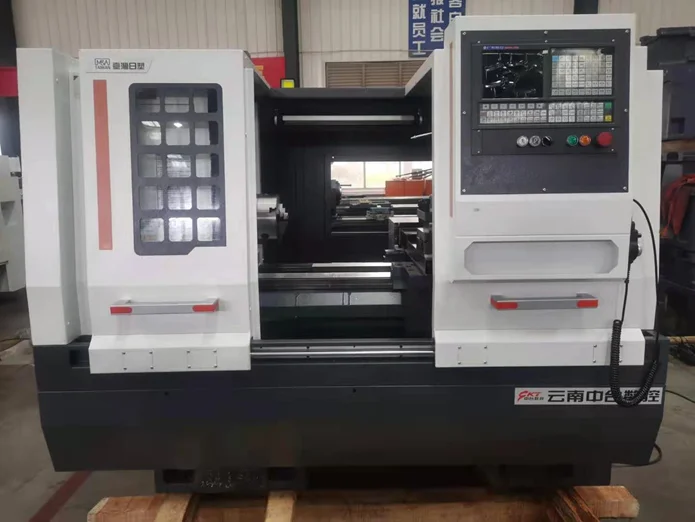

Economical CNC Lathe K400, with length 750mm
Product Description
1) Independent spindle, Type: A2-6,Spindle’s through-hole: φ66mm, Spindle bearing made in china, bed feet, Full cover. coolant pump.
2) 3-shift automatic gear-box, spindle speed range:24~2400rpm/min,70~700rpm/min,250~2500rpm/min.
3) Main spindle motor: 5.5kW servo motor.(If CNC is FUNAC and SIEMENS, the main spindle motor is the CBT servo motor). Spindle speed 100-3000rpm/min
4) X/Z ballscrew(JINING,China)
5) Four-position electric tool post(HONGDA,China)
6) Manual tailstock
7) Lubricating pump(HEGU)
8) Water pump (Power:120W,China) and cooling water pipe
9) Manual chuck(Φ200,China)
10) Schneider Electrical Components
11) Handle Unit
12) One set damping pad iron
13) Tool-box(include:1 piece Cross screwdriver,1 piece slotted screwdriver ,1 set Inner hexagon spanner )
14) Fully enclosed cover
15) Export Packaging Box
Specification
Item | Unit | Specification | Remarks | |
Max. swing over bed | mm | 410 |
| |
Max. swing over slide | mm | 240 |
| |
Bed width | mm | 340 |
| |
Center distance | mm | 1000 |
| |
Effective processing length(chuck to point) | mm | 800 |
| |
Max.cutting diameter | Disc | mm | 400 |
|
Axis | mm | 240 |
| |
Travel of X axis | mm | 220 |
| |
Travel of Z axis | mm | 870 |
| |
X/Z Rapid feed speed | m/min | 6/8 |
| |
Spindle speed range | rpm/min | 100~3000 |
| |
Spindle nose type | type | A2-6 |
| |
Spindle through hole | mm | Ø66 |
| |
Spindle front bearing inner diameter | mm | Ø100 |
| |
Spindle inner hole taper |
| 1:20 |
| |
Manual chuck(through hole) | mm | Ø200(Ø 65) |
| |
Hydraulic chuck(through hole) | mm | Ø210(Ø52mm) | 8’ 3-jaw through-hole power chuck | |
Main motor power | kw | 5.5/7.5 |
| |
Electric tool post | type | 4/6 |
| |
Tool cross section | mm | 20x20 |
| |
Tailstock quill diameter/travel | mm | Ø60/120 |
| |
Tailstock quill | mm | MT-#4 |
| |
