Product Description

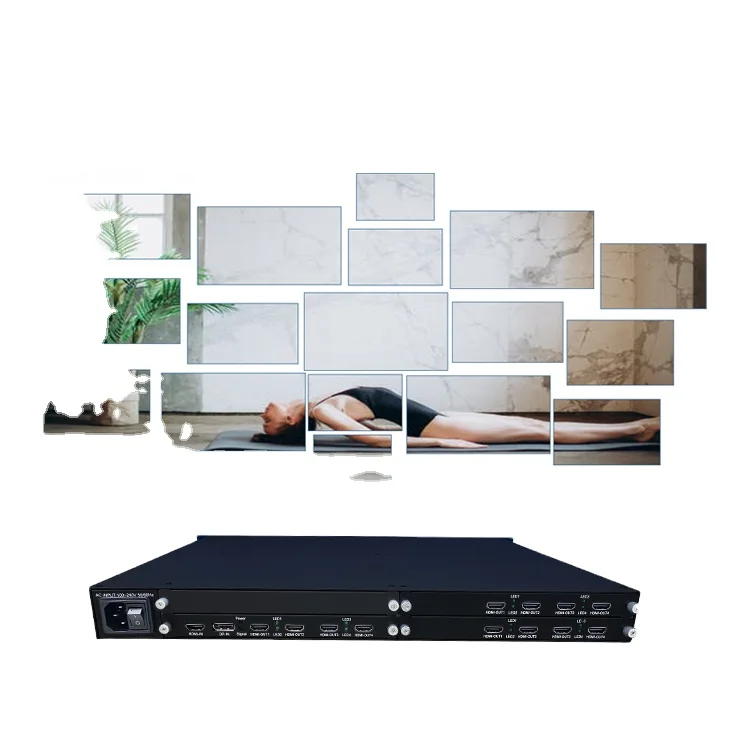

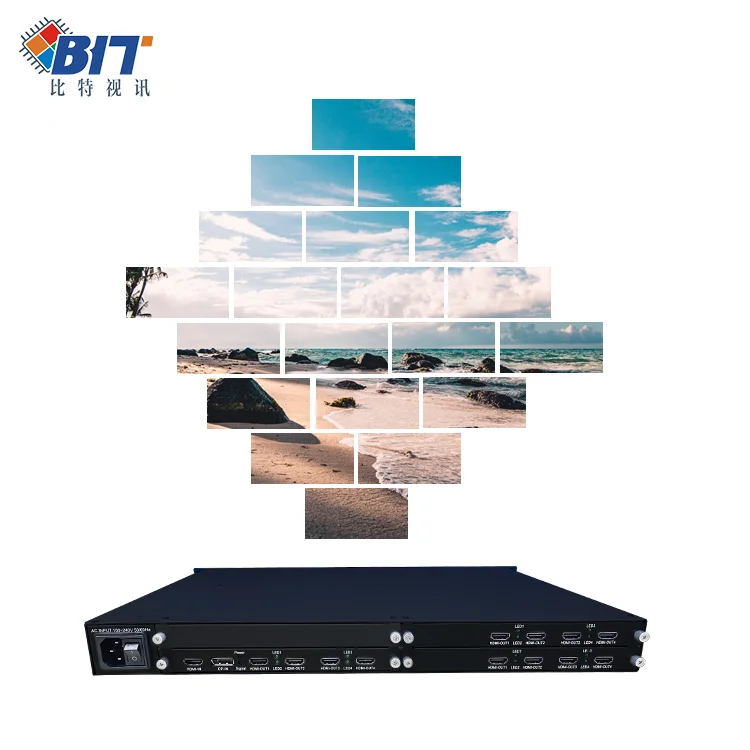

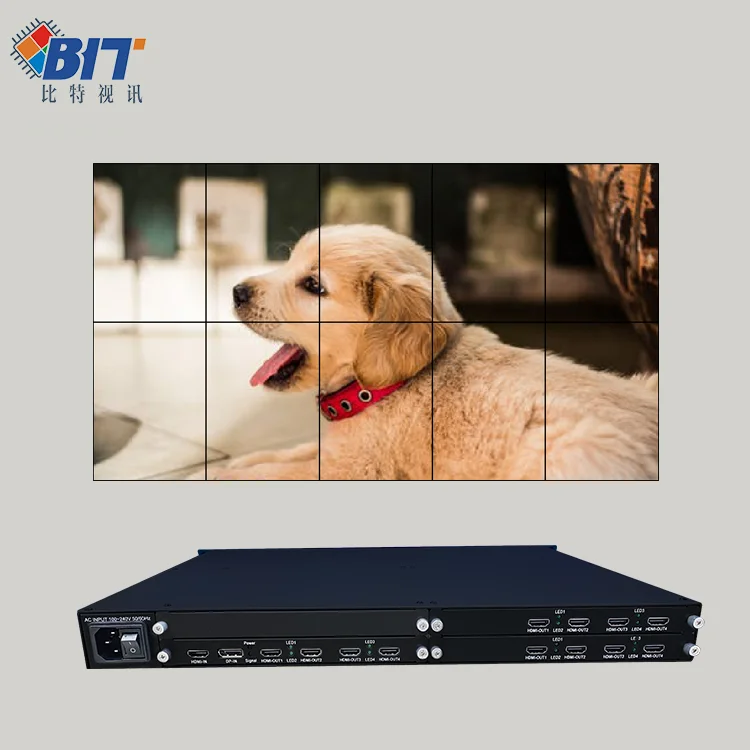

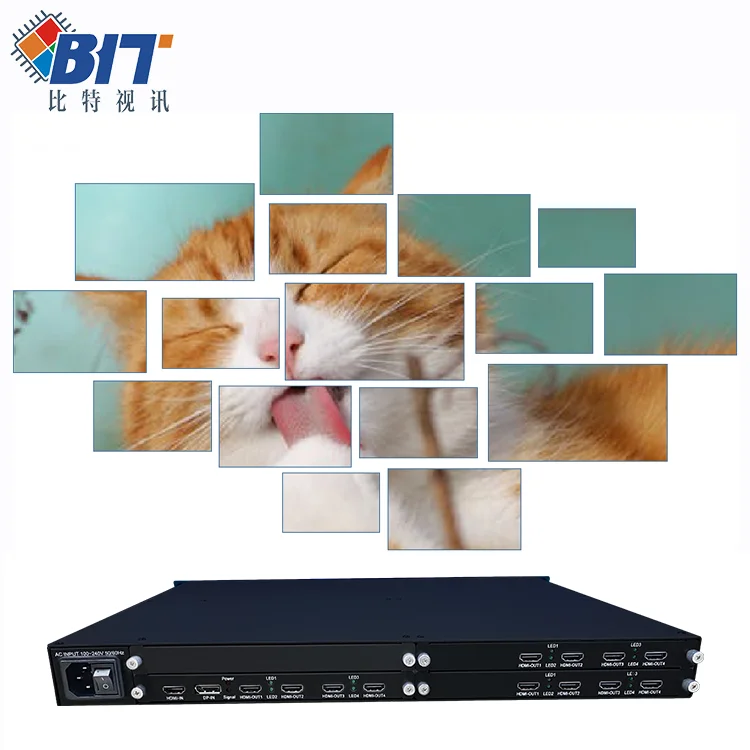

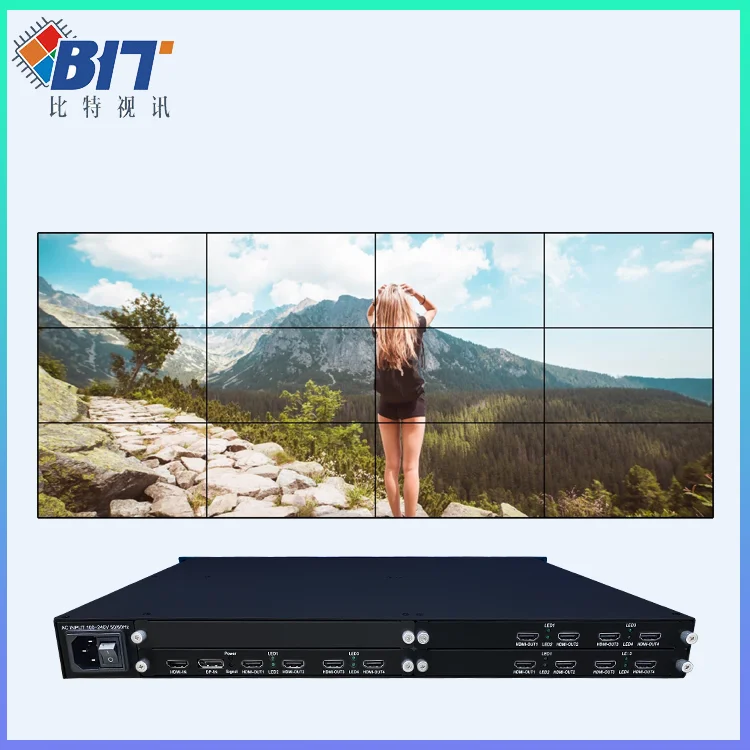

8K Video wall controller rotary stitching processor
BIT-VWC-U1-112 is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 1 channels HDMI input , 1 channel DP input , 12 channels output HDMI.
1.This is an industrial-grade high-performance product with ultra-high-definition resolution and supports up to 8Kx2K. 2.The maximum support is 1 in and 12 out, and multiple splicing modes can be combined arbitrarily horizontal screen / vertical screen /Heterotypic splicing, and supports large-scale parallel use.
3. Centralized power supply with wide voltage (100 ~ 240V), low power consumption, energy-saving and environmental protection design. Conductive heat dissipation is used internally, without any external heat dissipation measures, and its reliability is extremely high.
4.Support wired network control and wireless network control.
5. Adopt high-end programmable FPGA chip with 28nm technology, full hardware real-time processing architecture, ultra
fast processing speed without delay.
fast processing speed without delay.
6.Industrial design, thickened 6-layer PCB board, 16KV super strong anti-static ability, super product stability.
7.Supports large-scale parallel use to ensure real-time display requirements for large screens.
Specification
Product name | BIT-VWC-U1-112 |
Input Max. Pixel FPS | 600MHz |
Output Max. Pixel FPS | 165MHz |
4x3 Max supported resolution | 3840x2880@50Hz |
3x4 Max supported resolution | 5120x2160@50Hz |
3x3 Max supported resolution | 5760x3240@30Hz |
4x2 Max supported resolution | 3840x4320@30Hz |
2x4 Max supported resolution | 7680x2160@30Hz |
2x2 Max supported resolution | 3840x2160@60Hz |
Factory default resolution | 3840x2160@60Hz |
Support custom resolution | √ |

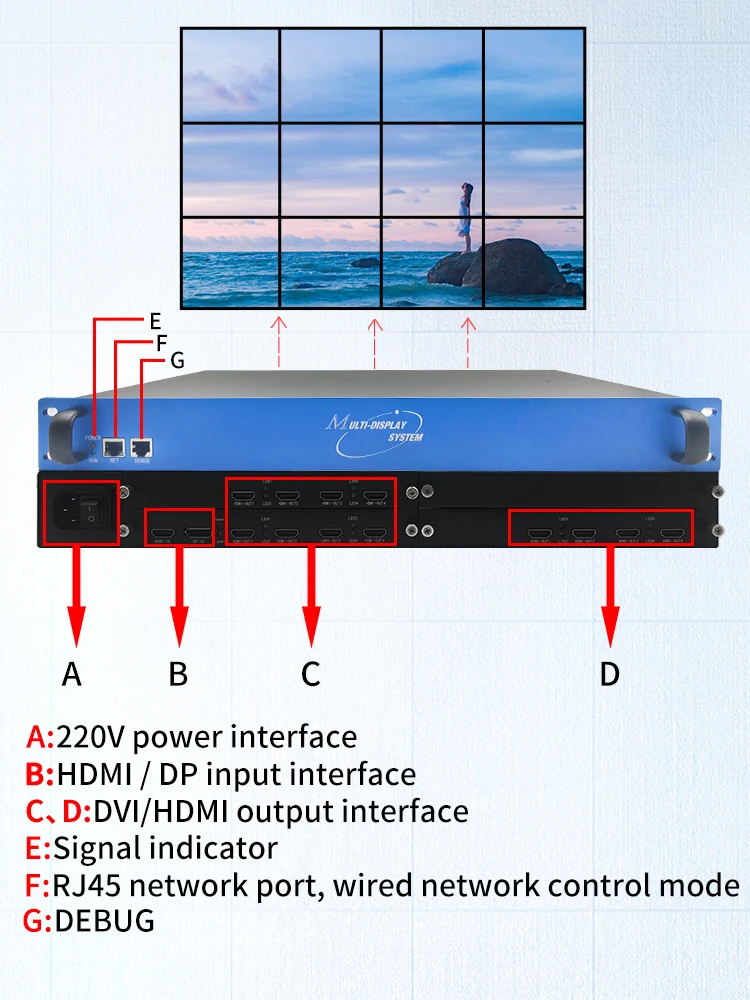

Input interface type | One DP Interface One HDMI Interface One RJ45 Network port One RJ45 Debug port |
Output interface type | 4~16 HDMI outputs |
Size(L*W*H) | 482.6mm*396.8mm*44mm |
Weight | 5kg |
Power supply | 100~240V |
Warranty | One year |
Weight | 5kg |
Power supply | 100~240V |
Warranty | One year |
