Product Description
High quality 1000kg Automatic Remote Sliding Gate Opener sliding door motor
The electric sliding door motor will still work for a short period of time using lower voltage. The control board has overload protection. When there is a power failure, the motor drive can be separated by the use of the clutch, by using the specified key the user has the ability to disconnect the clutch enabling the gate to be opened or closed manually.
Product Specification | ||
Item Name | China Hot selling Electric Automatic Sliding Gate Opener For Sale | |
Type | 600kg/800kg | |
Max.Weight Of Gate | 1000kg | |
Color | OEM,ODM | |
Place Of Origin | Fujian,China(Mainland) | |
Voltage | 220V | |
Worm Wheel | Copper or Nylon | |
Brand Name | MINGNIAO | |
Frequency | 50Hz | |
Gear | 17/19 | |
MOQ | 1 Set | |
Supply Capacity | 10000 Sets Each Month | |
Delivery | Within 15-30days After Received 30% Deposit | |
Packing | Carton packed fill with foam,can be customized one set in 1 cartons: Main motor and accessories to be installed together | |
Technical parameters
POWER SUPPLY | MOTOR POWER | MOTOR ROTATIONAL SPEED | OUTPUT ROTATIONAL SEED | MAX WEIGHT OF GATE | N.M |
220V 50Hz | 370W | 1400r/min | 46r/min | 1000Kg | 15.7kg/14.6kg |
WORM WHEEL | LIMIT SWITCH | CLUTCH | GEAR | MATERIAL |
Copper worm gear/Nylon worm gear | Magnetic limit | Ordinary clutch | 17 teeth/19 teeth | Aluminium alloy |
Product feature and application
* Integrated mechanical and electrical, all functions on one controller

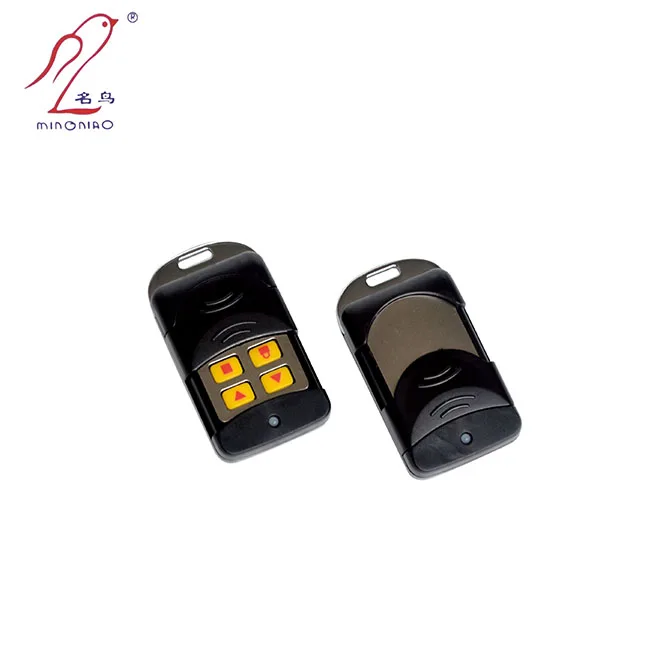

* Radio controller or lines to control open, close and stop functions
* Magnetic limit switch, the door stops when it moves to the limit
* Accurate limit braking
* Electronic soft-start
* Dialing switches to adjust the motor rotation in both directions
* Open and close limits have a self-locking function
* Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open, then after 10seconds it
attempts to close automatically unless you press the stop keystroke
* Movement indication - the indicator lights up when the door is moving
* Optional line control or remote control
* Radio controller or lines to control open, close and stop functions
* Magnetic limit switch, the door stops when it moves to the limit
* Accurate limit braking
* Electronic soft-start
* Dialing switches to adjust the motor rotation in both directions
* Open and close limits have a self-locking function
* Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open, then after 10seconds it
attempts to close automatically unless you press the stop keystroke
* Movement indication - the indicator lights up when the door is moving
* Optional line control or remote control
Production details
Company Introduction
Zhangzhou Mingniao Electronic Machinery Co., Ltd. is a professional research and production of various forms of electric door opener and inverter welding machine high-tech enterprises. The company was founded in 2000, the existing equipment is excellent, the technical force is abundant, has the strong mechanical processing ability and the microcomputer control system design ability, can support the mechatronics function for the general user in time. The inverter welder designed and developed by our company adopts advanced inverter power source technology and imported IGBT module. The inverter frequency can reach 20kHz, the dynamic response speed is faster, the function is perfect, the performance is excellent, and the welder has high reliability. It can meet the requirements of high-quality welding and is a reliable welding equipment for users. Your need is our pursuit! The company diligently maintains the brand, develops the market honestly, pursues the perfect function with the meticulous design, the accurate manufacture guarantees the product quality, develops the market with the sincere service attitude, strives for the survival with the quality With the aim of quality and development, our products are sold all over the country and exported all over the world.
Packing&Shipping
(1)\tFOB Xiamen
(2)\tDimension Of Gate Opener: 370mm(H)*125mm(W)*170mm(D)
(3)\tDimension Of Control Box: 220mm(H)*170mm(W)*90mm(D)
(4)\tPackage: Color printing carton with foam
(5)\tHot Selling In China 600KG Automatic Swing Gate Opener For Sale
(6)\tOur products have a one-year warranty
(2)\tDimension Of Gate Opener: 370mm(H)*125mm(W)*170mm(D)
(3)\tDimension Of Control Box: 220mm(H)*170mm(W)*90mm(D)
(4)\tPackage: Color printing carton with foam
(5)\tHot Selling In China 600KG Automatic Swing Gate Opener For Sale
(6)\tOur products have a one-year warranty
FAQ
Q1: What is your MOQ?
A: No min order for Sliding Gate Opener. We also suggest wooden cases package for protection during shipment.
Q2: What is the Max available lifting weight of the motor?
A: The max lifting weight of the motor is 1500KG.
Q3: : Can I get a sample of Sliding Gate Opener for quality check?
A: Sample is available.
Q4: How can I get a price of needed Sliding Gate Opener?
A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your requirements.
Q5: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q6: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q7: How to install your product, is it difficult?
A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
A: No min order for Sliding Gate Opener. We also suggest wooden cases package for protection during shipment.
Q2: What is the Max available lifting weight of the motor?
A: The max lifting weight of the motor is 1500KG.
Q3: : Can I get a sample of Sliding Gate Opener for quality check?
A: Sample is available.
Q4: How can I get a price of needed Sliding Gate Opener?
A: Please give the exactly size, weight and quantity of your required door. We can give you a detail quotation based on your requirements.
Q5: What kind of payment terms would you accept?
A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
Q6: We want to be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.
Q7: How to install your product, is it difficult?
A: Easy to install. And you can contact our salesman if you have any question. Of course we can offer on-site installation guide services if you need.
