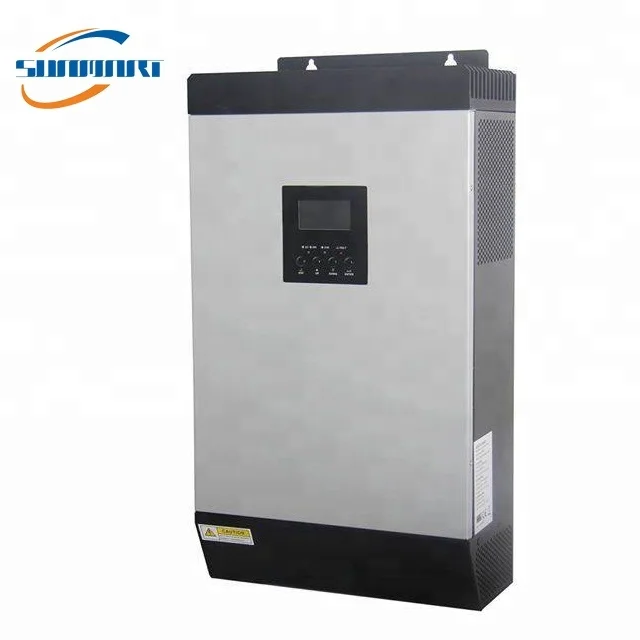

hybrid with mppt charge controller inverters solar 5KVA home hybrid solar power inverter

Product Overview

Description

hybrid with mppt charge controller inverters solar 5KVA

Application:

Small PV plants

Home solar system



Feature:

1.Pure sine wave inverter

2.Built-in MPPT solar charge controller

3. Selectable input voltage range and frequency according to city power in yourcountry

4. Charging current is setable according to your battery type

5.Configurable AC/Solar input priority via LCD setting

6.Compatible to mains voltage or generator power

7.Auto restart while AC is recovering

8.Overload and short circuit protection

9.Smart charging system optimizes battery performance

10.Cold start function

11.Parallel operation with up to 9 units



Specifications:



Model No.		MPS5K-48
Rated power		5000VA /4000W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	10000VA
	efficiency (peak)	93%
	transfer time	10ms(for personal computers);   20ms (for home appliances)
	waveform	pure sine wave
Battery&       AC charger	battery voltage	48VDC
	floating charge voltage	54VDC
	overcharge protection	62VDC
	maximum charge current	2A/10A /20A/30A /40A/50A/60A
	MAX PV array power	3000W for 60A ,  4000W for 80A
	MPPT range@ operating voltage	60-115V
	maximum PV array open circuit voltage	145VDC
	maximum charging current	60A /80A
	maximum efficiency	98%
	standby power consumpsion	2W
Physical	Dimension, D*W*H(mm)	155*295*455
	Net weight (kgs)	12KG
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃

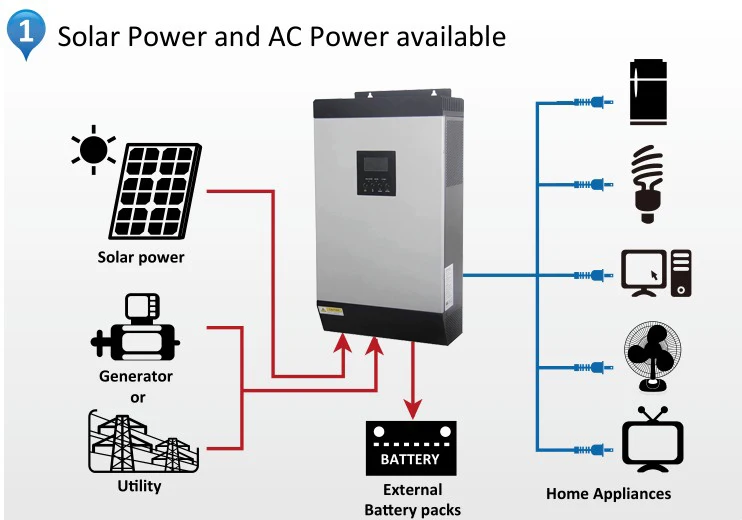

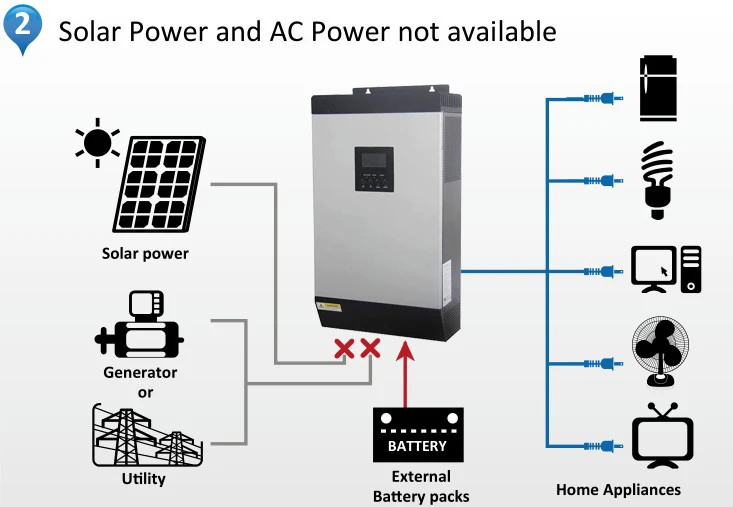

System Diagram :

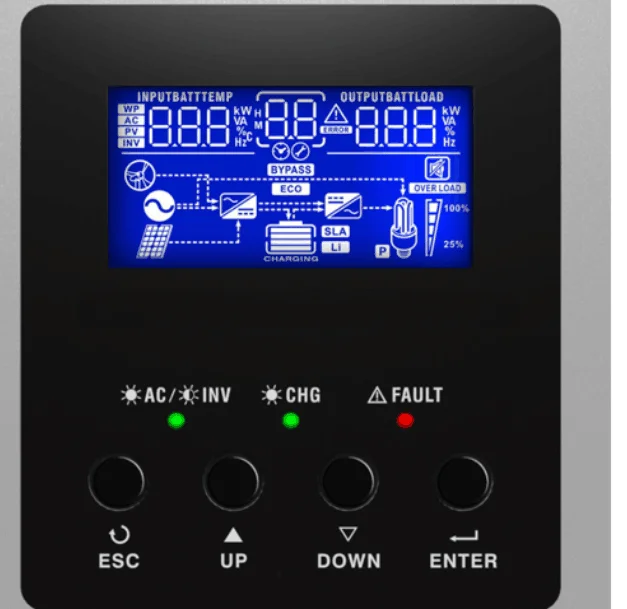

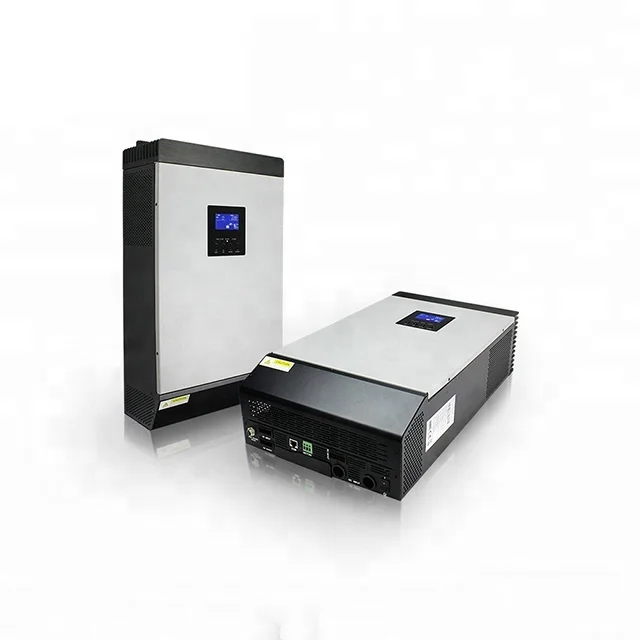

Inverter Detail







Parallel Connection:

Can support 9unit connect in parallel , single phase output :

Can support 9unit connect in parallel , 3phase380V output :

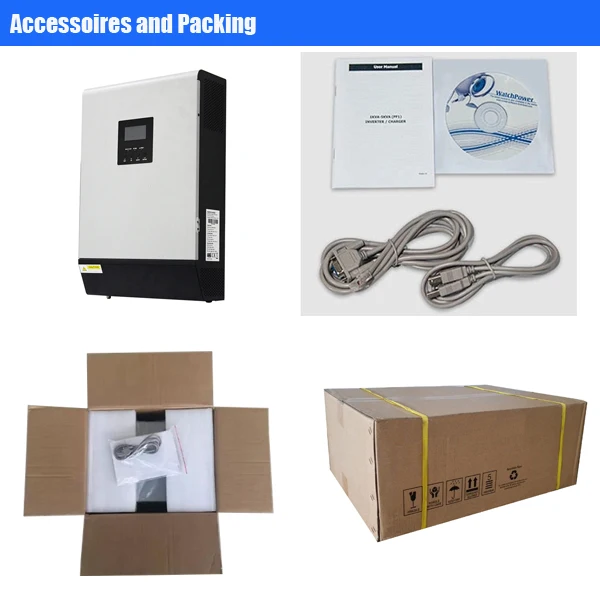

Packing

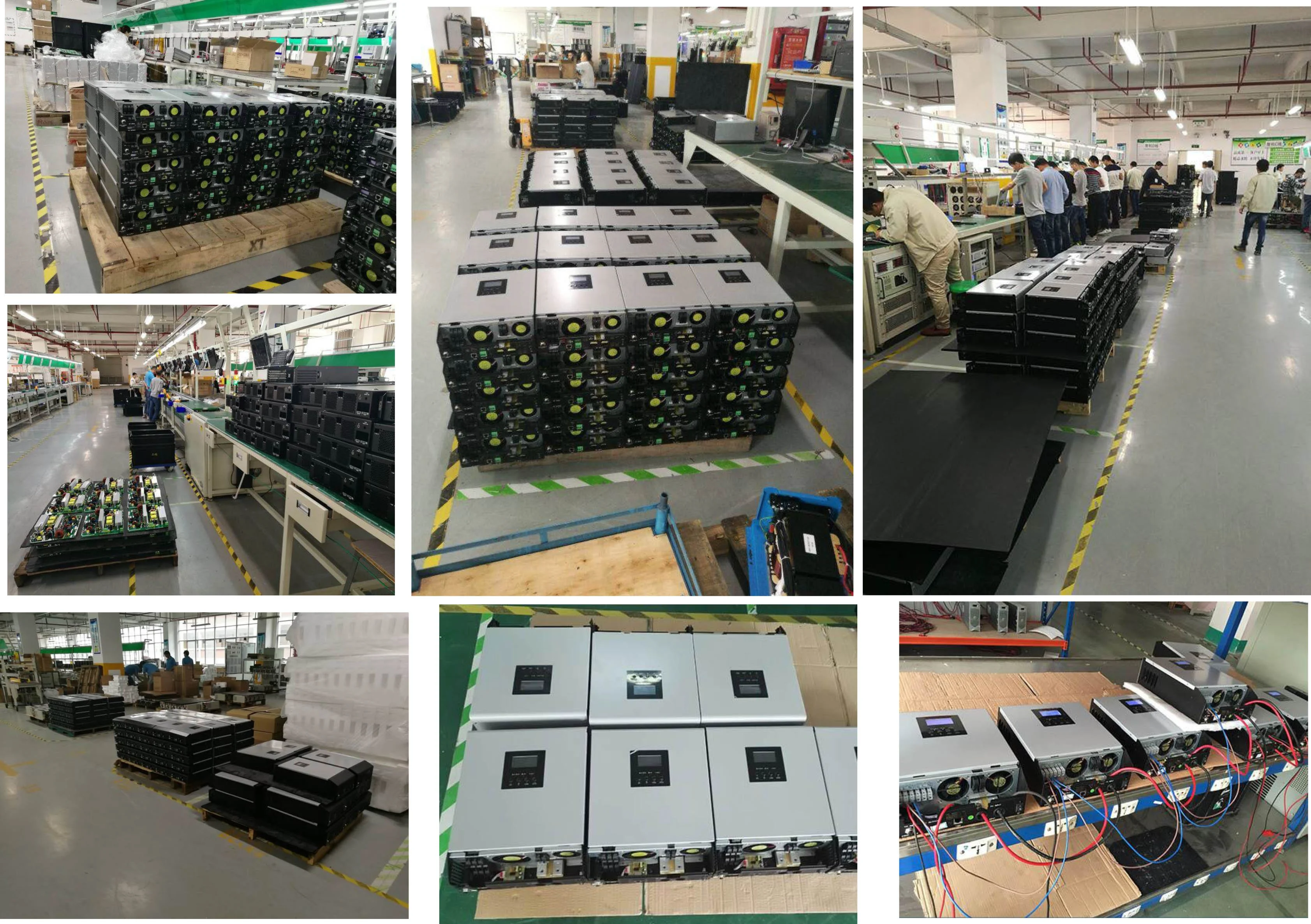

Factory View



Certificate :



FAQ

Q1. What's the payment term?

A. We accept TT,30% deposit and 70% balance before shipment.



Q2. How's the delivery time?

A. usually it will take about 5-10 days for production 50pcs





Q3. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.



Q5. Would you accept to use our logo?

A. Yes, But MOQ should be more than 100pcs



Q6. We want to know month capacity.

A. It depends on which model. For example for relay type small capacity , month capacity can reach near 2000pcs   and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Q8. Does the inverter connect with solar system ?

A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..



Q9. What kind of certificate you have ?

A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
