3L PE bottle jerry cans plastic blow moulding machine
- Category: >>>
- Supplier: Zhangjiagang Apollo Machinery Co. Ltd.
Share on (62475922262):
Product Overview
Description

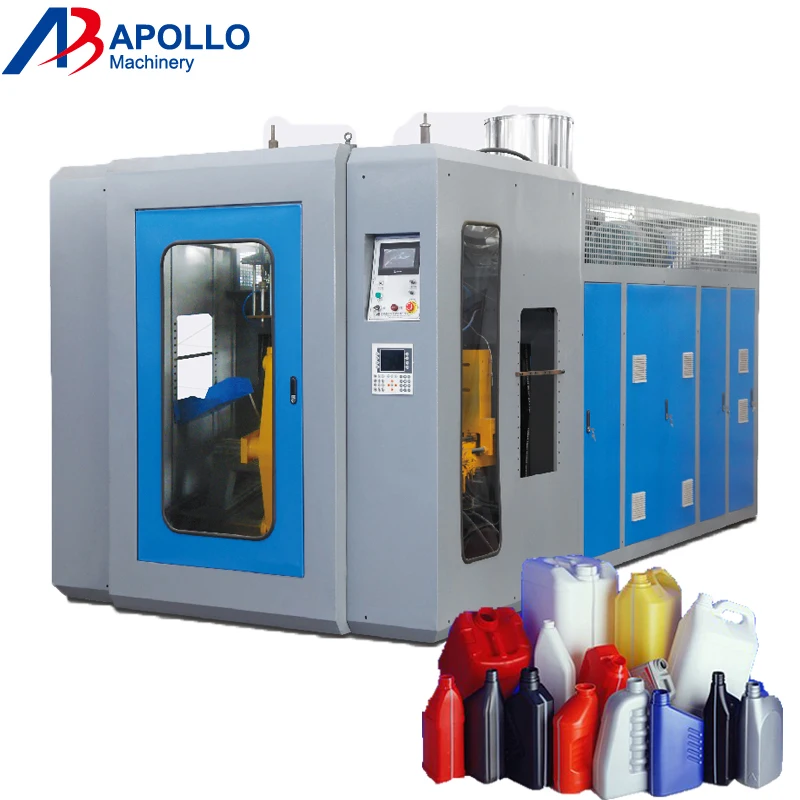

Automatic extrusion blow molding machine
Model No.: ABLB55II(double station double die head)

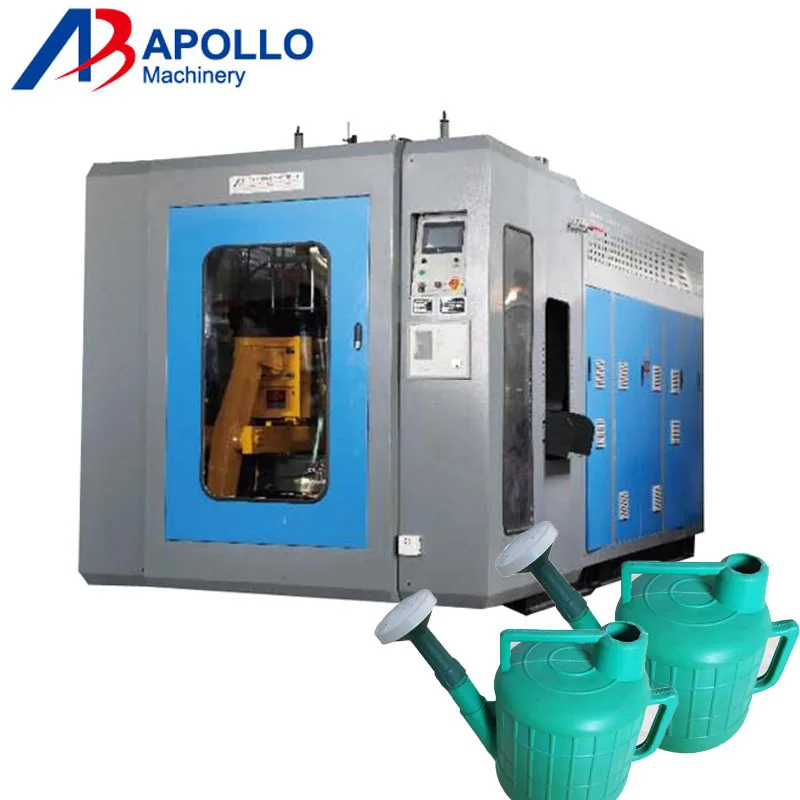

This type of blow molding machine ABLB55II can produce bottle, kettle, can, balls etc. The machine is especially designed for producing with material PE, PVC, PP so on. The productive capacity can reach 480~650pcs/hr.
Automatic extrusion blow molding machine ABLB55II

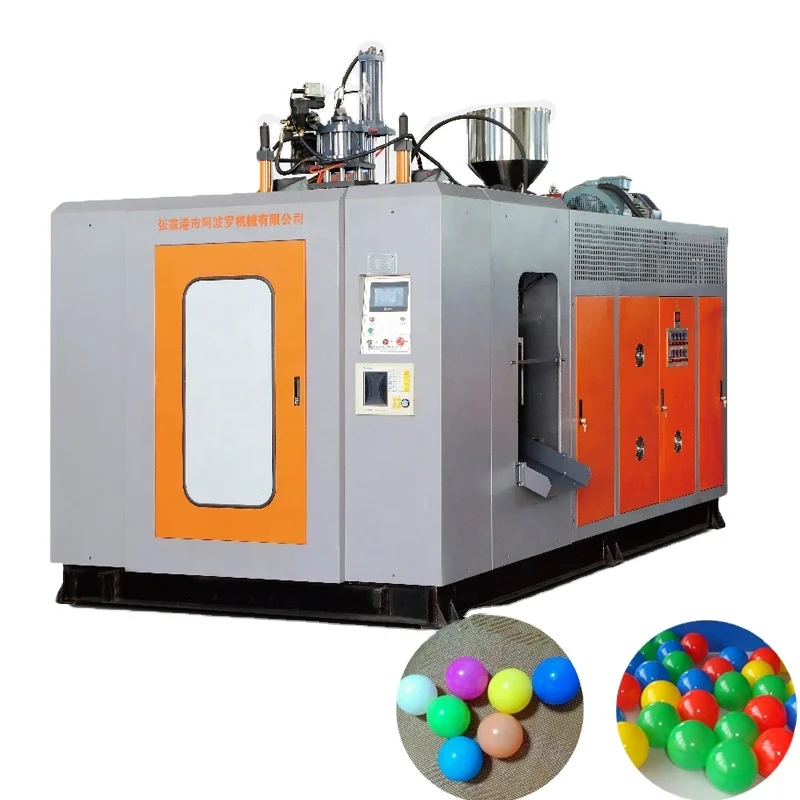

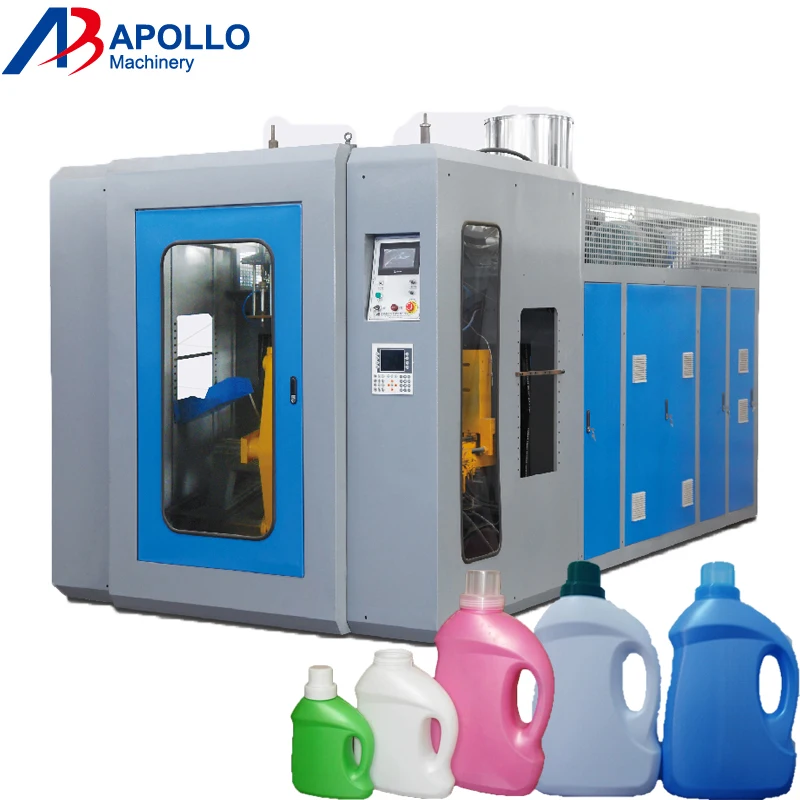

Shampoo bottles Plastic balls
The main components of the machine. ( ABLB55II)
electronic parts |
|
Name | Trader |
Micro computer control system | Japanese MITSUBISHI |
Temperature Controller | TAIWAN YANHUA PID |
Auxiliary Relay | OMRON |
contactor | Schneider from France |
Electric motor | Three phase 220V or 380V |
Power Source | TAIWAN MEANWELL |
Transducer | TAIDA FROM CHINA |
hydraulic parts |
|
Name | Trader |
Oil pump | TAIWAN HIGH-TECH |
Valve | TAIWAN JINSHUN/YUKEN |
Oil pump and connection | TAIWAN JINSHUN/YUKEN |
Sealed part | HALLITE |
air control system |
|
Name | Trader |
Cylinder | AIRTAC |
Air Valve | FESTO |
Technical Parameters: ( ABLB55II )
Max. Product volume | 1 liters |
Out put capacity | 480~700pcs/h |
Screw diameter | 55mm |
Screw L/D ratio | 24 L/D |
Screw drive power | 15 KW |
Screw heating capacity | 5 KW |
No.of heating zone | 3 zones |
Output of HDPE | 60 KG/H |
Oil pump drive power | 7.5 KW |
Clamping force | 45KN |
Max.size of mold | 148-508mm |
Mold stroke | 320 X 360mm |
Max.die diameter | 140mm |
Blowing pressure | 0.6 mpa |
Air Volume | 0.5 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 40 L/MIN |
Size of Machine | 2.9x1.5x2.5m |
Weight of machine | 4.5 ton |
PAYMENT:
30% down payment paid at signing this contract by T/T , and the balance of 70% paid before shipment by T/T or irrevocable L/C.
DELIVERY:
Delivery no later than 40 days, after we received the deposit.
blow molding machine
EXHIBITION
CERTIFICATE
FACTORY
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients’ requirements, including the structure special design and brand of parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a.Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b.Port of Loading: SHANGHAI, CHINA.
c.Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d.Container needed: One 20GP container.
4. How is APOLLO after-sales service?
a.Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval. Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and smoothly put into o peration once reach the client`s factory.
b.Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of
equipment are put in the correct position in their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a.APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b.Mould within one year or 5millions warranty
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients’ factory to the users, so that they could understand the machine features and could operate the machine by themselves.
5. What is the warranty period?
a.APOLLO machine Main parts is one year warranty with a lifelong maintenance.
b.Mould within one year or 5millions warranty
