1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder
1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder

1000mm Woodworking MDF Curve Board Solid Wood Cabinet Door Disc Sanding Polishing Machine Automatic Door Grinder

Share on (62476048894):


Price:

Quantity:


Product Overview

Description


Technical Specifications
Working Width
1000mm
Working Thickness
3-100mm
Min. Working Length
320mm
Feeding Speed
0-15/min(adjustable)
Polishing Disc Motor Power
2.2kw (variable frequency motor)
Polishing Disc Swing Motor Power
0.37kw
Polishing Disc Lifting Motor Power
0.37kw
Vertical Roller Motor Power
1.5kw
Vertical Roller Swing Motor Power
0.37kw
Vertical Roller Lifting Motor Power
0.37kw
Cross Roller Motor Power
2.2kw*2
Cross Roller Lifting Motor Power
0.37kw
Whole Sanding Shelf Lifting Motor Power
2.2kw
Feeding Motor Power
2.2kw
Overall Dimension
4200*2200*2000mm
N.W.
3600kgs
Brief Introduction
It is suitable for PVC wood door, solid wood composite door, solid wood door, molding press door, MDF cabinet door, different solid wood cabinet, baby crib, office furniture, customized furniture, PU, PE, UV, NC primer, etc.
Details Images

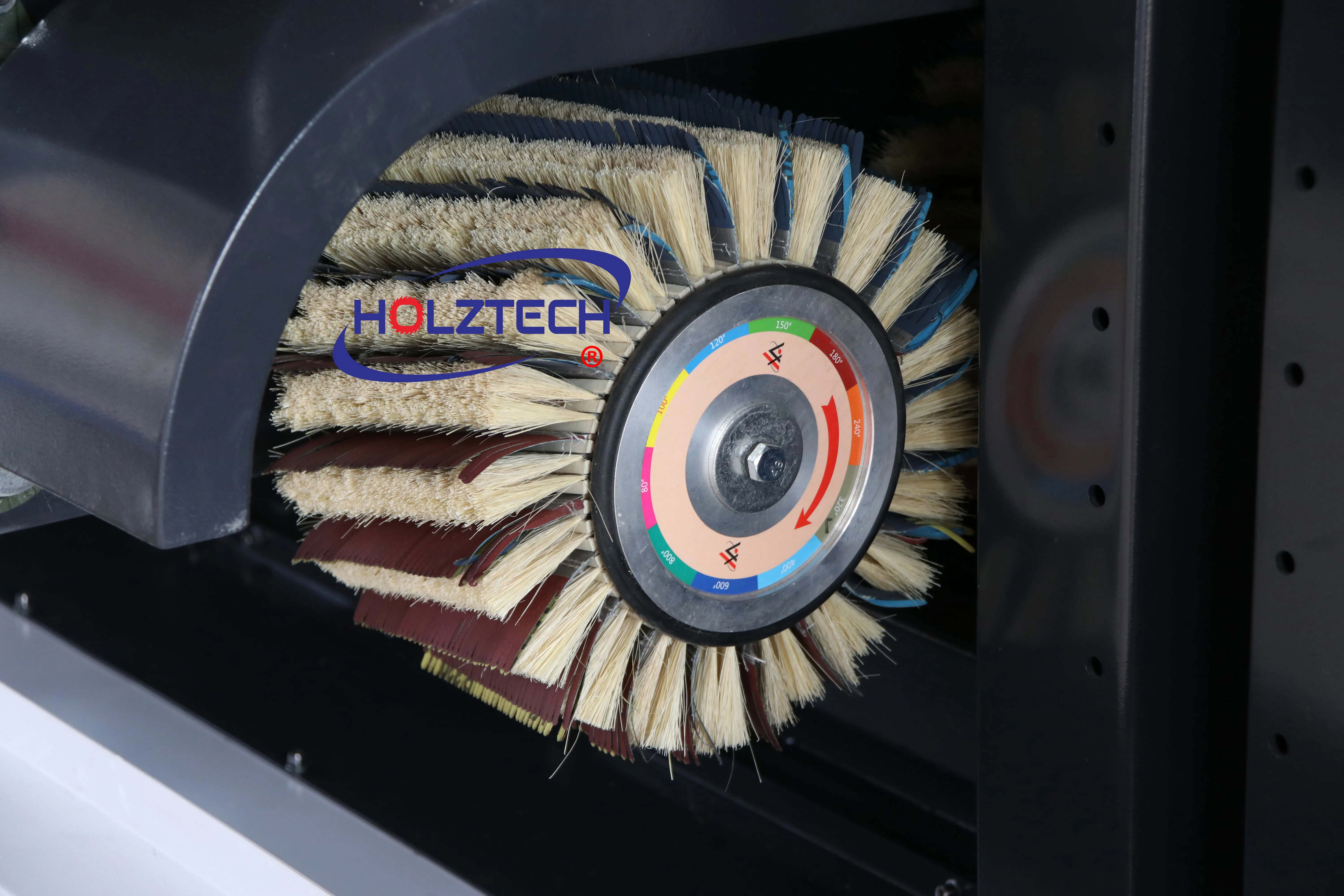

Two groups of cross rollers which can lift separately and rotate in opposite directions, to polish the irregular surface and R corner.

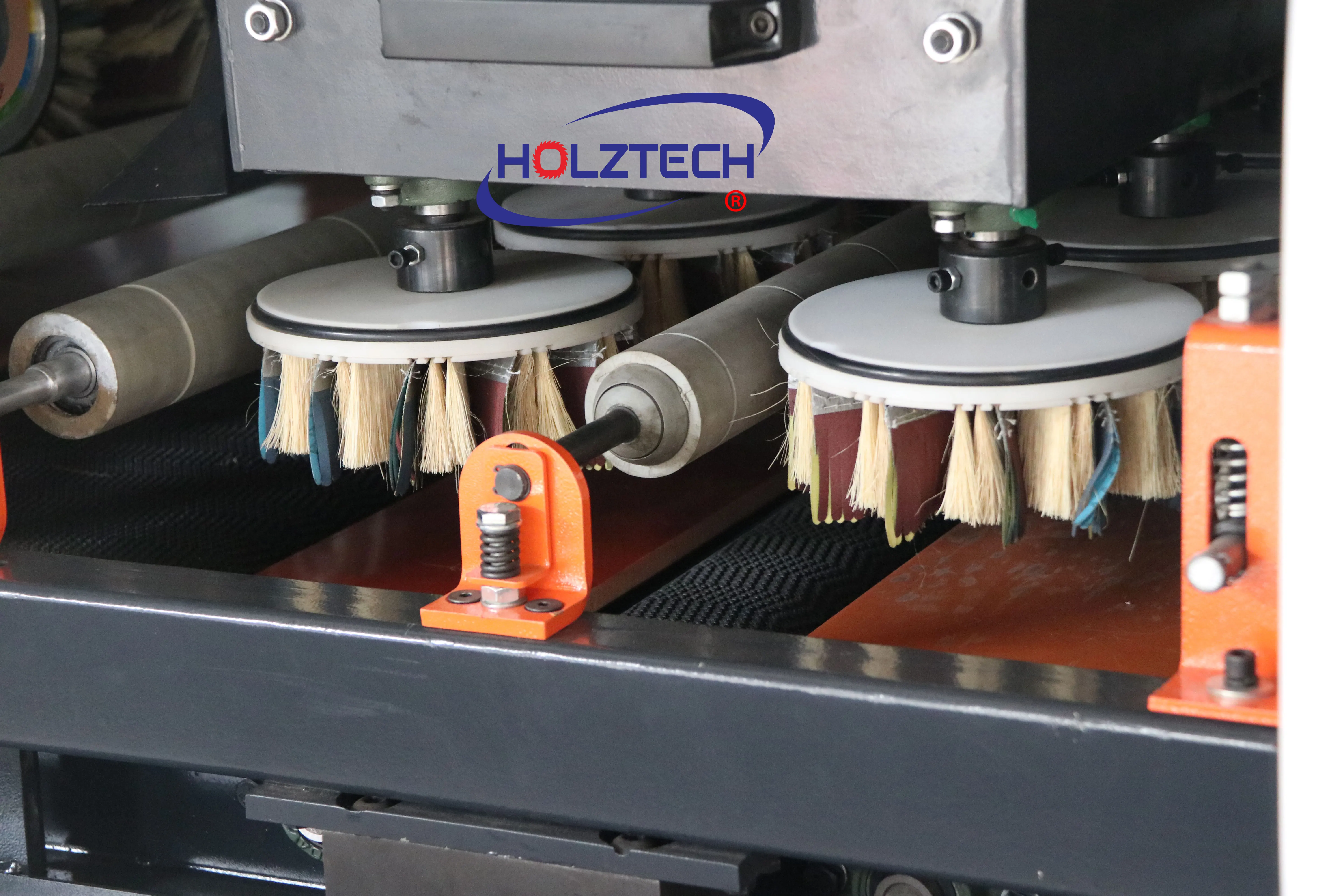

Two groups of disc rotate in opposite directions, the speed is adjustable by frequency control.
Iregular surface and corner can be polished with the boards feeding and brushes rotating.

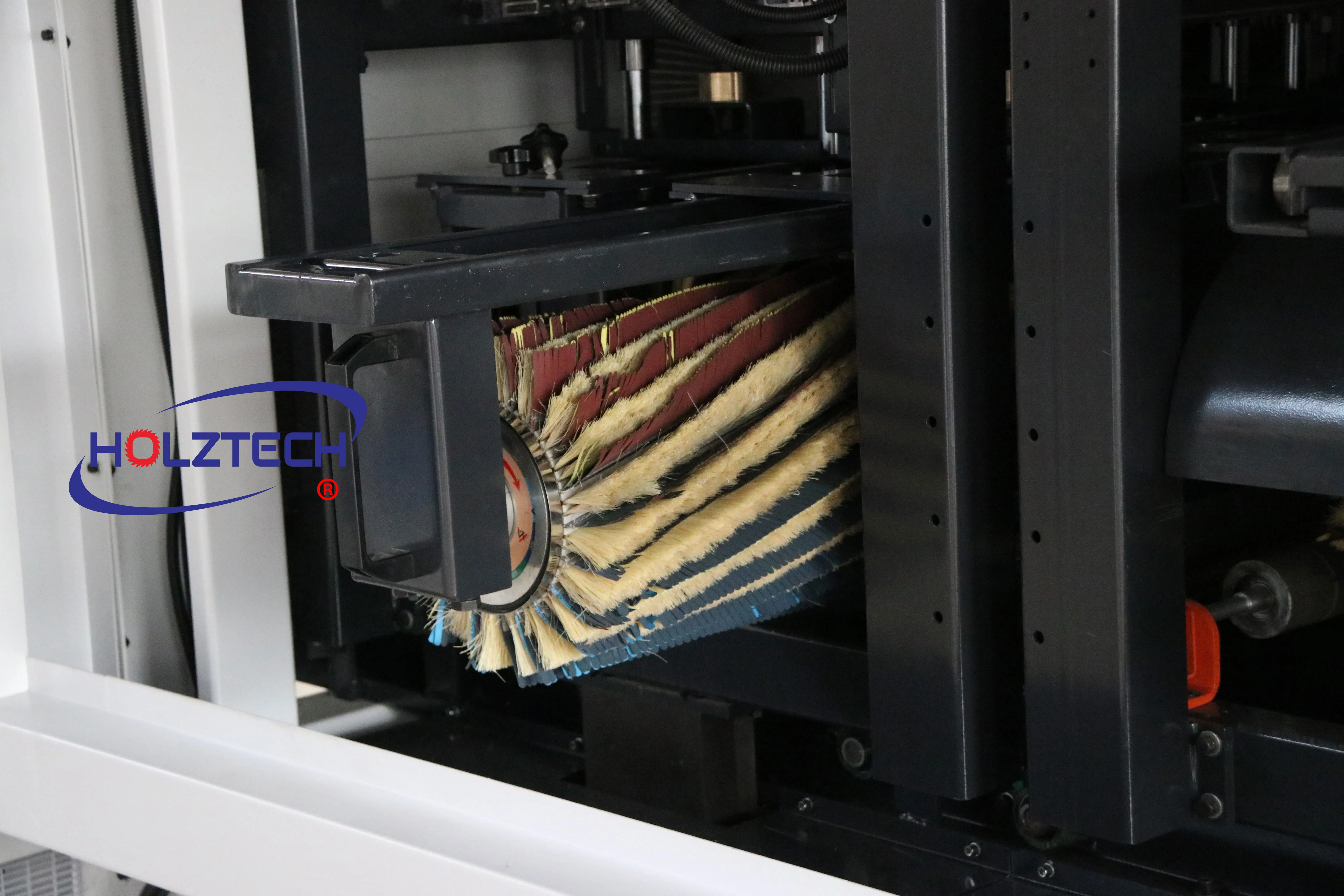

The vertical rollers rotate separately and swing together at the same time. To achieve good result of polilshing board surface and grooves.
Sanding shelf can be pulled to replace sandpapers easily.
Double sided Hermes sandpapers made in Germany for two directions sanding. Rough sanding forwardly and fine sanding backwardly.
Schneider electrical parts.
Delta inverters
PLC control with memory system. It can store 100 pieces of different boards parameters. It is easy to set the machine for different boards with the storing data.
Working speed on each sanding group is controlled by inverter separately
Cast Parts with Our Logo HOLZTECH
