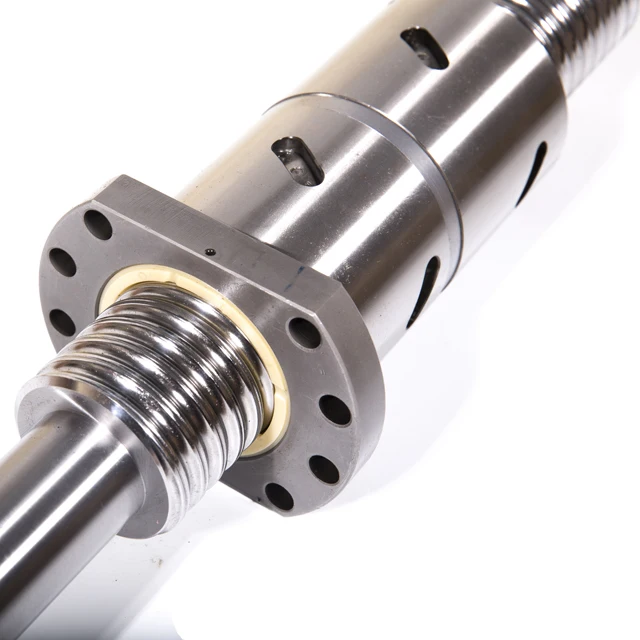

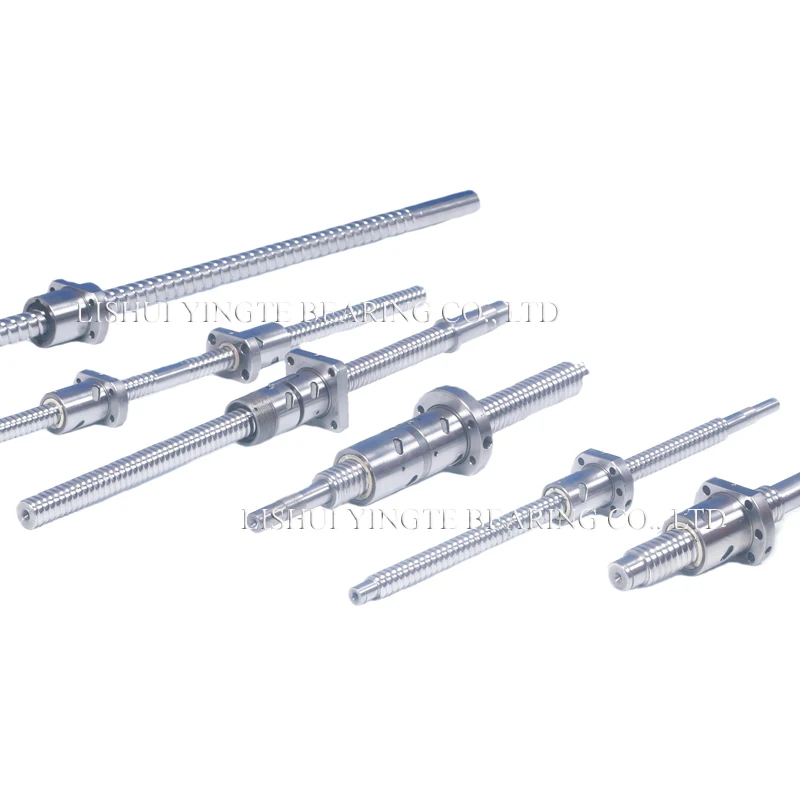

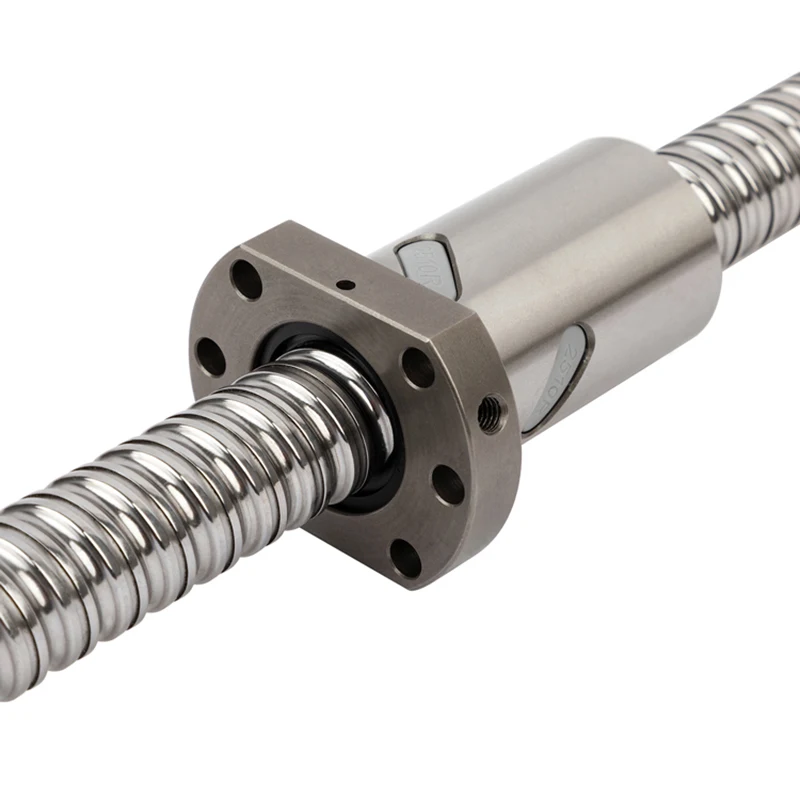

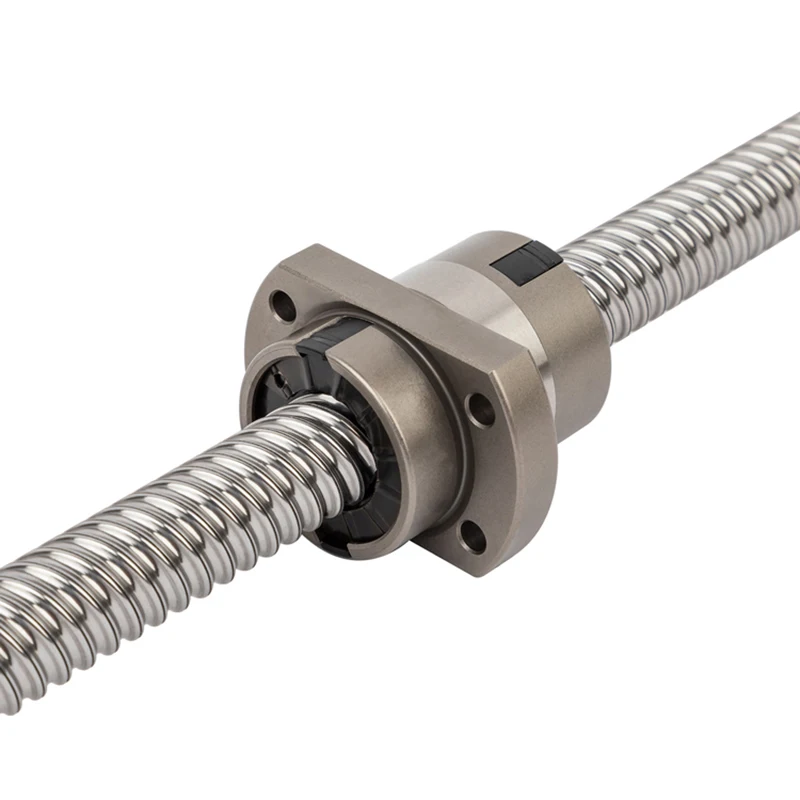

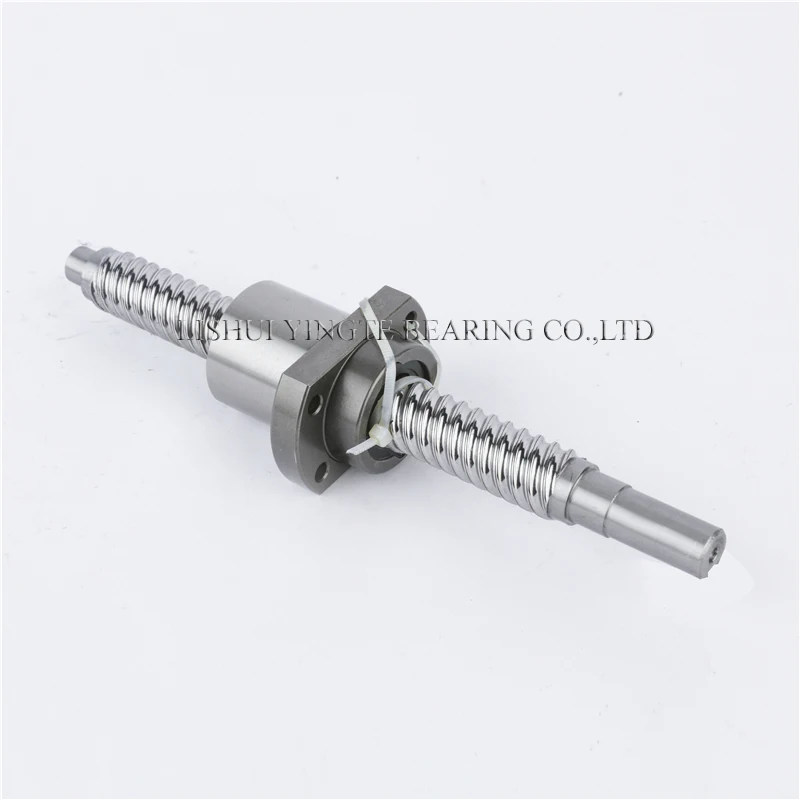

SHAC SFE SFY High lead accuracy DIN standard compliant TAIWAN Precision Ball Screw
- Category: >>>
- Supplier: Lishui Yingte Bearing Co. Ltd.
Share on (62476092483):
Product Overview
Description
Product Overview

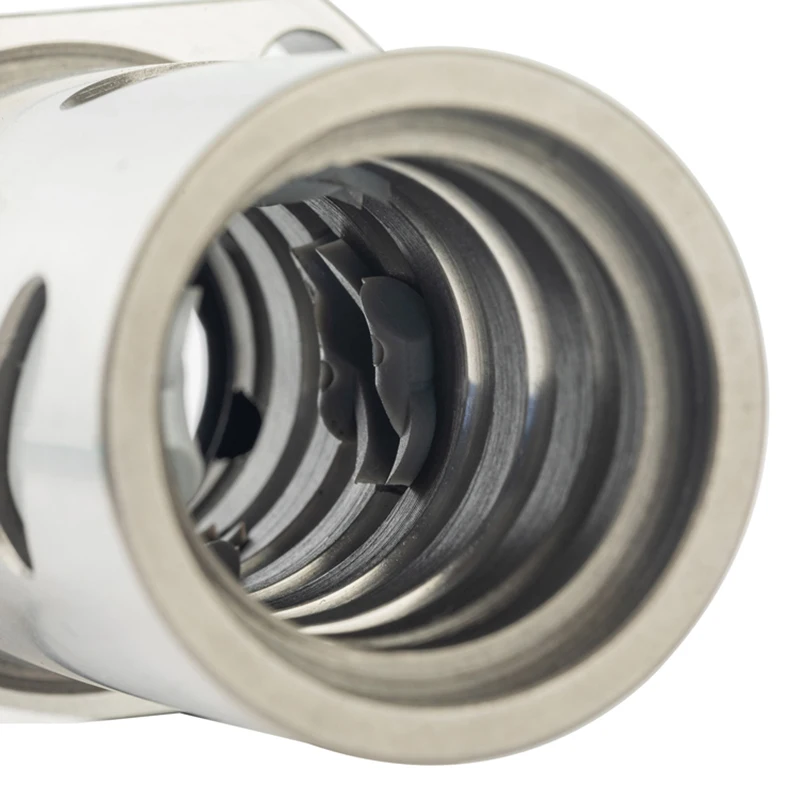

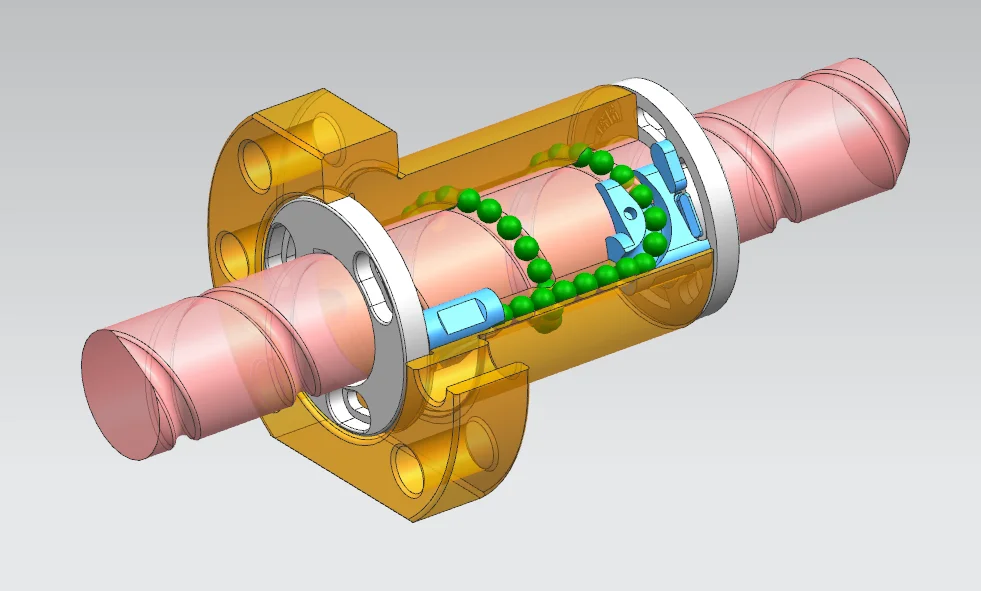

ABOUT BALL SCREW
A ball screw,like a lead screw,converts rotary motion into linear motion.The device consists of a threaded shaft and a ball nut.The latter device rides on the screw,supported by a series of ball bearings that provide a rolling surface rather than the sliding surface of a lead screw. The balls roll between the nut and shaft. Because there is no sliding motion, ball screws run more efficiently than lead screws. This is their great advantage. The efficiency of ballscrews is relatively constant and is typically better than 90%.Ball screw are often a first choice for linear-motion applications because the use of recirculating ball bearings provides high efficiency,load capacity,and positioning accuracy. Furthermore, ballscrews generally provide equal or better load capacity than leadscrews, and so are a better choice when load requirements exceed leadscrew capabilities.

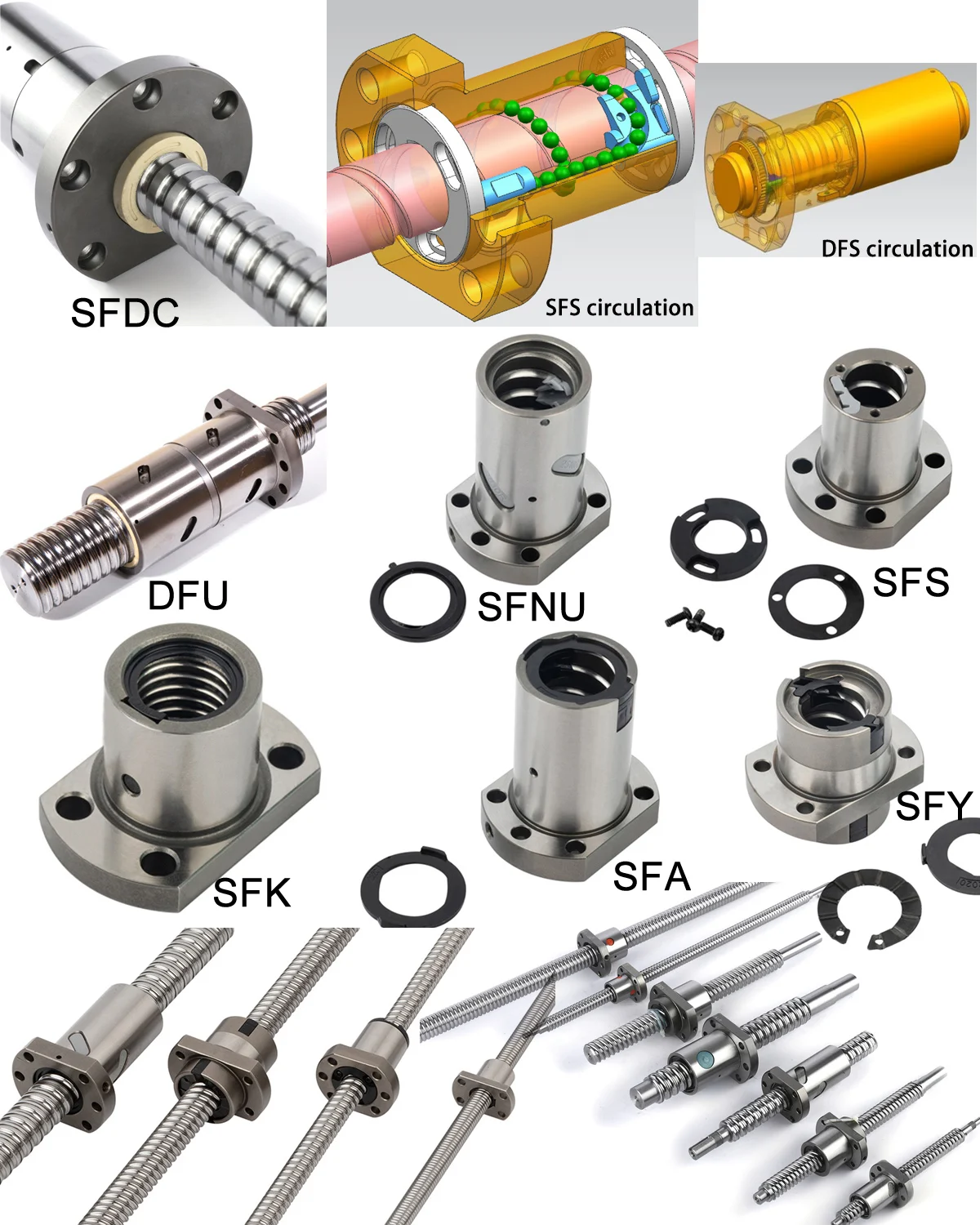

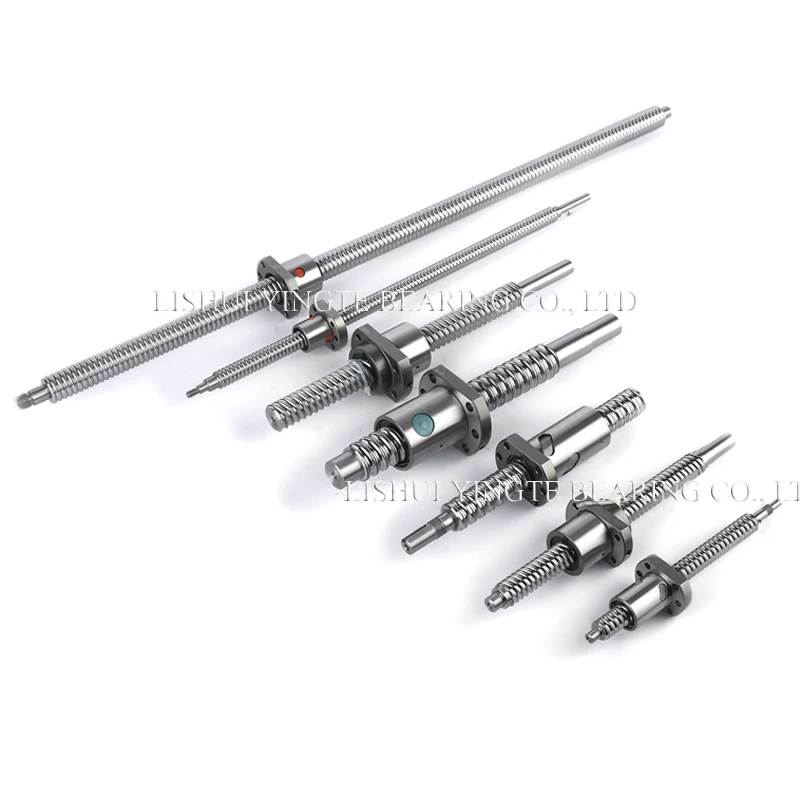

Main Series:
SFDC,DFDC,SFNU,DFNU,SFNI,DFNI,SFA,SFS,
SFDC,DFDC,SFNU,DFNU,SFNI,DFNI,SFA,SFS,
DFS,SFY,SFK,SCI
Diameter from 6MM to 100MM with difference pitch,C3/C5/C7/C10 grade
Performance:Low noise,High precision,Good rigidity,Easily assembly,Long lifetime,Import raw material
Support customize different length,special size nut OEM/ODM available
1 | Ball Screw and Nut Diameter/Lead | Diameter 6MM~100MM Pitch 1MM~80MM |
2 | Size series | SFDC,DFDC,SFNU,DFNU,SFNI, DFNI,SFA,SFS,DFS,SFY,SFK,SCI |
3 | Manufacturing Process | Rolling,Grinding |
4 | Thread Direction | Right thread,Left Thread. R&L integrated |
5 | Raw material | C3/C5 ground screw: 50CRMO4 C5/C7/C10 rolling screw: S55C Nut: SCM420H(20CrMo) |
6 | Ball Screw Maximum Length | Miniature screw 0601: 600MM Miniature screw 8MM/10MM/12MM/14MM: 1200MM SCR/SSR series diameter 12MM/16MM:3000MM SCR/SSR series diameter 20MM:4000MM SCR/SSR series diameter 25MM/32MM/40MM/50MM:6000MM SCR series diameter 63MM/80MM:6000MM/7500MM/9000MM Special size also support length customized |
7 | Surface with special processing | Support chromed,normal blackning,hard chromed blackening |
8 | Assembly Axial Play and Preload | P0,P1,P2,P3,P4 |
9 | Documents service to guarantee | Testing document and certificate,2D/3D drawings |
10 | Features | Low noise,High precision,Good rigidity,Easily assembly,Long lifetime,Import raw material,interchangeble |
11 | Lead time | Within 7days base on stockiest size products,can be check base on quantity |
SHAC Ball Screw Advantage
1;Comprehensive product line
2;A large proportion imported raw material
3;60% imported machines,especially the grinding machine and testing machines,heat treament machines,
4; Strictly quality control and inspection,100% processes inspection
5;10+years Experienced technology and management team
6;Attractive and reasonable competitive price
7:12+years OEM and export experience
8;Fast delivery,large production ability and storage ability
9;Good service and after sales support
2;A large proportion imported raw material
3;60% imported machines,especially the grinding machine and testing machines,heat treament machines,
4; Strictly quality control and inspection,100% processes inspection
5;10+years Experienced technology and management team
6;Attractive and reasonable competitive price
7:12+years OEM and export experience
8;Fast delivery,large production ability and storage ability
9;Good service and after sales support
PRODUCT CONFIGURATION

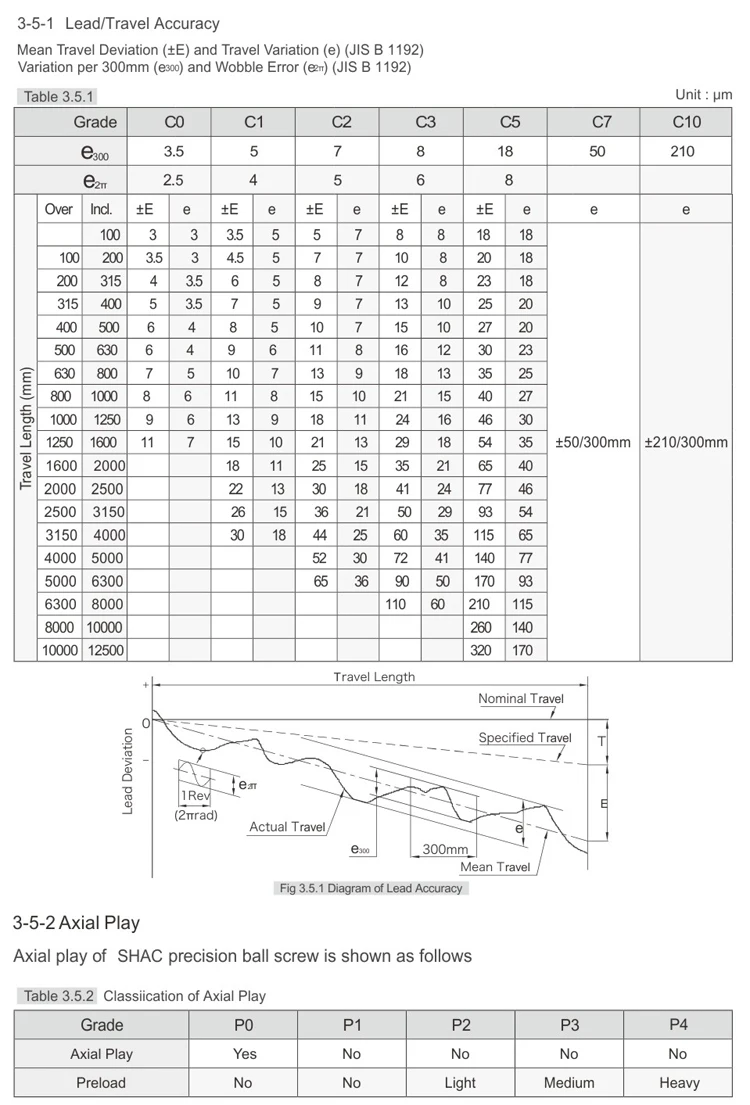

Product parameters

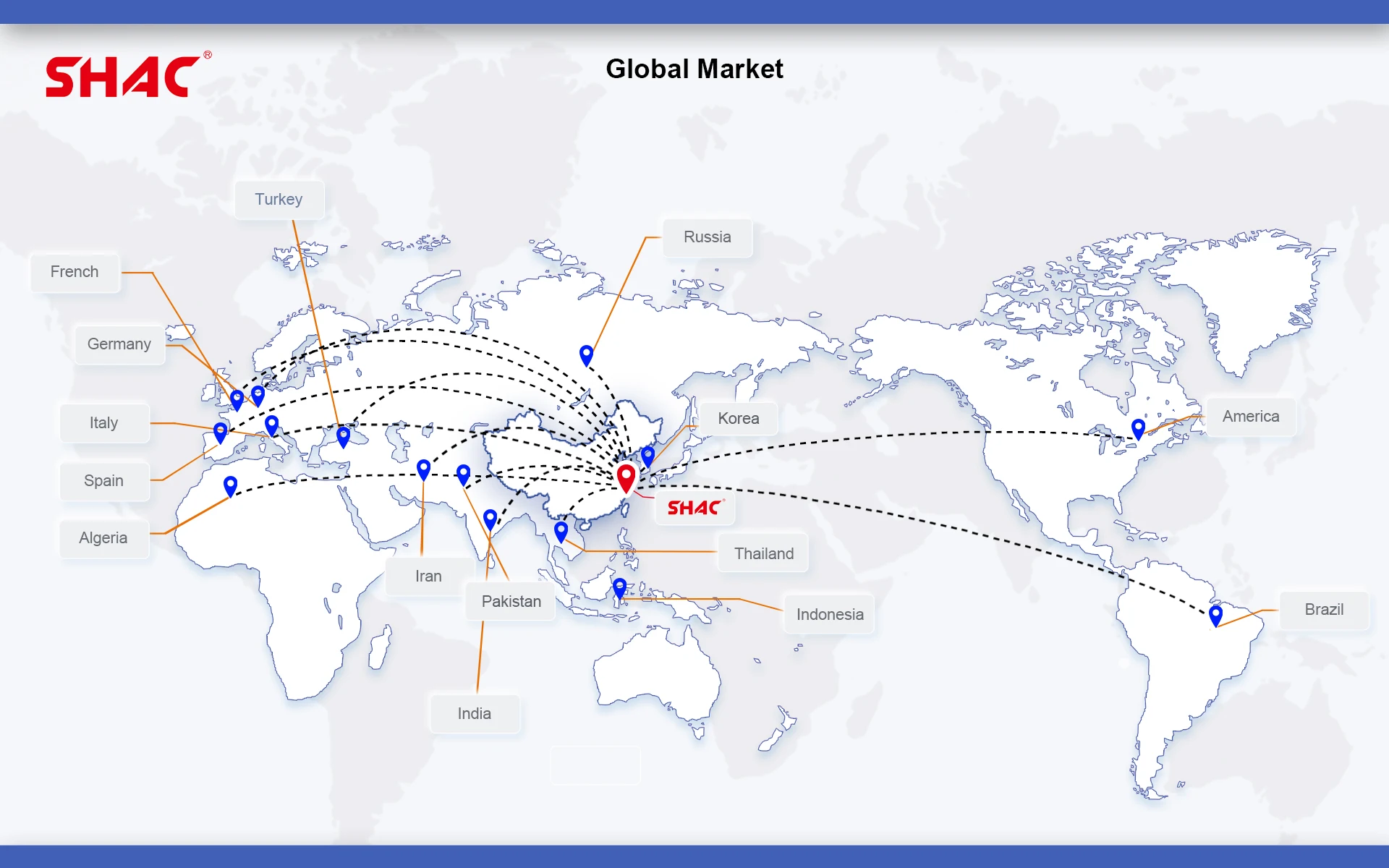

SALES AND SERVICE NETWORK

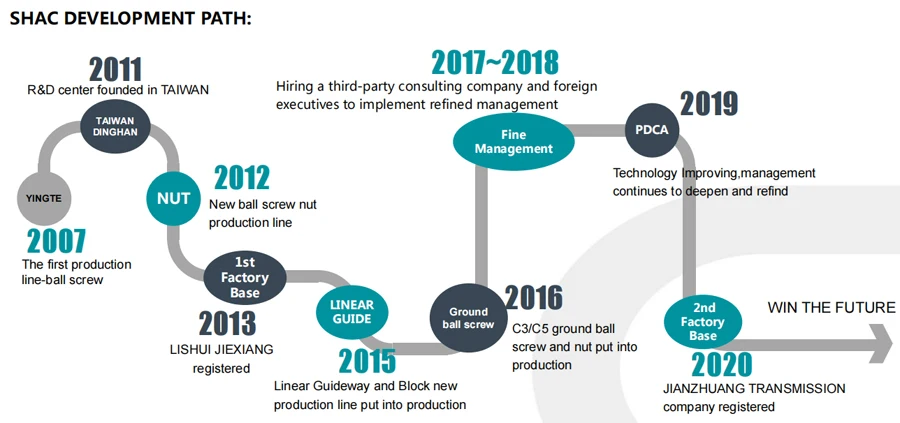

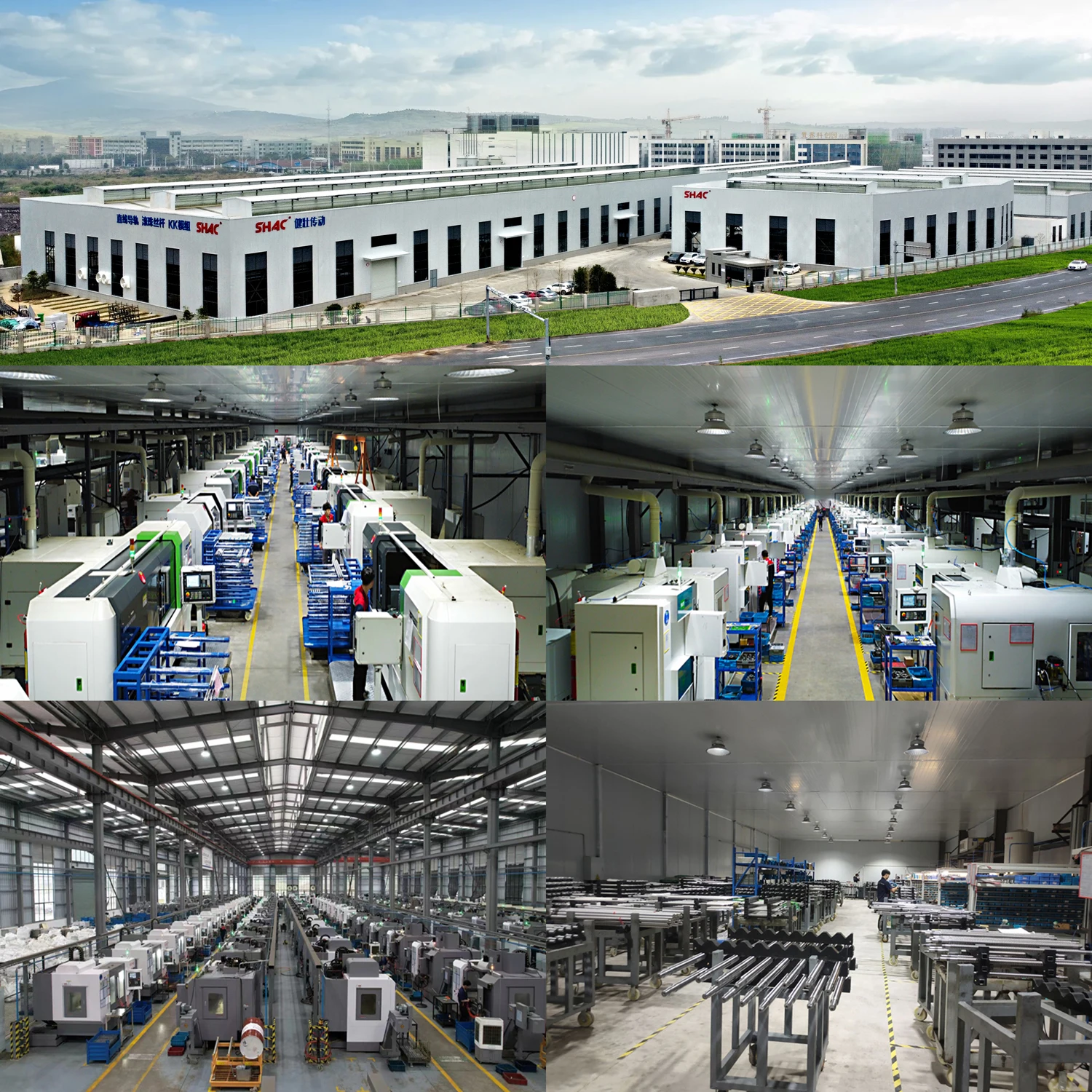

SHAC company development path
Lishui Yingte Bearing Co., Ltd. was founded in 2007,is a modern enterprise specializing in R&D, manufacturing, sales and after-sales of linear transmission components, such as linear guide, ball screw, linear module.
In 2007,Yingte invested the first production line of ball screw, then 16million dollars was invested to build three modern production lines, including for rolled ball screw, ground ball screw and precision ball screw nut.
In 2011,Taiwan Dinghan Transmission Technology Co., Ltd. was founded in Taiwan as a research and development center.
In 2013,Yingte invested 21million dollars registered Lishui Jiexiang Technology Co., Ltd. as factory base to expand the reproduction of linear guideway and block.In 2016,Jiexiang has been rated as a national high-tech enterprise, strictly follows the international standards such as I S O 9 0 0 1, I S O 1 4 0 0 1.From raw material purchase to products sale have implemented strict control to ensure product quality.
In 2020, Zhejiang Jianzhuang transmission technology co.,ltd registered and second factory base around 65000square meter put into production.
Yingte has established a regional direct sales network in more than 30 regions of domestic and more than 50countries have partners. In order to control the quality of the products, Yingte introduced and independently developed a number of testing equipment, such as Slider Finished Product Testing Line, Screw Lead Tester, Rockwell Hardness Tester, Contourgraph, provide high-quality products to customers so as to achieve stable development
In 2007,Yingte invested the first production line of ball screw, then 16million dollars was invested to build three modern production lines, including for rolled ball screw, ground ball screw and precision ball screw nut.
In 2011,Taiwan Dinghan Transmission Technology Co., Ltd. was founded in Taiwan as a research and development center.
In 2013,Yingte invested 21million dollars registered Lishui Jiexiang Technology Co., Ltd. as factory base to expand the reproduction of linear guideway and block.In 2016,Jiexiang has been rated as a national high-tech enterprise, strictly follows the international standards such as I S O 9 0 0 1, I S O 1 4 0 0 1.From raw material purchase to products sale have implemented strict control to ensure product quality.
In 2020, Zhejiang Jianzhuang transmission technology co.,ltd registered and second factory base around 65000square meter put into production.
Yingte has established a regional direct sales network in more than 30 regions of domestic and more than 50countries have partners. In order to control the quality of the products, Yingte introduced and independently developed a number of testing equipment, such as Slider Finished Product Testing Line, Screw Lead Tester, Rockwell Hardness Tester, Contourgraph, provide high-quality products to customers so as to achieve stable development
SIMILAR PRODUCTS
FAQ
Q1:Do you accept small orders?
A:If your order bearings are our standard size,we accept even 1pc.
Q2:Can I get free sample?
A:Yes,limited,free sample available,freight cost must be paid by your side.
Q3:Are you factory or trade company?
A: We are manufacturer,TAIWAN technology team joint venture factory.
Q4:Can we mark our brand on your bearings and packing?
A:Yes,we support OEM your brand,the details let's negotiation.
Q5:How long is the delivery?
A:Small orders unuslly takes 3~7days.big orders ususlly 20~35days,
A:If your order bearings are our standard size,we accept even 1pc.
Q2:Can I get free sample?
A:Yes,limited,free sample available,freight cost must be paid by your side.
Q3:Are you factory or trade company?
A: We are manufacturer,TAIWAN technology team joint venture factory.
Q4:Can we mark our brand on your bearings and packing?
A:Yes,we support OEM your brand,the details let's negotiation.
Q5:How long is the delivery?
A:Small orders unuslly takes 3~7days.big orders ususlly 20~35days,
depending on orders quantity and whether are standard size.
