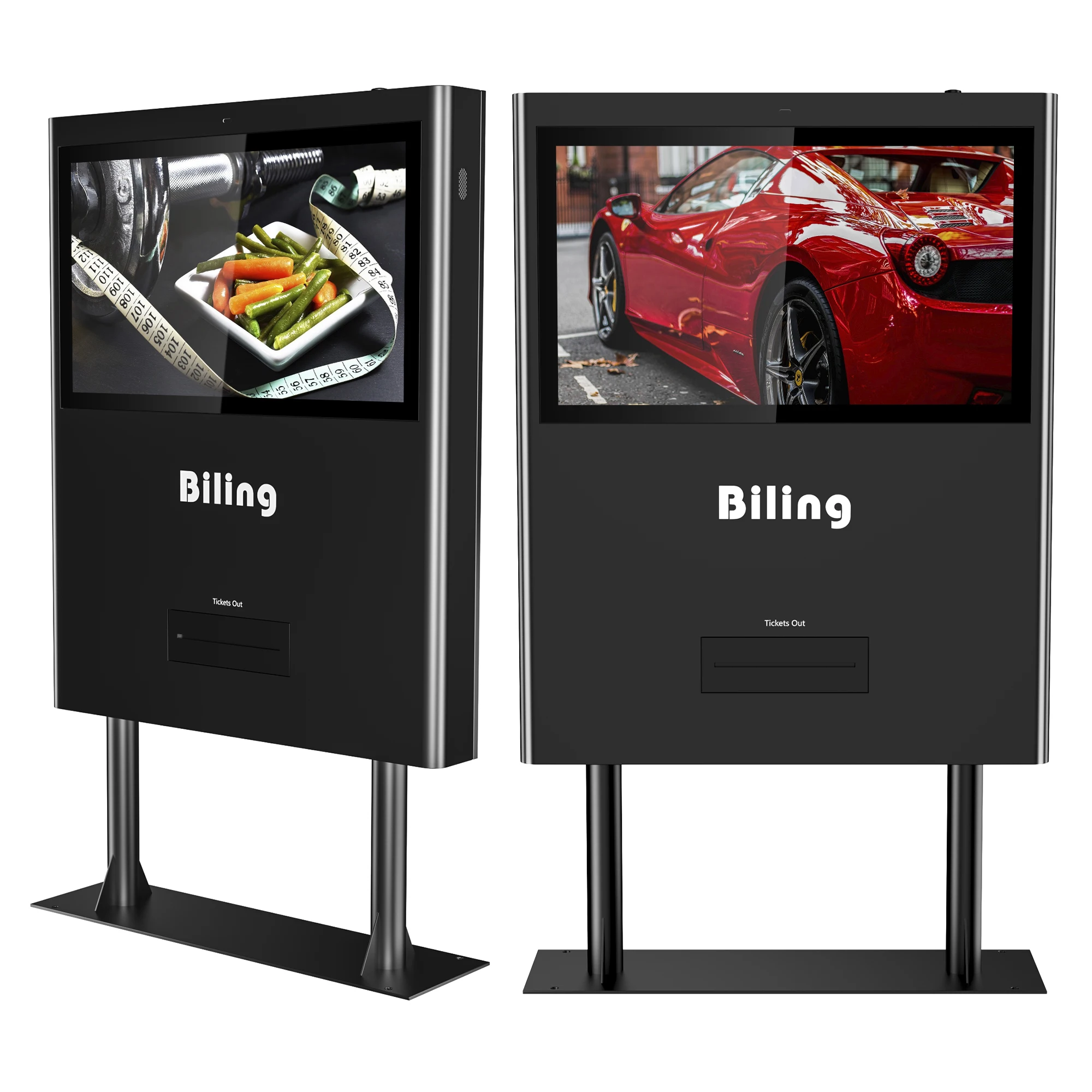

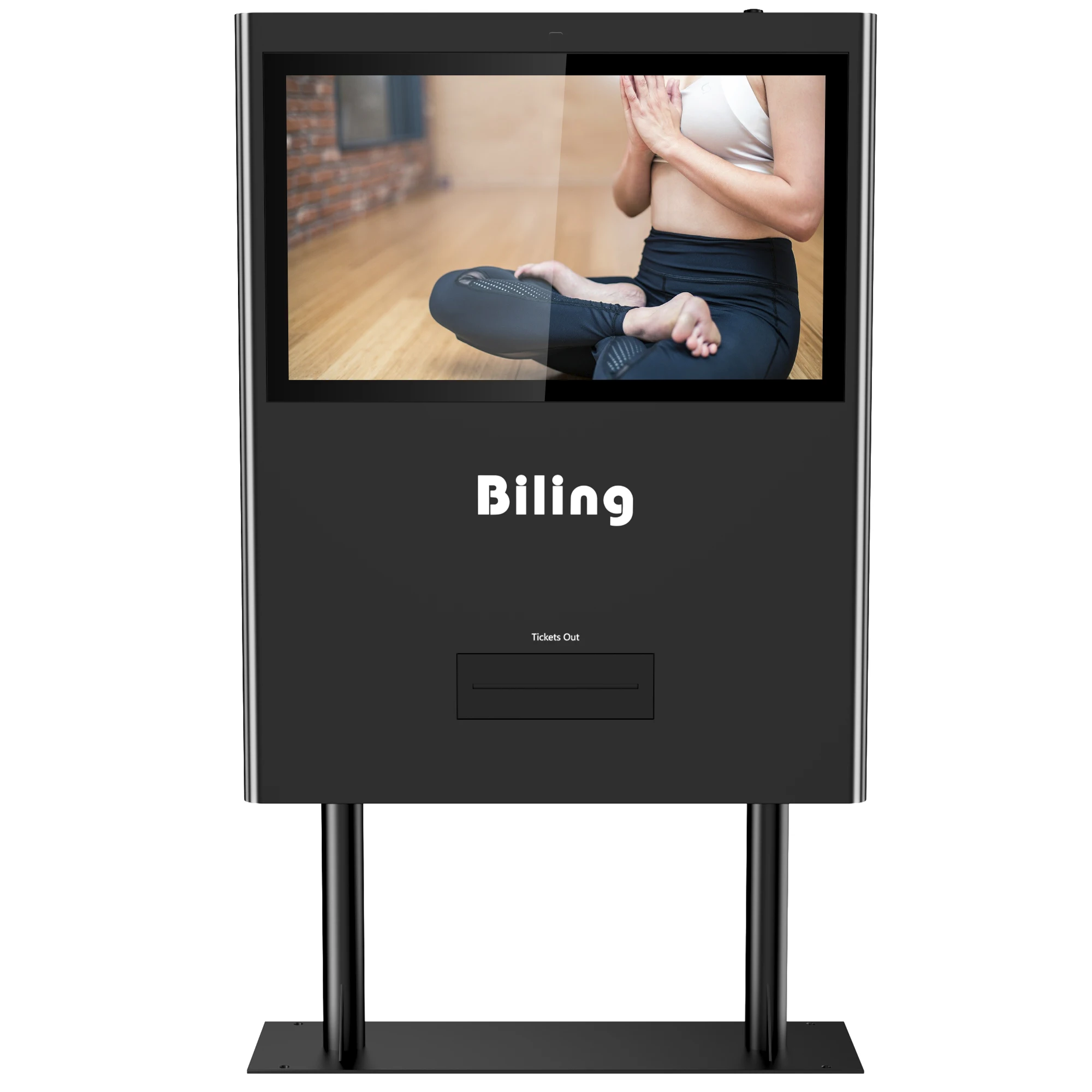

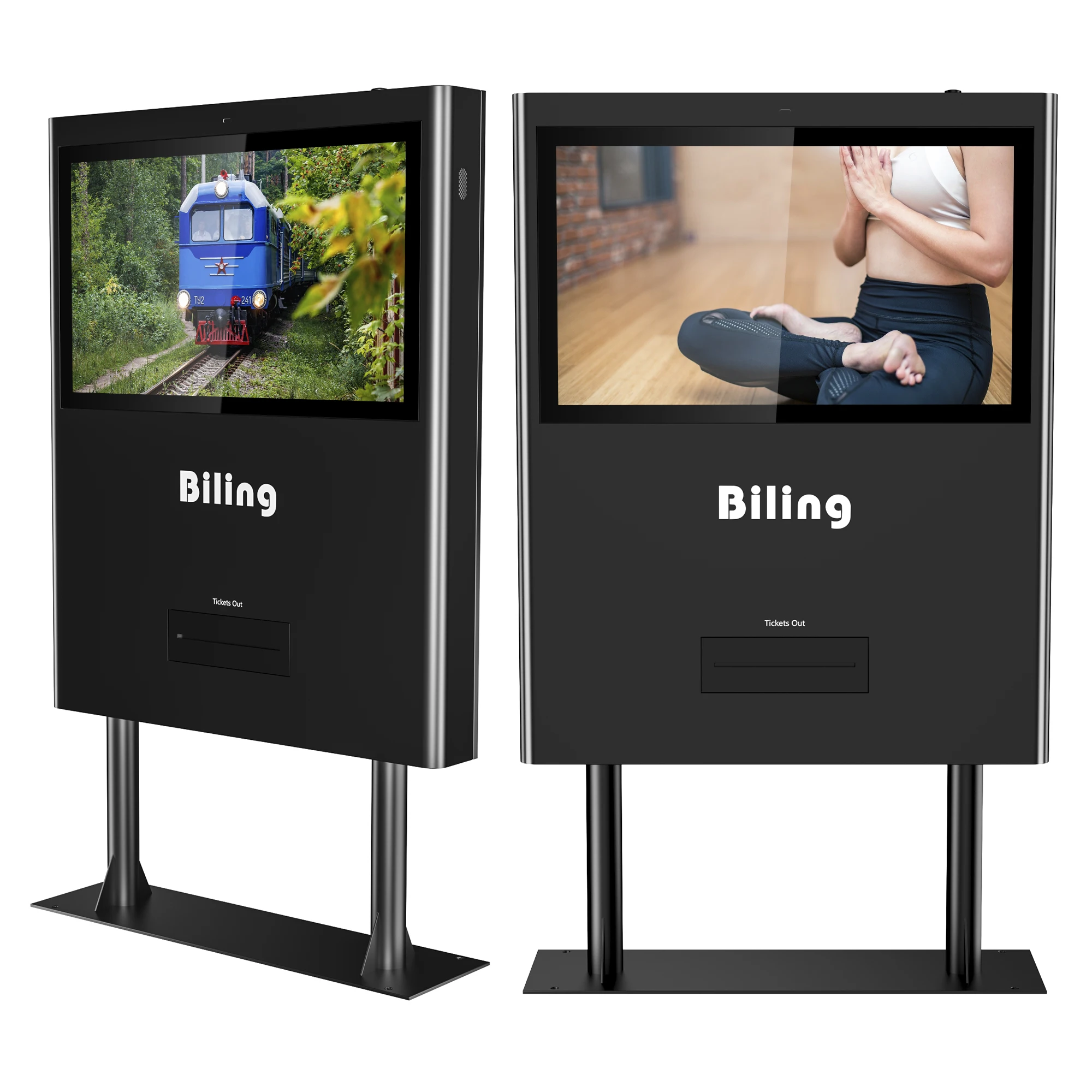

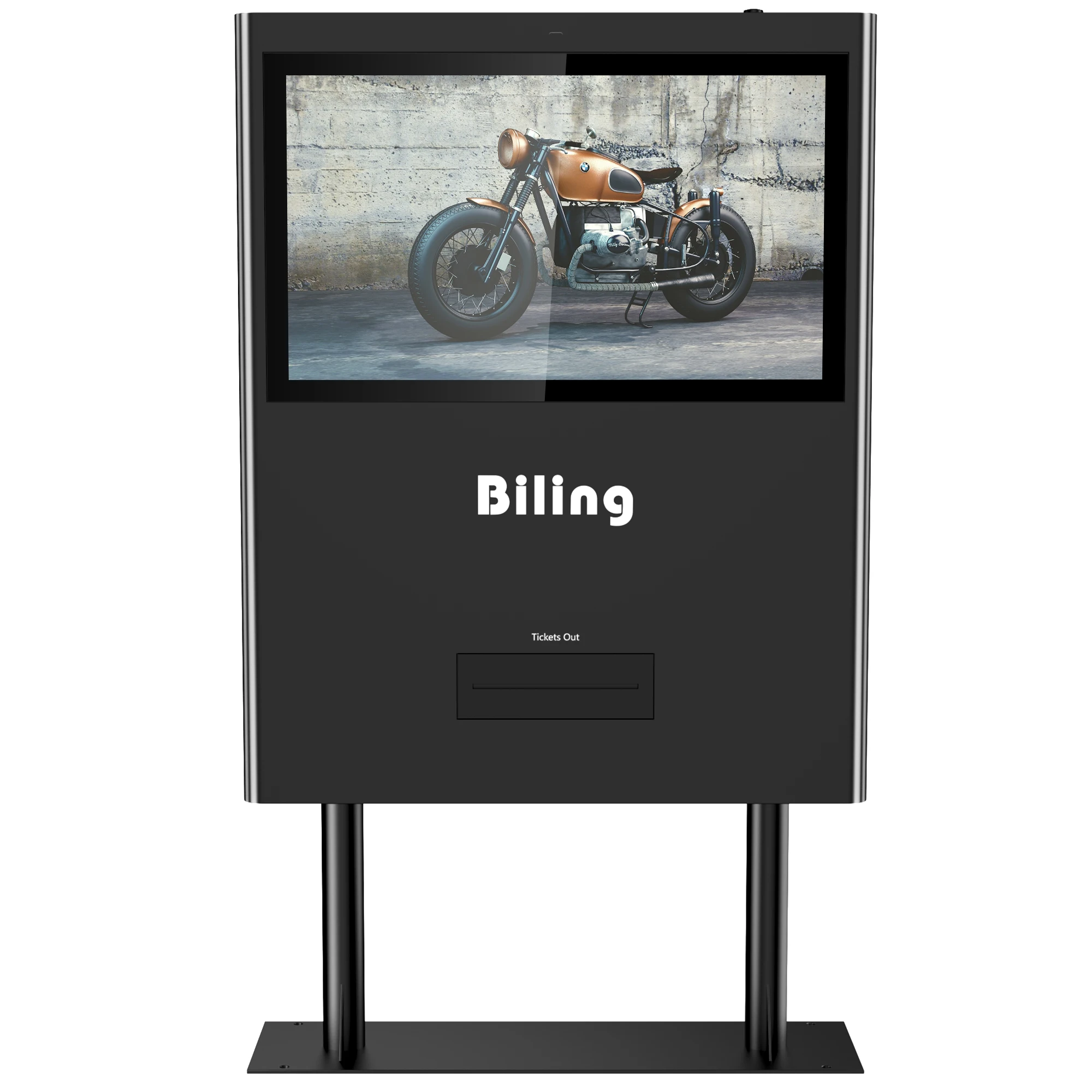

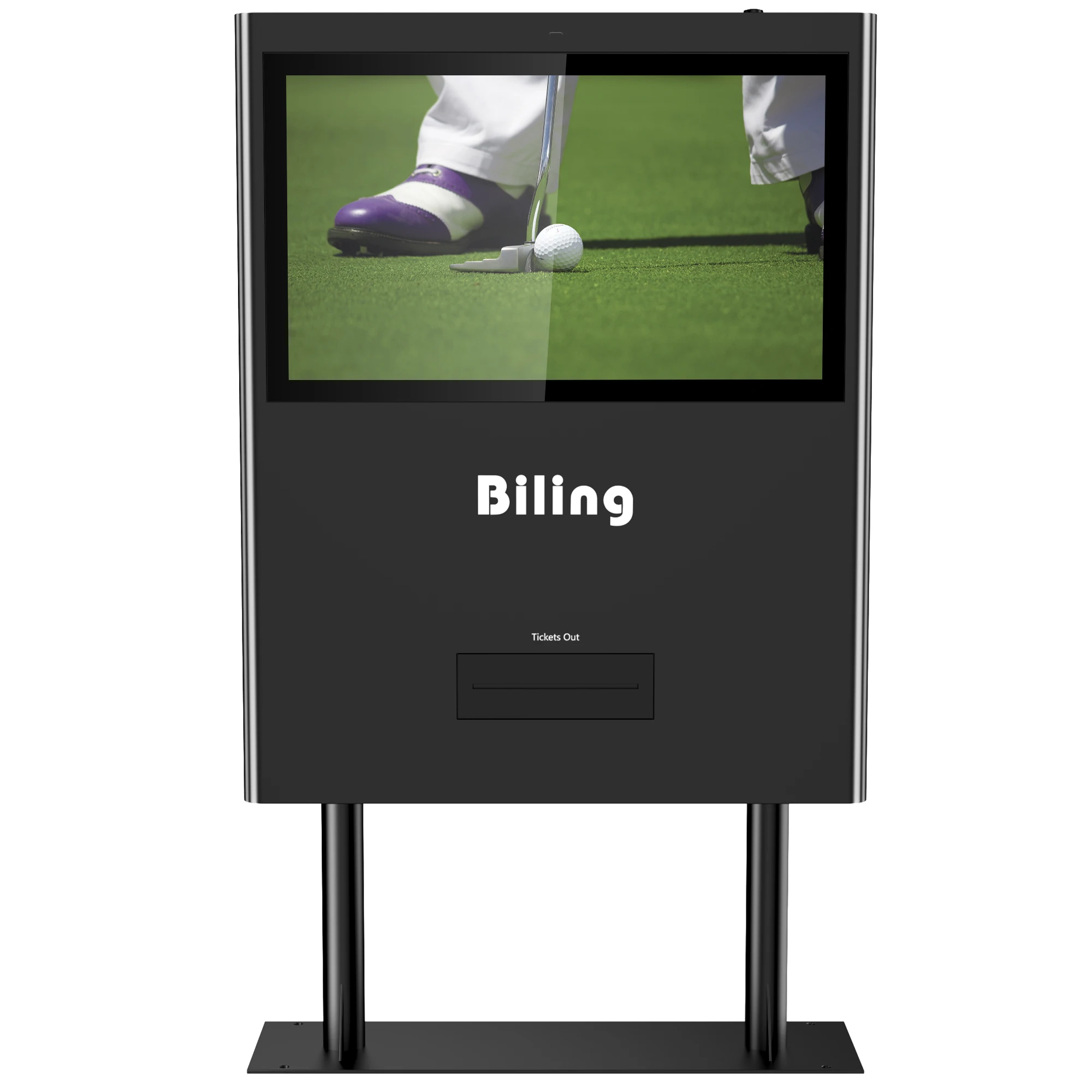

32 inch Outdoor advertising machine with 32 inch air cooled cross screen wifi digital signage display

product name

component

Specification model

Sheet metal shell

The sheet metal shell is made of 1.5mm SGCC galvanized steel sheet, the inner layer is sprayed with zinc-rich base powder, and the
surface layer is sprayed with DuPont outdoor plastic powder for protection . The service life is guaranteed for more than 10
years ;

Explosion-proof glass

6mm AR antireflection glass, imported glass sheet, using AR coated anti -glare ; transparent light of 97%, the reflection rate of
3% ; separated from the 99% of solar UV rays, from 52% of the solar heat ; proof steel;

Bright LCD screen

Outdoor special bright LCD screen, display area 1209*680mm;

LED direct backlight, brightness 2000cd/m2, visible in sunlight

Screen resolution HD 1920*1080;

Automatic photosensitive probe, adjust screen brightness according to ambient light, save energy and reduce light pollution;

Playback system

Android networked information distribution system; supports various mainstream audio and video formats such as pictures, videos,
texts; supports wired/wireless WiFi network transmission;

Support single player card playback;

Electronic control system

Leakage protection switch, leakage protection, overvoltage protection;

Microcomputer time switch, control the start and stop of the machine by time-sharing;

Lightning protection device, lightning protection level C, to prevent instantaneous lightning strikes;

Taiwan Mingwei industrial grade power supply, stable and reliable power supply;

cooling system

The intelligent cold and warm industrial air conditioner is used to control the temperature, and the display is not blackened in
the outdoor environment of -40-+55 degrees, and the whole machine works normally;

Professional custom-developed industrial air conditioners that fully match the power consumption of the whole machine;

Automatic temperature sensing system ensures that the internal temperature is within 0-40 degrees ; high-precision filtration
system ensures that no dust enters the machine, and the whole machine protection level reaches IP65;

Test system

Spray waterproof test; high and low temperature test; solar radiation test;

Machine aging test;

composition

parameter

Display

size

55 inches

Display area

1209*680mm

Zoom

16 : 9

Resolution

1920*1080

brightness

20 00cd/m2

Contrast

4 000 : 1

Viewing angle

178° horizontal / 178 ° vertical

Android motherboard

processor

Rockchip RK 3188 quad core

RAM

1GB

storage

Standard 8G can be expanded to 32G

interface

USB*4 RJ45*1

shell

Protection level

IP 6 5

weight

200 KG

Installation method

Landing

Protective glass

6 mmAR glass

Working parameters

Video interface

VGA , HD CABLE

audio port

I/O input and output

Brightness control

Automatic photosensitive system

temperature control

Intelligent air conditioner

Operating temperature

- 40 °C to + 5 5°C

Working humidity

5% to 100%

power supply

220V

power

900 W
