2022 China wholesale waterproof water pump made in germany
- Category: >>>
- Supplier: Wuxi Ifanite Power Technology Co. Ltd.
Share on (62476264895):
Product Overview
Description

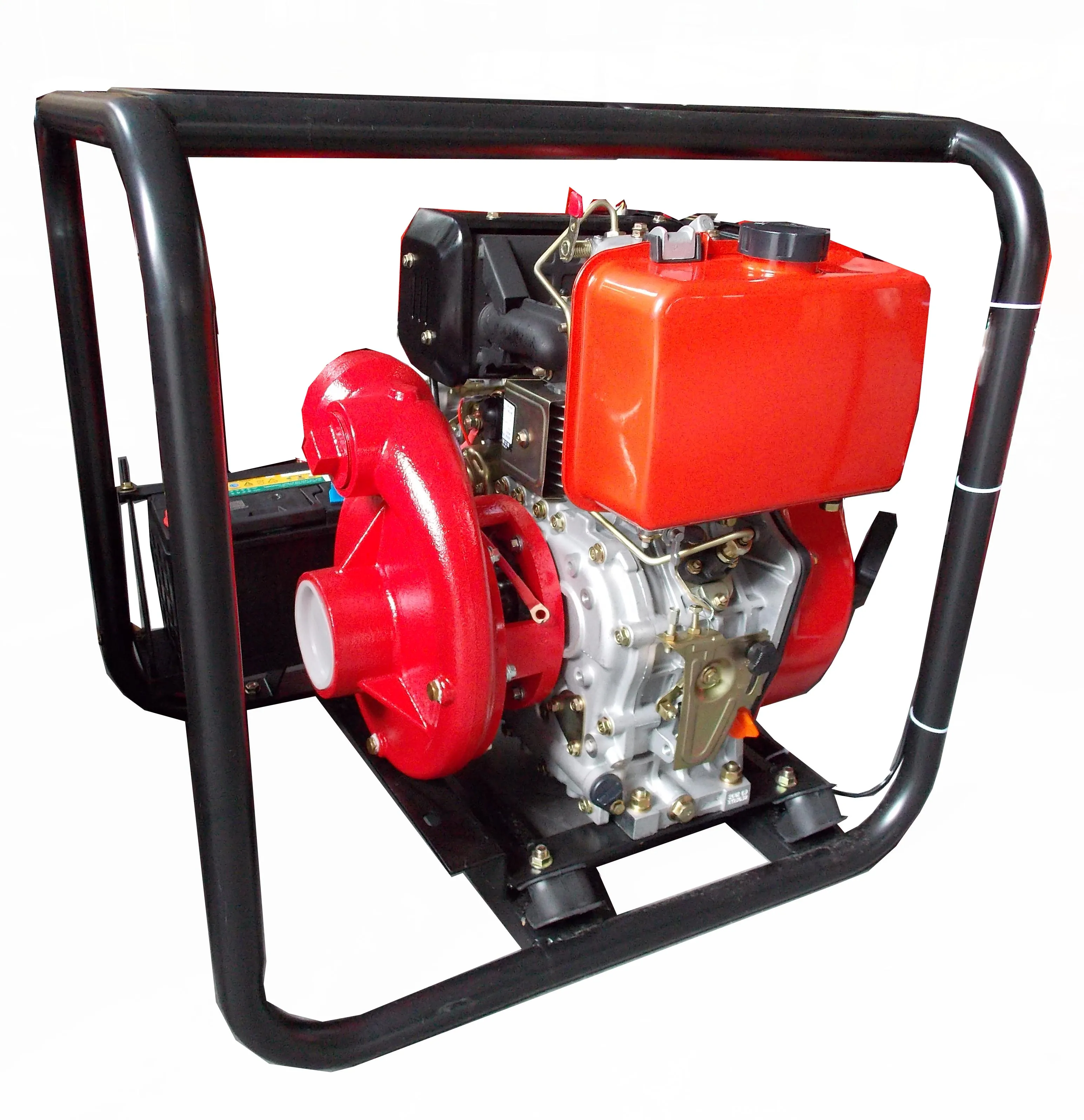

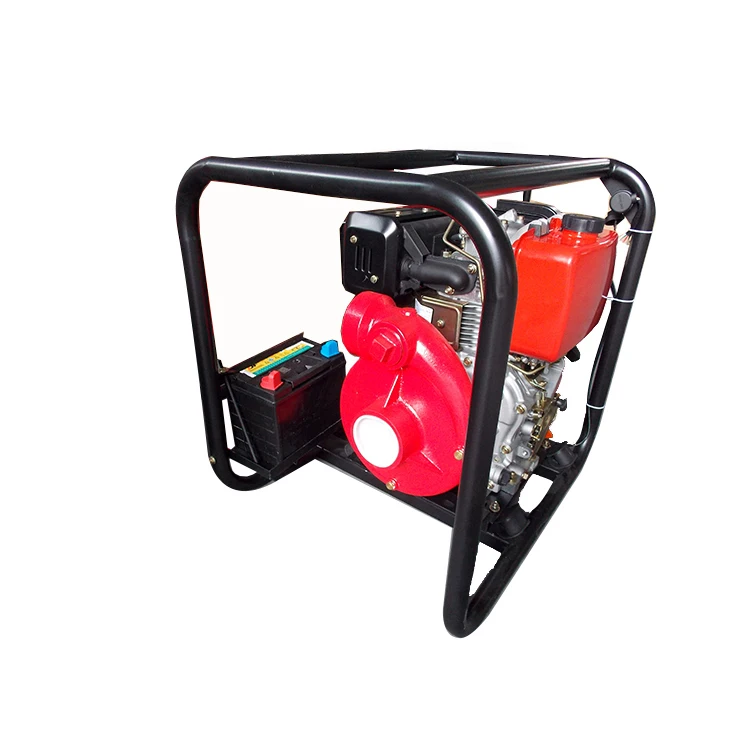

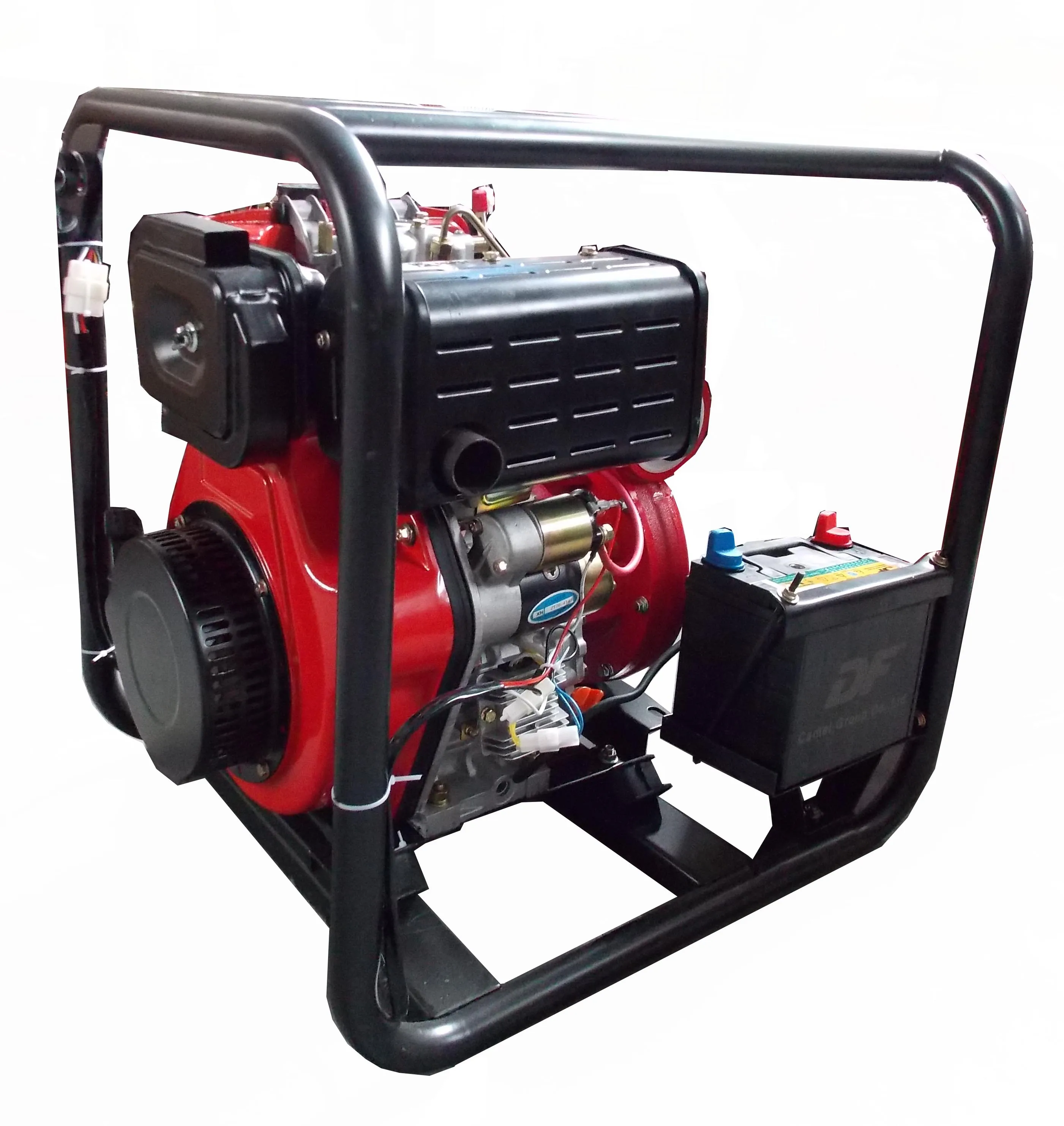

2022 China wholesale waterproof water pump made in germany
| WATER PUMP DATA SHEET | ||||
| PUMP | Type | IF50D(E) | IF80D(E) | IF100D(E) |
| Inch | 2 inch | 3 inch | 4 inch | |
| Rated head(m) | 15 | 13 | 16 | |
| Max Suction head(m) | 8 | 8 | 8 | |
| Rated capacity (m3/h) | 22 | 30 | 40 | |
| Self-priming time(s/4m) | 80 | 120 | 180 | |
| ENGINE | Mode | IF170F(E) | IF178(E) | IF188F(E) |
| Type | Single cylinder, 4 stroke , air cooled, vertical, diesel engine | |||
| Starting fashion | Manual or electric start | |||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | |
| PUMP SET | Continuous running time(h) | 2.5 | 2 | 2 |
| N.W./G.W(kg) | 35/38 | 52/55 | 69/72 | |
| Dimension LxWxH(mm) | 490x410x510 | 570X450X550 | 645X470X600 | |
| Package size LxWxH (mm) | 500x420x525 | 580X460X570 | 665X480X615 | |
| Type | IF50DI (E) | IF80DI (E) | IF100DI (E) | |
| PUMP | Inch | 2 inch | 3 inch | 4 inch |
| Rated head(m) | 63 | 66 | 55 | |
| Max Suction head(m) | 8 | 8 | 6 | |
| Rated capacity (m3/h) | 28 | 39 | 110 | |
| Self-priming time(s/4m) | 80 | 120 | 120 | |
| Mode | IF178F(E) | IF186F(E) | IF192F(E) | |
| ENGINE | Type | Single cylinder, 4 stroke , air cooled, vertical, diesel engine | ||
| Starting fashion | Manual or electric start | |||
| Fuel tank capacity(L) | 3.5 | 5.5 | 5.5 | |
| Continuous running time(h) | 2 | 2 | 2 | |
| PUMP SET | N.W./G.W(kg) | 52/57 | 57/62 | 60/65 |
| Dimension LxWxH(mm) | 570X450X550 | 645X470X600 | 645X470X600 | |
| Package size LxWxH (mm) | 580X460X570 | 655X480X615 | 655X480X615 | |
