Road Marking machine/ Driving Type Pavement Thermoplastic Painting Machine for highway
- Category: >>>
- Supplier: Jiangsu Daoying Highway Engineering Equipment Co. Ltd.
Share on (62476440589):
Product Overview
Description
Jiangsu Road Win Road Facility Co.,Ltd. is a professional enterprise which engaged in researching,manufacturing and selling a full set of road marking paint machine.
Our enterprise is aiming to providing the best quality,most scientific and most efficient road facilities to our clients all over the world.
Our company keep on the concept of innovation,excellent quality and perfect service,also we have been devoting ourselves to making a big contribution to the field of transportation infrastructure construction.
Our company’s mission is to be number one of our industry,with the core value of fighting against impossible,and holding the enterprise’s spirit that is to regard honesty and trustworthiness as the root,to win by quality,and finally to become most valuable enterprise in the world.
Our enterprise is aiming to providing the best quality,most scientific and most efficient road facilities to our clients all over the world.
Our company keep on the concept of innovation,excellent quality and perfect service,also we have been devoting ourselves to making a big contribution to the field of transportation infrastructure construction.
Our company’s mission is to be number one of our industry,with the core value of fighting against impossible,and holding the enterprise’s spirit that is to regard honesty and trustworthiness as the root,to win by quality,and finally to become most valuable enterprise in the world.

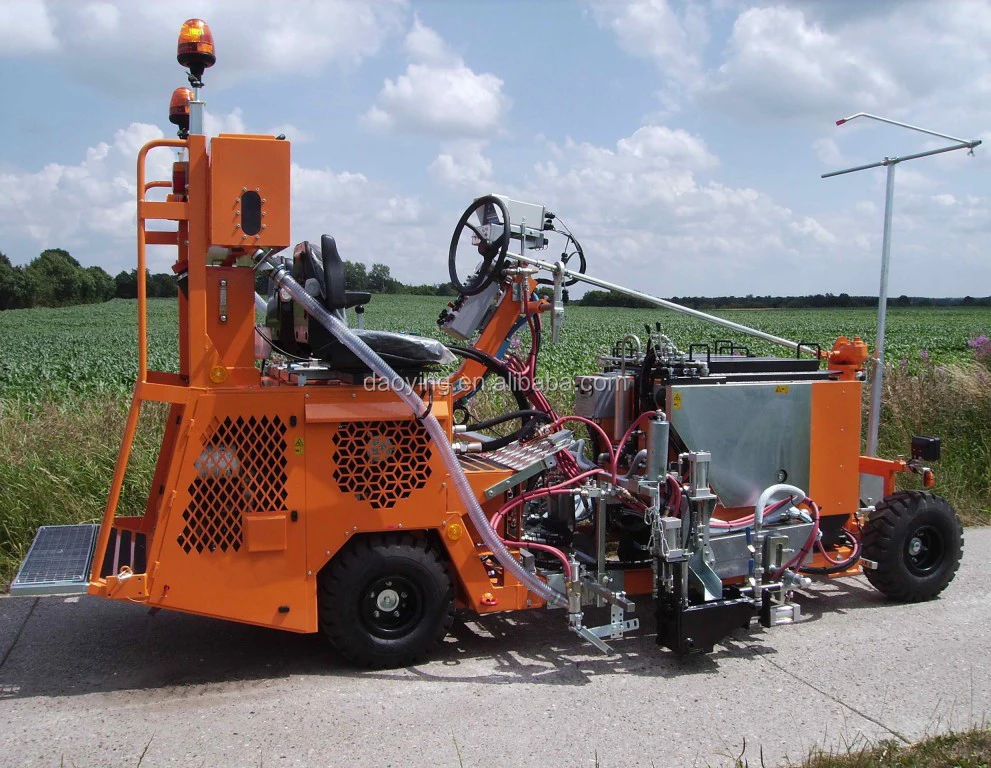

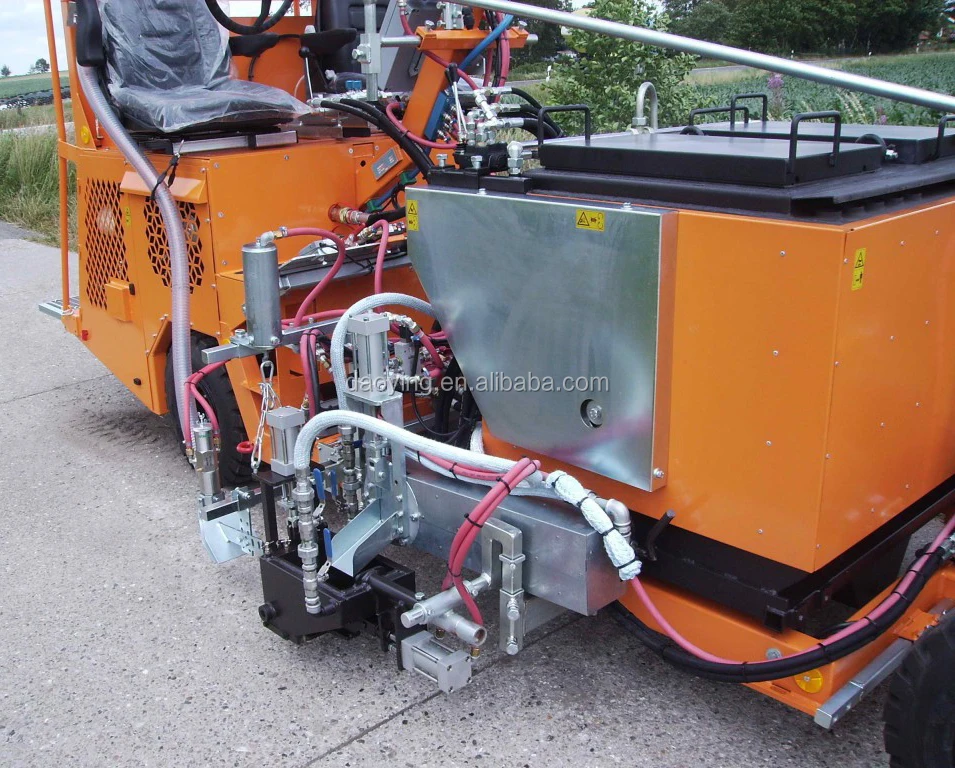

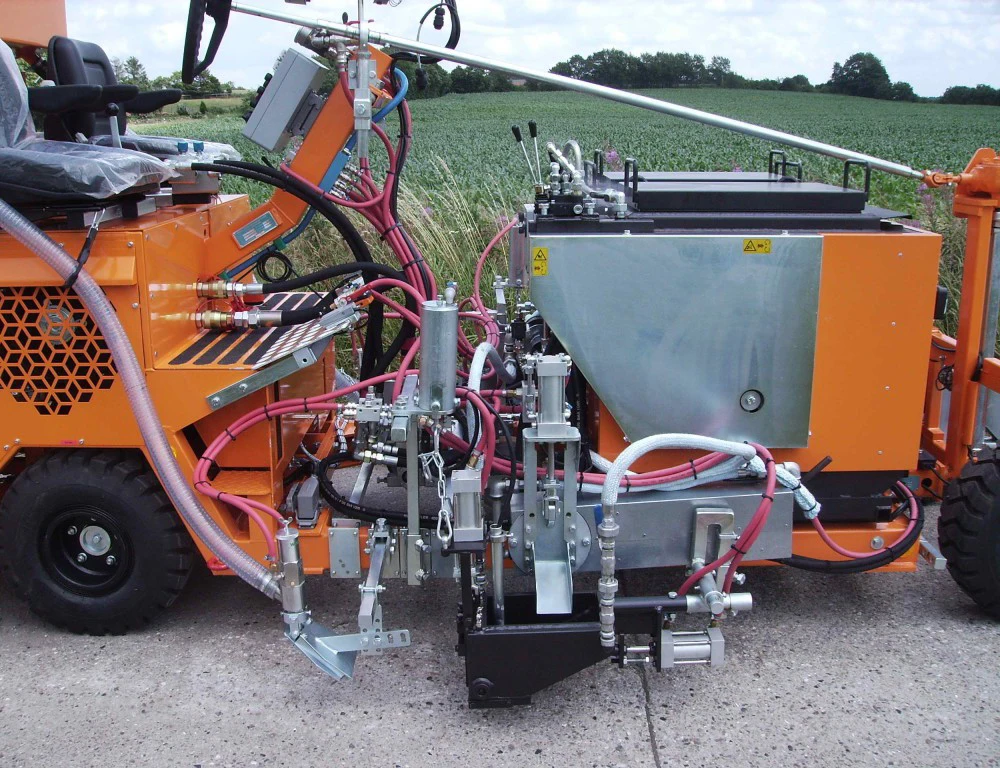

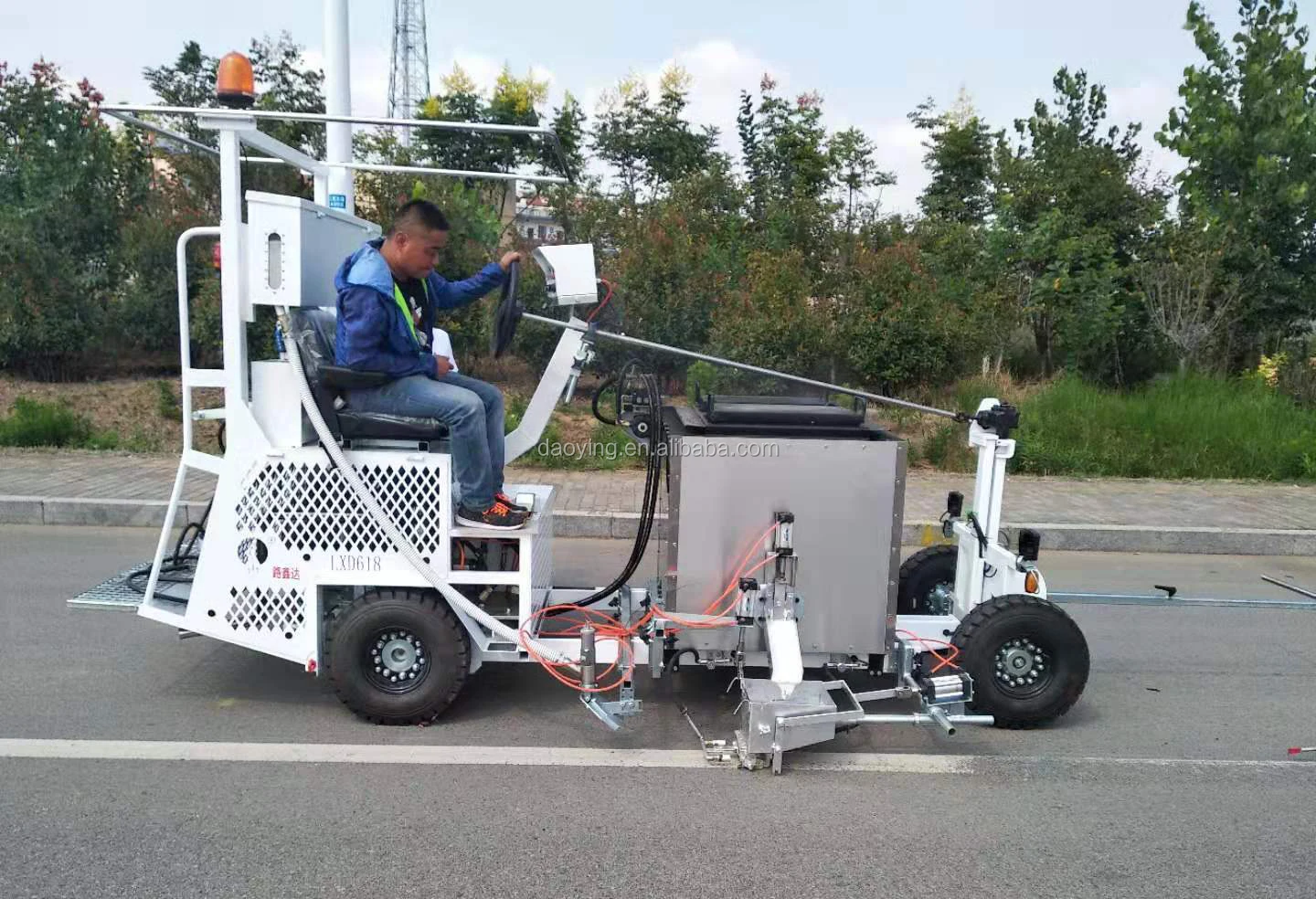

LXD 618 Driving Type Pavement Thermoplastic Painting Machine for highway

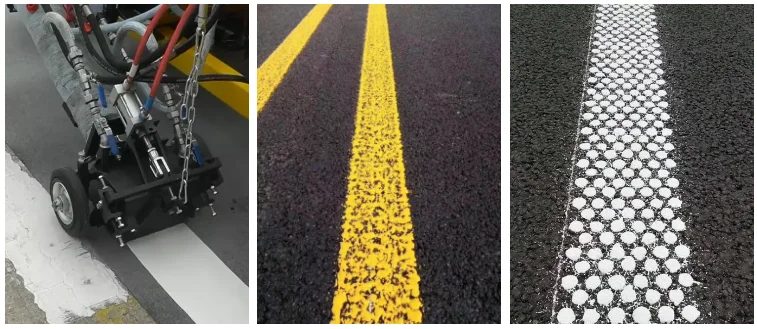

LXD 618 Thermoplastic driven marking machines is a screeding type driving road marking machine, Medium size, flexible to operate. Under the premise of sufficient melted material, it also has relatively high construction efficiency. LXD 168 driving marking macnine can marking flat line and convex line.
Engine : 30 HP (22 kW)
Fuel : diesel, capacity 34 liter
Electrical system : 12 V, battery 66 Ah
Steering: strong standard mechanical steering
Drive /Brake system: hydrostatic drive, also acting as service brake,
parking brake hydraulically controlled multi disc brake
Wheels: front: 6.00-9 12PR, 5 hole-rim
rear: 6.00-9 12PR, 5 hole-rim
Compressor : 2-cylinder Boge compressor Typ SK 26, effective
air supply 1060 l/min, mechanically driven by poly-v-belt
Operating air pressure : 7 bar, silenced safety valve
Thermoplastic container : 225 ltr., with agitator (other container capacities on request)
Thermal oil heating: on request gas / diesel
Marker unit: screed box
Additional equipment : on request, profiles
Glass bead equipment : on request, metering bead dispenser up to 300 mm
weight approx. 1300 kg
Dimensions Length x width x height approx. 3,90 m x 1,25 m x 1,85 m
