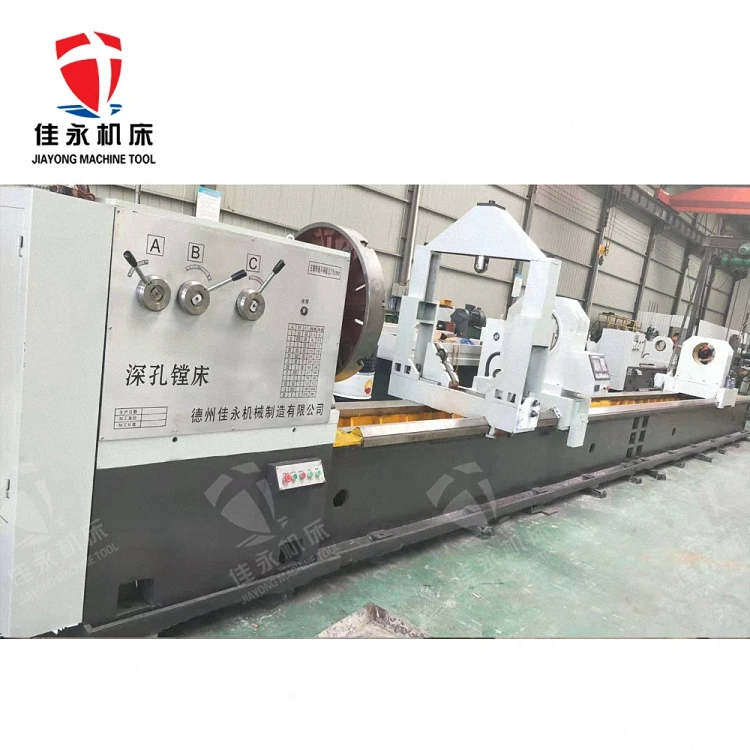

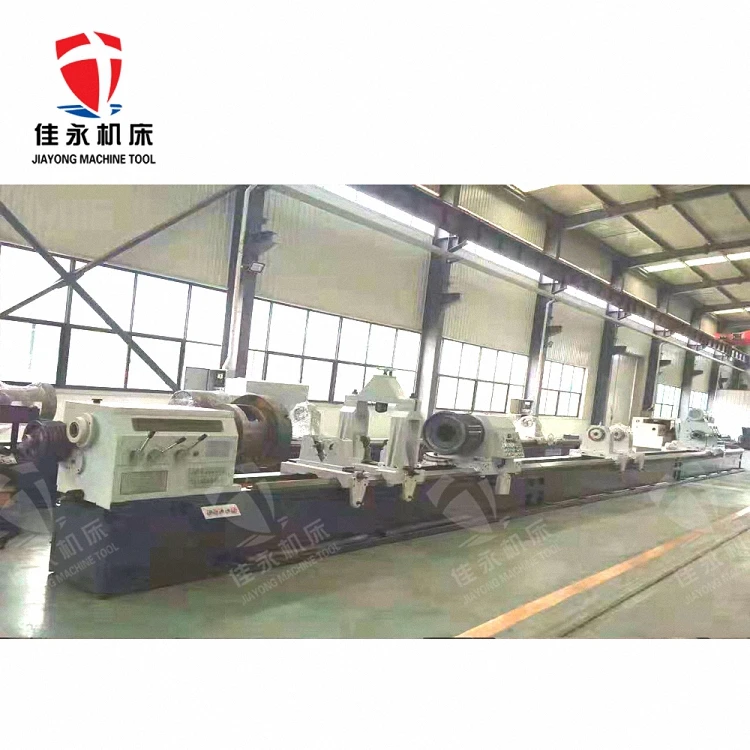

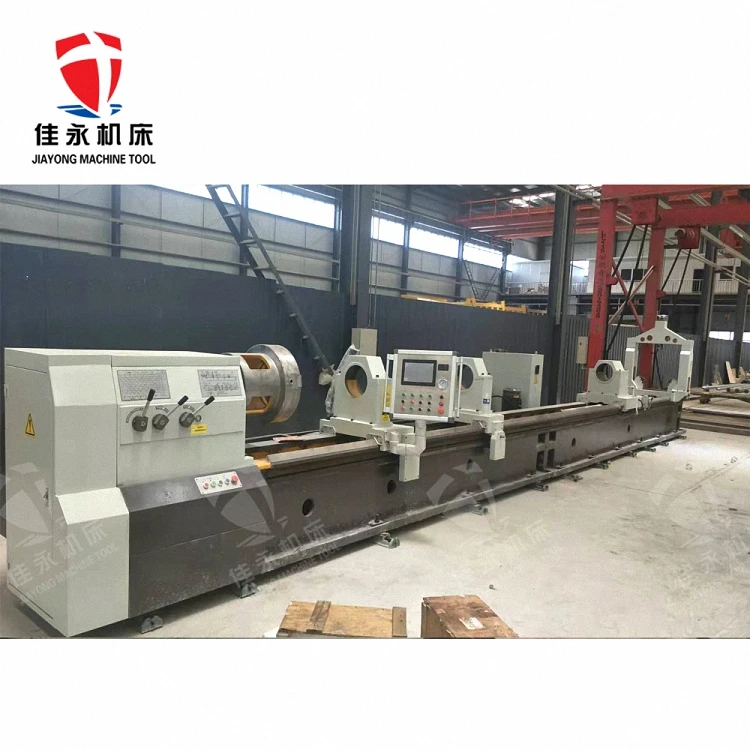

TK2120 CNC Horizontal Deep Hole Drilling Machine for Metal Processing
- Category: >>>
- Supplier: Dezhou Jiayong Machinery Manufacturing Co. Ltd.
Share on (62476519468):
Product Overview
Description
Product Description
Machine introduction
Deep hole drilling machine is a special equipment for processing deep hole workpieces. The feed structure is a screw drive with good accuracy and a large processing range. The main functions are drilling and boring.Rolling can be performed. Rolling thickness and roughness are generally Reached below Ra0.4. BTA is used for drilling, push boring is used for boring, and oil is fed into the oil dispenser.

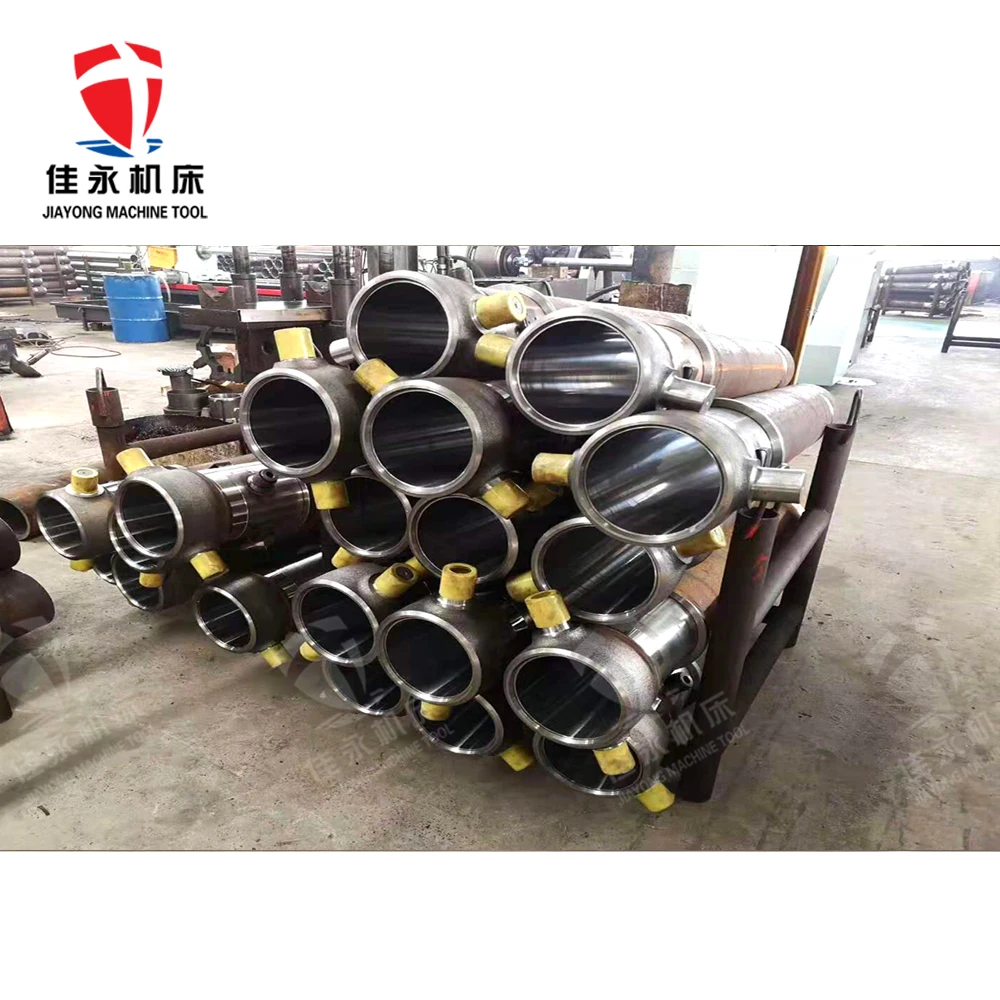

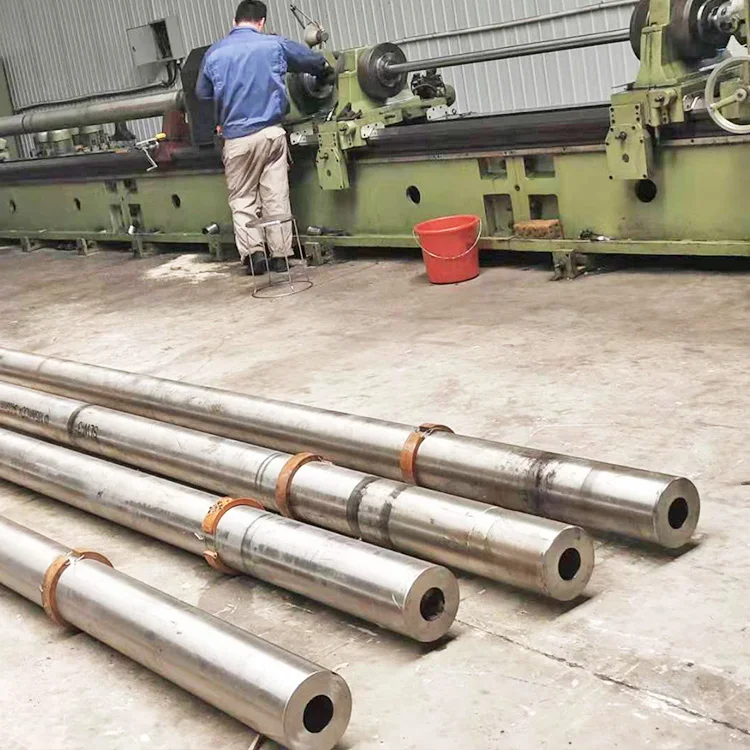

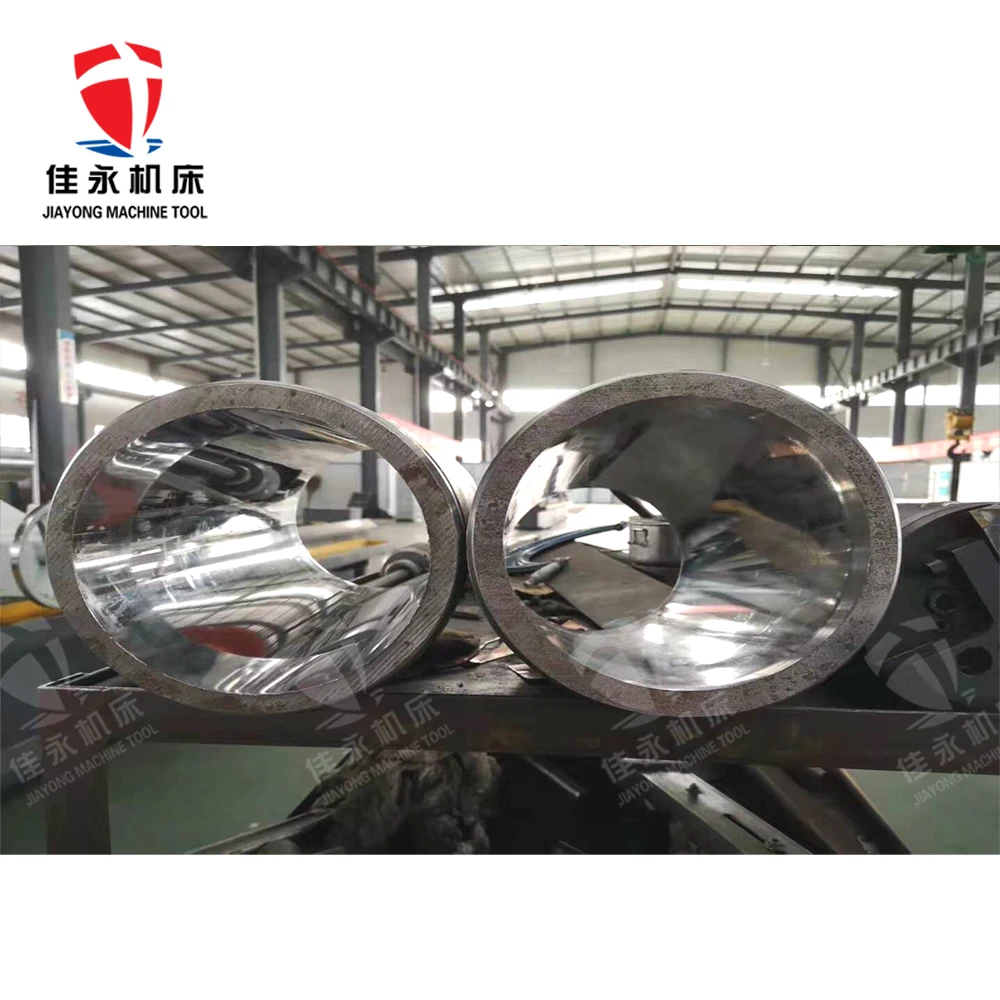

Machine tool Usage: Suitable for processing various hydraulic oil cylinders, spindle holes, cylinder holes, cooling holes, suitable for large or small batch production
Machine Parameter
Project name | Parameter | |
Working scope | The range of boring diameter | Φ30-Φ800mm |
The range of drilling diameter | 30-150mm | |
Processing length | 1000-10000mm | |
Maximum processing capacity | 0.4-10mm | |
Spindle parameters of drill box | The height of center | 260-650mm |
Taper hole at the front end of spindle | 80-140mm | |
Spindle change range | 3.15-1000 mm/min(stepless) | |
Spindle torque | 500-12000 N.m | |
Feeding parameter | Range of feeding speed | 2-1000 mm/min(stepless) |
Pallet move quickly | 300-2000 mm/min | |
Feed torque of boring bar | 300-3000 N.m | |
Positioning length | 1000-10000mm | |
Workmanship precision | Surface roughness of workpiece nesting | ≤Ra3.2 um |
Rolled surface roughness of workpiece | ≤Ra 0.8 um | |
Cylindricity of workpiece machining | ≤0.03/500mm | |
Roundness of workpiece machining | ≤0.03/100mm | |
Motor capacity | Moter power of spindle | 5.5-45KW |
Hydraulic pump motor power | 2.2KW | |
Feeding motor | 1.5-7.5KW | |
Cooling motor power | 1.5-7.5KW | |
Others | Rated pressure of cooling system | 0.36-2.5MPa |
Rated pressure of hydraulic system | 6.3 MPa | |
Maximum tightening force of oil dispenser | ≥35KN | |
The flow of cooling system | 50-600L/min |
Product Fetures
1.High processing accuracy (≤0.03), high finish (≤Ra0.2-0.8)
2.Machinable inner hole with small ends and large middle
3.Inner hole machining allowance up to 12.5mm on one side
4. Machining multi-step inner hole
5. Machining long inner hole grooving process
2.Machinable inner hole with small ends and large middle
3.Inner hole machining allowance up to 12.5mm on one side
4. Machining multi-step inner hole
5. Machining long inner hole grooving process
