Universal Infrasound Analyzer and Transmitter for Infrasonic Wave Detection in the Environment

Product Overview

Description

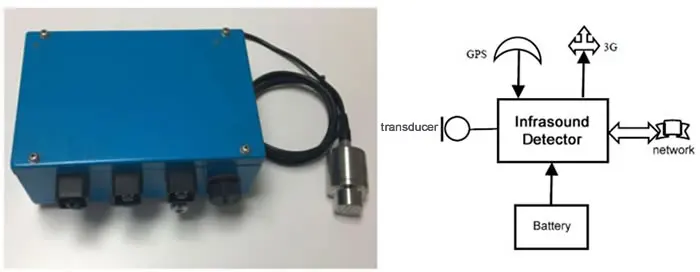

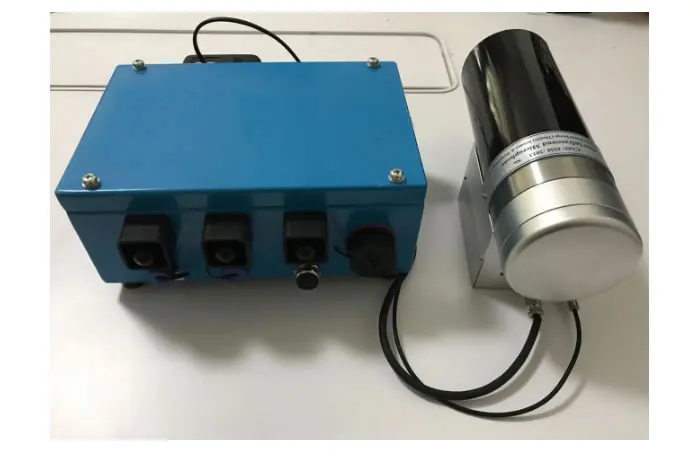

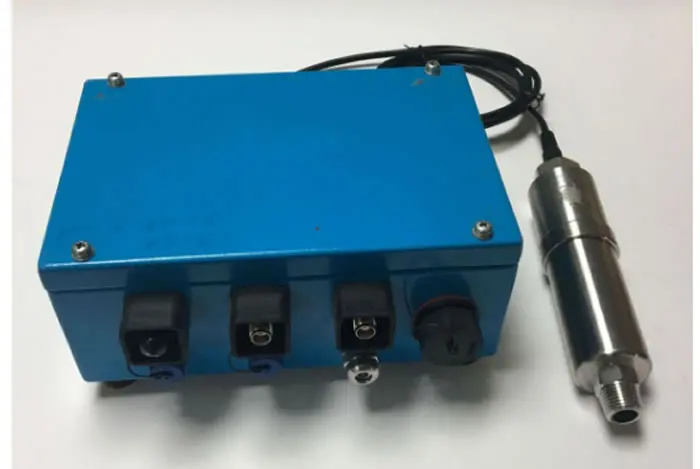

Universal Infrasound Analyzer and Transmitter





This universal infrasound instrument for measuring and analyzing infrasonic singals in the surroundings, and data transmitting. It is applicable for industrial equipment, large vehicles, road traffic, airports, power plants, or living rooms.



Features:

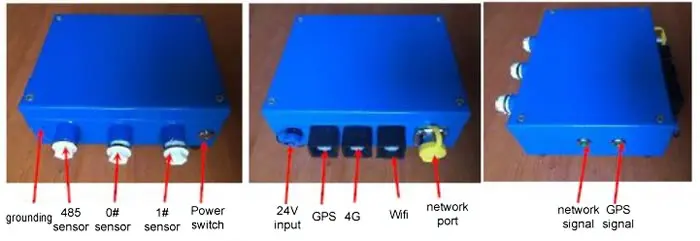

Data can be transmitted to the server through the Internet (broadband / 3G / WiFi, etc.), or directly uploaded to the local computer through the network

With GPS module, can provide accurate clock, latitude and longitude data

Built-in 8GB SD card

Battery powered, good for outdoor use

Software provides waveform, spectrum, time-frequency, energy flow, offline / real-time detection and analysis

Software can be updated remotely and automatically







Specifications:

Protection grade: IP66

Frequency range: 0.1Hz-2500Hz

Programmable sampling rate: 2Hz-70kHz

A/D resolution: 24 bits (effective 22 bits)

Beidou/GPS clock accuracy: 1ms

Work temperature: - 45 to + 55^oC

Network: broadband/ 4G / WiFi

Built-in memory: 8GB

Input voltage: DC24V

Current: 80mA

Power consumption: max. 8W

Infrasound sensor: voltage or current

Input signal range: 0- 5V / 0-20mA /±10V

Support 485 sensor input

Self noise: 10μV

Data file format: *. Bin

Size: 190x160x65mm

Weight: 2.6kg
