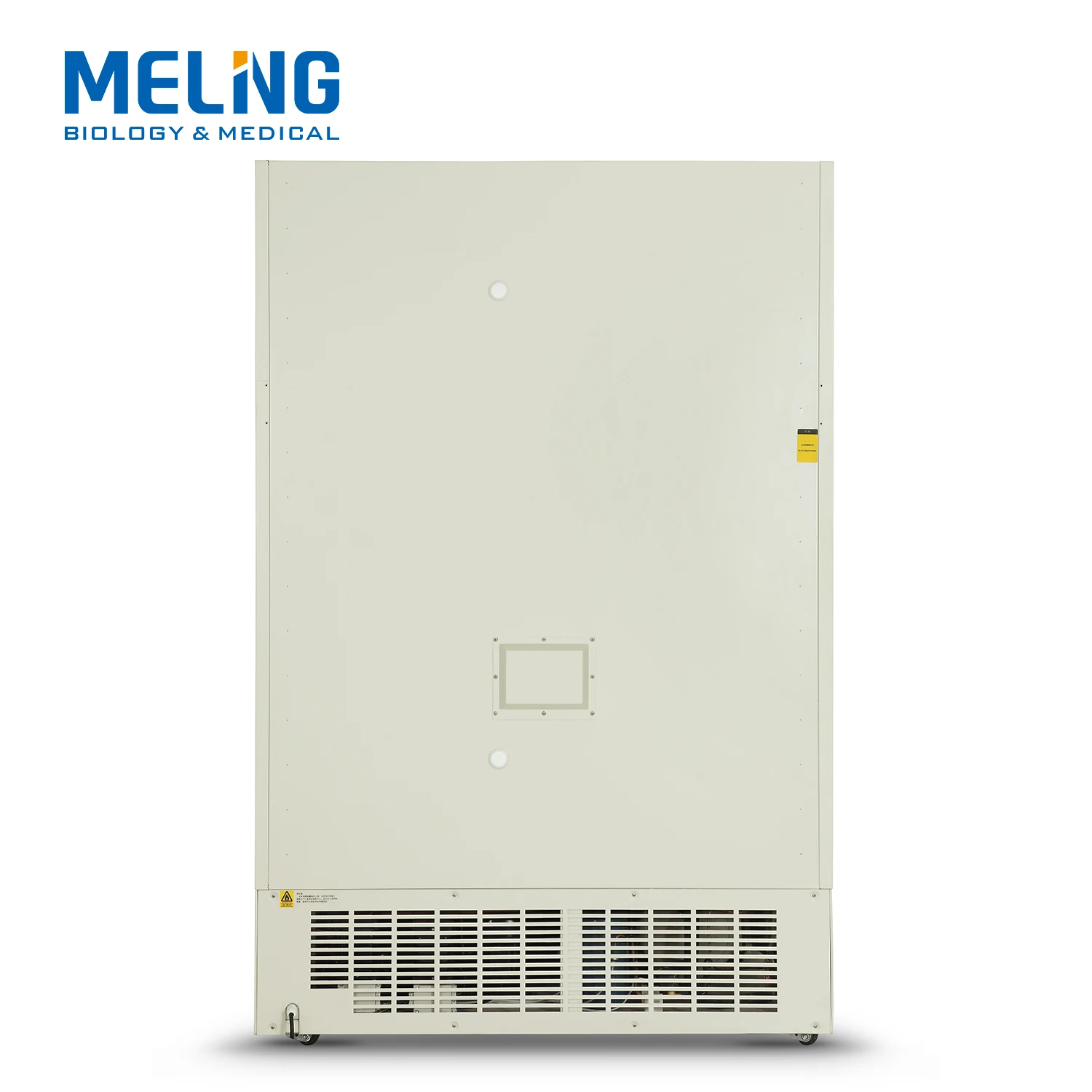

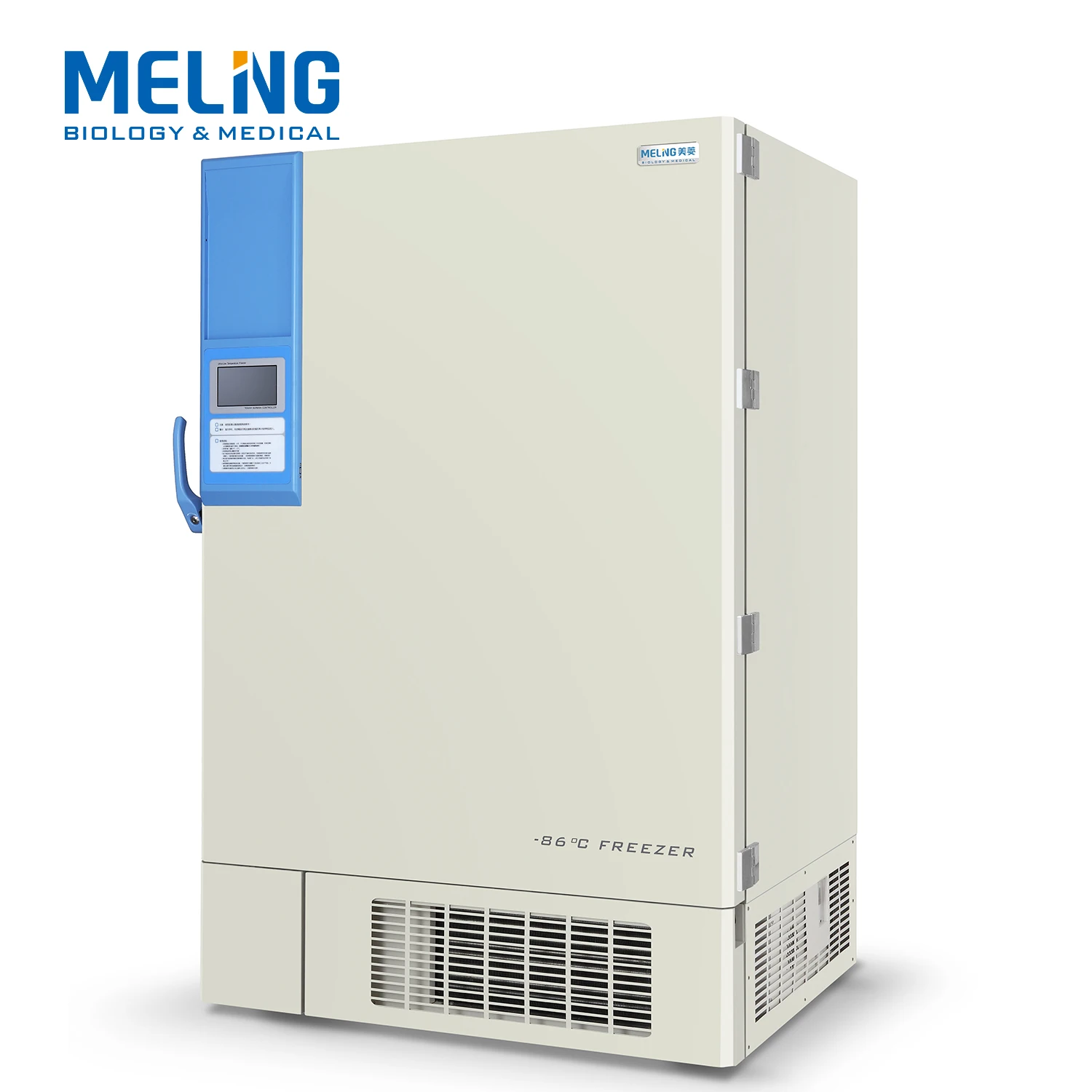

86C ultra low temperature Vaccine storage freezer 1008L Genetic tissue storage
- Category: >>>
- Supplier: Zhongke Meiling Cryogenics Company Limited
Share on (62476586675):
Product Overview
Description
Product Description

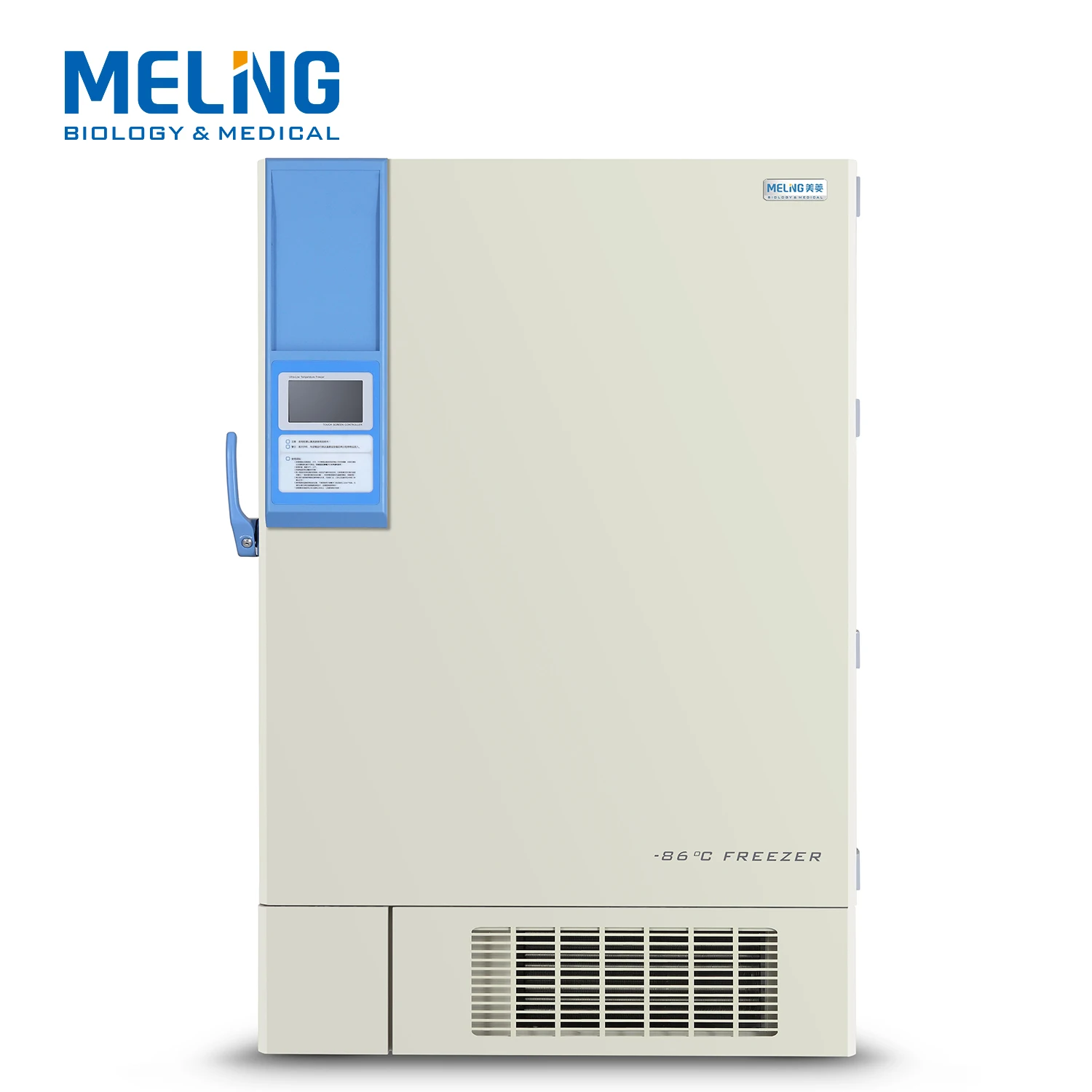

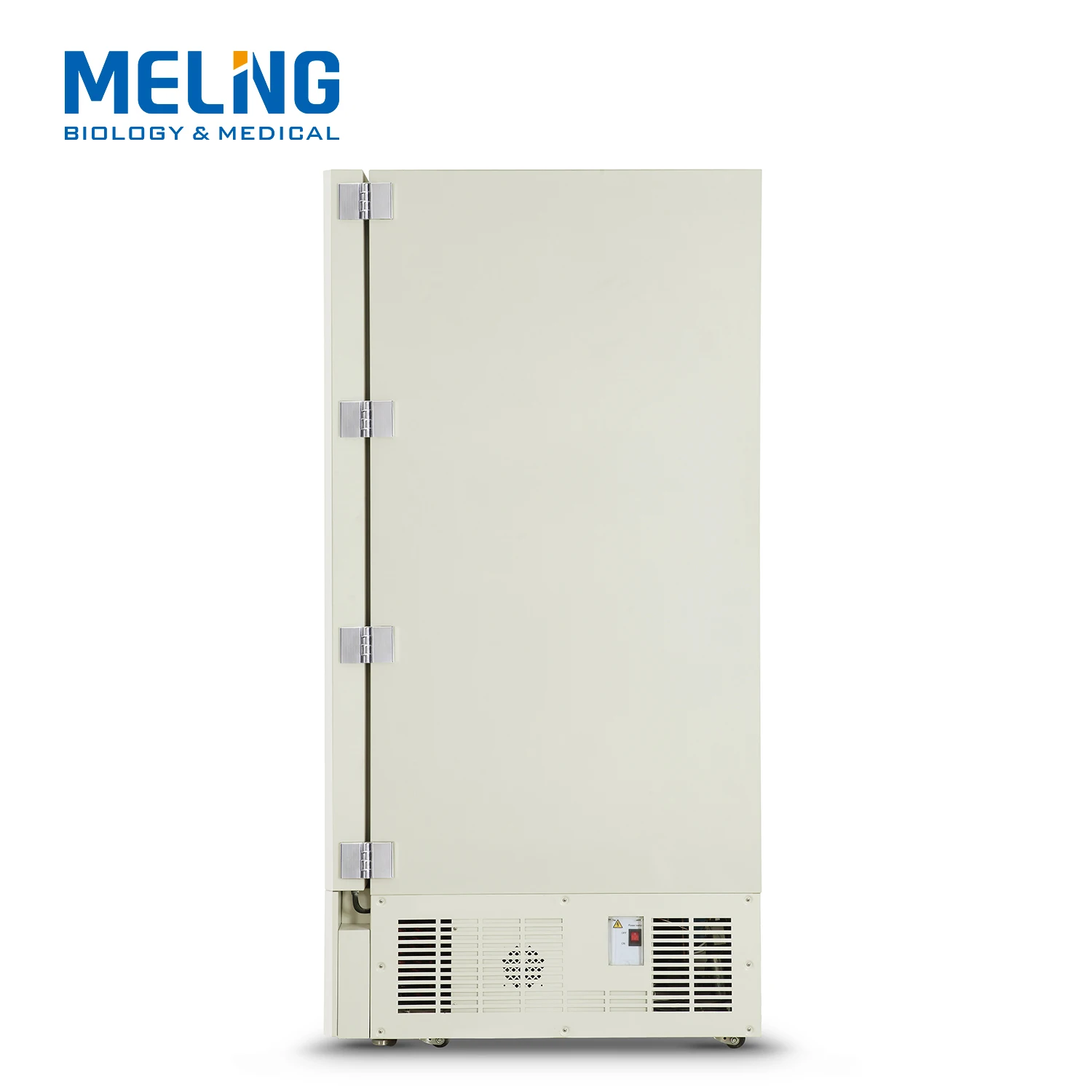

-86℃ Ultra low temperature freezer DW-HL1008S
Suitable for use in blood banks, hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.
7’LED Screen Control System
The 7’LED touch screen has clear display,
user-friendly interface and more accurate
temperature control, which can indicate
operating status clearly;
·The high-precision microcomputer control
system and platinum resistor sensors
enable users to set temperature inside the
cabinet within a range from -40 to -86℃.
user-friendly interface and more accurate
temperature control, which can indicate
operating status clearly;
·The high-precision microcomputer control
system and platinum resistor sensors
enable users to set temperature inside the
cabinet within a range from -40 to -86℃.
- Refrigeration System

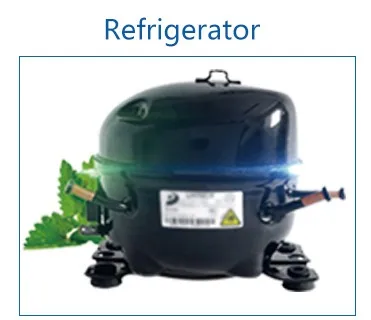

The imported high-efficiency compressor and
EBM fan are energy-saving and highly efficient;

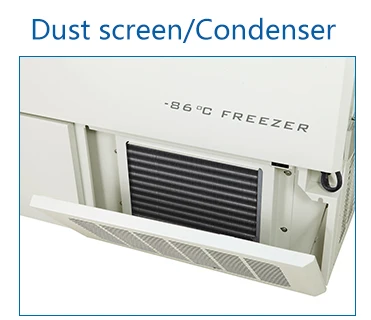

·The large finned condenser with a space
between fins≤2mm, providing affective heat
dissipation.
·DW-HL678S/778S/858S/1008S with twin-
compressor, if one is damaged, the other one
could keep the temperture at -70℃ stably.
·Standard with VIP board for high efficiency
cooling performance. Door with hot gas pipe
EBM fan are energy-saving and highly efficient;
·The large finned condenser with a space
between fins≤2mm, providing affective heat
dissipation.
·DW-HL678S/778S/858S/1008S with twin-
compressor, if one is damaged, the other one
could keep the temperture at -70℃ stably.
·Standard with VIP board for high efficiency
cooling performance. Door with hot gas pipe
Detailed Images

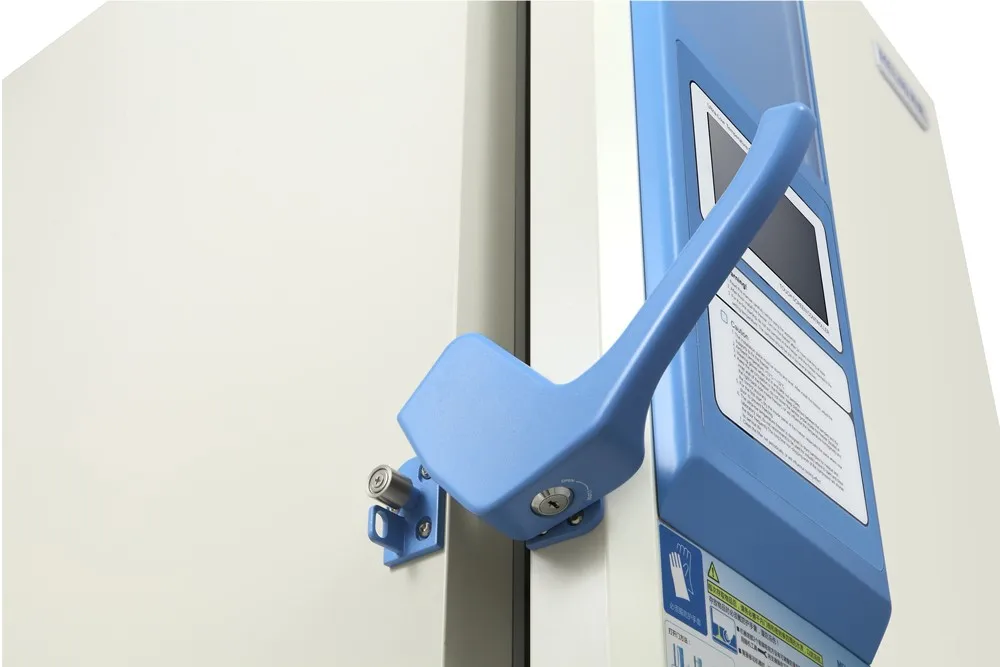

·The new designed assisting handle and vaccum release port let the freezer be operated single-handed to open and close the outer door.
·The newly added file box makes recording easier and more convenient.

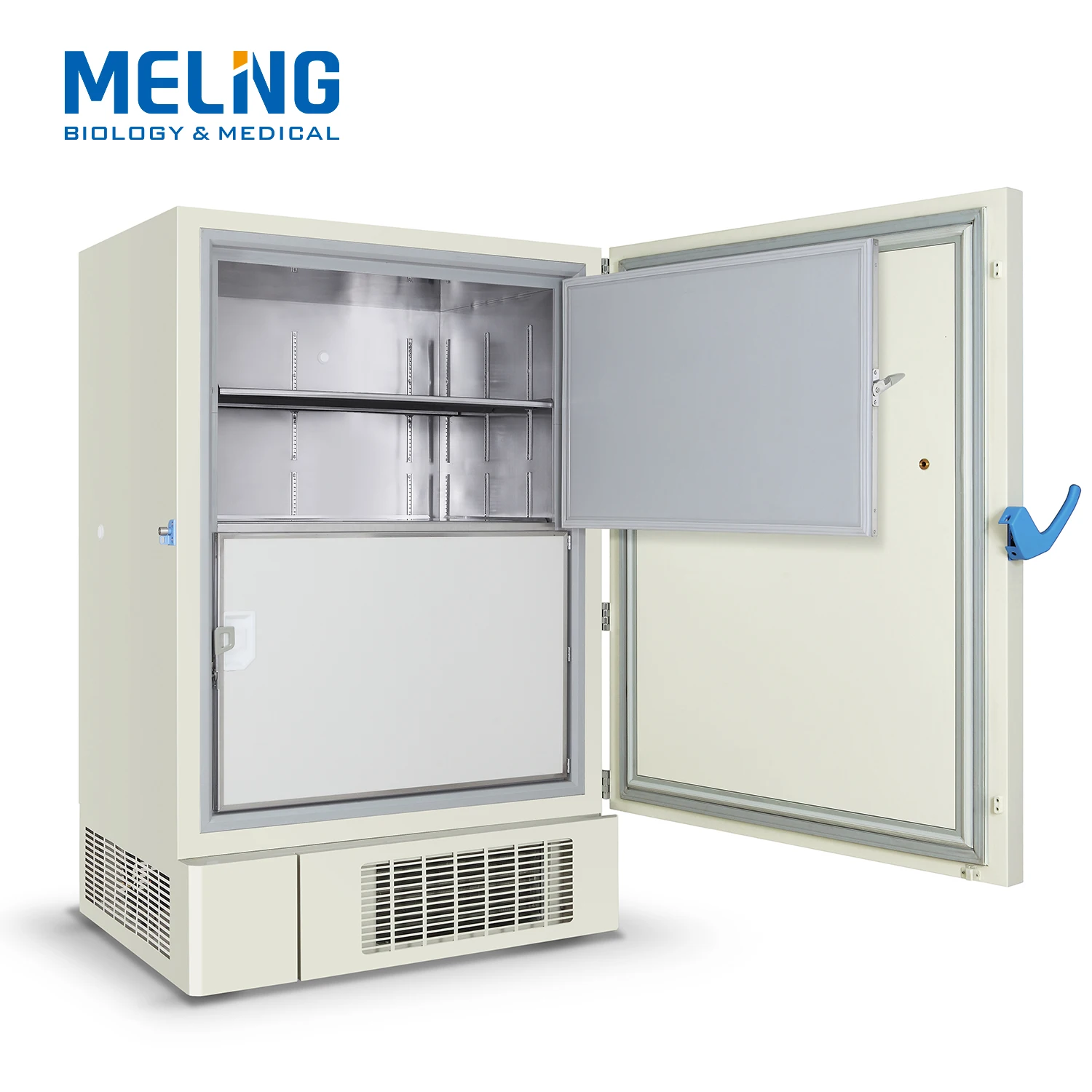

·The liner made from galvanized steel sheet for medical use is low- temperature tolerant and corrosion-resistant, which has a long service life and is easy to clean;
·The universal casters and leveling feet design are more convenient for movement and fixation.
·The newly added file box makes recording easier and more convenient.
·The liner made from galvanized steel sheet for medical use is low- temperature tolerant and corrosion-resistant, which has a long service life and is easy to clean;
·The universal casters and leveling feet design are more convenient for movement and fixation.
-86℃ Ultra-low Temperature Freezer | |
Model | DW-HL1008S |
Cabinet Type | Upright |
Capacity(L) | 1008 |
Internal Size(W*D*H)mm | 1022*696*1378 |
External Size(W*D*H)mm | 1362*1025*2002 |
Package Size(W*D*H)mm | 1425*1110*2134 |
NW/GW(Kgs) | 430/500 |
Temperature Range | -40～-86℃ |
Ambient Temperature | 16-32℃ |
Cooling Performance | -86℃ |
Climate Class | N |
Controller | Microprocessor |
Display | Touch screen |
Compressor | 1pc |
Cooling method | Direct Cooling |
Defrost Mode | Manual |
Refrigerant | Mixture gas |
Insulation Thickness(mm)mm | 130 |
External Material | High quality steel plates with spraying |
Inner Material | Galvanized steel sheet (Optional Stainless steel) |
Shelves | 3(stainless steel) |
Door Lock with key | Yes |
External lock | Yes |
Access test port | 3pcs. Ø 24.5 mm |
Casters | 4+(2 leveling feet) |
Data Logging/Time/Quantity | USB/Record every 1 minute / 365 days |
Door with heater | External lock |
Alarm | High/Low temperature,High ambient temperature Power failure , Low battery Sensor error,Built-in datalogger USB failure ,Main board communication error ,System failure, Condenser cooling failure,Door ajar,Sapmles out of date |
Power Supply(V/HZ) | 230/50 |
Rated Power(W) | 2000 |
Input Power(W) | 2600 |
Current Consumption(KWh/24h) | 19.15 |
Rated Current(A) | 11.8 |
Options | Chart recorder, CO2 backup system, Printer |
Related Products
Packing&Shipping
Choose high quality wood packaging, including aluminum alloy edge and metal buckle
Wood packaging with ordinary wood packaging and thickened wood packaging
Wood packaging with ordinary wood packaging and thickened wood packaging
After Sales Service
After Sales Service
Provide after-sales and pre-sales training, invite customers to visit the factory to learn
Company Introduction
MELING BIOLOGY & MEDICAL, or Zhongke Meiling Cryogenics Co., Ltd., is a joint venture which was founded in 2002 by
Hefei Meling Co., Ltd. and Chinese Academy of Sciences. We are awarded as a national new high-tech enterprise,
engaging in life science, family health and cold chain solutions.
Hefei Meling Co., Ltd. and Chinese Academy of Sciences. We are awarded as a national new high-tech enterprise,
engaging in life science, family health and cold chain solutions.
Our Services & Strength
The company has a research and development center of more than 5,000 square meters,a main workshop of more than 60,000 square meters, an internationally leading production line of automatic low-temperature equipment, a testing line, and a well-equipped pilot workshop and type laboratory.After 17 years of intensive cultivation in the professional field, we have built a high-quality research and development team, and obtained a number of scientific and technological innovation achievements,invention patents and utility model patented technology. Among them, "new mixed working medium throttling refrigeration technology and its application" with independent intellectual property rights won the second prize of National Technical Invention and the first prize of China Refrigeration Society.
