Forklift Lithium Battery IP 67 Waterproof AC - DC On-board Conductive Charger 96V 35A 3.3KW OBC

lithium battery

Product Description :

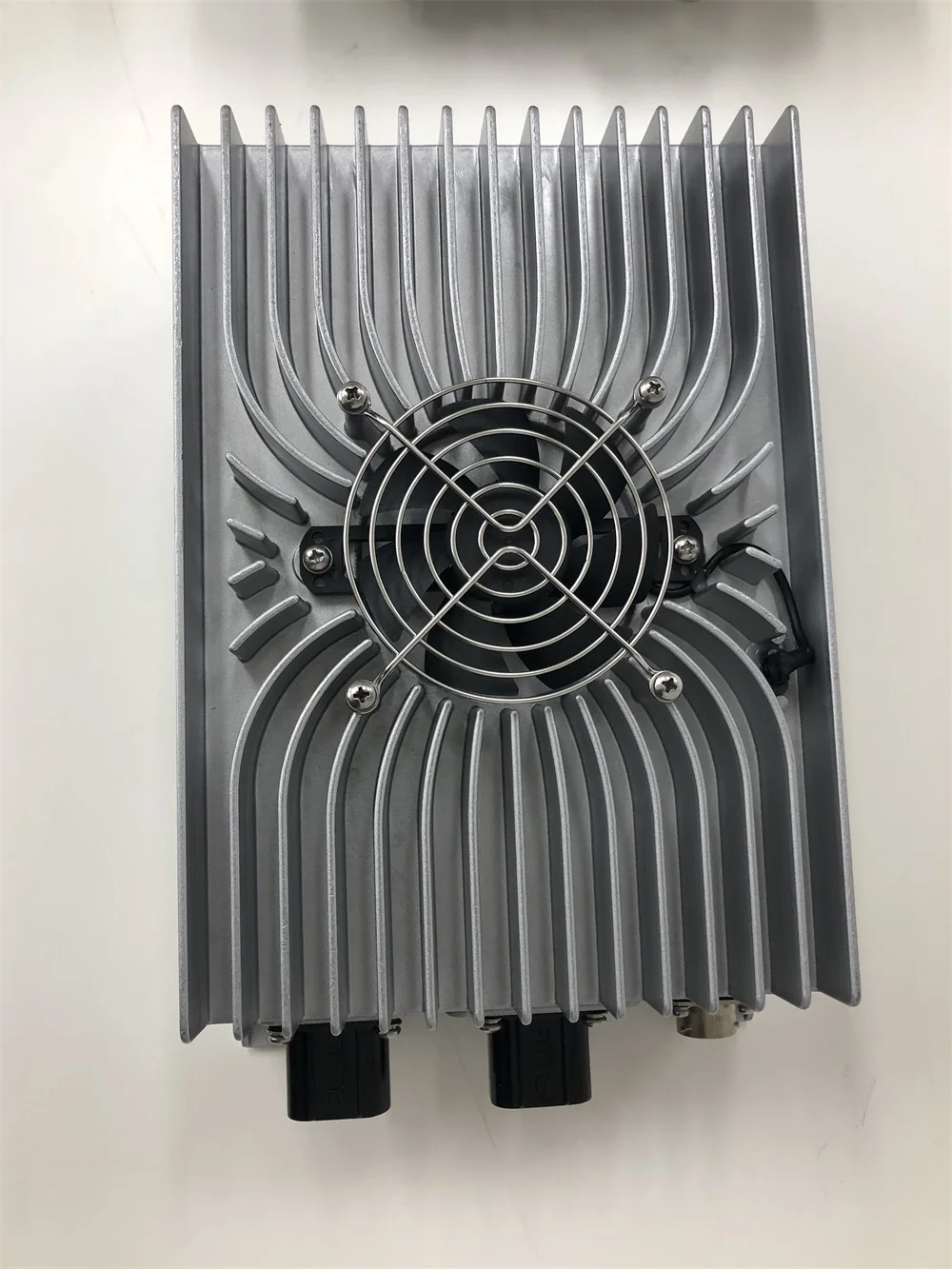

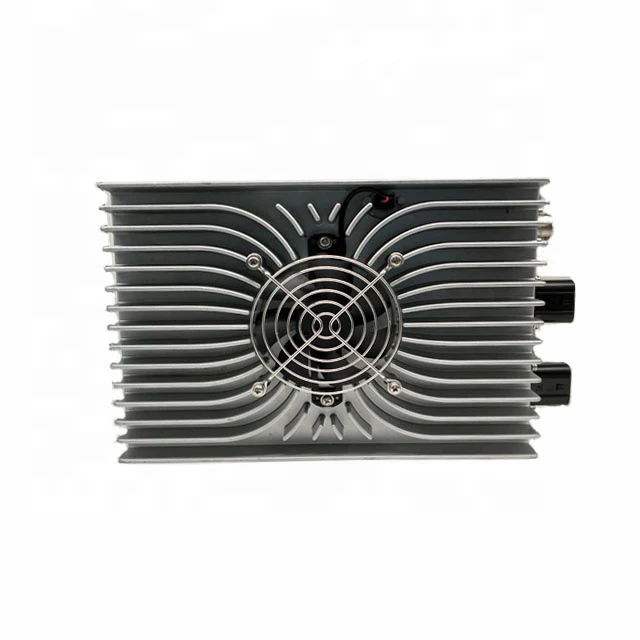

The 3300W on board charger is a digital charging converter specially designed for pure electric vehicles, with external cooling fan. It adopts advanced resonant frequency modulation technology, high efficiency, large power, small size and reliable operation.The charger adopting CAN2.0B communication protocol, intelligent charging function, intelligent monitoring and fault alarm protection function, functions of remote detection, burning, fault inquiry, etc.



Product Features:

AC-DC high-voltage output charger

a.Constant power and constant voltage state automatic conversion, effective saving time

b.Active power factor correction≥0.99

c.Input over/under-voltage protection

d.Output over/under-voltage protection

e.Output over-current protection

f.Output short circuit protection

g.Output reverse connection protection

h.Over temperature protection

i.CAN communication intelligent fault alarm and protection function

k.Control guidance function connected with charging pile(optional)

l.Functions of remote detection, burning, fault inquiry, etc.





Electrical Performance:

SpecificationUnitData
Mains InputRated VoltageV/AC220
Voltage RangeV/AC85~264
FREQ RANGEHZ47~63
Efficiency(max)%≥94
Power Factor ≥0.99@220Vac,rated power
Current(MAX)A≤16@220Vac
Mains outputRated Output VoltageV/DC96
Constant voltage output rangeV/DC70~132
Max CurrentA35
MAX powerW3300
Output voltage accuracyV≤±1%Vo input 176Vac-264Vac,output 10%-100% load
 Auxiliary supply Rated output voltageV/DC 12
 Rated output power W 2  (Activate BMS, optional power)
 PropertyInput over-voltage protection, Input under-voltage protection, Output Over-current protection, Output under-voltage protection, Output over-voltage protection, Over-temperature protection, Output short circuit protection
 Dynamic response  ≤200
 CAN communication  Communication interrupt, timeout of 5 seconds intelligent shutdown, communication normal recovery.
  CAN terminating resistor  No

Operating

environment

Operating temperature

-40℃~+85℃

(Intelligent derating when shell temperature above 70 ℃)

Operating humidity%RH 20-90(No condensation)
 Vibration  QC/T413-2002(Other parts required)
 Cooling mode  Air cooled
 Safeguard Isolation Voltage

 Input - output: 2.8KV dc (Disconnect the discharge tube in the charger)

Input - shell: 2.8KVdc

Output - shell: 2.8KVdc Auxiliary

Output - shell:700Vdc

Insulation resistanceMΩInput—output—shell>10 (25℃,70%RH)
IP Grade  IP67

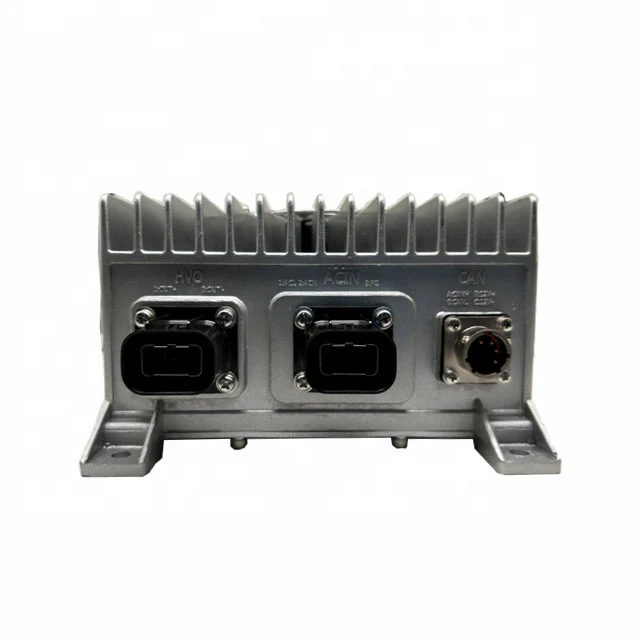

Structure mode of connection  Waterproof car connector
 weight Kg 5
 Size mm 316*194.5*108.5

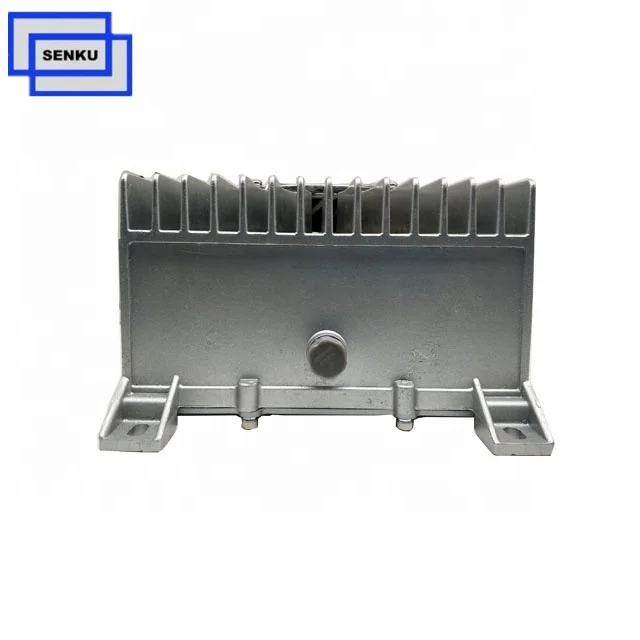

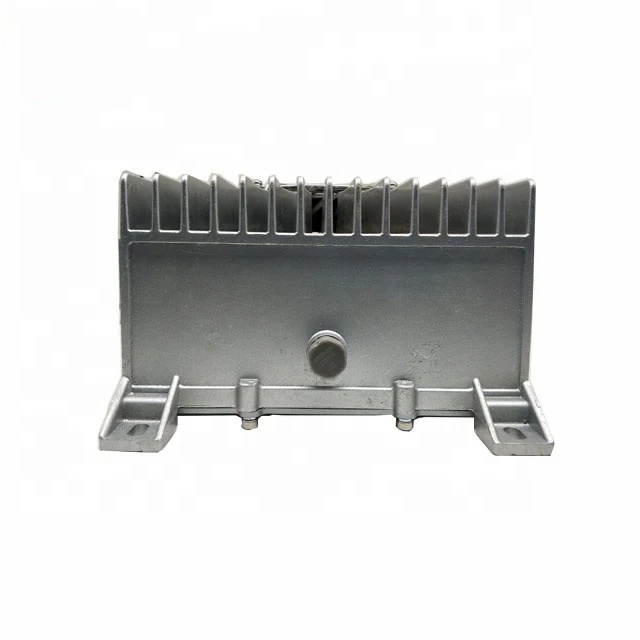

Battery Charger Details

lithium batterylithium batterylithium battery

Installation dimension drawing:

lithium battery

Our charger suitable for electr bike, electric motorcycle, electric transport vehicle, electric scooter, electric golf cart, electric sweeper, electric forklift, electric truck, electric bus etc...



Attention

In order to confirm if this charger is suitable for your battery pack, please send the following details when send inquiry:
(1) battery type
(2) number of cells in series
(3) capacity of battery pack (AH)
(4) The maximum charge voltage
(5) AC input voltage
(6) with CAN or enable
(7) Air cooled or water cooled
