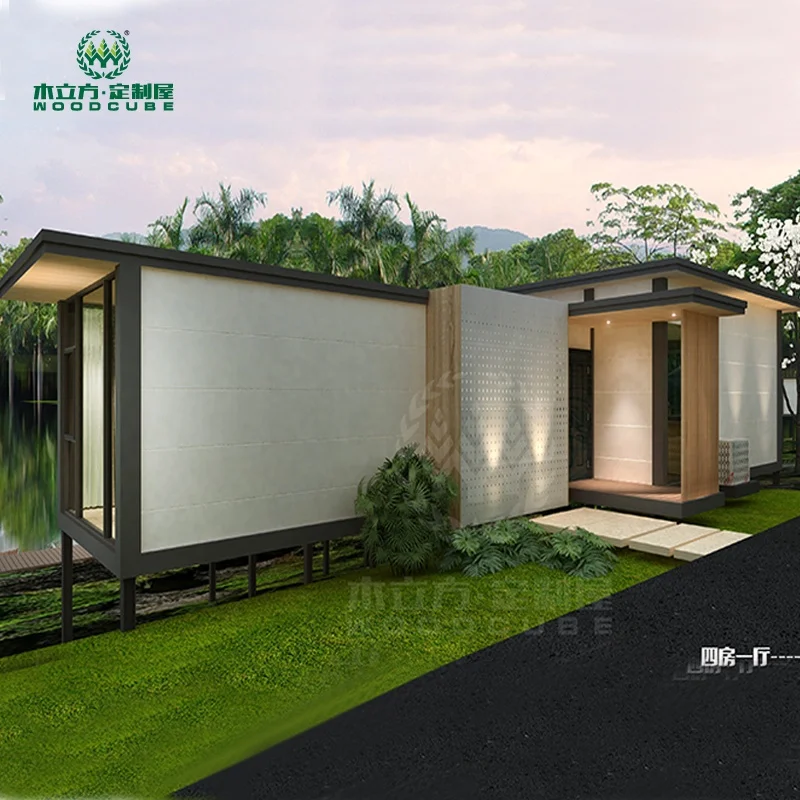

Hotel container house luxury prefab capsule hotel prefab
- Category: >>>
- Supplier: Guangdong Mu Lifang Building Technology Co. ltd.
Share on (62476773985):
Product Overview
Description
Product Detail
Item | Specification |
Model | M-A-10 |
Gross area | 78㎡， 124㎡，164㎡ |
Main frame | Q 550 Galvanized Steel， Q 350 cold-formed steel |
Demension | 14 m × 15 m |
Steel thickness | Column: 2 mm, beam: 1.5 mm, roof: 1.0 mm, ceiling: 0.8 mm. |
Pillar /beam distance | ≤ 4 m |
Wind resistant | 12 Grade, Wo =0.67 kN/㎡ |
Seismic Resistance | 7 Grade |
Lifespan for structure | 50 years |
Floor load capacity | 2.84 kN/m2 |
General Lifetime | 50 years |
Connection method | Bolts and screw between steel. |
Installation period | Around 12 days by 5-6 experienced workers |

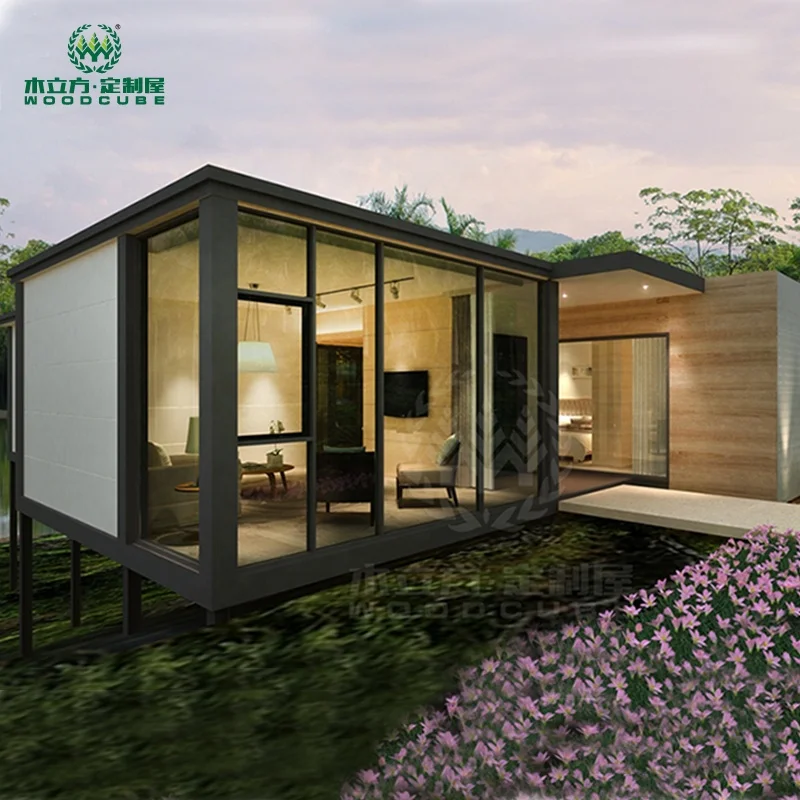

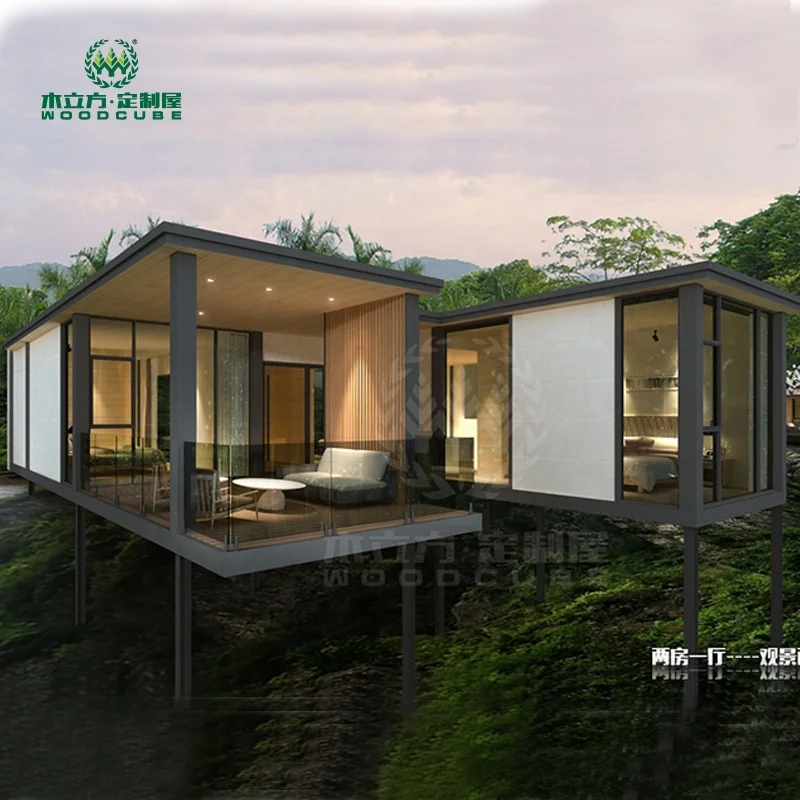

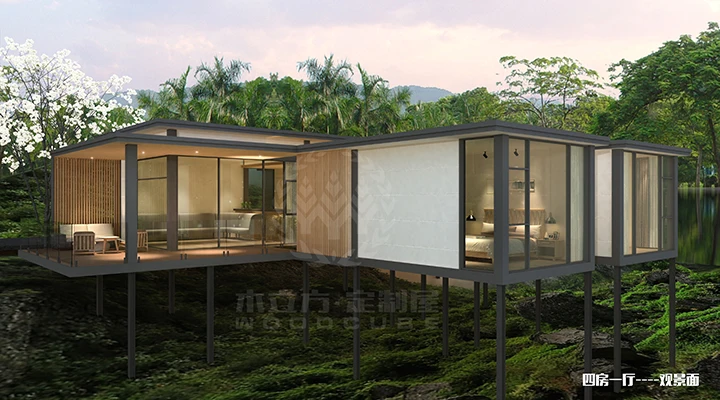

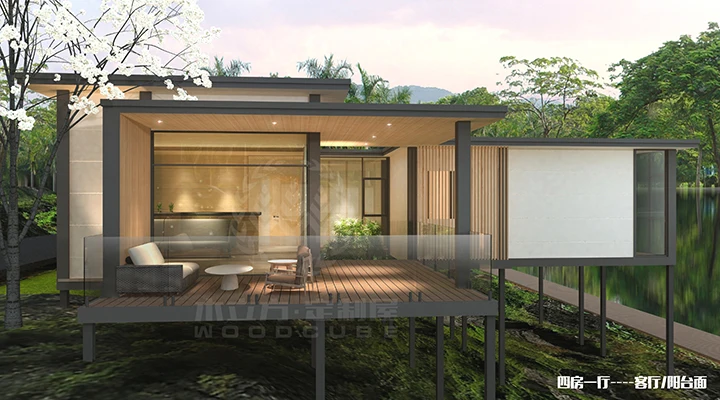

This is a modern simple house style with three models as below:
-1. Gross house area: 78㎡, one bedroom, one living room and one washroom.
-2. Gross house area: 124㎡ , two bedrooms, one living room and two washrooms.
-3. Gross house area:164㎡, three bedrooms, three washrooms, one living room, one kitchen and a storage room.
3) Flooring
4) Windows and Doors
Windows: double glazing aluminum alloy thermal break frames
Doors: security fireproof smart door; wood or steel.
5) Roofing System

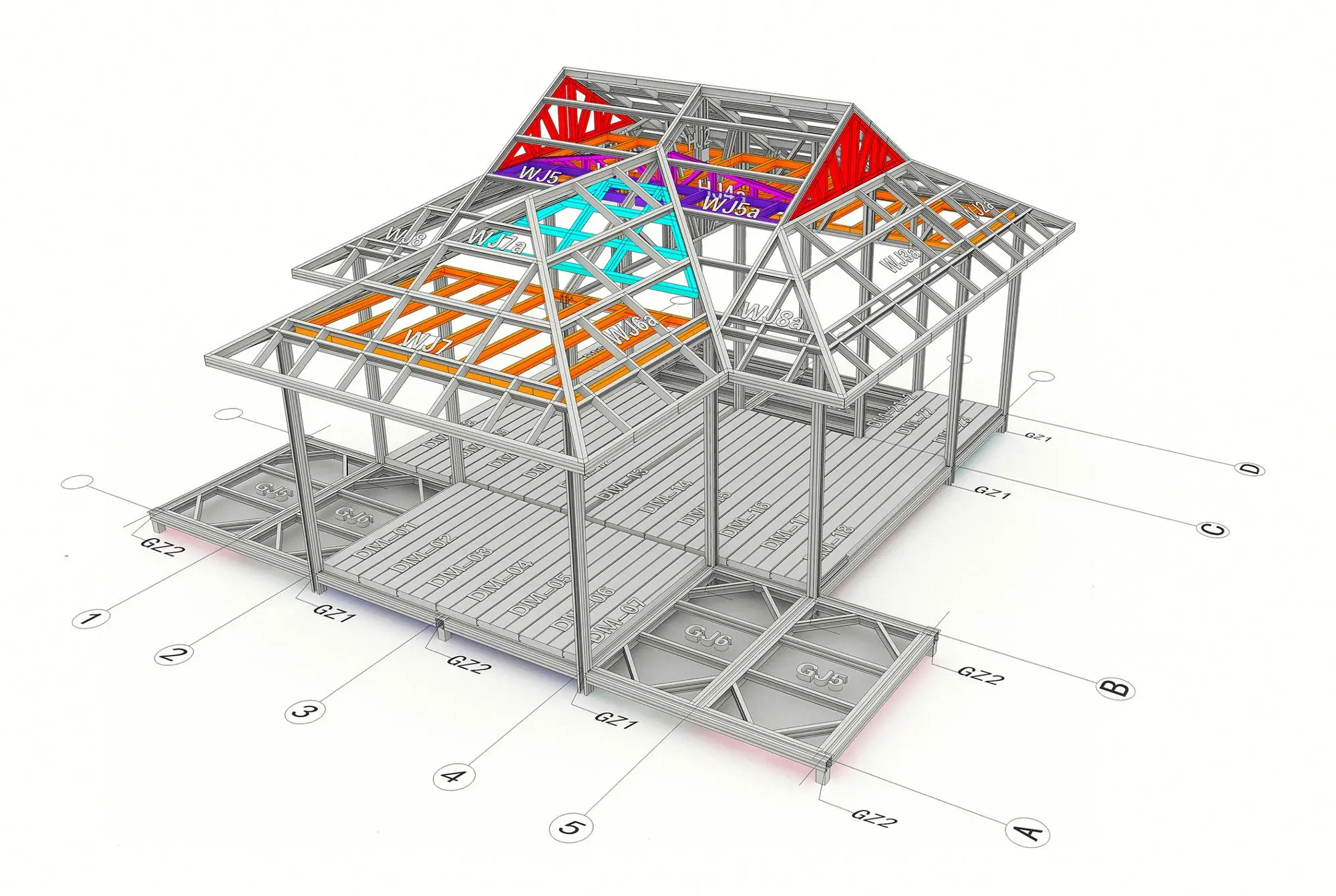

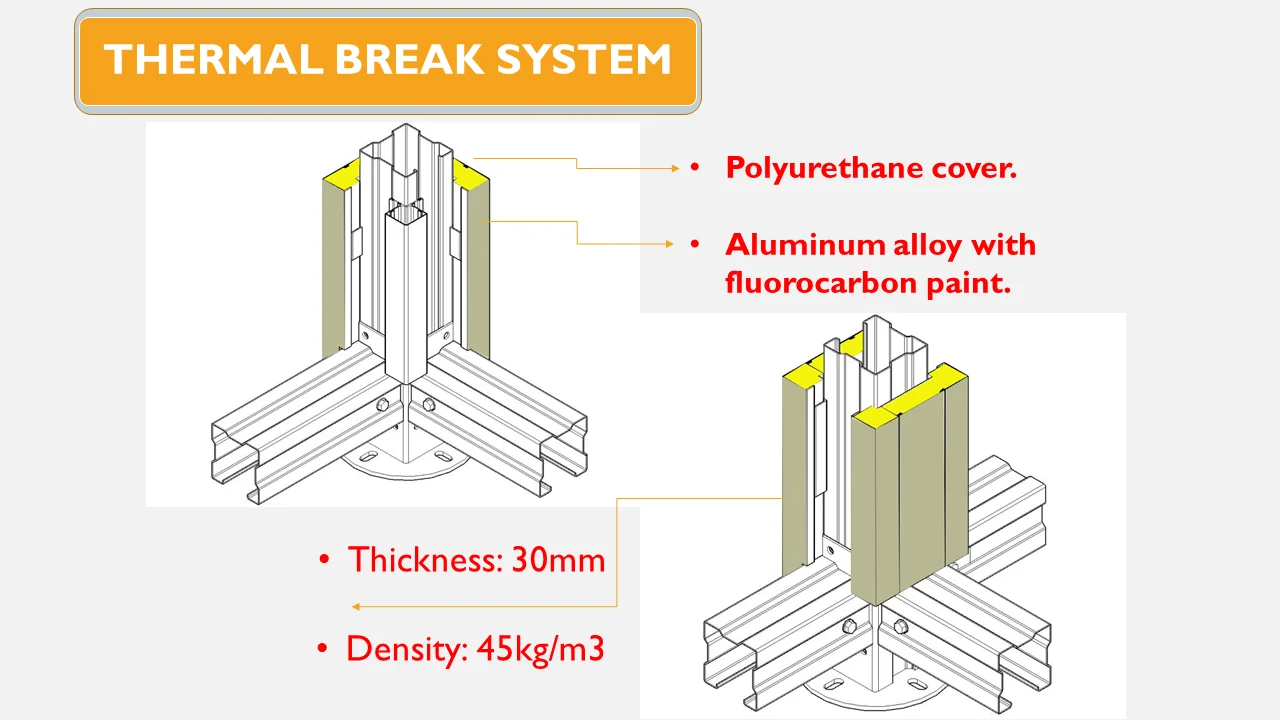

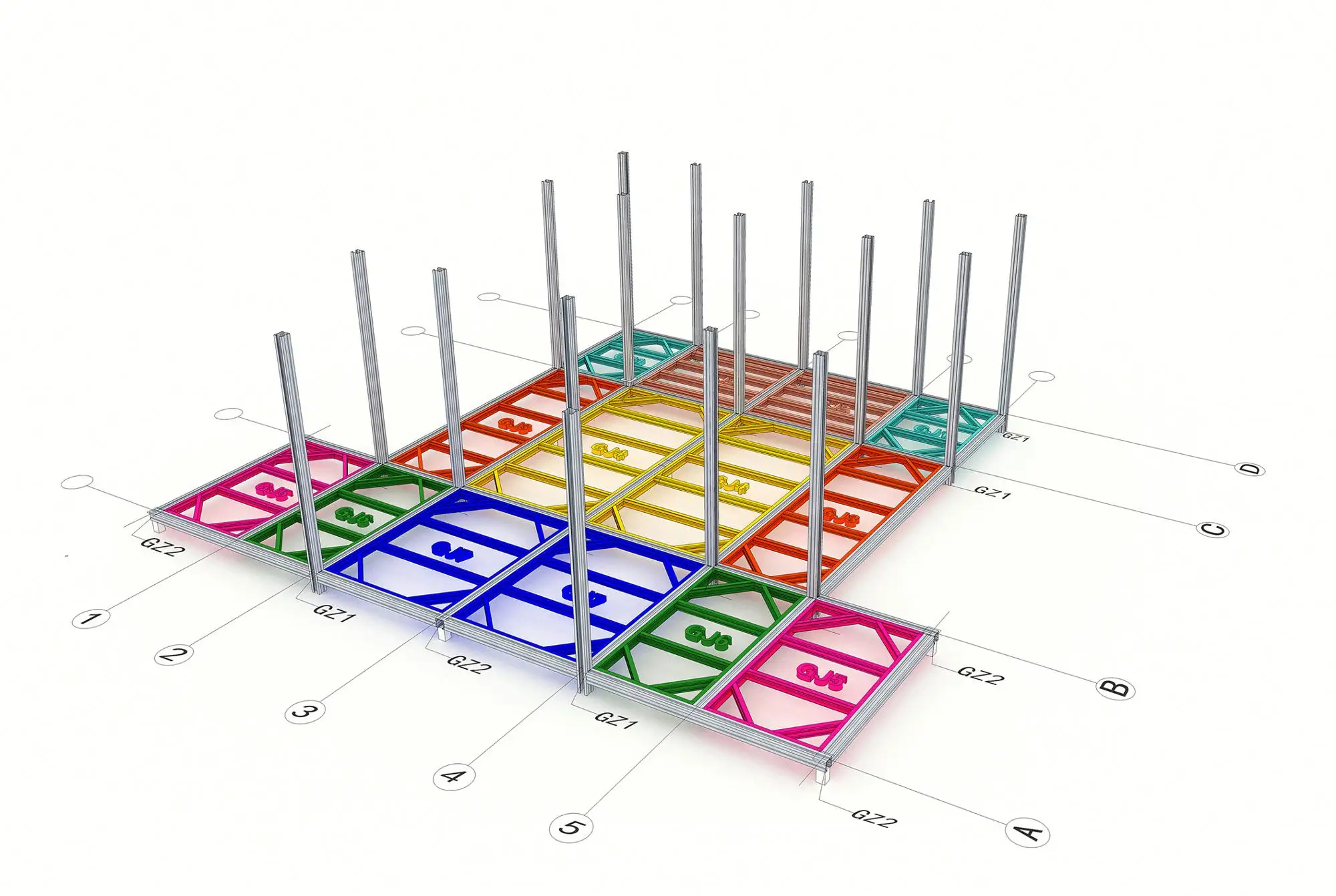

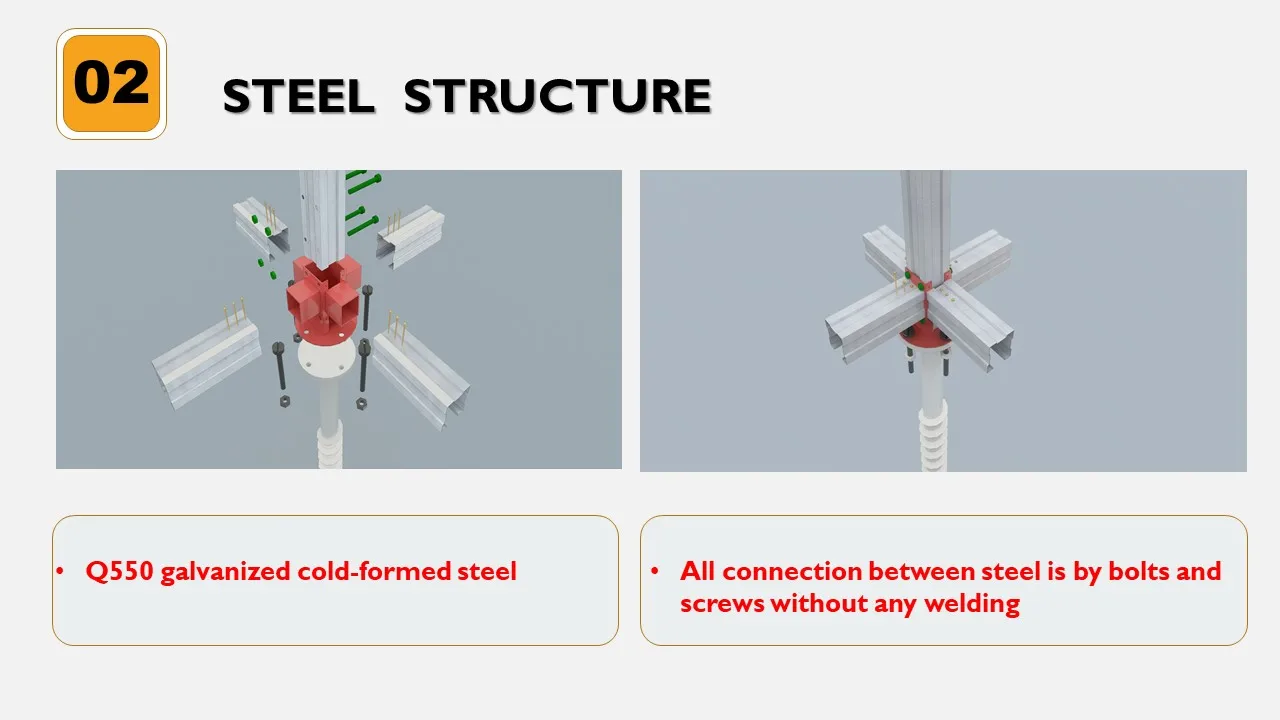

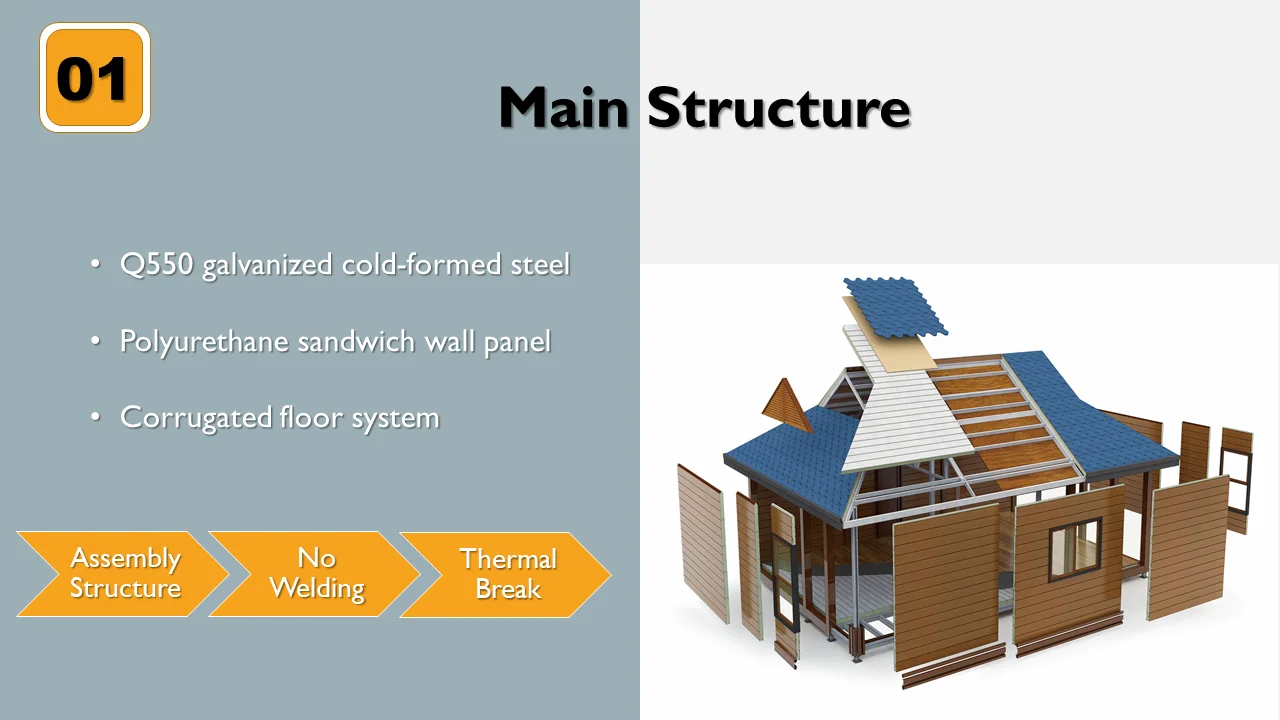

1) Patent Steel Structure System
Q 550 galvanized steel , all the columns are covered with polyurethane boards for thermal break insulation, the connection between columns and beams are by bolts and screws, no welding needed. The lifespan can be 50 years, meanwhile we provide free replacement if any problems happen within 20 years as guarantee.
Q 550 galvanized steel , all the columns are covered with polyurethane boards for thermal break insulation, the connection between columns and beams are by bolts and screws, no welding needed. The lifespan can be 50 years, meanwhile we provide free replacement if any problems happen within 20 years as guarantee.
2) Patent Modular Wall System (thickness: 100 mm)
Wood Cube takes modular sandwich panel which is with finish as wall, the face boards are 8 mm aluminum alloy sheets, core insulation is high density polyurethane foam. Exterior face board is painted with fluorocarbon which is Anti-UV. Various of finish colors options such as wood grain, marble, pure color. For cold region the heating system will be implanted in. Specification as below:
Wood Cube takes modular sandwich panel which is with finish as wall, the face boards are 8 mm aluminum alloy sheets, core insulation is high density polyurethane foam. Exterior face board is painted with fluorocarbon which is Anti-UV. Various of finish colors options such as wood grain, marble, pure color. For cold region the heating system will be implanted in. Specification as below:
Width: 600 mm
Length: as required maximum 6000 mm
Thickness: 100 mm
Heating: as required
3) Flooring
Floor panel: load bearing Polyurethane corrugated floor panel
Floor decoration layer: rigid vinyl plank hook lock floor

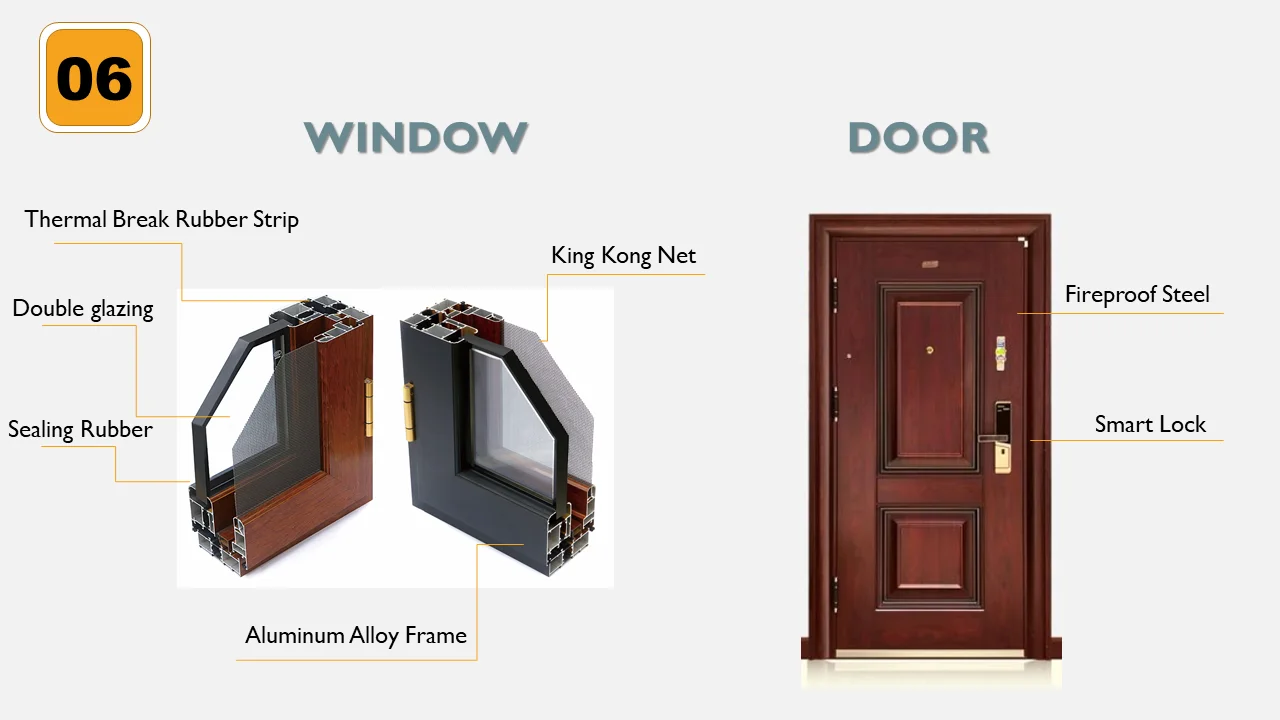

4) Windows and Doors
Windows: double glazing aluminum alloy thermal break frames
Doors: security fireproof smart door; wood or steel.
5) Roofing System
Roof panel: polyurethane corrugated roof panel
Decoration layer: asphalt tile or fiber grass

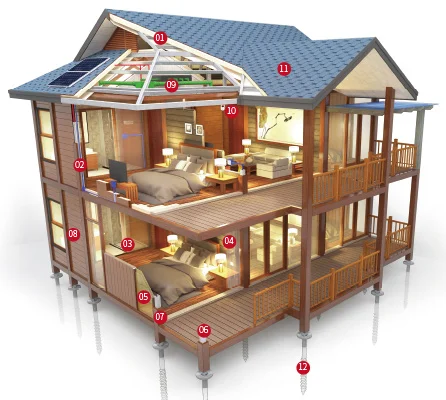

Technical Advantages
1. Thermal insulation roof
2. Integrated circuit
3. Modular bathroom Chassis
4. Automatic curtain
5. Double glazing aluminum window
6. Q55 cold-formed steel structure
7. Thermal break aluminum column cover
8. Fluorocarbon painted/ ecological wood exterior wall

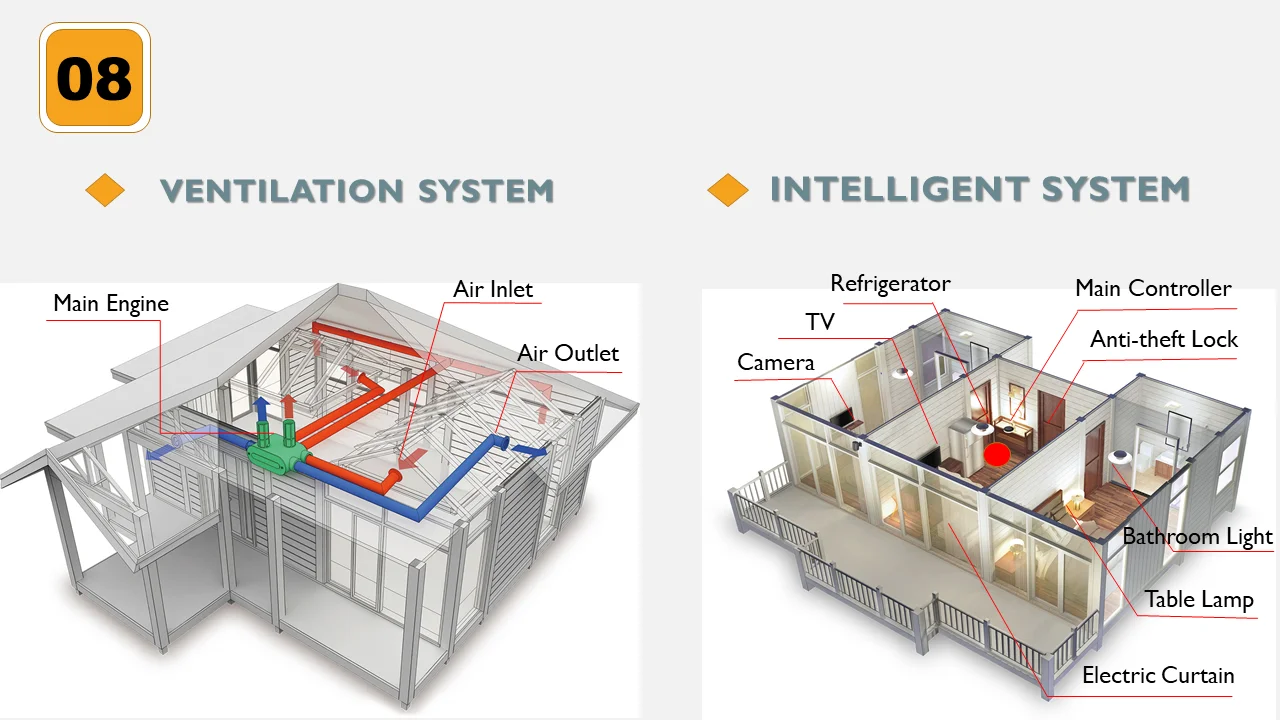

9. Ventilation system
10. Intelligent system
11. Asphalt roof tile
12. Giant ground screw

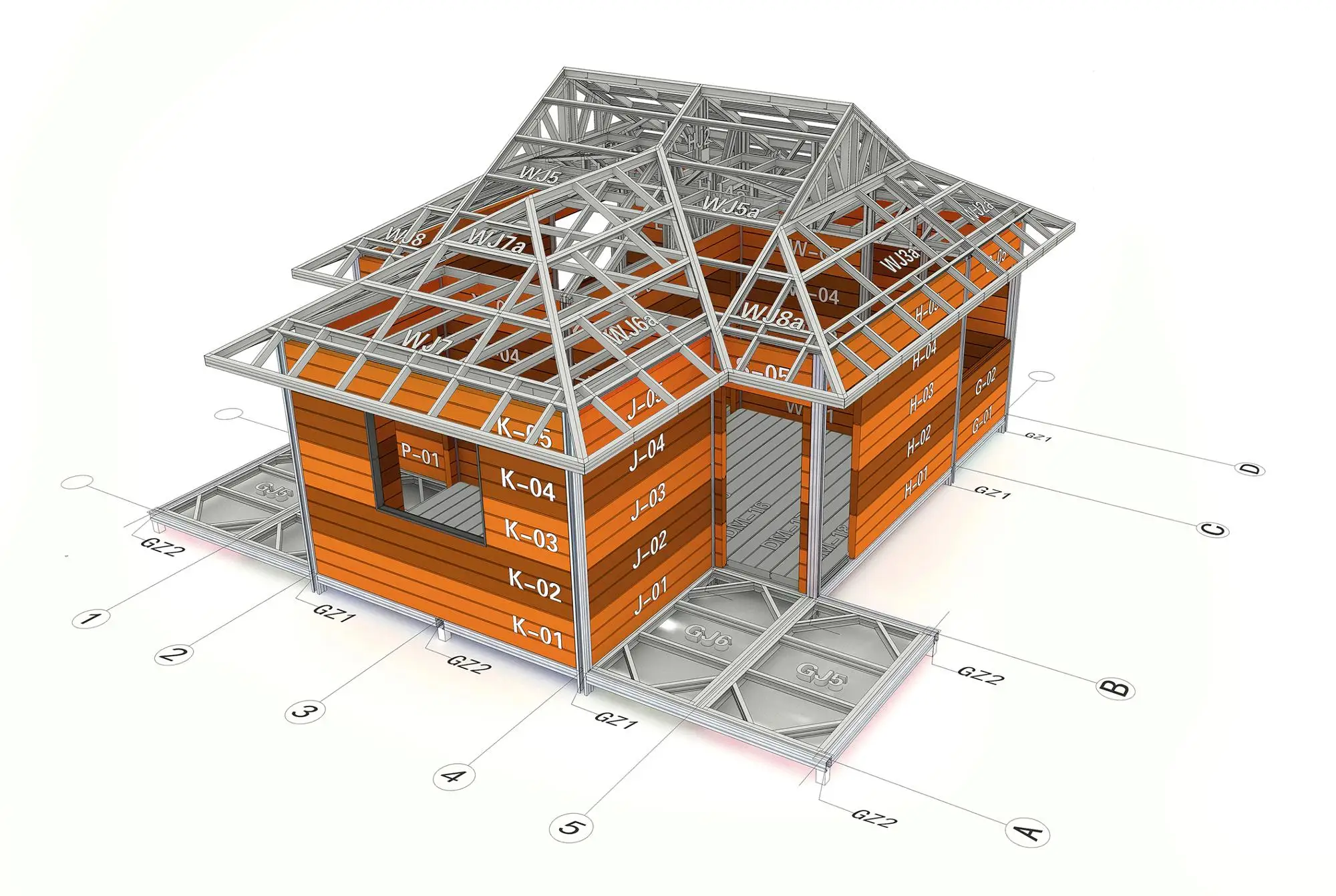

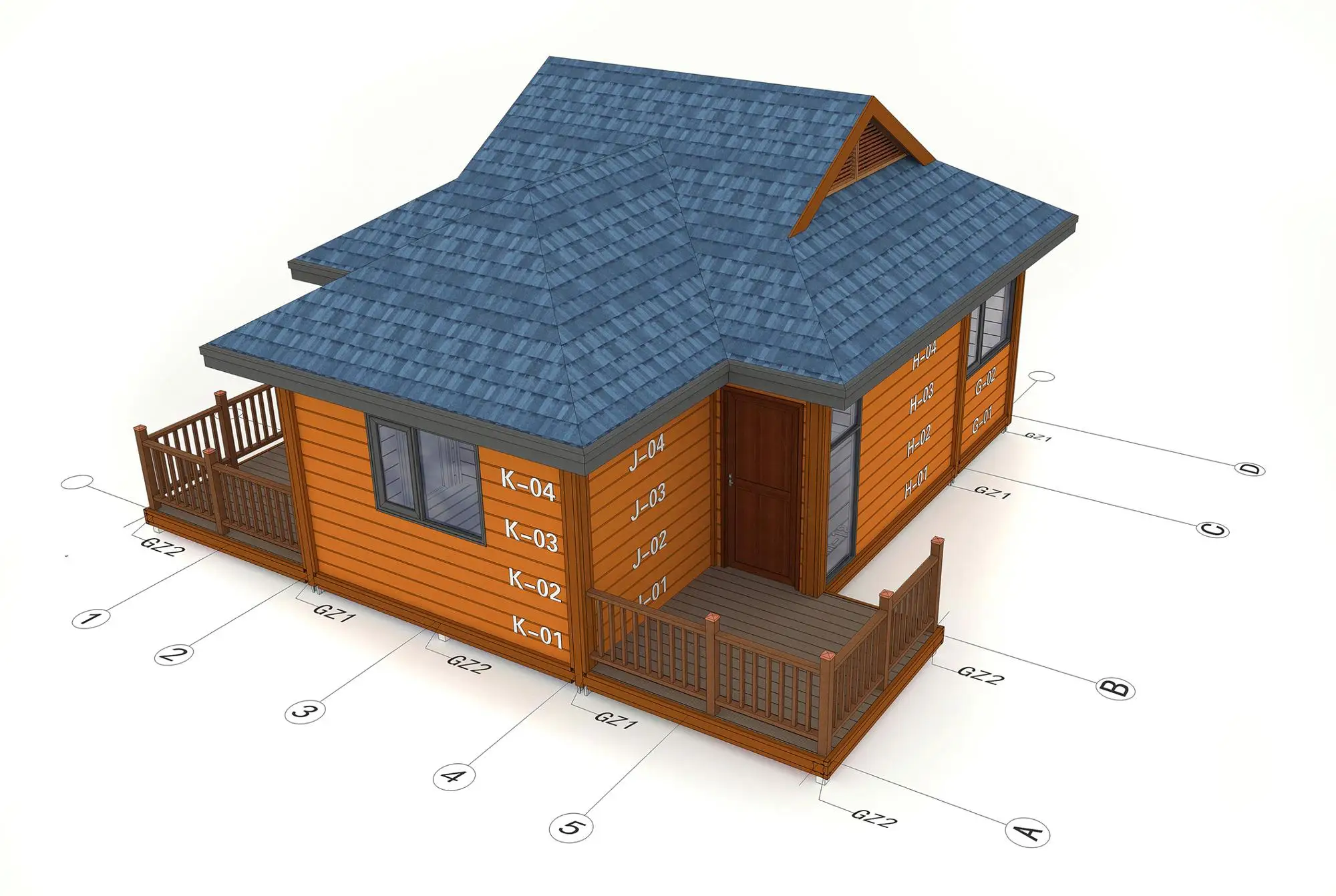

There is no welding in the whole house
Building a house like building blocks, connection between columns and beams are by bolts and screws, connection between the pillars and the wall panels can be achieved by pressing in the slot on the support without need of any bolt, rivet or glue.

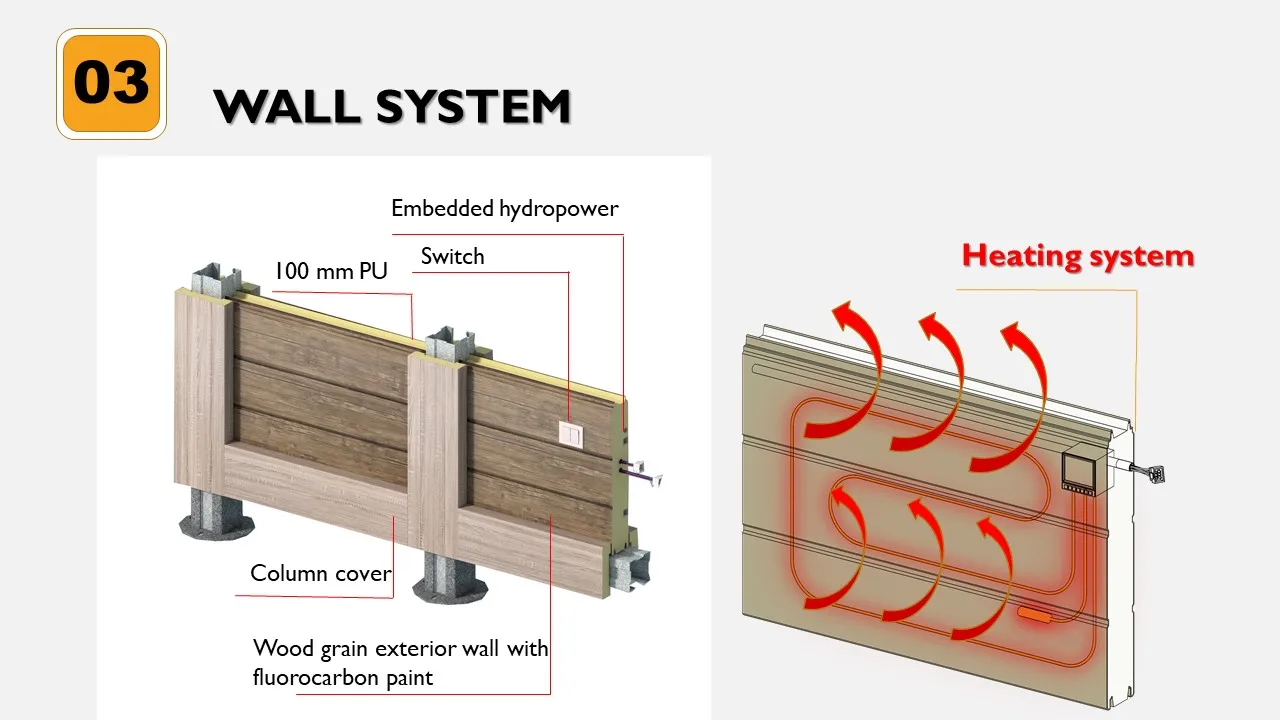

Modular Wall System
100 mm thickness aluminum alloy as face boards, high density polyurethane as core material brings excellent thermal insulation and sound insulation, the external face board is painted with anti-UV fluorocarbon which guarantees longer service life and no maintenance for at least ten years, various of finish colors options. Male and female slot makes the connection with steel structure like building blocks. For a better warmth effect, we implant carbon fiber heating system into the wall panel for cold region. Thermal Conductivity is ≤0.024 W/(M.K), thermal resistance is R≥0.417(㎡·K/M), fireproof level: B1.

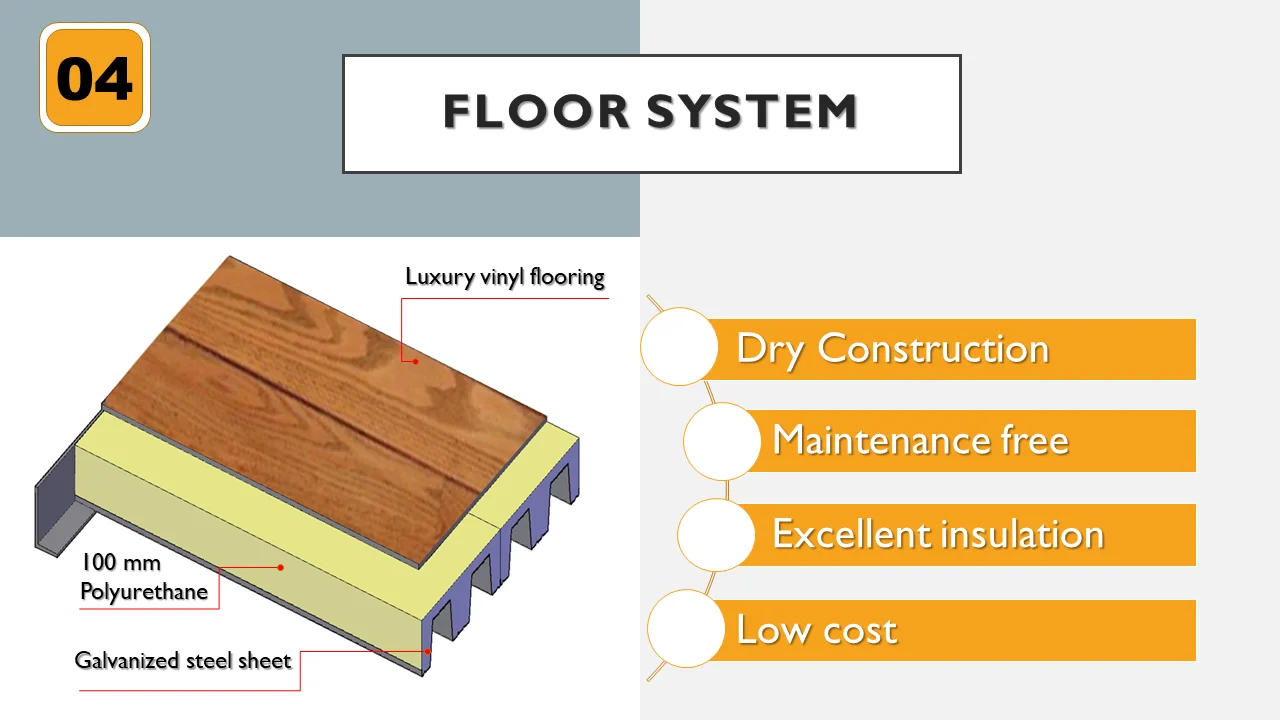

Polyurethane Corrugated Floor System
WOOD CUBE FLOOR VS TRADITIONAL FLOOR | ||||
Item Name | Traditional Floor | Wood Cube Floor | ||
Material | Steel beam+ floor slab+ shear nail+ concrete+ leveling layer+ finish board | Angle steel+ floor slab+ finish board | ||
Construction Technology | Complicate wet construction | Easy dry construction | ||
Ceiling | Complicated | No need keel, can hide the lights and improve fireproof level by using gypsum board | ||
Object Weight | Around 240 Kg/㎡ | 30 Kg/ ㎡ | ||

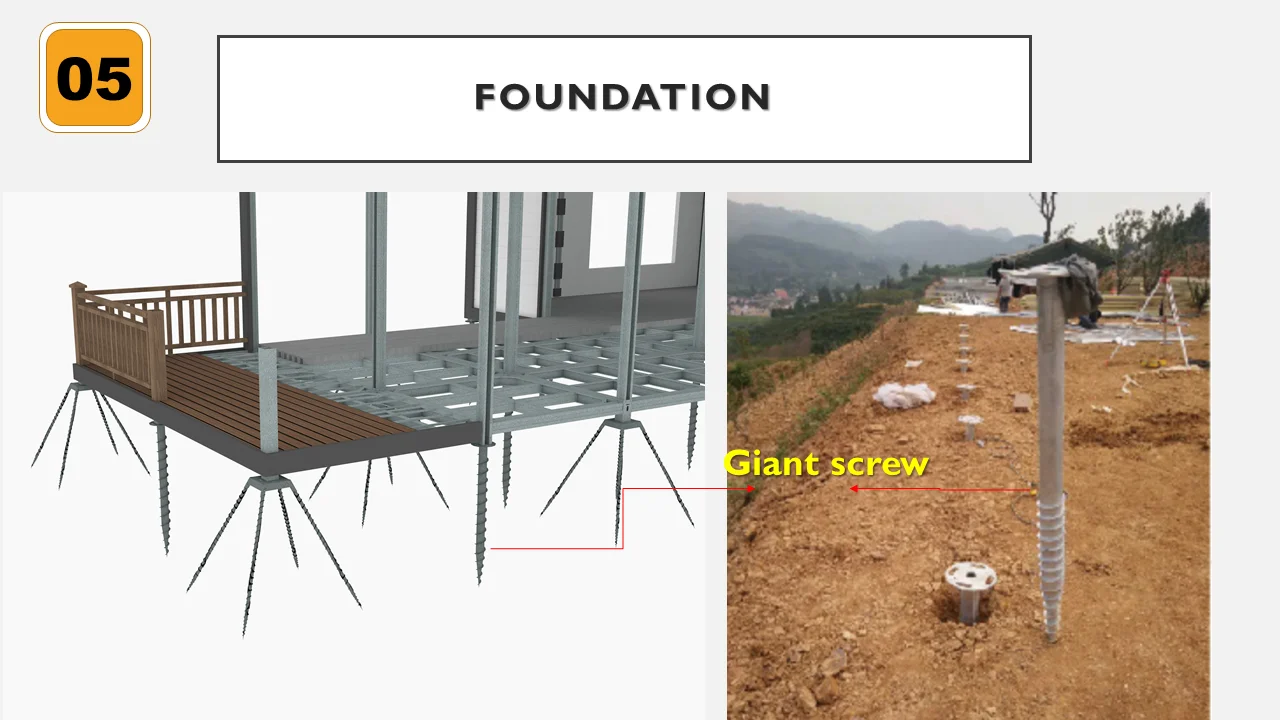

Wood Cube Foundation System
Wood Cube provide two foundation options.
-1. Giant screw system, which can be installed on different complex terrain such as hills, slope and water without causing ecological destruction, meanwhile, it brings faster installation and lower cost.
-2. Concrete foundation: customer makes concrete base, Wood Cube provides embedded parts.
Bathroom Sink
High quality Oak sink with mirror
Shower Room
Glass shower room with facility
Toilet
Smart toilet as standard configuration
High Quality Light
Various sorts of lights
Floor
Vinyl locking floor (customized color)

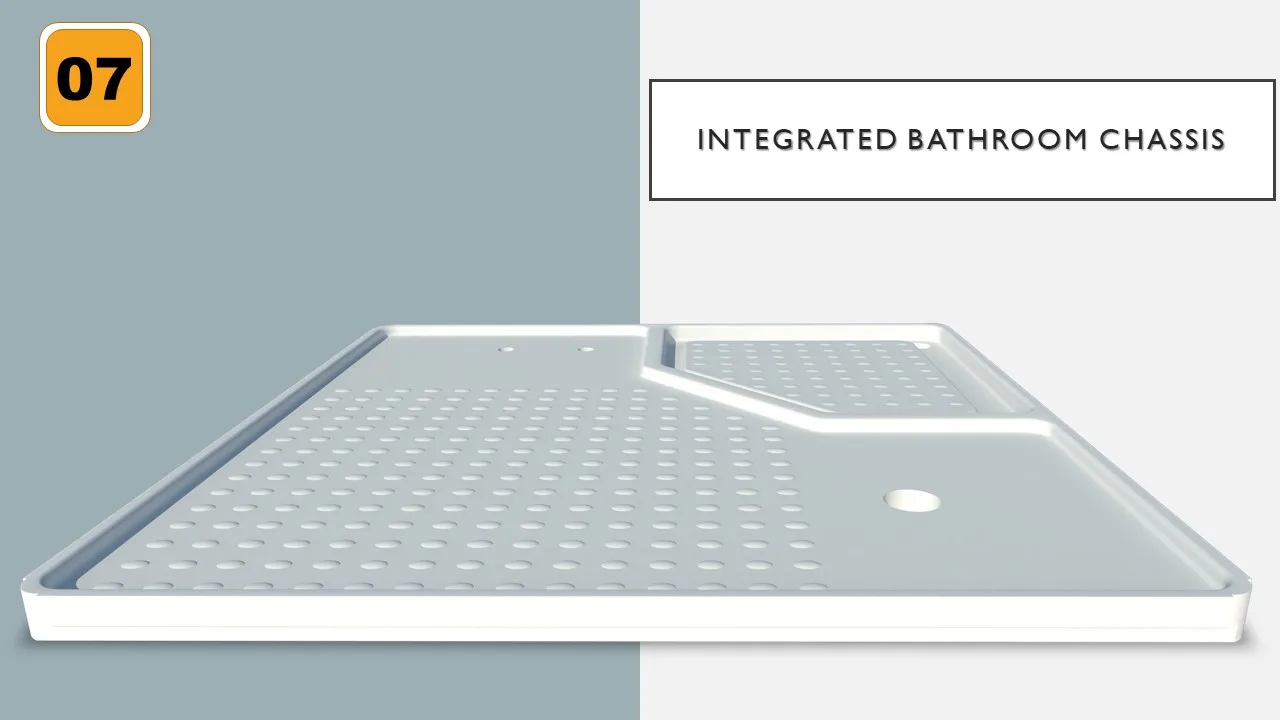

Washroom Chassis
Customized washroom chassis
Item Name | Wood Cube House | PK | Timber House | Container Steel House |
Material | Q 550 galvanized steel+ aluminum PU sandwich wall panel+ PU corrugated floor and roof | Wood | ||
Environmental protection | 1.100% dry construction 2. No painting 3. 98% repeated used 4.Whole house thermal break insulation | 1. Mass felling of trees 2. Poor recovery 3. Lots of construction waste and dust 4. The painting contains formaldehyde | 1. Lots of steel are needed 2. The painting which contains formaldehyde is unavoidable | |
Comfortability | 1.Imitation of wood. 2. Modern appearance, elegant interior design reaches four star design standard. 3. Ventilation system. 4. Whole house thermal break. 5. Various of wall color options brings different design effect. | 1. Origin wood ，natural texture, simple color，lack of color matching 2. Comfortable | 1. Poor insulation, high energy consumption for air conditioner. 2. Noisy when raining. | |
Service Life | 50 years | 5-10 years | 6-8 years | |
Installation Period | 1.5-6 workers can install a 30 square meters house per day. 2. One project can operate within 30 days. 3.Some models support hanging transportation. | 1. Long construction period, light, water and heating will take extra time. 2. Will take at least 150 days for one project | 1. Fast installation. 2. Hanging transportation is available. | |
After Service | 20 years guarantee, a full set of installation tool for free, technician and assembly team | N/A |

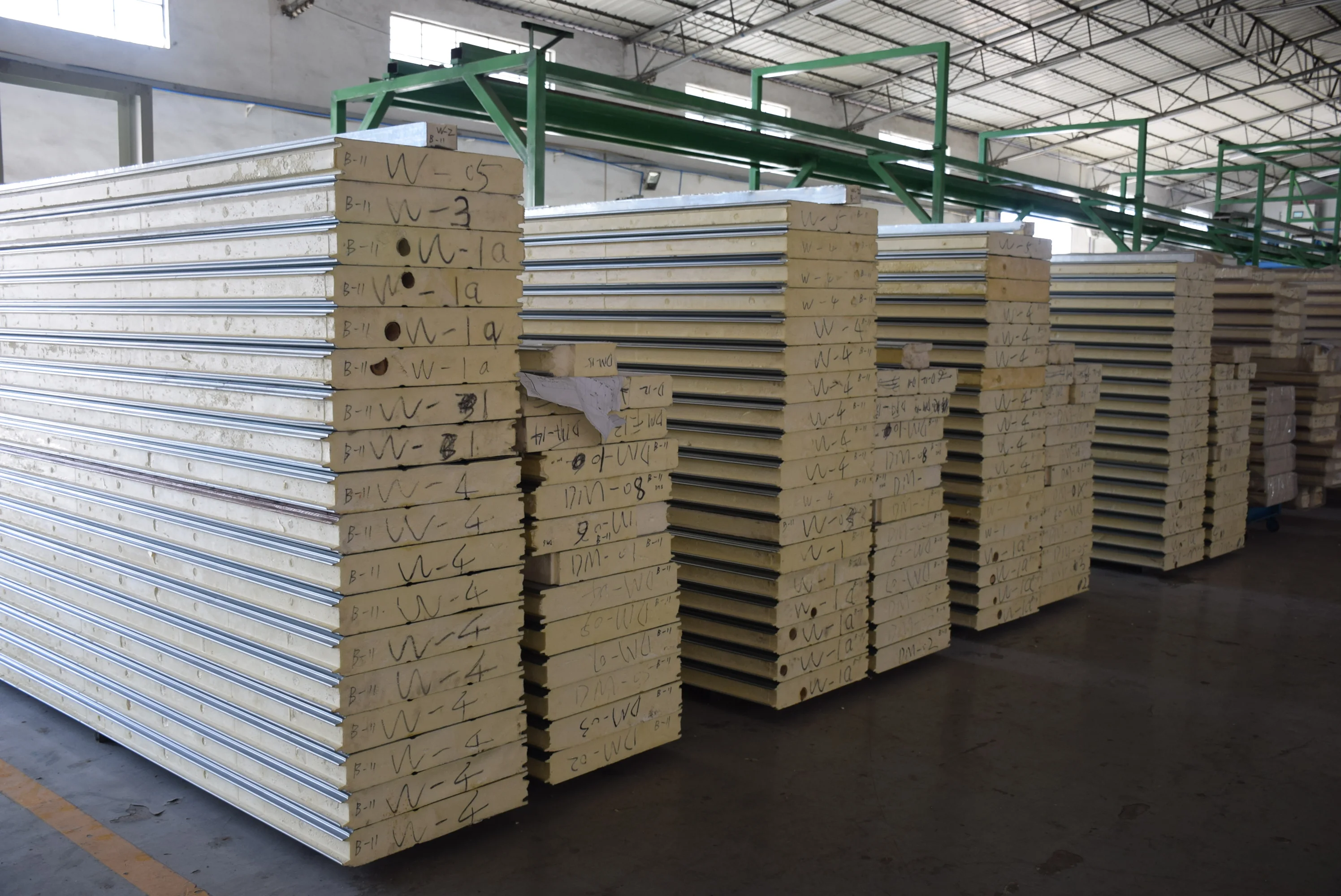

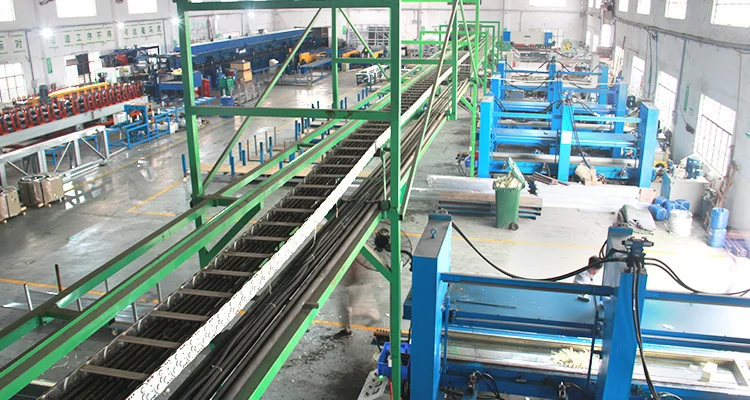

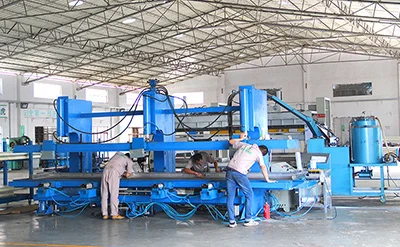

Our Factory
Representative Project
Public Toilet
110 sets in total
Kangquan Tourism Area
15 sets in total
B-10-b
Hot sale model
Hengqin Project
36 sets in total
Tribe House
16 sets in total
Tree House
18 sets in tot
Certifications
Invention Patent
A sort of easy assembly thermal and sound insulation partition wall.
Patent No.: ZL 2015 1 0167282.9
Invention Patent
A sort of multi functional modular wall and production method.
Patent No.: ZL 2016 1 0050007.3
FAQ
Q: Do you know what snow load is on this cabin?
A: IT MEETS 25 PER FOOT
Q: Do or can these cabins be built on a concrete slab?
A: We provide two ground systems:
A: We provide two ground systems:
-1. Our own foundation system which is built on the giant screw, doesn't mater how complicate the terrain is, can be hills , slope or water, it is faster, easier and lower cost.
-2. Customer makes concrete foundation, we provide embedded parts.
Q: How do you guarantee the quality of the products?
A: We control the quality strictly because quality makes the future, 20 years guarantee for main structure includes steel frame, wall panel, roof panel and floor panel, free spare parts, return and replacement during guarantee period.
Q: How to install it?
A: We will provide detailed instructions along with video to you. Professional installation engineers team is available for
foreign countries at your cost if it is necessary.
A: We will provide detailed instructions along with video to you. Professional installation engineers team is available for
foreign countries at your cost if it is necessary.
Q: What is the price for your house，do you accept custom design?
A:The price range is around USD 400-700/㎡ depends on the design requirements, which includes steel structure, wall, roo, floor, windows, doors, lights, washroom etc. Yes, we accept custom design , and for all the houses we comply with fixed structure which means the steel, wall panel, roof panel and floor panel are fixed materials as the description above, we don't accept the material changes on these, but you can add the decoration boards as you want.
Q: I am very interested in the product , could you send me the quotation and floor plan?
A: All the presented products are designed by our own team, you can send us the pictures of product you like, we would like to provide quotation accordingly. Meanwhile, we accept custom design, please kindly provide below details in your custom inquiry:
1. House area
2. Floor plan
3. Quantity
4. Budget range
5. Quality requirement
6. Destination port
Q: Do you produce container house?
A: Container house is not our product range, we produce high quality prefab house with excellent insulation, the lifespan is 50 years, our design can reach up 4 star standard. Most of our customers are developers in tourism industry, they have high requirements on quality, production period, installation period as well as the insulation. We develop some house models which look similar to containers, please contact us for details if you are interested.
Q: What is the production time and construction period?
A: It is around 20-30 days ，4-6 experienced workers can install 100 ㎡ within 14 days.
Q: Do you have installation team to come abroad? what costs me from purchase to living in?
A: We have professional teams in domestic market, but usually we arrange our technicians abroad instead of workers, because the cost for workers will be around two or three times more. The budget to build a house might include the following details:
-1. CIF price of our house( house cost+ sea freight+ insurance)
-2. Import tariffs for the house( we will provide you the HS code of prefab house)
-3. Installation cost of the house
-4. Furniture and appliances
