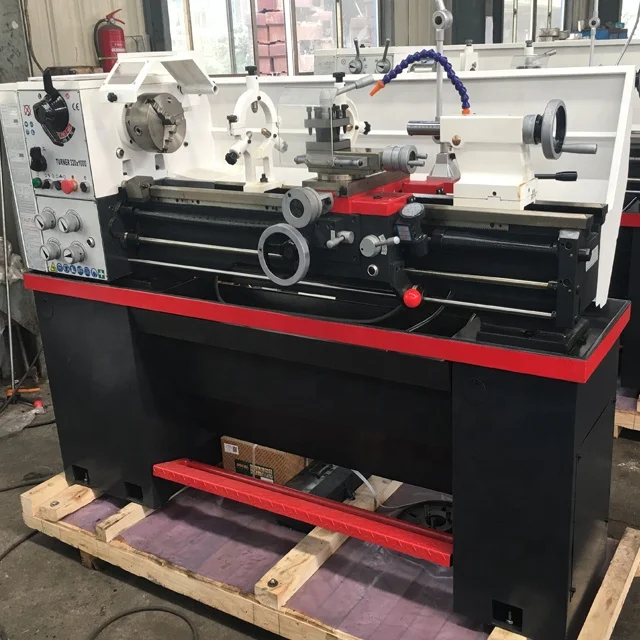

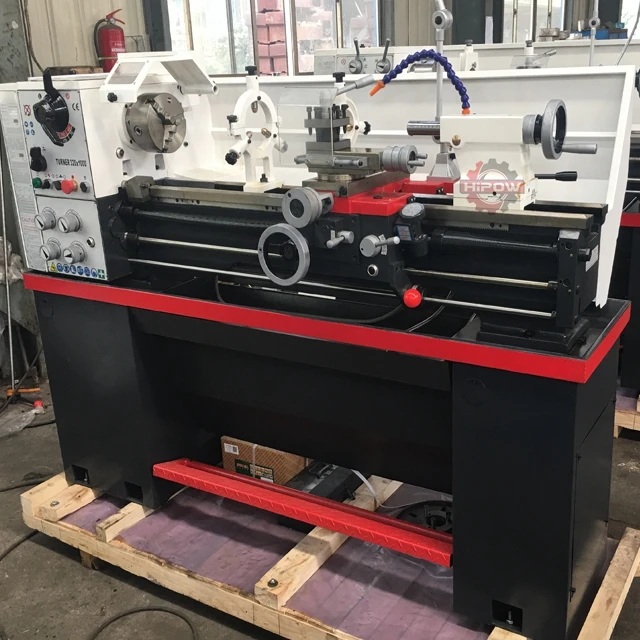

C6232 small home manual metal engine lathe machine price
- Category: >>>
- Supplier: Tengzhou Hipow Machinery Co. Ltd.
Share on (62476833653):
Product Overview
Description
Product Description
 |

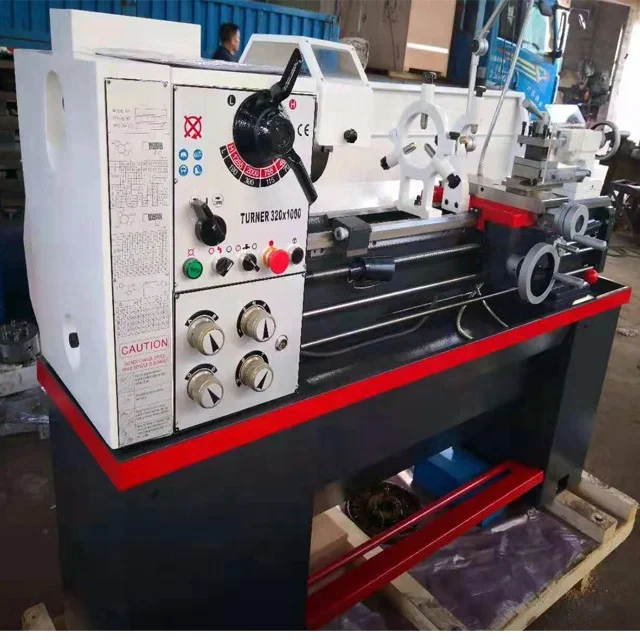

C6232 small home manual metal engine lathe machine price |
 |
Main Feature 1.Bed guideway is harden and tempered by super audio quenching and grinding
|

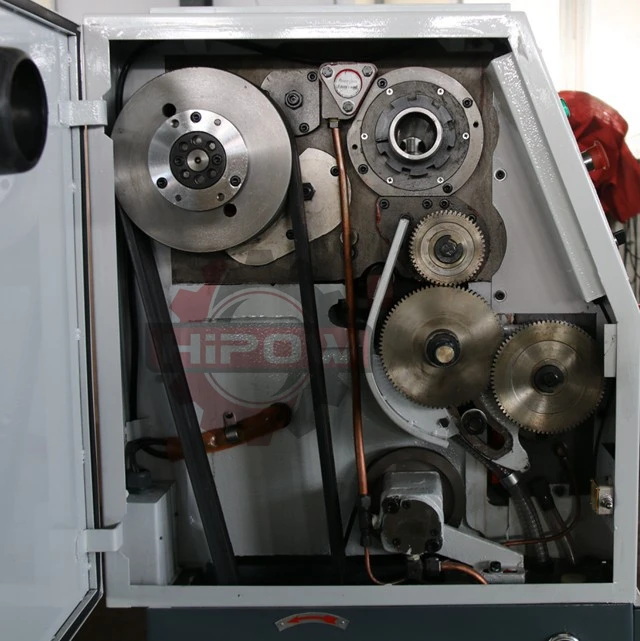

1. Spindle Head Box
Strictly Processed Hardened-tempered casting gears make the spindle head box perform precisely.

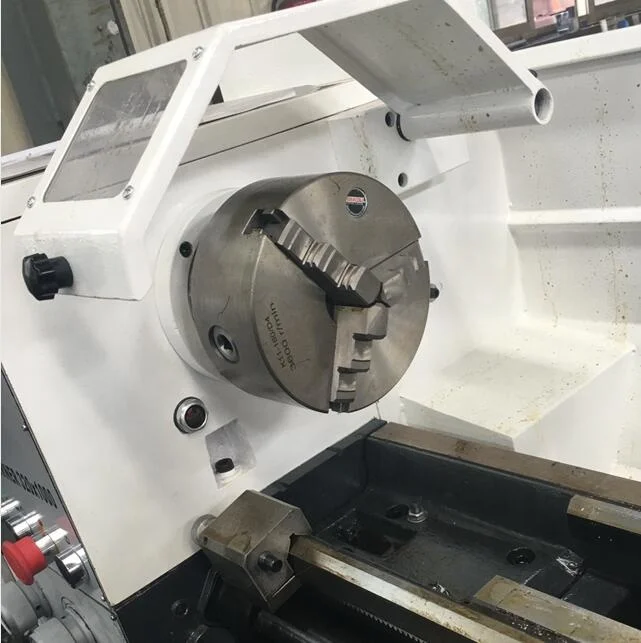

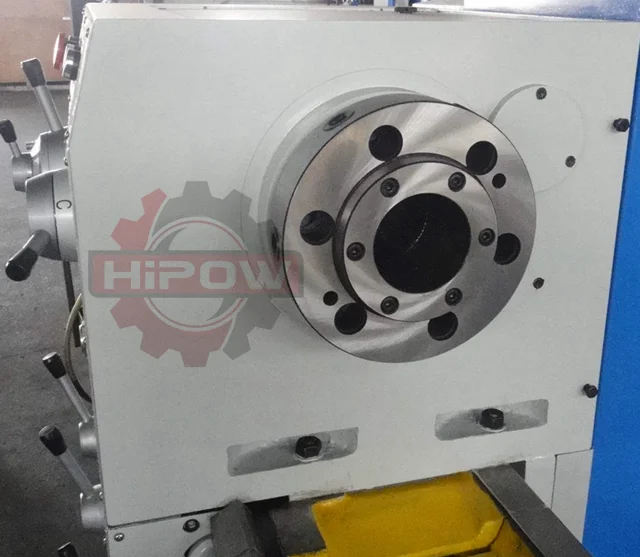

2. Spindle Hole and Spindle Chuck
1)Standard spindle hole is 38mm ,Spindle Taper:MT5
2)Spindle chuck is 3-jaw 160mm ,4-jaw 200mm chuck.

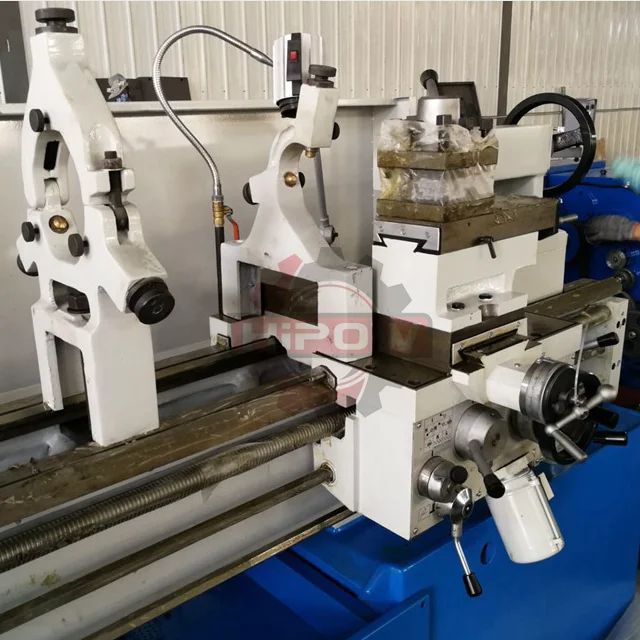

3. Tool Post , Steady Rest and Follow Rest
The machine`s Tool Post size is 16x16mm ,steady rest and follow rest are standard parts

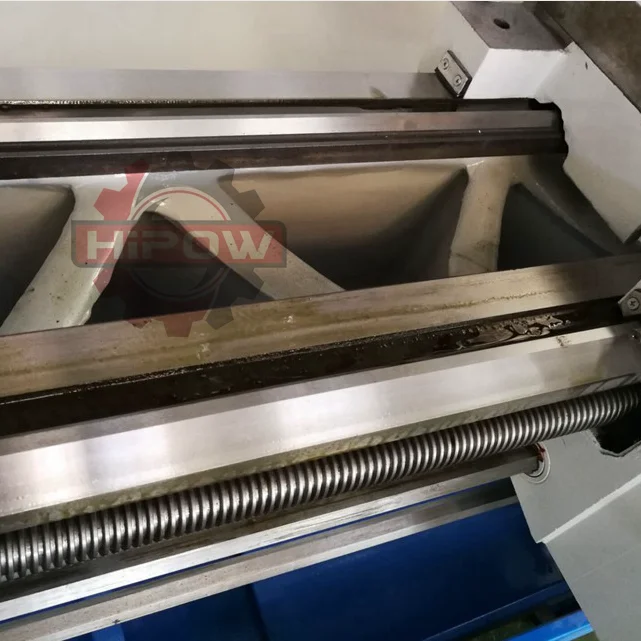

4. Lathe Body
The machine`s bed width is 187mm,Hardened-tempered casting body makes high rigidity,high precision,long Life.

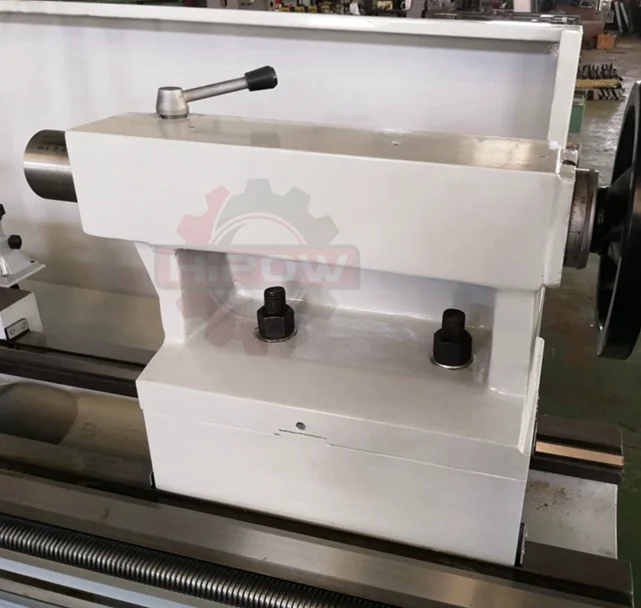

5. Tailstock
1)Tailstock`s sleeve diameter :32mm,Tailstock Taper: MT3
2) Drilling Chuck can be installed .
 |
Mode | C6232*1000 |
Swing over bed | Φ330mm |
Swing over cross side | Φ198mm |
Turning without bed bridge | Φ476mm |
Length of gap | 115mm |
Center distance | 1000mm |
Center height | 165mm |
Width of bed | 187mm |
Headstock |
|
Spindle nose
| D1-4 |
Spindle bore | Φ38mm |
Spindle taper | MT5 |
Range of spindle speed | 70-2000 rpm |
Feeds and threads |
|
Compound rest travel | 95 mm |
Cross slide travel | 180 mm
|
Lead screw thread | 4mm |
Max. Section of tool (W*H) | 16mm×16mm |
Longitudinal feeds range | 0.052-1.392 mm/rev; 40feeds |
Cross feeds range | 0.014-0.380mm/rev; 40feeds |
Threads metric pitches | 0.4-7mm/rev 32 thread pitches |
Threads imperial pitches | 4-56 T.P.I. 40 thread pitches |
Threads diametral pitches | 8-224 D.P; 23 kinds |
Threads module pitches | 0.25-3M.P; 15 kinds |
Tailstock |
|
Quill diameter | Φ32mm |
Quill travel | 100 mm |
Quill taper | MT3 |
Motor |
|
Main motor power | 1.5 kw |
Coolant pump power | 0.04kw |
Dimension and weight |
|
Overall dimension(L*W*H) | 1820*740*1240mm |
Packing size(L*W*H) | 1930*760*1450mm |
Nw/Gw | 550/600kgs |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
