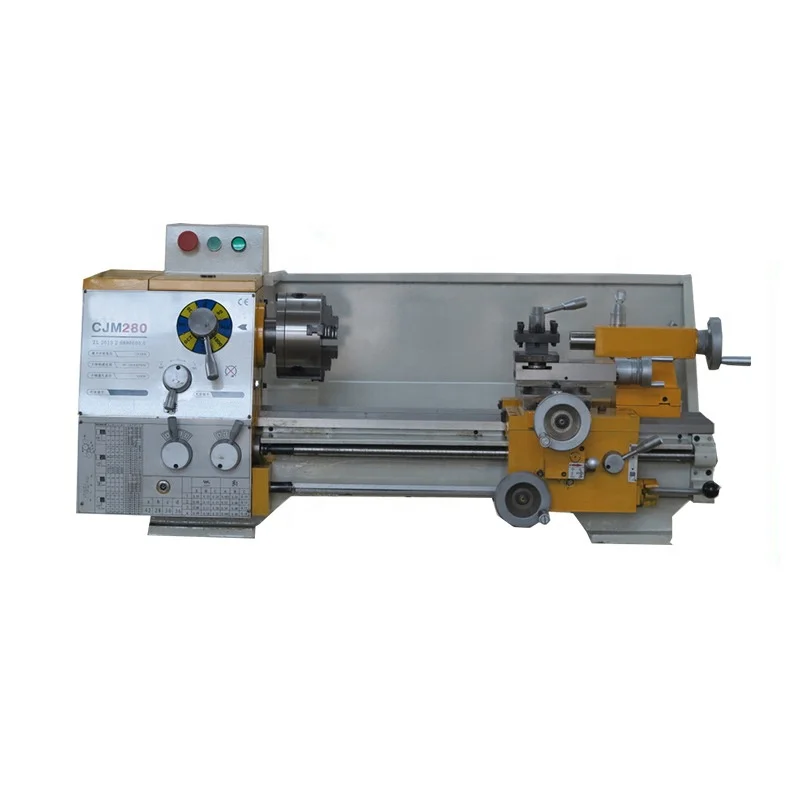

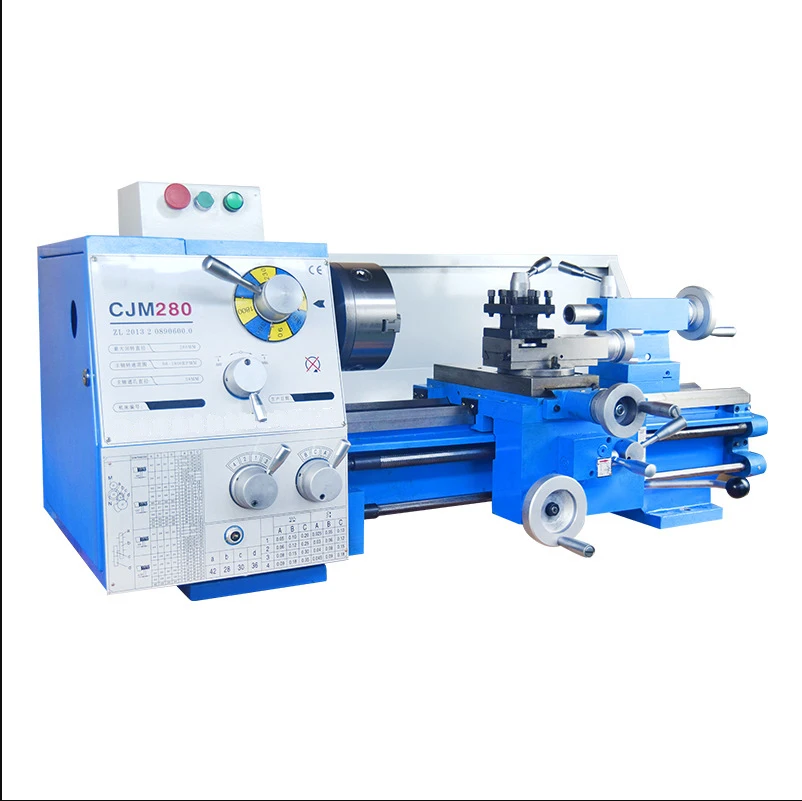

hobby mini lathe machine CJM280 with 750mm center distance
- Category: >>>
- Supplier: Chizhou Syntop CNC Industrial Co. Ltd.
Share on (62476937516):
Product Overview
Description
Product Description
Features
* High quality steel, ground and hardened gear inside headstock.
* Easy and fast operating gearbox.
* Enough strong power motor.
* Various thread cutting function
Specifications for CJM280*500 | ||
Swing Over Bed | 280mm | |
Swing Over middle carriage | 165mm | |
Cross Slide Travel | 140mm | |
Distance Between Centers | 500mm | |
Longitudinal Travel Over Tool Post | 75mm | |
Spindle Bore | 38mm | |
Spindle Taper | MT5 | |
Number Of Spindle Speed | 8 steps | |
Range Of Spindle Speed | 90-1800 r.p.m | |
Number Of Metric Threads | 18 | |
Range Of Of Metric Threads | 0.2 - 3mm | |
Number Of Imperial Threads | 34 | |
Range Of Imperial Threads | 41/2 ~ 48 1/n” | |
Longitudinal -Feed Range | 0.05 ~ 0.35mm/r | |
Cross-Feed Range | 0.025 ~ 0.18mm/r | |
Tailstock Spindle Travel | 60mm | |
Taper In Tailstock Spindle | MT3 | |
Main Motor | 750W | |
Packing Size | 1250*700*1300mm | |
Weight | 300kgs | |
