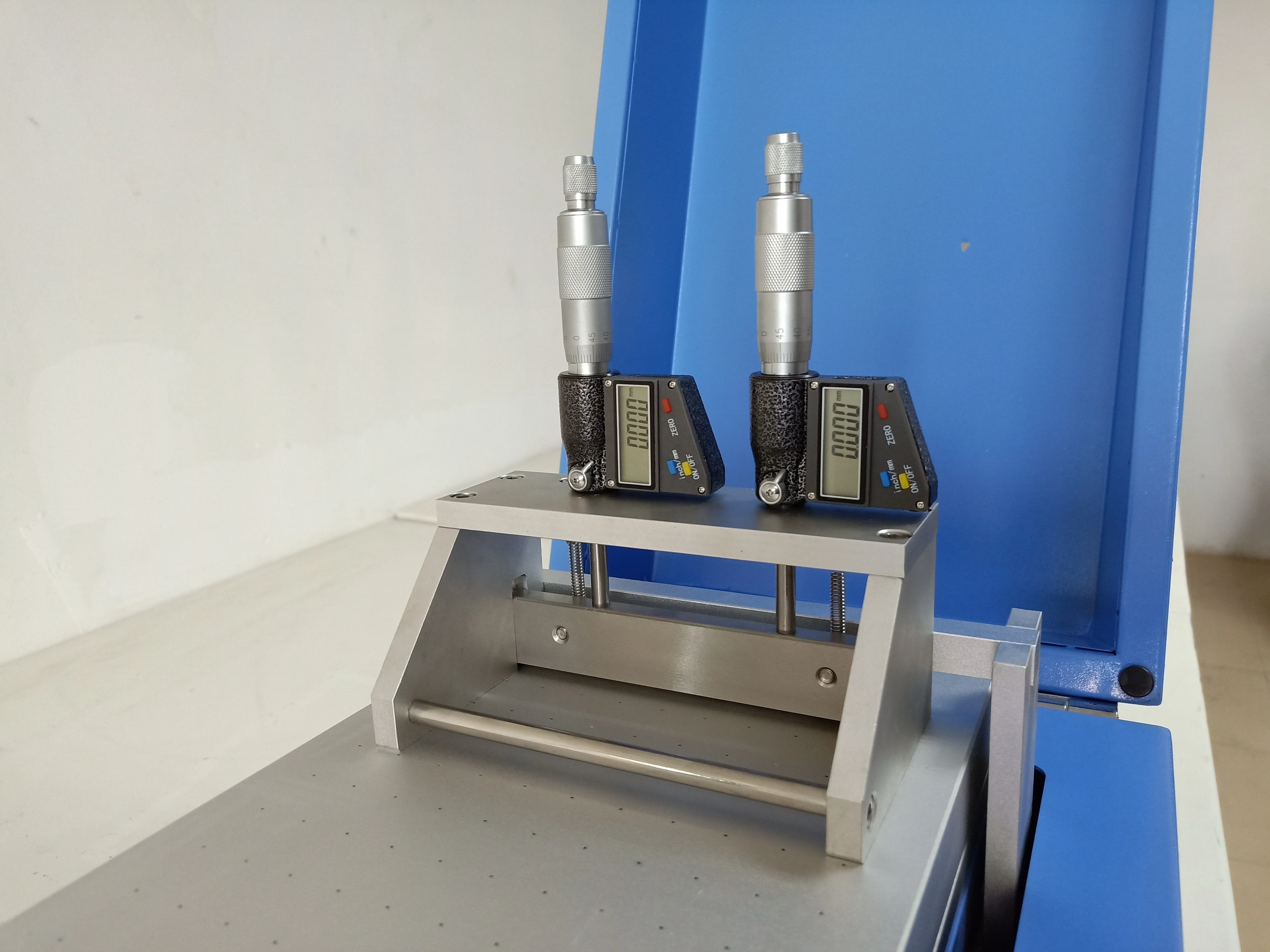

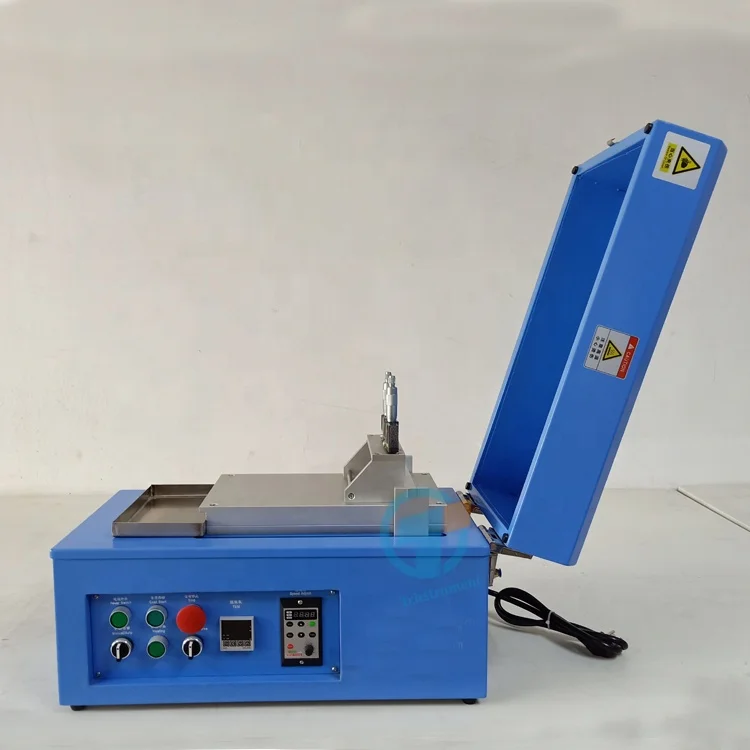

Laboratory Compact Vacuum Film Coating Coater Machine with doctor blade
- Category: >>>
- Supplier: Zhengzhou TCH Instrument Co. Ltd.
Share on (62476987948):
Product Overview
Description
Laboratory Compact Vacuum Film Coating Coater Machine For Lithium ion Battery Electrode Coating
Product Description
This machine is dedicated to the continuous coating process of positive and negative electrodes of lithium ion batteries, it is suitable for small-scale experiments in universities and enterprises; it can also be used for ceramic films, crystal films, special nano films, etc .; the machine body is made of all stainless steel Material with plastic sprayed surface this makes the machine has the features of beautiful, durable, easy operation.
Specification of the Laboratory Compact Vacuum Film Coating Coater Machine For Lithium ion Battery Electrode Coating
| Stroke Length | 250mm Max. |
| Coating speed | 0~100mm/second with digital display |
| Platform Dimensions | 365mm(L)×200mm(W)×30mm(H) |
| Temperature heating range | room temperature ~150℃ with PID controller |
| Temperature accuracy | ±1℃ |

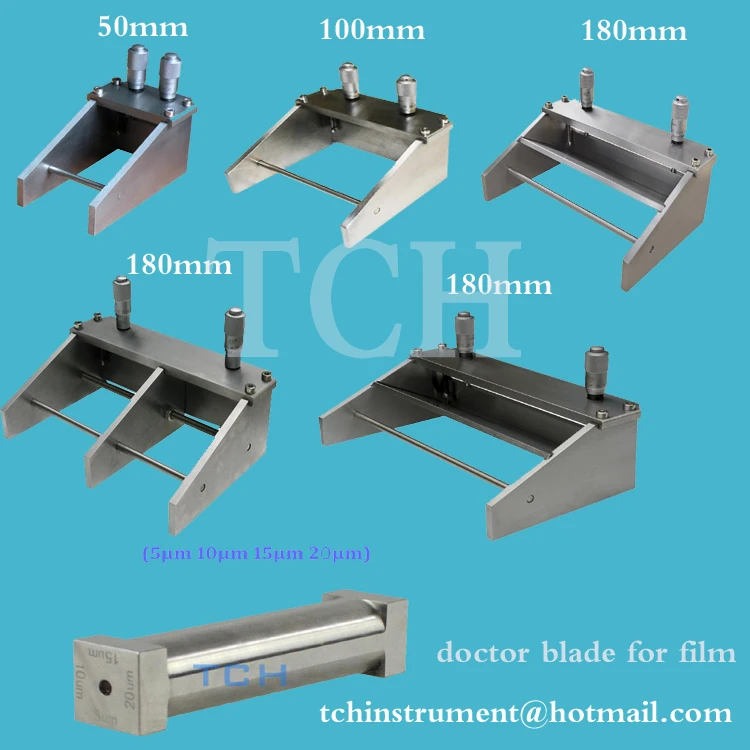

| Film Applicator | 50 to180 mm width micrometer film applicator is included, with adjustable thickness from 0.01 mm - 2 mm (Please confirm the width that you need to coater before ordering, for us to equip it with the suitable width doctor blade) Film applicator thickness accuracy : 0.02mm |
| Voltage | 110VAC or 204- 220VAC, 50/60 HZ |
| vacuum pump | included |
| Power | 0.4Kw |
| weight | about 45kg |
| Vacuum Pump | Vacuum pump is included |
| Compliance | CE Certificate |
| Warranty | One Year limited warranty with lifetime support |
reference of the Laboratory used Automatic Film Coater with Doctor Blade

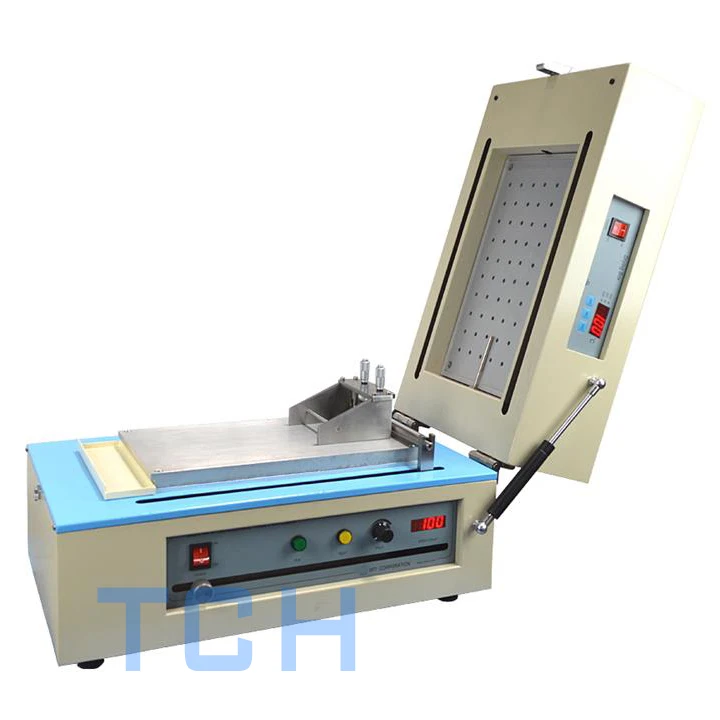

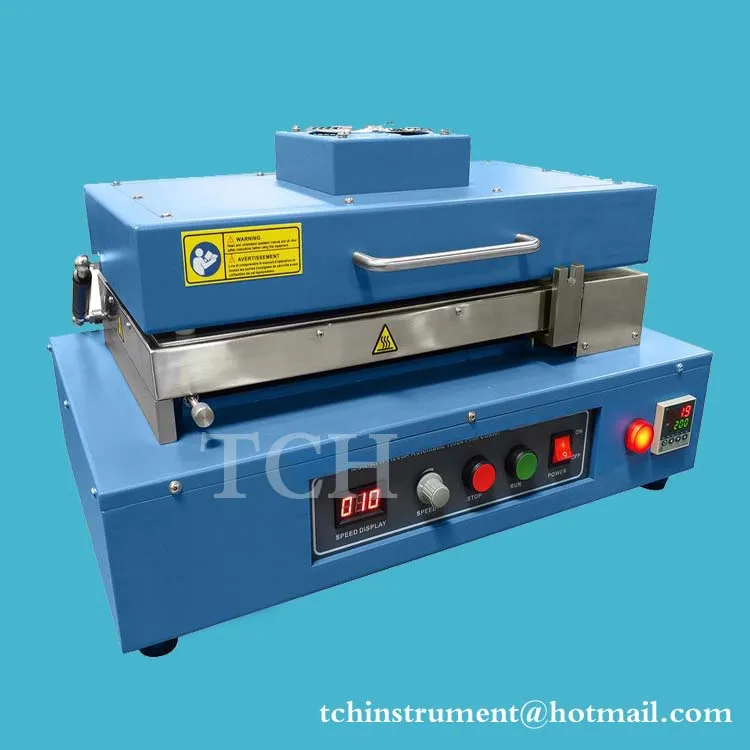

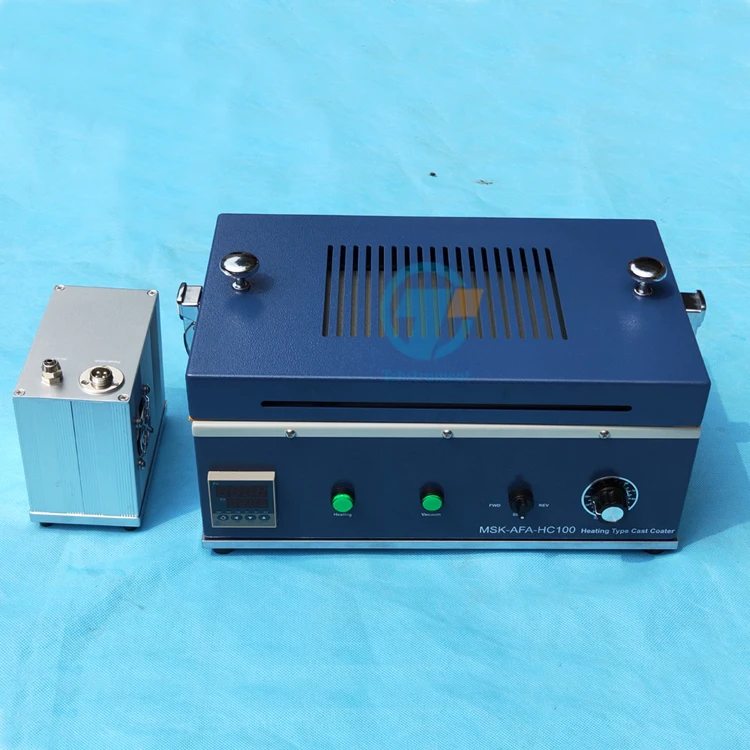

other related products for your choice
Company Information
Zhengzhou TCH Instrument Co., Ltd. is established with the goal of providing researchers with specialized instruments designed to meet their unique demands. We has grown into one of the material science market’s sources of quality instruments overseas. Although the work of the research community has changed quite a bit over the last years,Zhengzhou TCH Instrument Co., Ltd , through constant innovation, continues to provide the highest-quality instruments and unparalleled service, to meet and exceed all of our customers’ needs.
Zhengzhou TCH Instrument Co., Ltd is a leading developer of lab instruments and related products. Our products are used by lab research professionals worldwide. Throughout our history Zhengzhou TCH Instrument Co., Ltd has been synonymous with quality.
Contact Email: tchinstrumenttch(at)163.com
