sanitary stainless steel 304 150 mesh clamped y strainers and filters
- Category: >>>
- Supplier: Wenzhou Shuangzhan Machinery Co. Ltd.
Share on (62477025643):
Product Overview
Description
Product Description

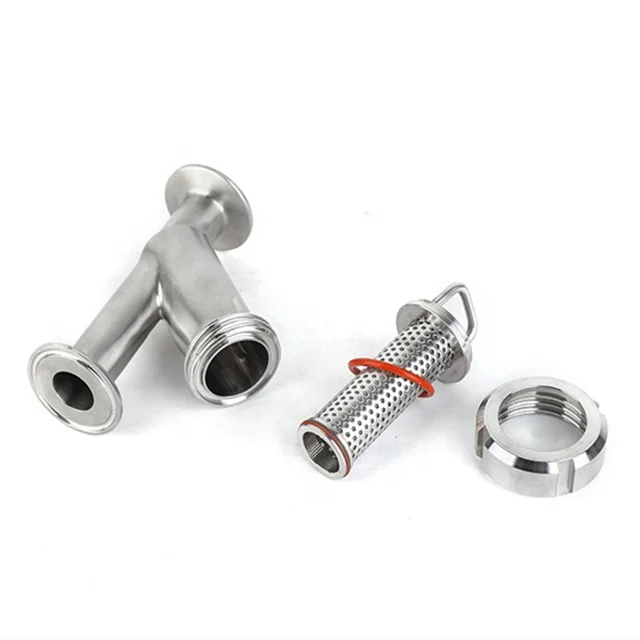

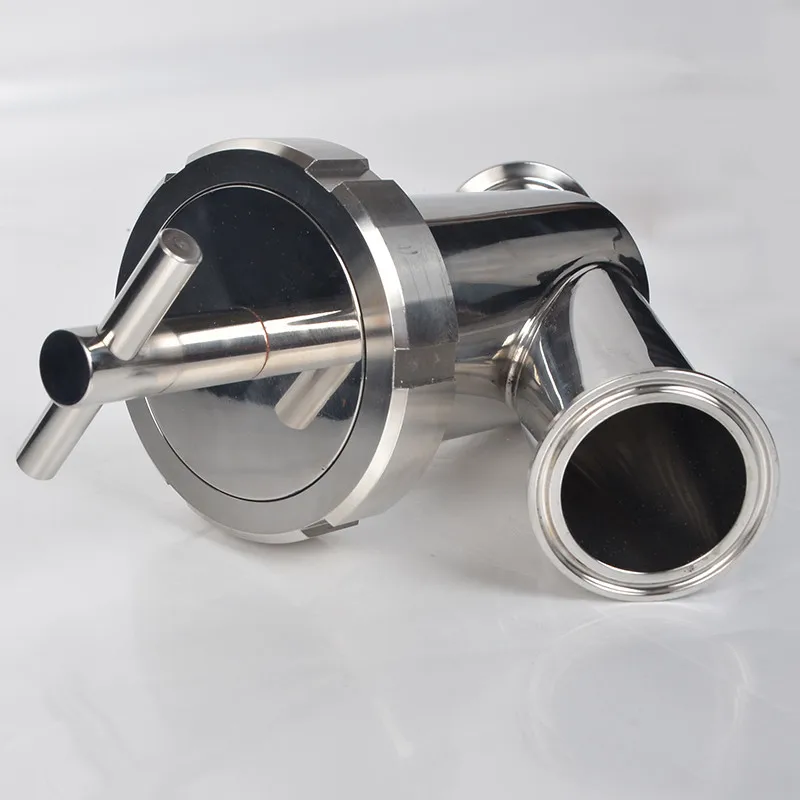

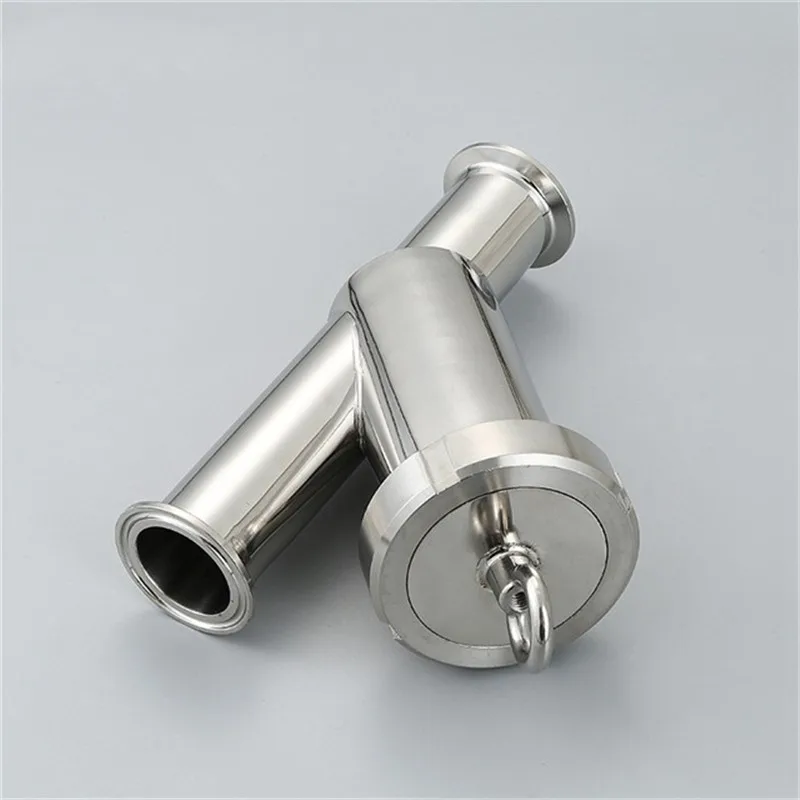

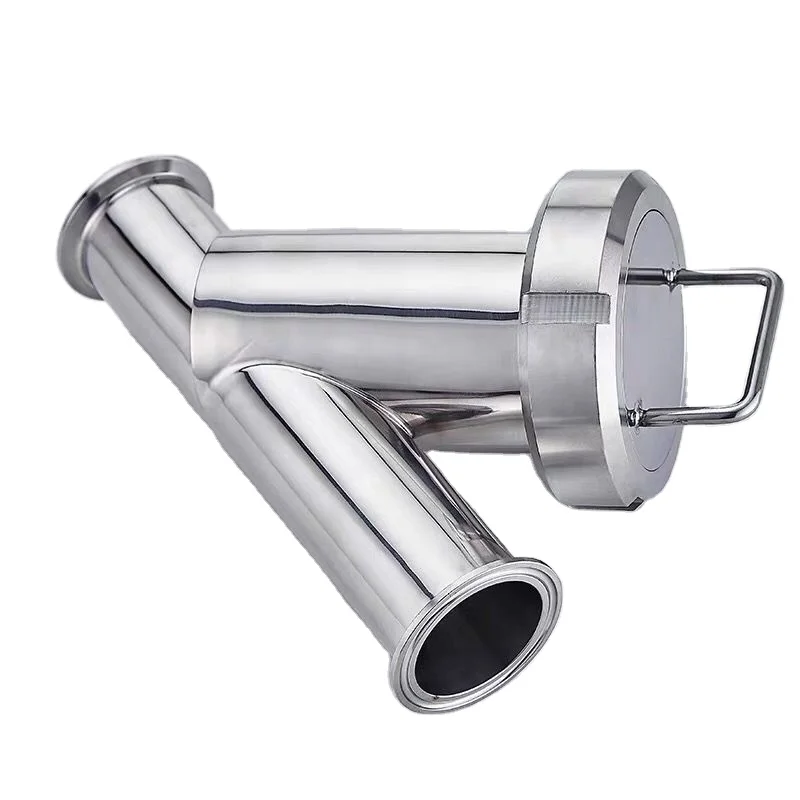

Sanitary tri clamp y type strainer- a strainer that can fit into a tight area
All sanitary process, such as food, beverage, dairy pharmaceutical, requires particulate straining to protect product clear and processing equipment from damaging objects. People often use a variety of pipe-line strainers to ensure proper straining and increased productivity.(www.brewingtanks.com)
Shuangzhan machinery provides Stainless Steel Filters and Strainers that can be placed inline or as a side-inlet that are
primarily found in the Beverage, Cosmetic, Dairy, Food, Meat or Poultry and Pharmaceutical Industries.
Spec.:
material: AISI304, AISI316
ends option: welded, clamped, threaded
end size: 3/4", 1", 1.5",2",2.5",3",4"
All sanitary process, such as food, beverage, dairy pharmaceutical, requires particulate straining to protect product clear and processing equipment from damaging objects. People often use a variety of pipe-line strainers to ensure proper straining and increased productivity.(www.brewingtanks.com)
primarily found in the Beverage, Cosmetic, Dairy, Food, Meat or Poultry and Pharmaceutical Industries.
Spec.:
material: AISI304, AISI316
ends option: welded, clamped, threaded
end size: 3/4", 1", 1.5",2",2.5",3",4"
seal: EPDM,silicone
finish: inside mirror polished to Ra≤0.4μm, Outside can be mirror polish or Satin polish to 180 grit(Ra ≤0.6µm)
element: perforated hole diameter:0.5-3mm
sreen mesh size & microns: 30-200mesh
max working pressure:0.6MPa / 1.0MPa
working temperature: -20℃ to +135℃
finish: inside mirror polished to Ra≤0.4μm, Outside can be mirror polish or Satin polish to 180 grit(Ra ≤0.6µm)
element: perforated hole diameter:0.5-3mm
sreen mesh size & microns: 30-200mesh
max working pressure:0.6MPa / 1.0MPa
working temperature: -20℃ to +135℃
Item | ends | size available |
TC Y strainer | TC/welding/thread/flange | 3/4" to 4" or DN15 to DN100 |
