MALATHION ULV is used undiluted in specially designed aircraft or ground equipment capable of applying ultra-low volumes for control of the insects indicated.
Aerial applications are most effective when made at a boom height of 5 feet and a swath width of 55 feet. Apply only when weatherconditions are favorable. Wind and rising air currents may cause undesirable spray drift and reduce insect control. Mist blowers and boom sprayers utilizing a controlled air flow to facilitate particle size and spray deposition may be used at a vehicle speed of 4 to 10 miles per hour.
Mist blowers with a pump capable of producing up to 40 psi and blower speeds of 2600 rpm are satisfactory. Use flat fan nozzles, 8001 to 8002, placed 30 degrees into air blast or rotary atomizers into the air blast that produce an efficient spray particle with a mass median diameter of 40 to 100 microns. Swath widths should not exceed 30 feet. Apply only when weather conditions are favorable. Wind and rising air currents may cause undesirable spray drift and reduce insect
control.
Boom sprayers with a filtered rotary air compressor, either PTO or gas engine driven or an air pump capable of producing at least 12 psi are satisfactory. Use air pressure on chemical tanks and an accurate metering valve to assure a calibrated flow of the pesticide. Air should be regulated with relief valve and gauge for proper air and liquid mixture.
Pneumatic-type spray nozzles, as suggested by equipment manufacturer, should be used for spray particles with mass median diameter of 30 to 100 microns. Apply only when weather conditions are favorable. Wind and rising air currents may cause undesirable spray drift and reduce insect control. Repeat applications should be made as necessary unless otherwise specified.
MOSQUITO (Mosquito control in populated and rural areas)
IMPORTANT NOTICE: To be applied only by the trained personnel of public health organizations, mosquito abatement districts or pest control operators.
AERIAL APPLICATION: Adult mosquito control over cities, towns and other areas where automobiles, trailers, trucks, and pleasure boats are present: Apply 2.6 to 3.0 fluid ounces of MALATHION ULV per acre.
Apply only when weather conditions are favorable. Wind and rising air currents may cause undesirable spray drift and reduce insect control.
IMPORTANT: Undiluted spray droplets of MALATHION ULV will permanently damage vehicle paint finishes unless the aircraft used for the ultra low volume application meets all of the specifications listed below:
FIXED WING AIRCRAFT
1. Aircraft is operated at 150 mph or more.
2. There are no leaks in the ultra-low volume spray system.
3. Nozzles are placed on the boom at a 45 degree angle down and intothe wind.
4. Diaphragm check valve are used on all nozzles to insure positive cut-off of the spray.
5. Dosage of MALATHION ULV does not exceed 3 fluid ounces per acre.
6. The spray system produces droplets of this product in the 50 to 60 Mass Median Diameter (MMD) micron range, with no more than 10% of the droplets exceeding 100-microns, as determined by readings made from microscope slides coated with Dri-Film® or Teflon®.
Helicopter Equipment Specifications:
1. Rotary nozzle equivalent to Beecomist Spray Head Assembly Model No. 350 equipped with:
a. a direct reading RPM tachometer or low RPM signal light readily visible to operator;
b. a stainless steel porous metal sleeve, 20 micron pore size, dynamically balanced to the nozzle;
c. a diaphragm check valve as near to the rotary nozzle as possible to insure positive cut off to the spray;
d. nozzle on-off switch separate from main switch and pump switch.
2. Minimum no-load nozzle speed of 10,500 RPM
3. A continuous non-plusating metered flow must be maintained by a variable speed metering pump equipped with:
a. a positive cut off valve between tank and pump;
b. a flow gauge or tachometer visible to operator;
c. a pump on-off switch separate from main switch and nozzle switch.
4. Maximum flow rate of ½ gallon per minute per nozzle.
5. Rotary nozzle must be mounted behind and below the boom with sleeve directed toward the rear of the aircraft and parallel to the ground during flight.Nozzle must be positioned to minimize air turbulence and the collection of MALATHION ULV droplets on mounting brackets, feed lines, fittings, etc., or any part of the aircraft

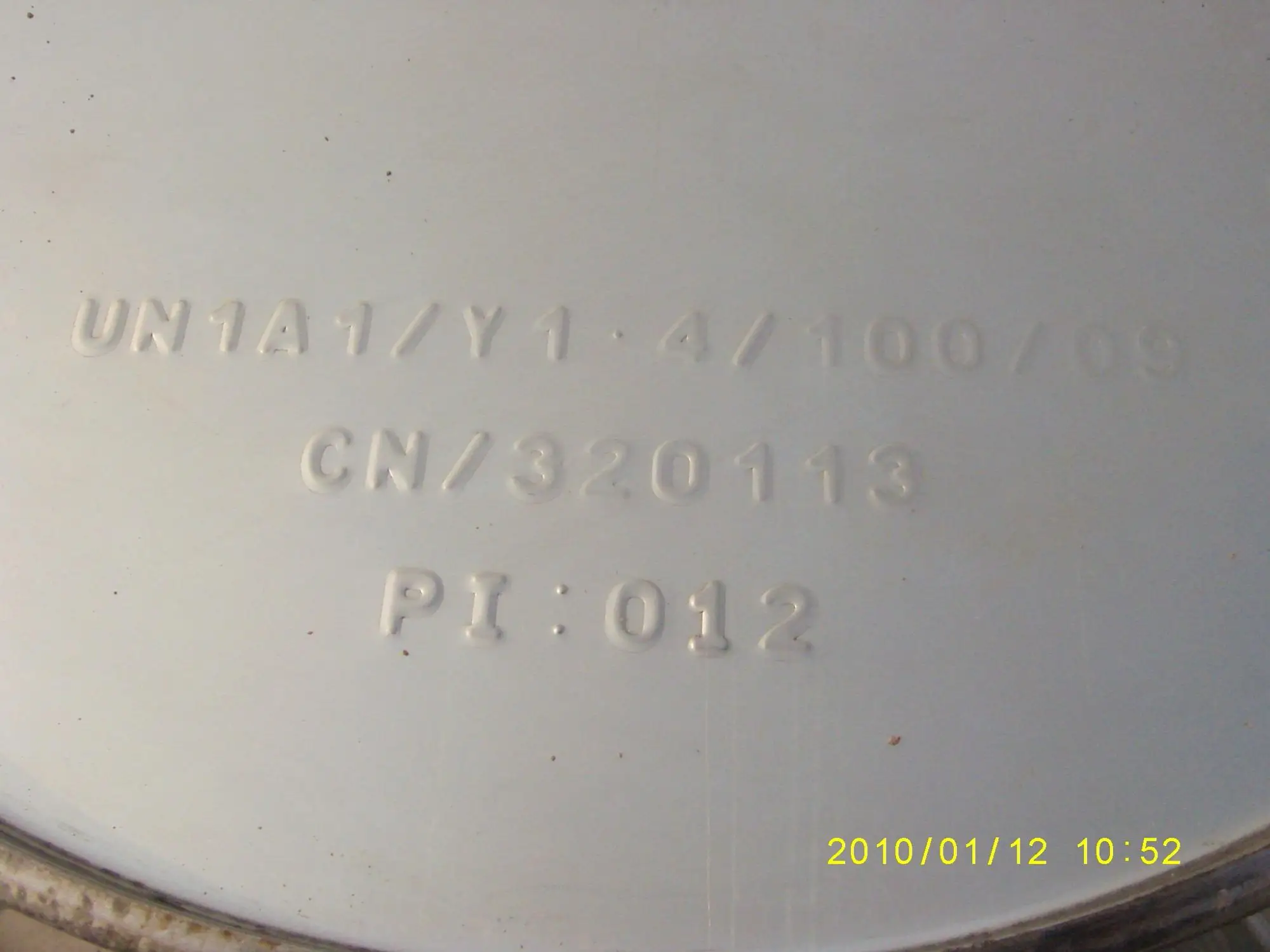

Detailed Images

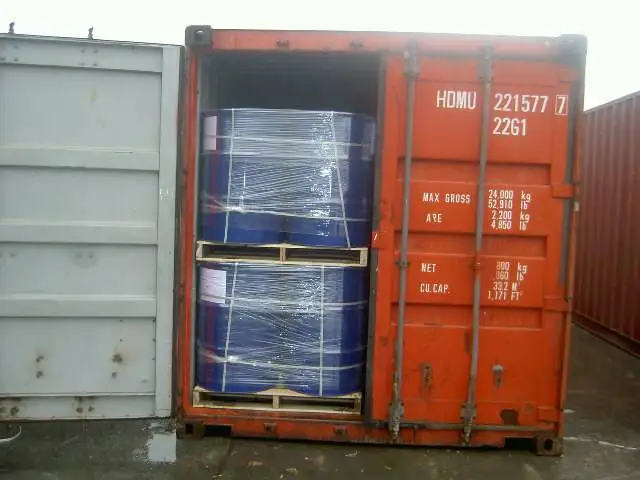

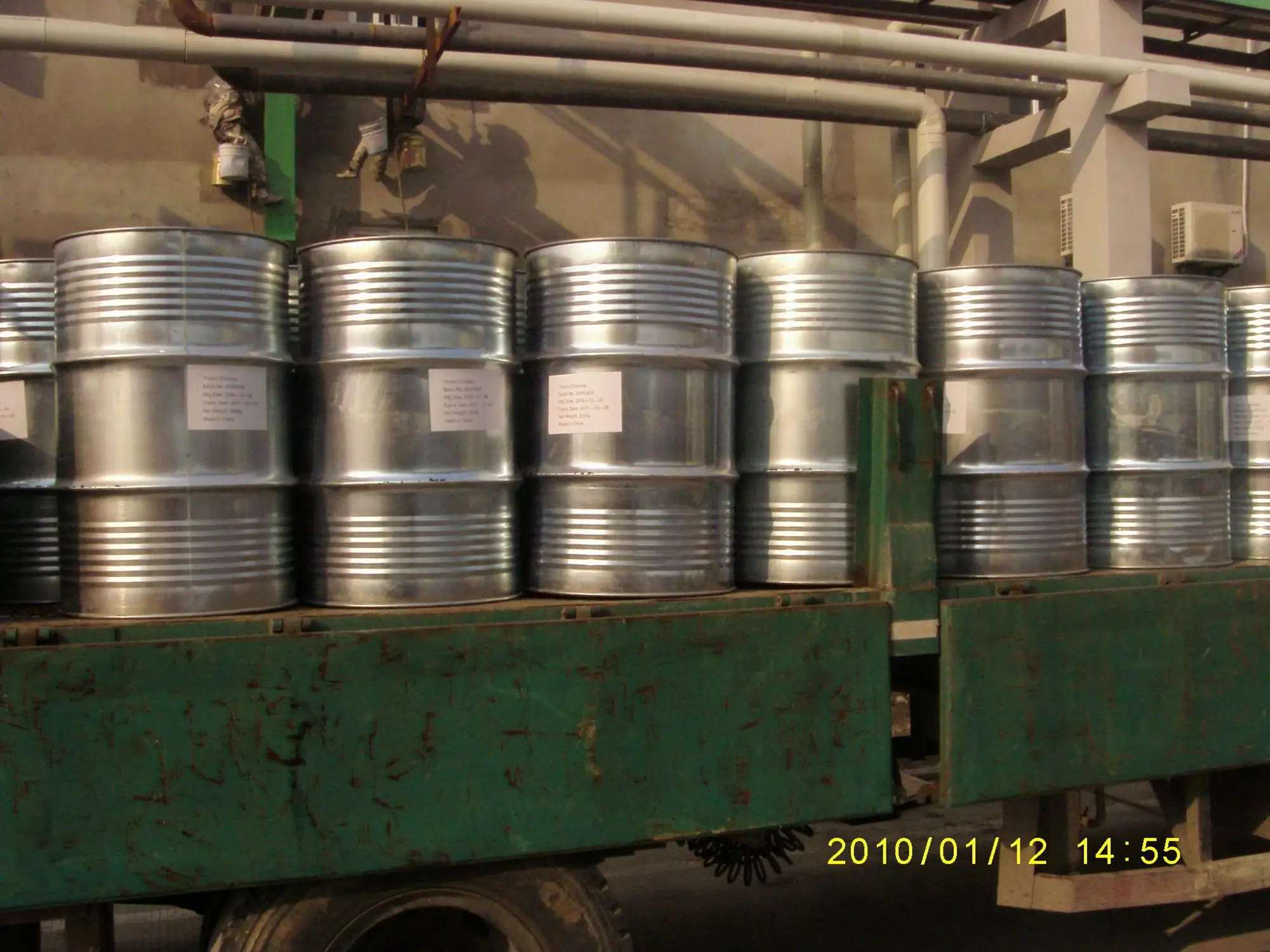

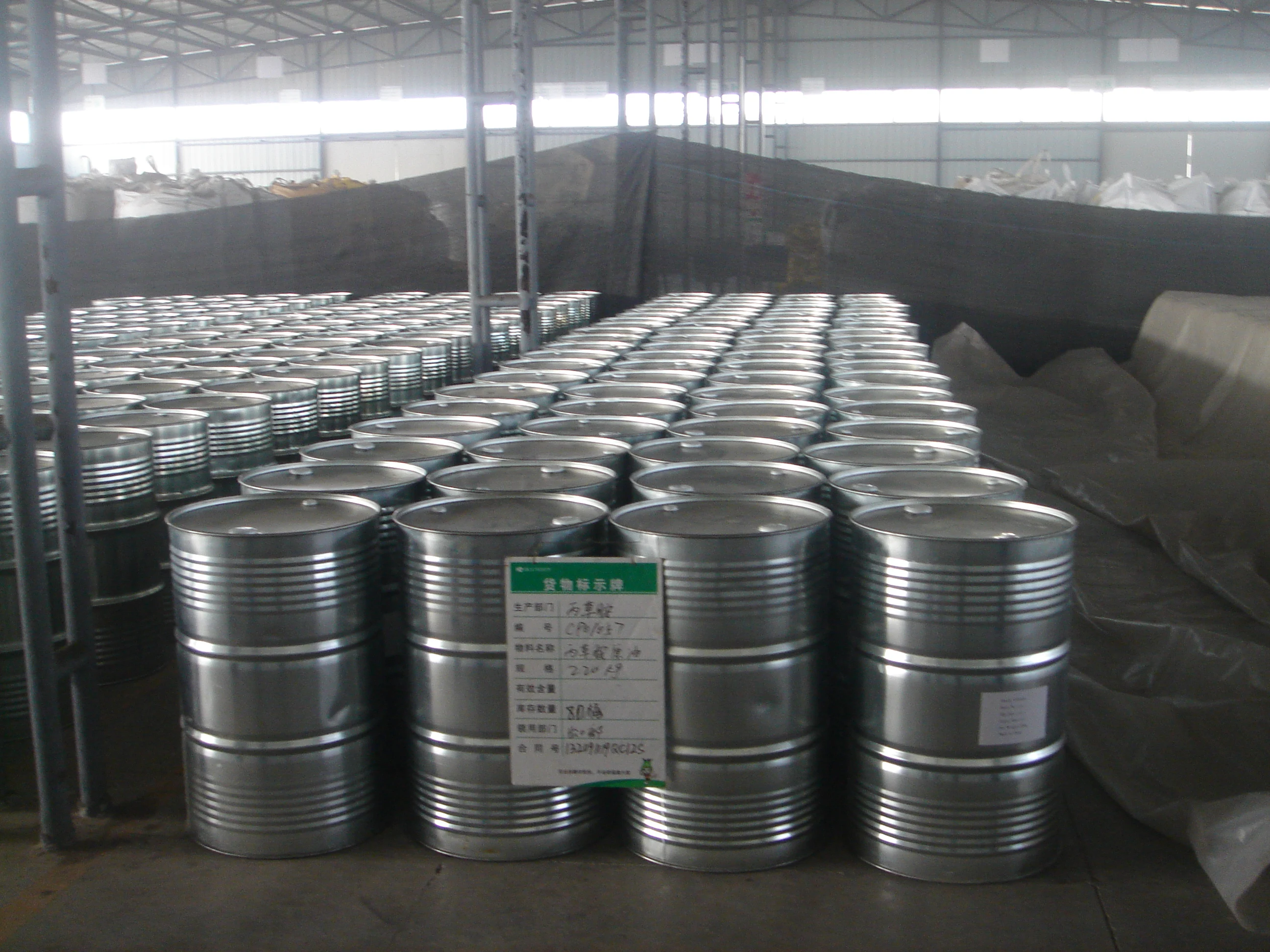

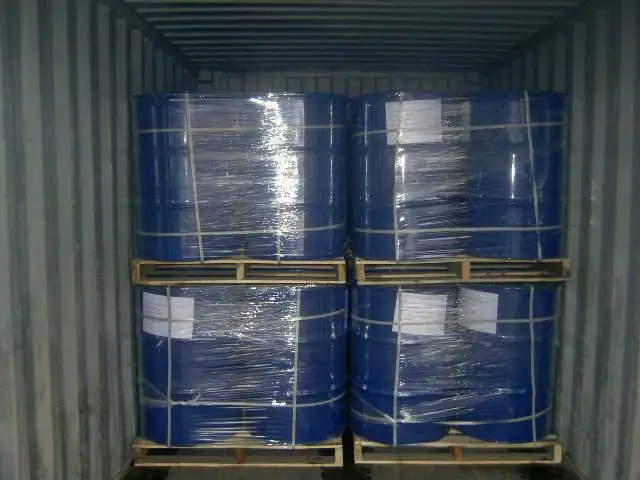

Packing & Delivery

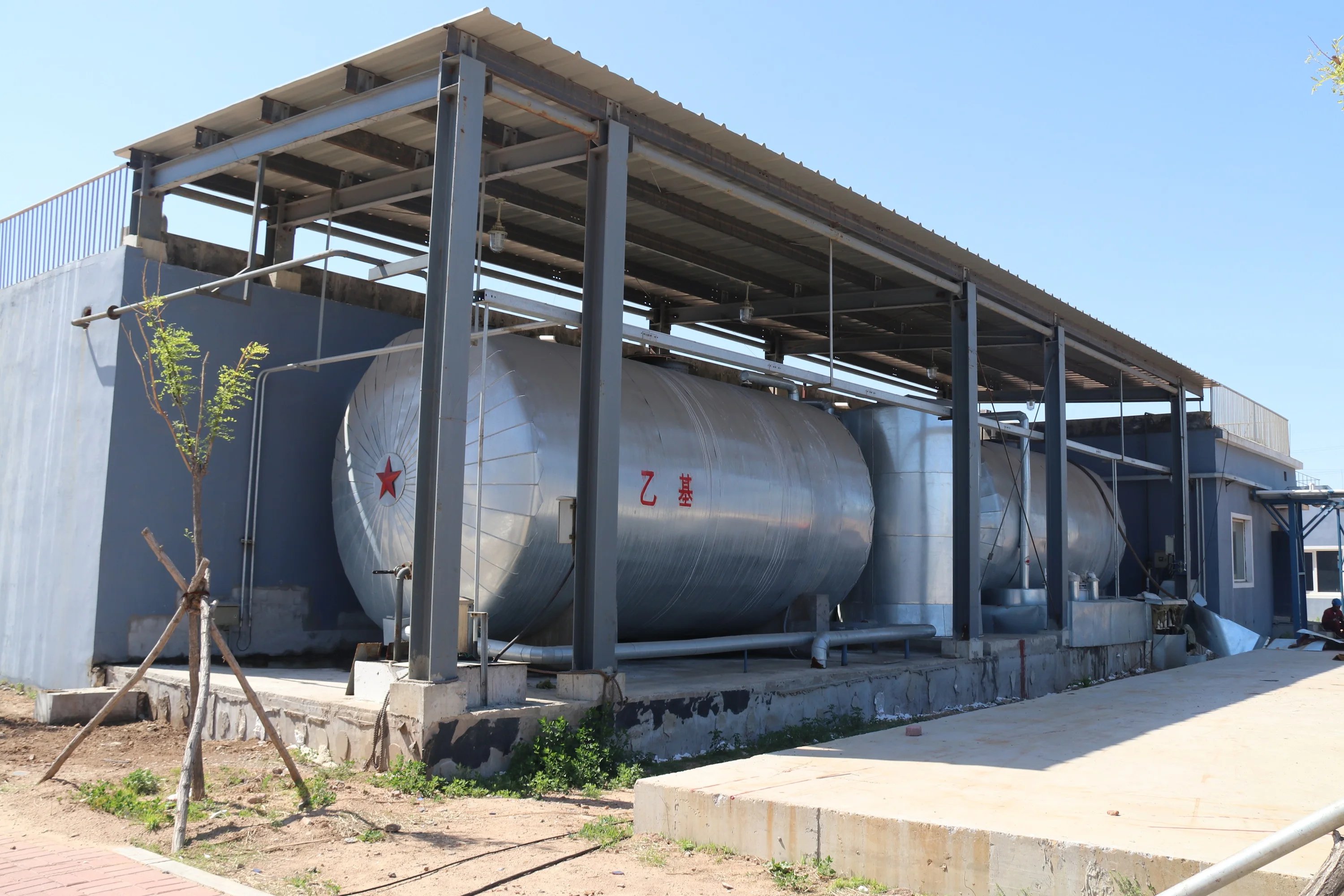

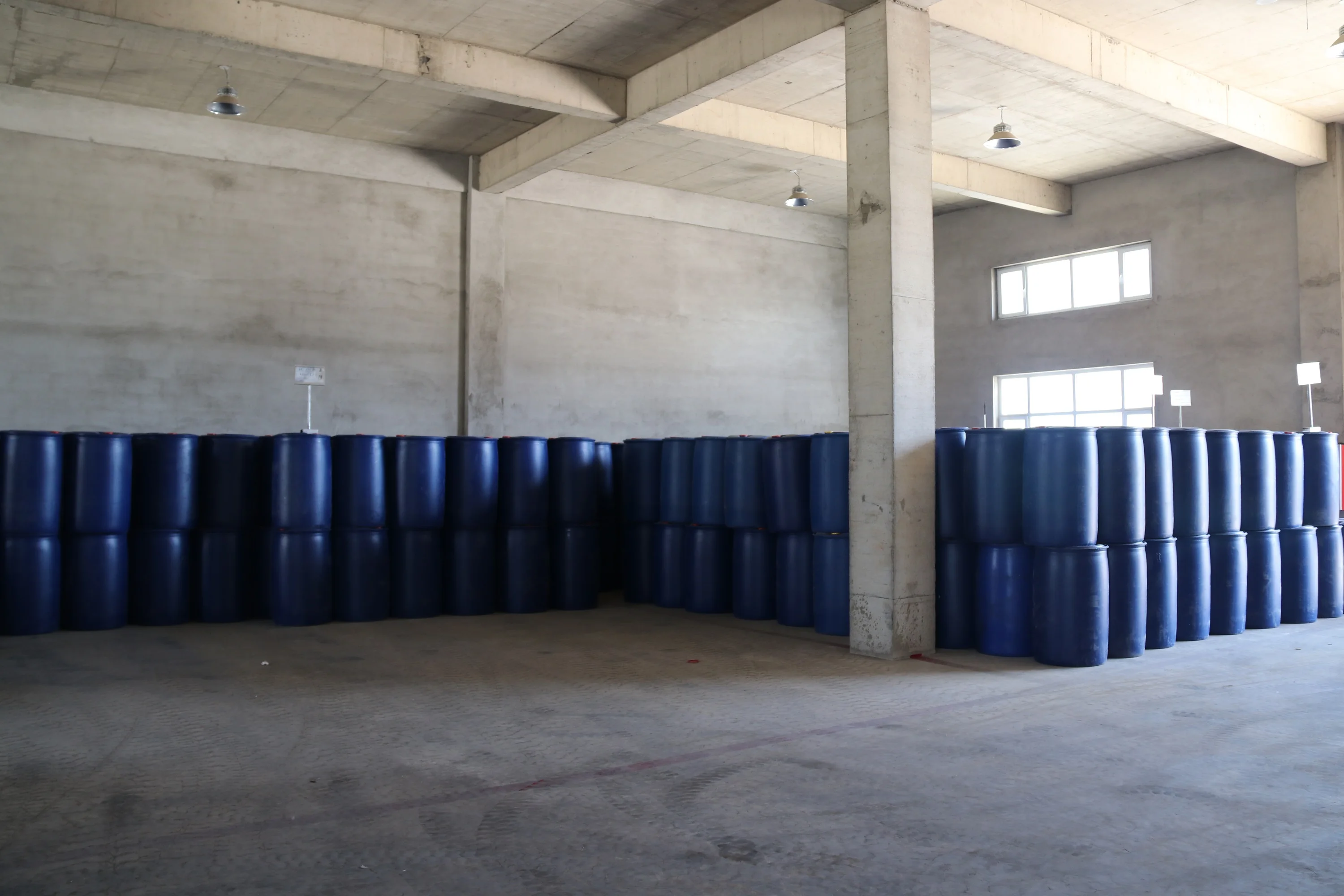

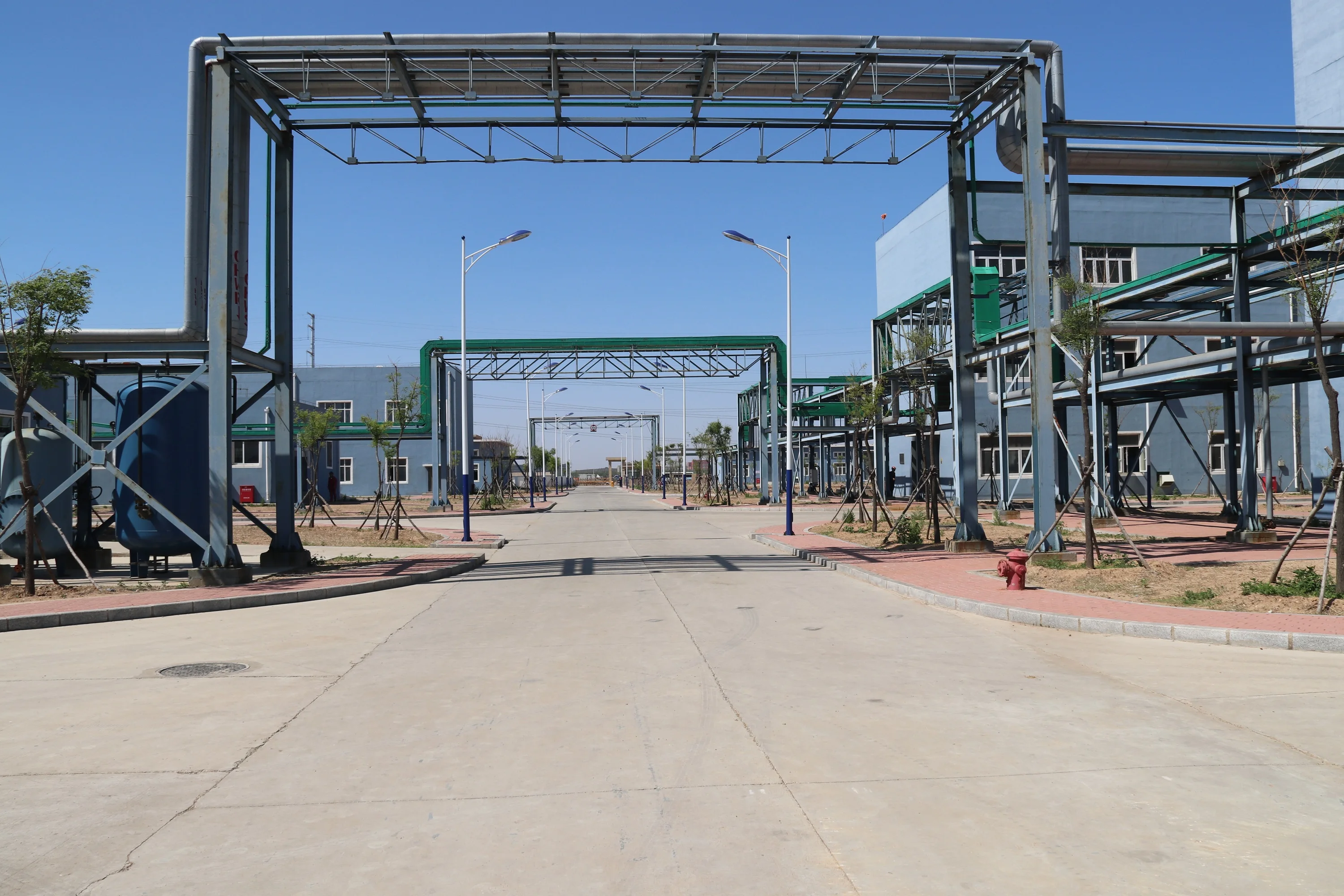

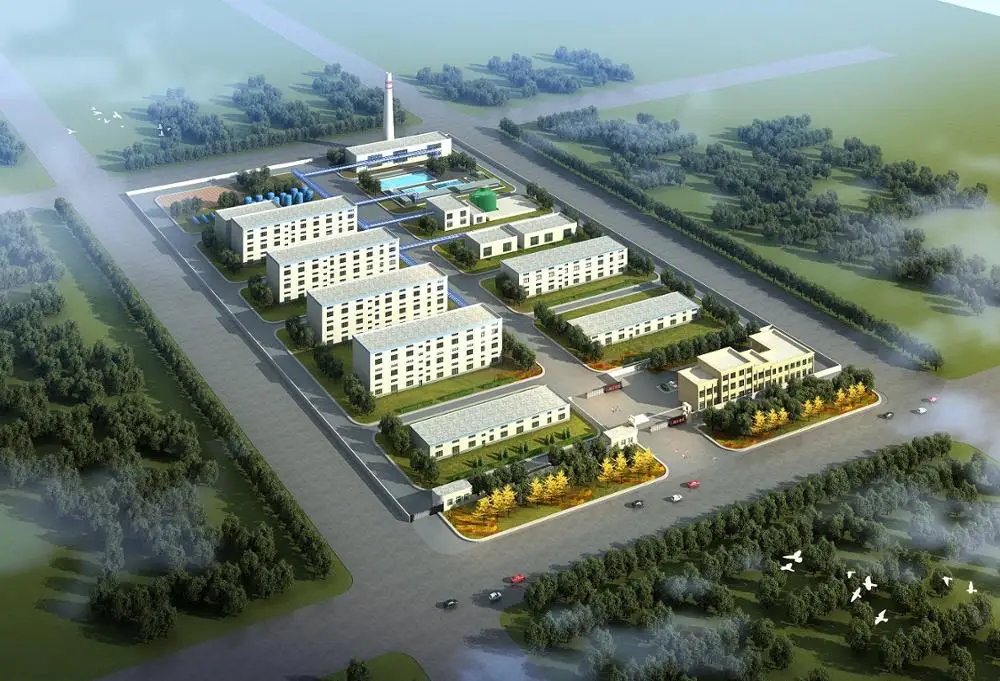

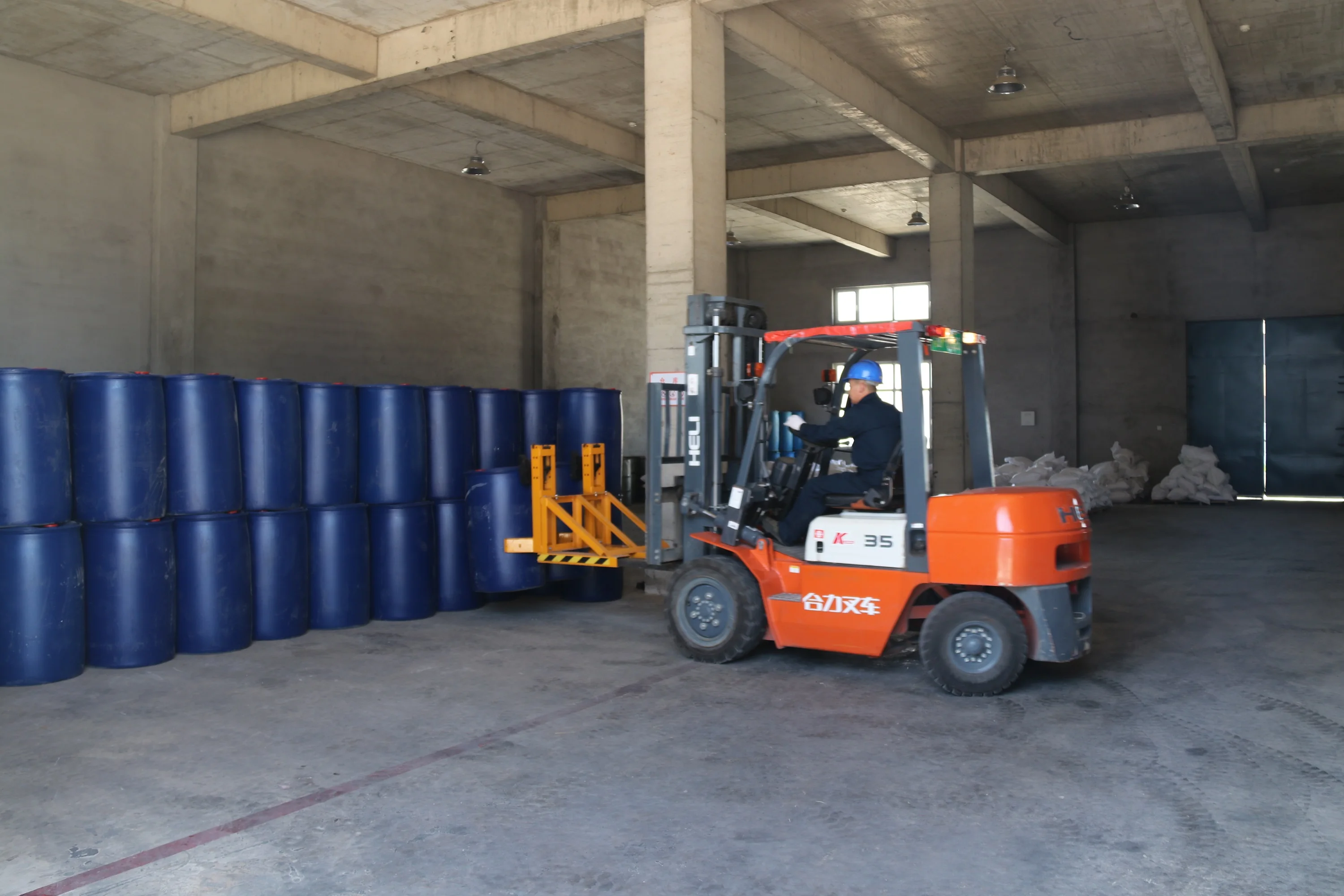

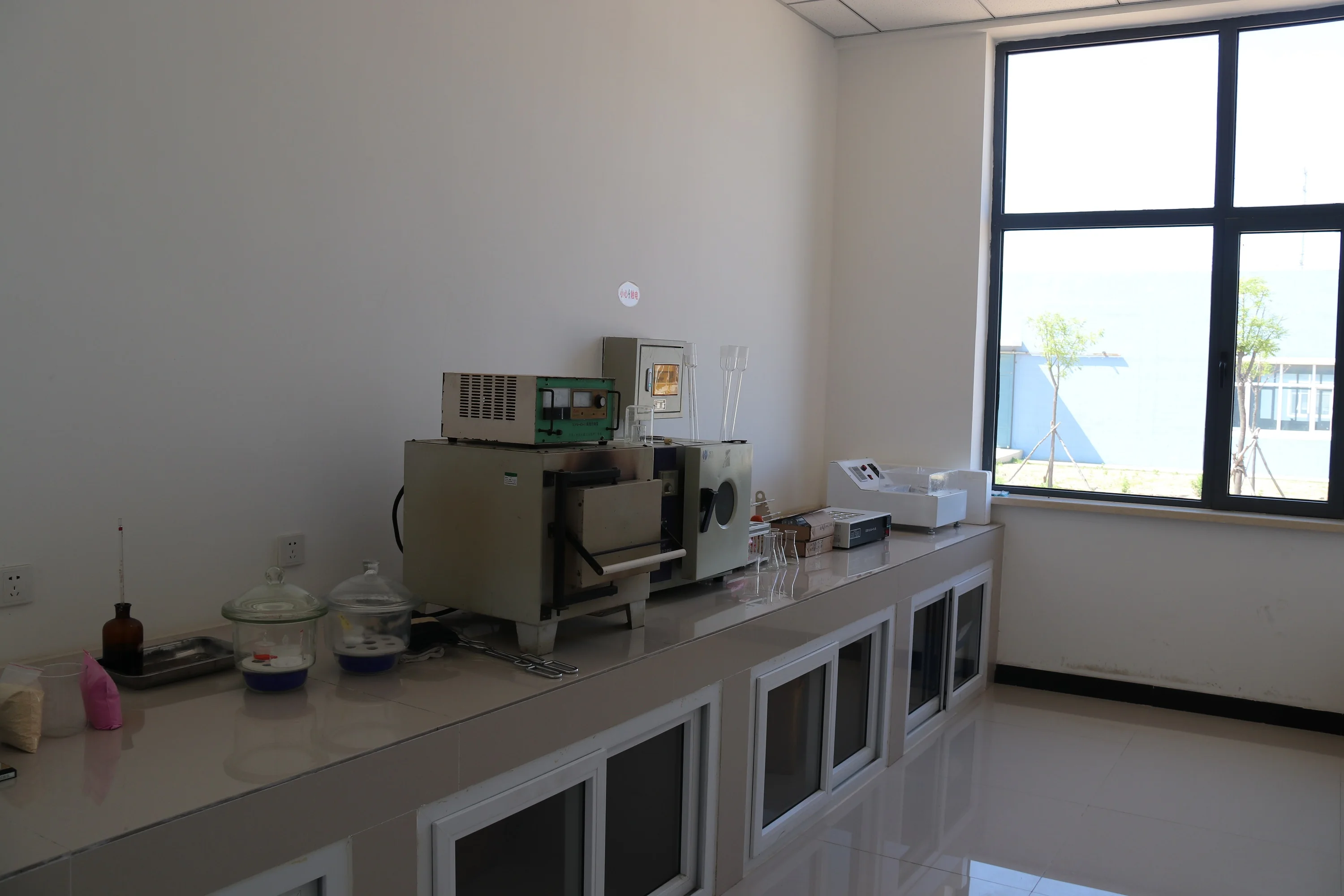

Factory
FAQ
1. What is the delivery date?
Delivery date depends on lots of factors.
(1) Package material , including label design, carton design and bottle shape .
(2) Order Sequence. For small amount lest than 3000L or Kg, we may have to produce together other same orders.
It will take more time to wait.
(3) Generally speaking, winter and spring are busy season , while summer is off season.
(4) Normally the delivery date is about 3 weeks after order and package details confirmed.
2. Can I have some sample?
Yes , you can.
But such insecticide with strong smell is a little hard to send by express,
and we have to send via some agent's chemical channel.
Therefore the express cost will be a little expesnsive.
Free sample is available, you just pay the express cost.
However, it will be better if you come to visit us. Seeing is believing.
3. Can you design the label for us?
Yes, we can. It will be better if you have any model.Show us some photo or send us the label.
