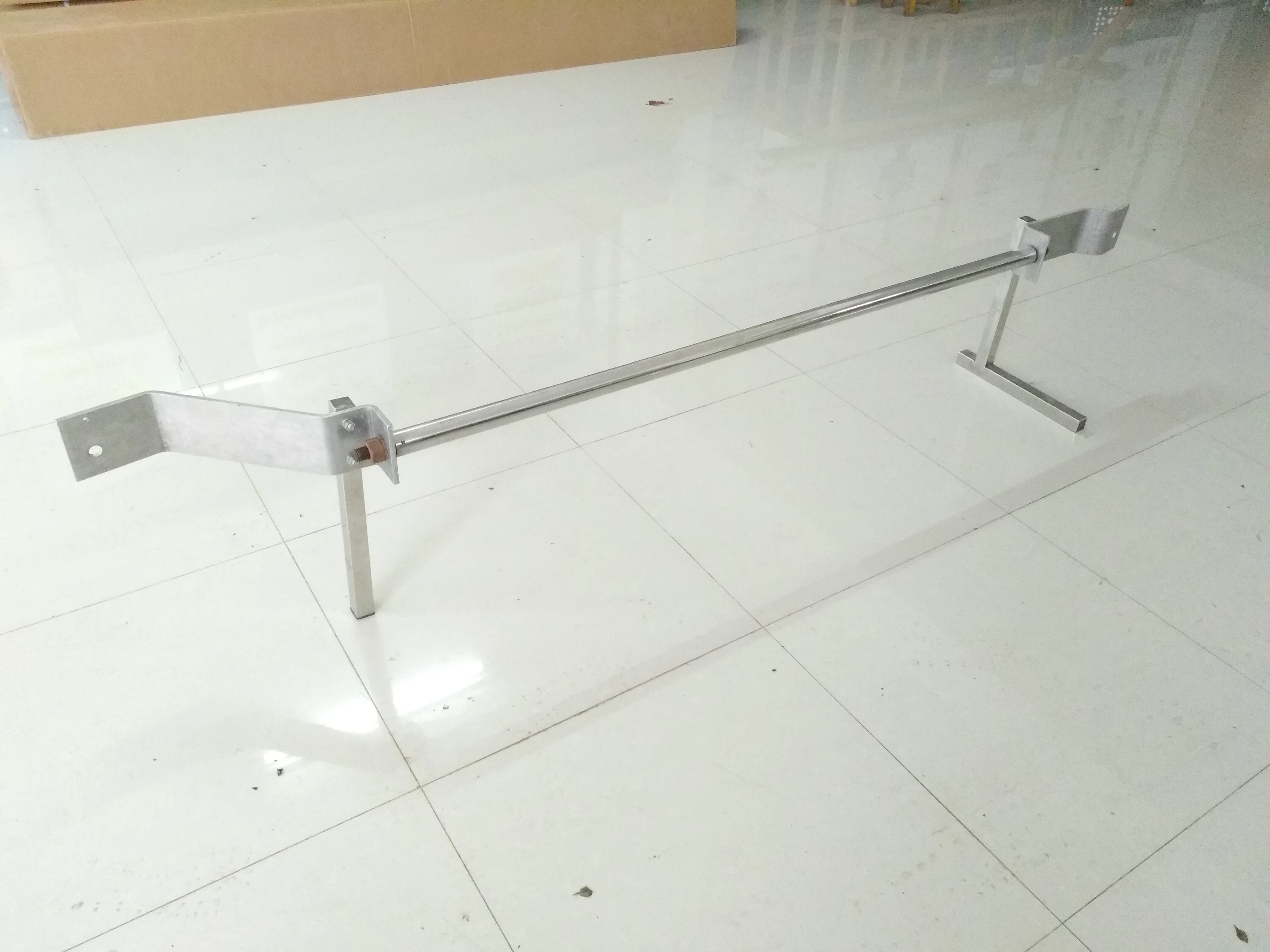

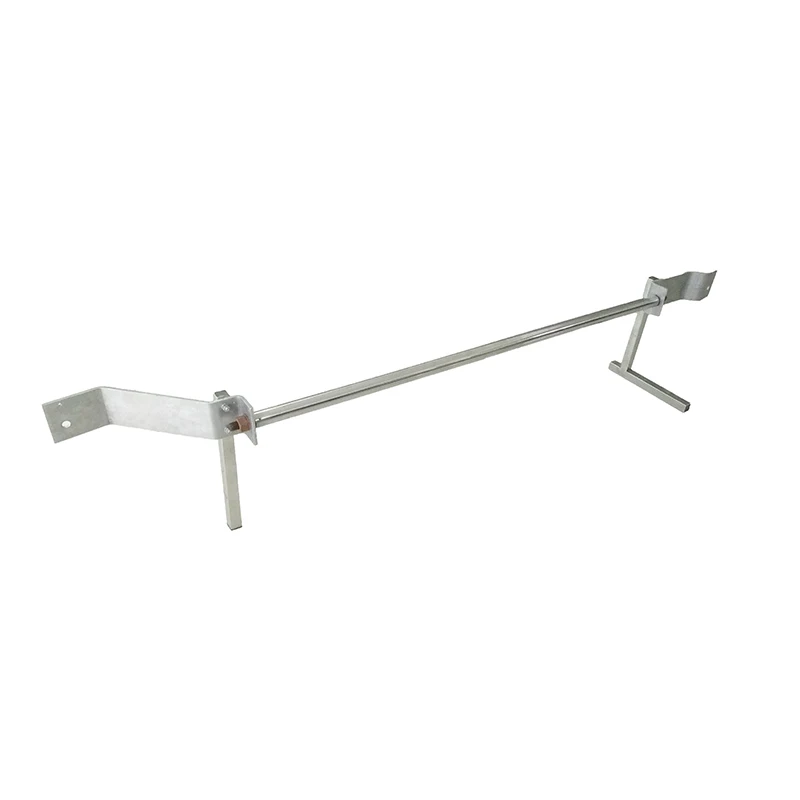

3D wheel aligner camera assy with software dongle and RCP caliberation bar for johnbeen or hoffman
- Category: Wheel Alignment >>>
- Supplier: Guilin Sinomake Sci-Tech Development Co. Ltd.
Share on (62477366540):
Product Overview
Description

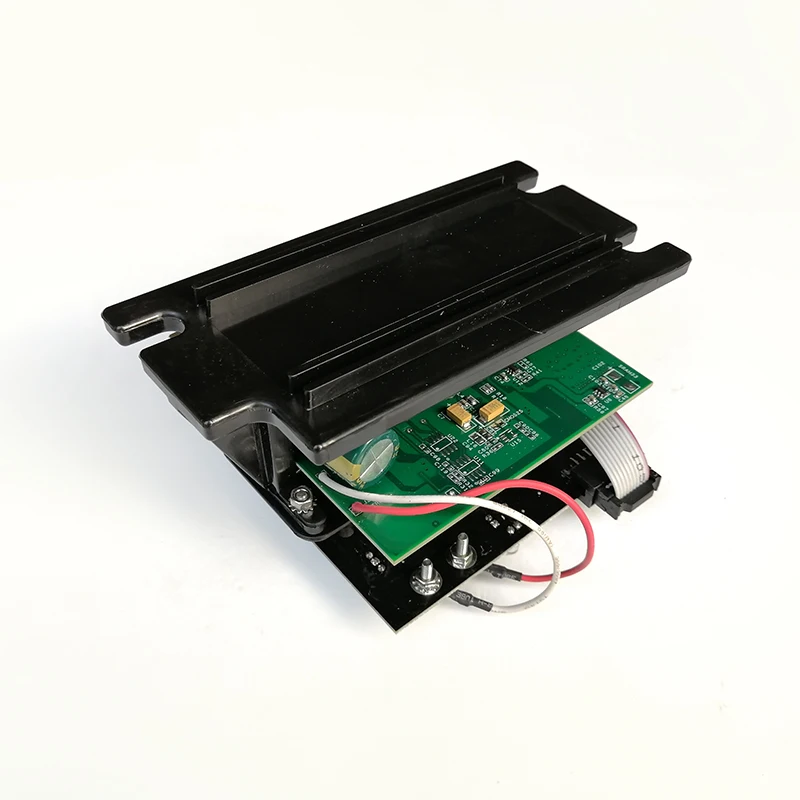

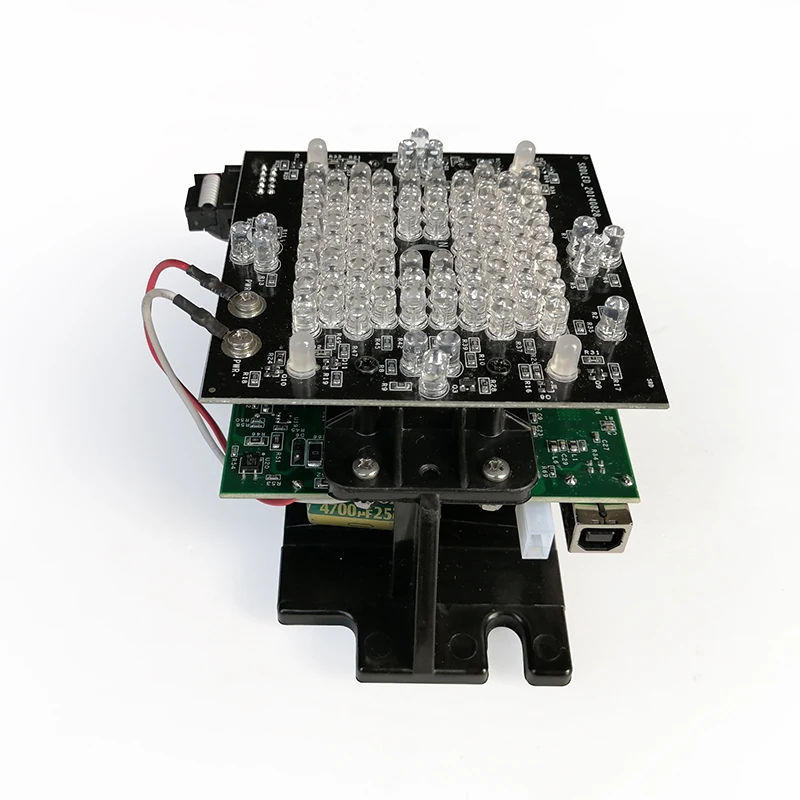

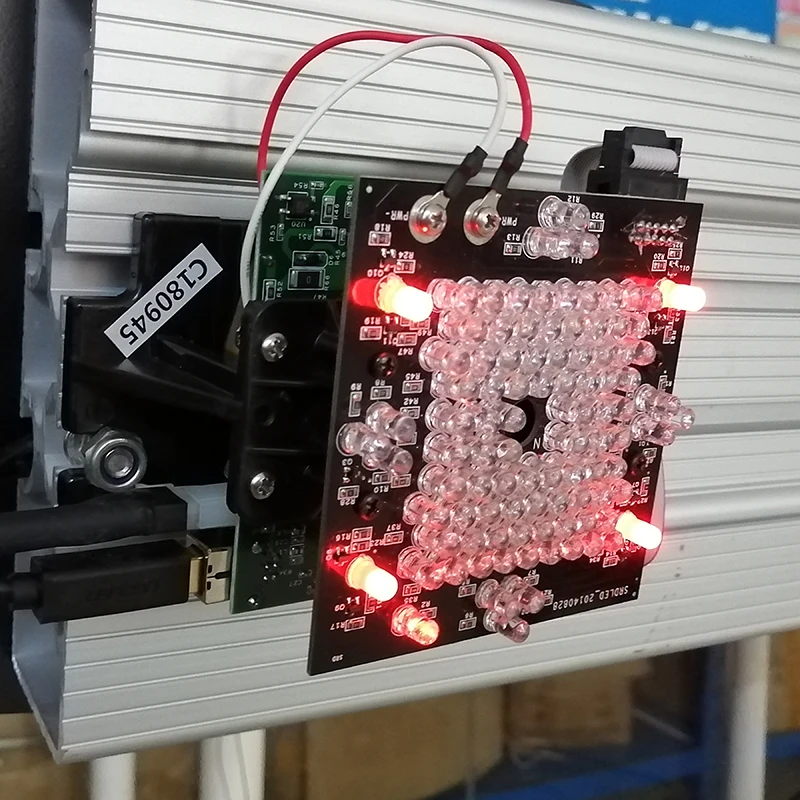

3D car wheel aligner machine camera assy and software dongle for johnbean or hoffman's repairing
We are a professional manufacturer of 3d wheel aligner, we produce the main parts of wheel aligner, especially the camera assembly, camera board, LED strobe board, Hub board, etc. We also offer repairing for Johnbean's wheel alignment machine, including the camera assembly, LED strobe and hub board. If you want to coorperate with us by OEM manufacturing, or only buy camera assy and software, please contact us!

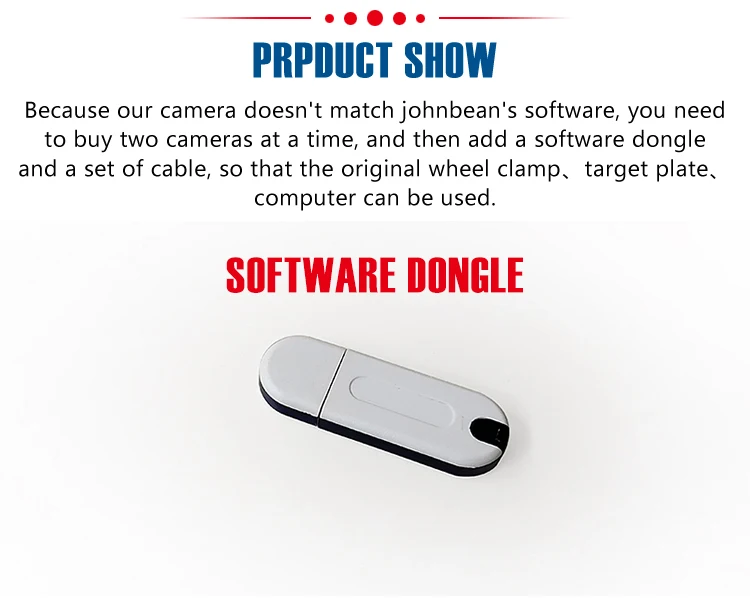

Because our camera doesn't match johnbean's software, you need to buy two cameras at a time, and then add a software dongle and a set of cable, so that the original wheel clamp,target plate,computer can be used.
Product Description
| Pruduct name | 3D wheel aligner digital camera |
| Compatible | johnbean horfmann wheel aligner camera |

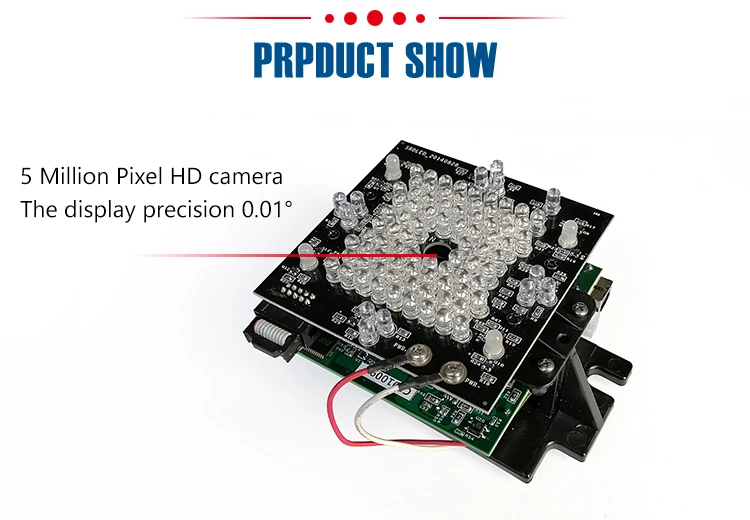

| Sensors | 1/2.5 5 Million Pixel CMOS image sensor |
| Resolution | 2592*1944 |
| Image Output | USB2.0 |
| Image Cache | 256M cache |
| Rated Voltage | 9V, 12V External power supply |
| Program Control | infrared light, brightness, ROI gain, etc. |
| Adapter lens | V3D special lens |
PRODUCT CONFIGURATION:
| Camera assy | 2 pc |

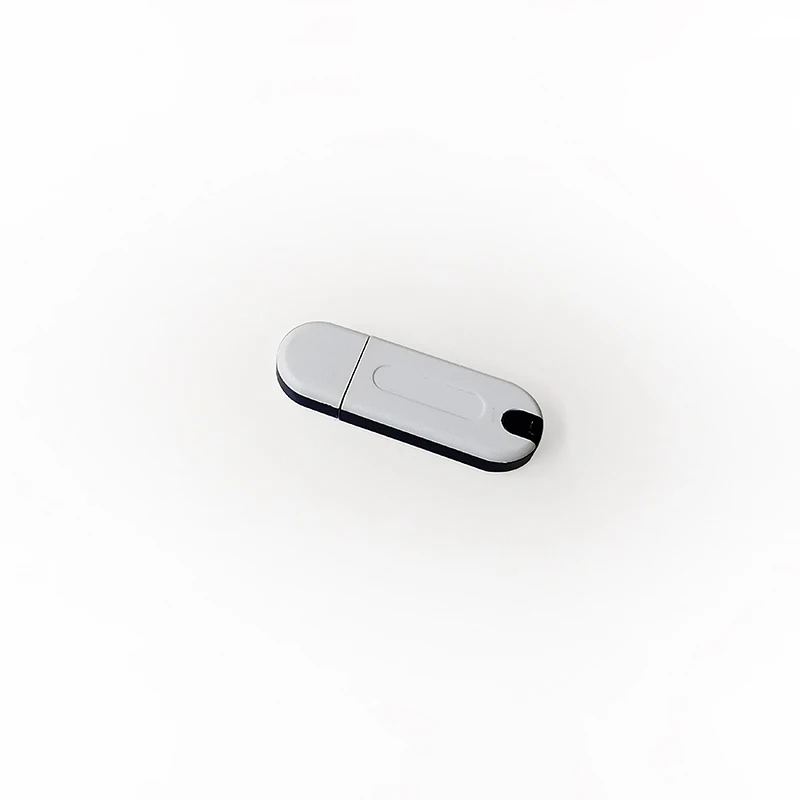

| Software dongle | 1 pc |
| Cable | 1set |
Must read before installation: Introduce the wiring method of camera output terminal.

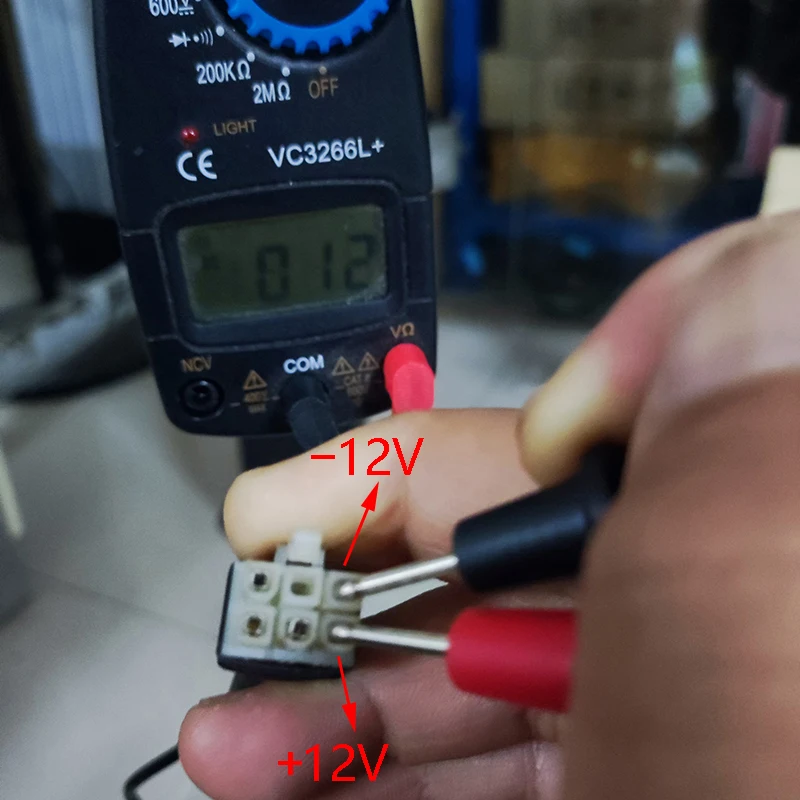

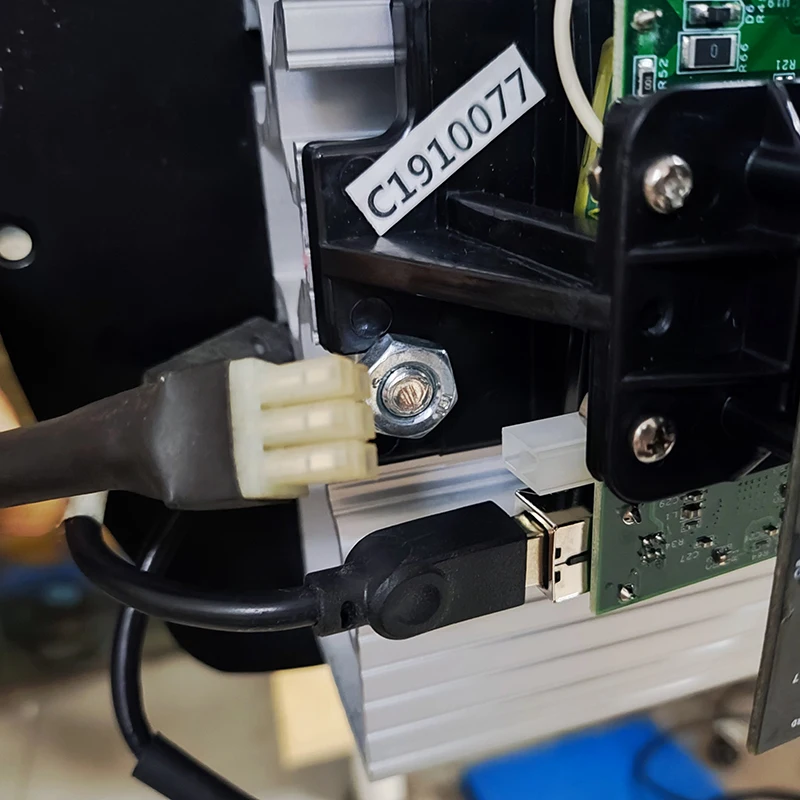

1.As shown in the picture, your old camera output port is like this, find the 12V+- two lines according to the picture

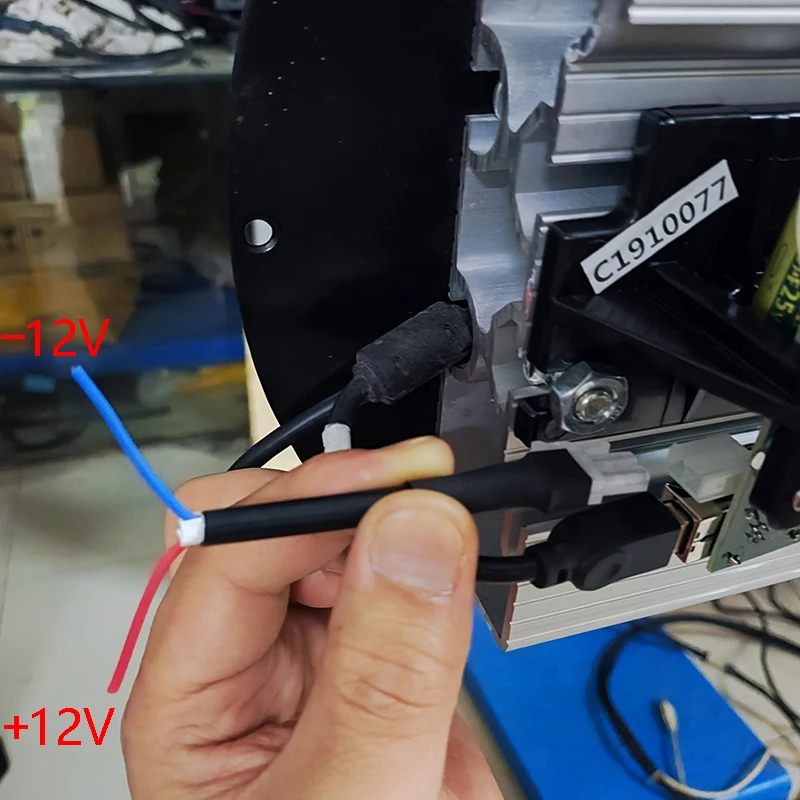

2.The camera will be equipped with this wire terminal when it is shipped, please see the picture to connect it to DC 12V+-.

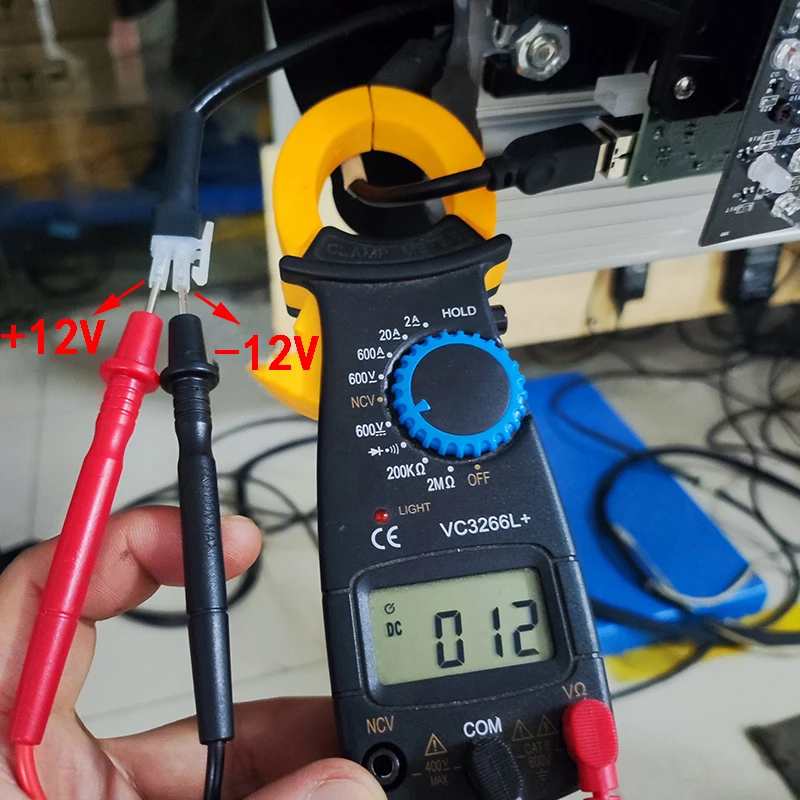

3.After the wire ends are connected, it is correct to use a multimeter to measure the output voltage as shown in the figure.(Precautions:Please do not connect the camera directly after the wire is connected. The reversed positive and negative poles will cause the camera to malfunction. Please confirm the connection as shown in the picture. If you can't confirm it, you can take a picture and send it to me.)
Product Advantage
Anti static protection for camera base, Aluminum alloy is easy to cause static electricity.
Producting
19 years professional manufacturer of 3D car wheel alignment machine.

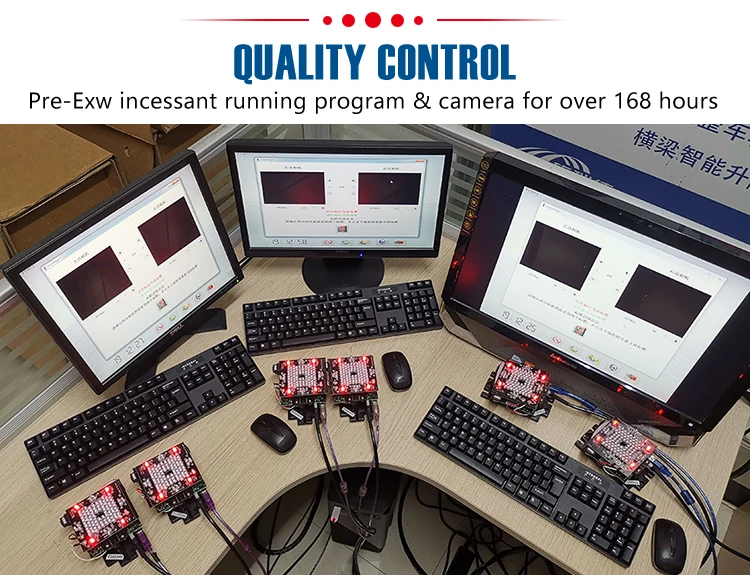

Pre-Exw incessant running program & camera for over 168 hours.
Packaging
Export standard package, professional forwarder shipment, goods transportation safety.
Carton packing
Net weight:2kg
Gross weight:3kg
Certifications
Our customer
Company Information
GUILIN SINOMAKE SCI-TECHNOLOGY DEVELOPMENT CO., LTD
SINOMAKE is a professional manufacturer of 3D wheel alignment and auto repair and maintenance equipment in china, with over 19 years manufacturing experience and servicing over 3000 end user all over the world.
Main products including:
-- Wheel alignment;
-- Car lifting machine;
-- Wheel balancer;
-- Tire changer;
-- Target;
and other auto repair and maintenance equipment.
Our products are extensively used in automobile maintenance and repair industry,
With high quality supplier, advanced technology, and factory price.
FAQ
Q: How do you control your production quality?
A: We have an independent QC team. Our QC teams do inspections during each manufacture process, camera manufacture process, target manufacture process, and complete machine assemble process. Furthermore, we require 100% final inspection before each shipment.
Q: Can I have a visit to your company before placing an order?
A: Sure, welcome to visit Sinomake. Our factory lacates in Guilin, Guangxi province, a very beautiful landscape city, South China.
Q: What kind of support can I get if I am Sinomake agent?
A: Bottom price, free catalog and gift for marketing, on site training.
Q: May I know the Lead time?
A:The lead time of our machine is 7 to 15 days.
Q: What is your payment terms?
We accept Alibaba Trade Assurance, TT, LC, etc.
Q: How long is the warranty?
A: We offer warranty 12 months, we will send free parts for replacement in warranty, supply spare parts for lifetime.
Q: Are you a manufacturer?
A: Of course,Sinomake is really manufacturer of 3D wheel aligner, with 19 years professional manufacturing experience in four wheel alignment and vehicle equipment, specializing in software R&D, we also offer OEM to wheel aligner factory both in domestic and oversea.
