Сигнальная лампа низкой интенсивности для самолета IP65 DL10S
- Category: Aviation Obstruction Lights >>>
- Supplier: Shanghai Lansing Electronics Co. Ltd.
Share on (62477825008):
Product Overview
Description
DL10 Low Intensity Aviation Obstruction Light
Description:
LANSING DL10 series is typically a standard LED Obstruction light designed for marking any obstacle that may present hazards to aircraft navigation. It made of die-cast aluminum alloy housing with polycarbonate dome and complies with ICAO regulation, low intensity TYPE A.
Features& Benefits:
•Based on Led Technologies
• Customizable for both AC and DC conditions.
• Customizable for steady burning or flashing mode
• Multiple light elements in the source reduce the chances of a complete blackout which
could be caused in case of a single source failure.
• All hardware of obstruction lights are made of corrosion resistant metals.
• Bird spikes for protection against droppings.
• Built in photocell, which can switch ON/OFF the lights automatically at dawn and dusk
( optional)
• Use of quality components and sophisticated technology reduce chances of maintenance
and replacement.
• Low power consumption, which leads to huge savings on electricity bills.
• LED light source ensures long lifetime, maintenance free
• Built-in anti electrophoresis impact module, with lightning/surge protection
• Resistant to shock and vibration.
• No RF Radiations, EMC Compliant
• Reversed Polarity Protected(DC Type)
• Corrosion resistant lamp & housing-suitable for off-shore use
• Bottom cable entry-ease of mount, mount accessories available
• Self-contained compartment-eliminates additional box
• Flashing rate adjustable
• With dry contact alarm, it will give an alarm in case of power and light failure
• Available both in single and double type
• 5 years warranty

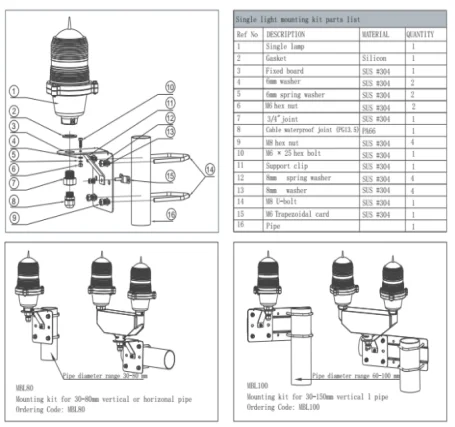

Installation Diagram:
Installation and operation:
1.Secure the light on a smooth surface which has enough strength, if there is no mounting surface, we can customize special mounting bracket as request.
2.When installation, please stay away the nearby light source, at the same time, ensure the photocell do not cover by the near object.
3.Make sure the power supply can match the rated power of light before connecting.
4.Unfasten three buckles on the base and overturn the lamp body, the n the terminals appear.
5.Insert the power cable from the cable gland and then connect them to the corresponding terminals inside the lamp body.
6.After finishing the connection, fasten the buckles.
7.Check whether the power cables are connected correctly before power on.
Notice:
• Ensure that the power connection part is correct before using.
• Temperature rise when light working is normal phenomenon.
• Please do not open any components inside by yourself.
• This product is a sealed structure; Please do not be tampered with by anyone other than registered installer. Once found, we are not warranty.
Applications:
• High rise building marking • Telecom tower marking
• Road obstruction marking • Wind turbine
• Bridge cranes • Port, dock entrance & walkway
• Offshore gas & oil platform
![G]D2GYHDJ3ZIV)}D)75H11T.jpg](http://sc01.alicdn.com/kf/HTB129YzX5zxK1RjSspjq6AS.pXa2/225542675/HTB129YzX5zxK1RjSspjq6AS.pXa2.jpg)
Specifications:
LIGHT OUT-PUT | DL10S(Single) |
Effective Intensity | 10 Candela |
Vertical Divergence | 10 Degree |
Horizontal out-put | 360 Degree |
LED Color | Red,yellow,green,white,blue |
LED Lifespan | 100,000 Hours |
OPERATION | |
Flash Pattern | Steady burning(default)/flashing type |
POWER SUPPLY | |
Input voltage | 110-220VAC, 50/60 Hz;12VDC;24VDC;48VDC; 220VDC |
Frequency | 50Hz ~ 60Hz |
MECHANICAL STRUCTURE | |
Lens | Polycarbonate, UV Stabilize |
Body | Die-casting Aluminum |
Water-proof | IP67 |
Weight | 0.9KG |
Dimensions | 159mmx245mm |
Mounting Size | Threaded 3/4'' bottom hub |
Temperature Range | -40℃ ~ +55℃ |
Relative humidity | 100% with condensation |
Wind speed | Up to 150mph(240kph) |
Warranty | 5 years |
Optional | Available in flashing pattern(40FPM) |
Order Codes
| Series | Single/Double | AC/DC | Voltage | Flashing | Photosensor | Alarmrelay | Pattern(For double light only) |
DL10 | S | A | 12 | F | P | R | ST |
|
|
| 48 |
|
|
|
|
|
|
| 110 |
|
|
|
|
|
|
| 220 |
|
|
|
|
