DL200D Double low Intensity chimney aviation warning aviation obstruction light for Airport,sport aviation lighting

Product Overview

Description





Description:

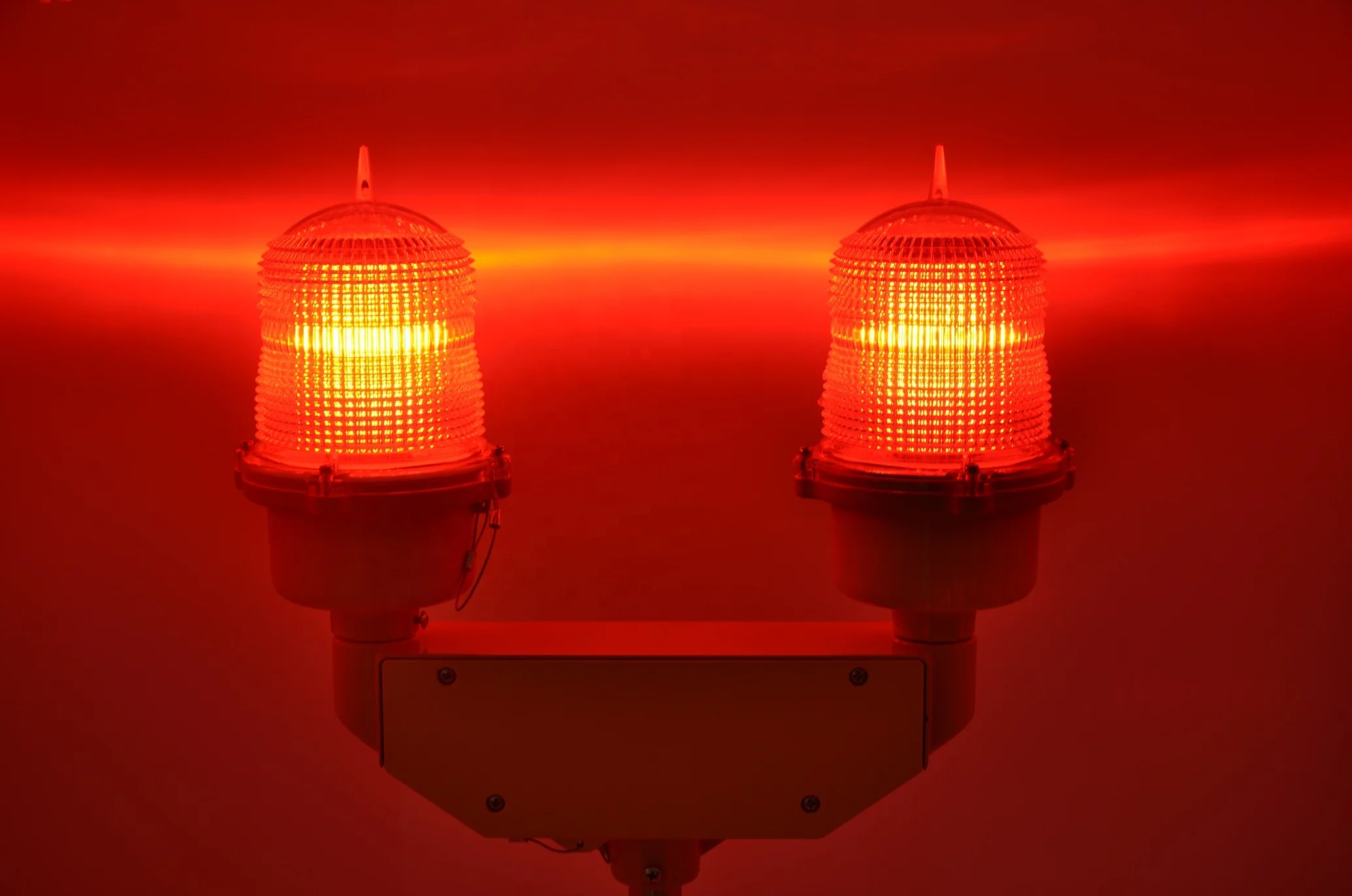

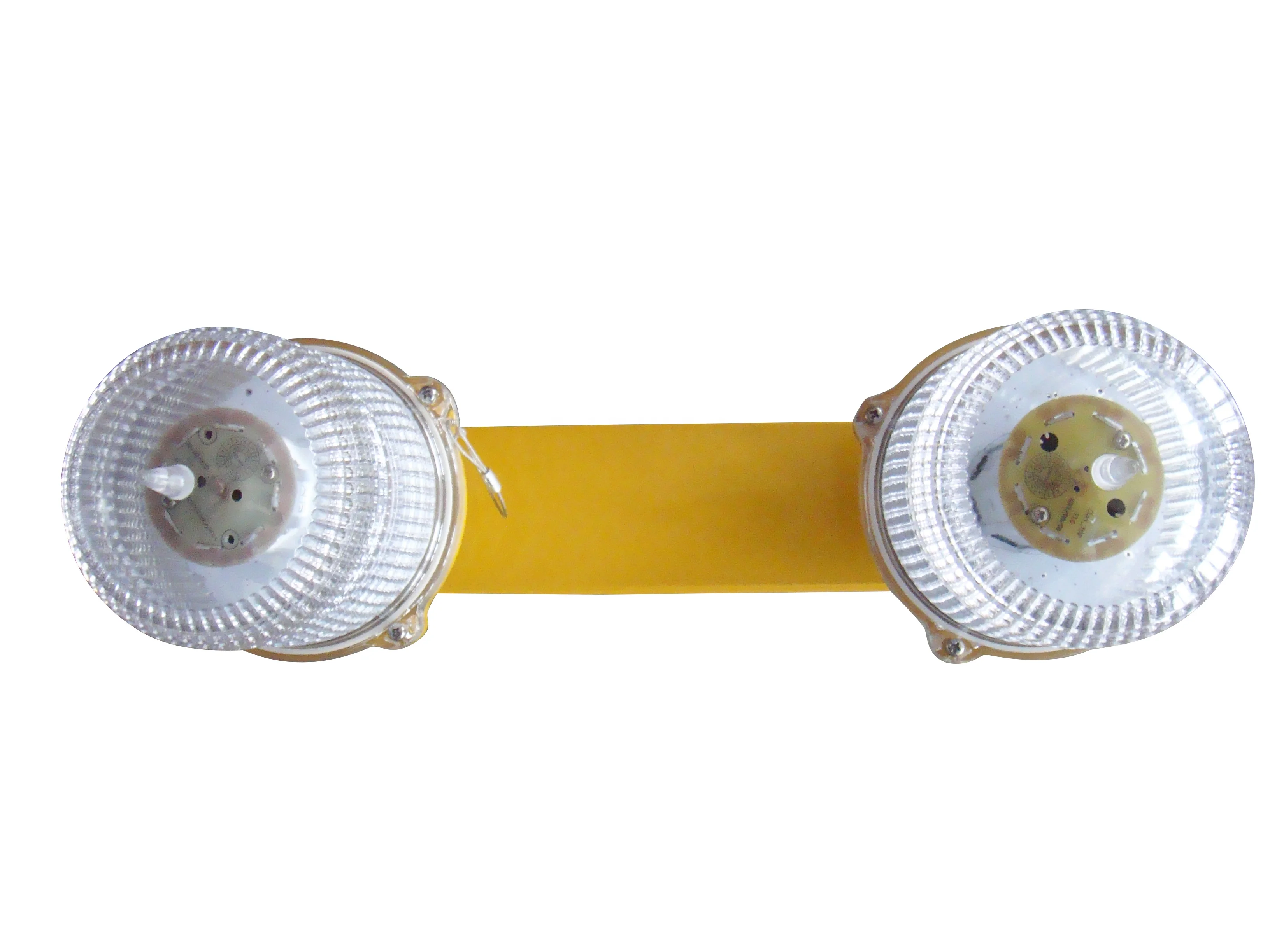

  LANSING DL200D low intensity dual obstruction light is composed of two DL200S single aviation obstruction lights and a compartment for its control board. It has two operation modes: “Service+Standby” and “Service+Service”. DL200D dual aircraft warning light is compliant to ICAO obstacle light low intensity type D.

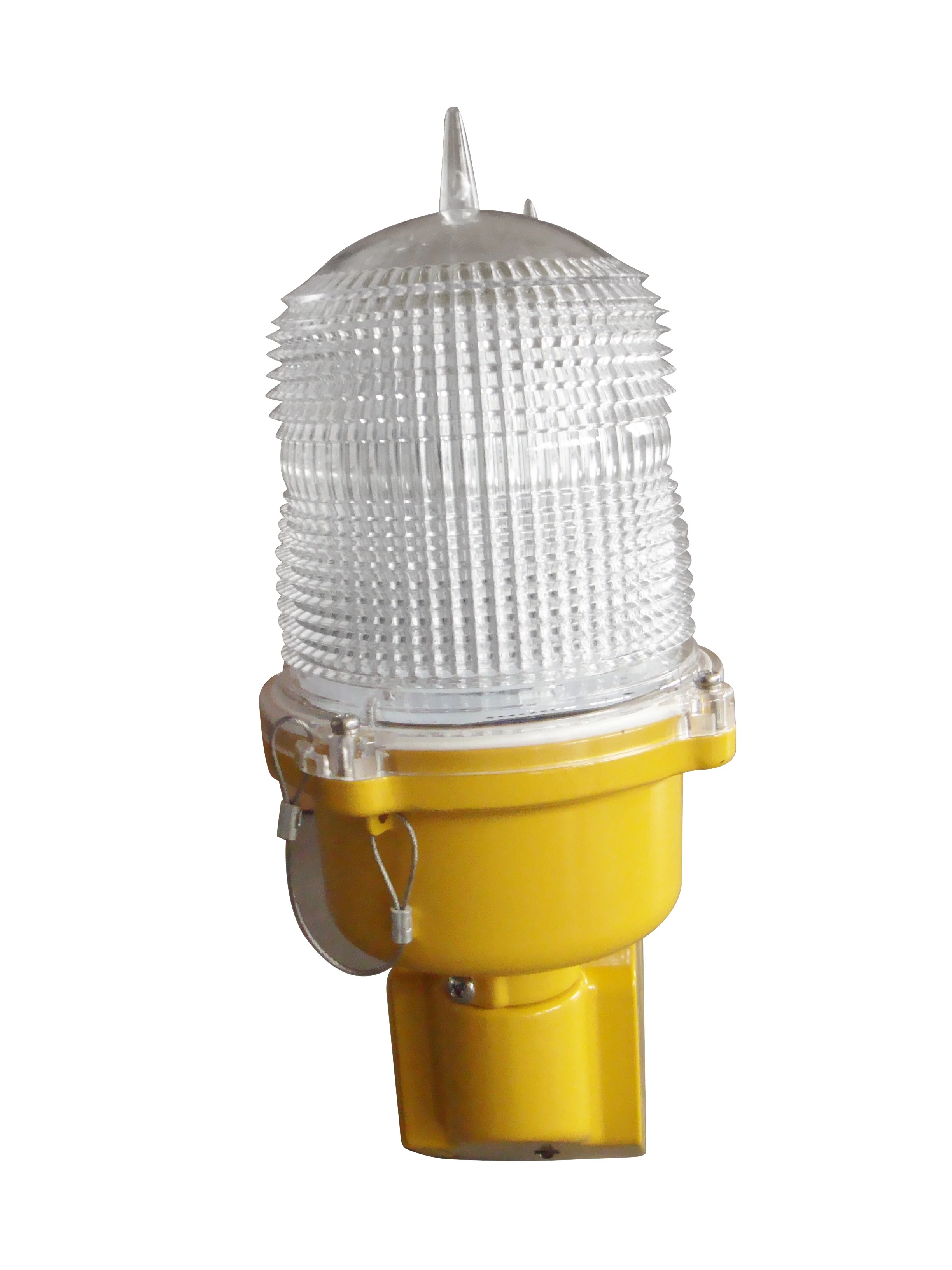

  Service+Standby: one DL100S single light (Service light) operates normally. Once Service light fails, DL200D dual light automatically transfers to Standby light for continuous operation.

  Service+Service: two DL200S single lights work simultaneously, and either failure does not affect the other normal operation.

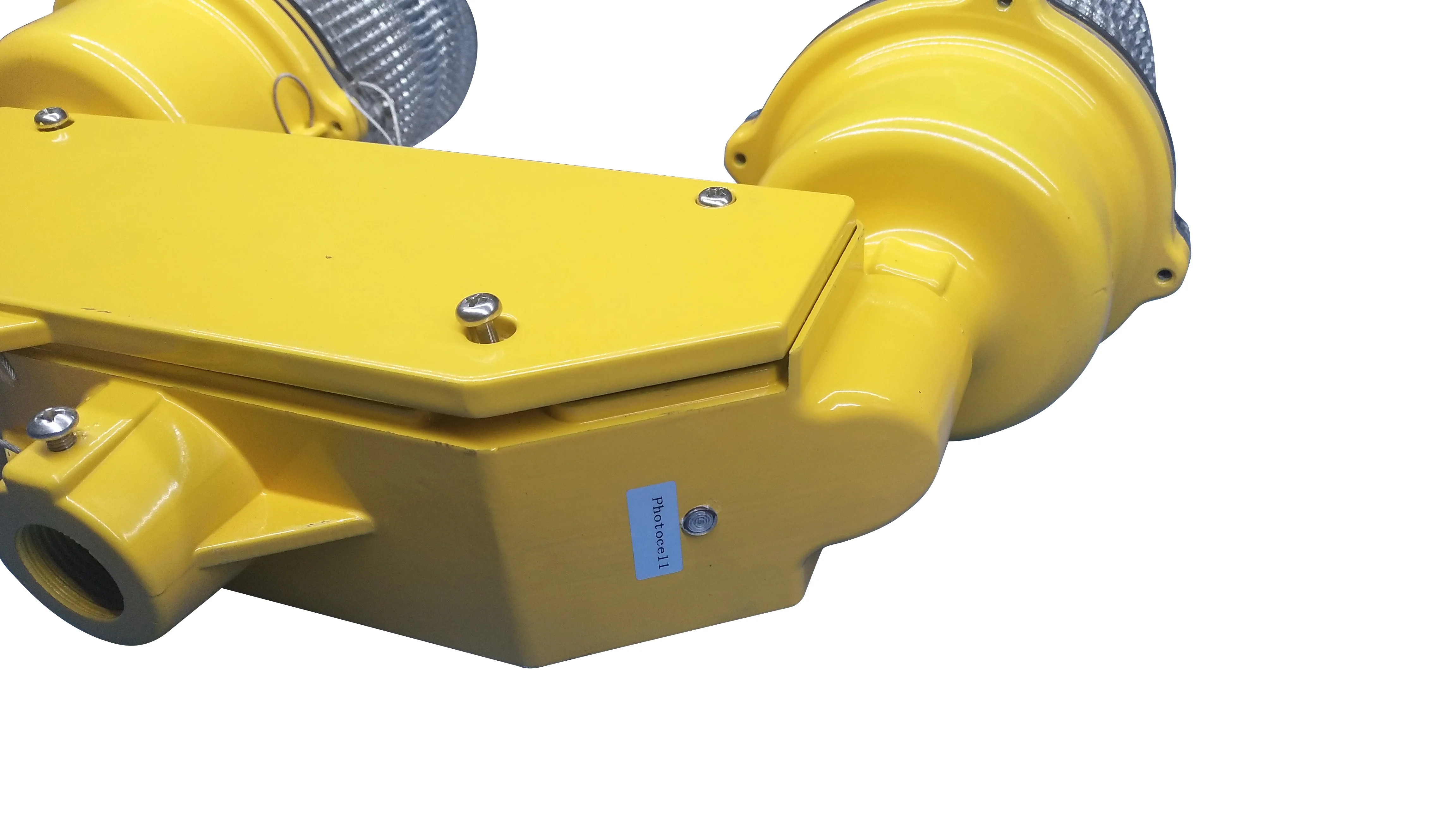

  With a G3/4” universal threaded hub on the bottom, DL200D twin aircraft warning light can be mounted on a conduit or with Lansing brackets designed for towers and buildings. There is a terminal block on the control board in the intermediate compartment, for connecting to power and alarm.

  In most cases, DL200D double obstruction lights are installed on top of structures less than 45m. In some cases, multiple DL200D double lights are used in one or more horizontal levels for marking a structure’s outline with medium intensity obstruction lights.





Features& Benefits:

• Based on Led Technologies

• Available for both AC and DC conditions.

• Can be operated in steady-burning or flashing mode

• Lens made from durable, UV-stabilized LEXAN polycarbonate

• Aluminum base with powder painted, corrosion-resistant

• G3/4 threaded bottom entry for easy mounting

• All hardware of obstruction lights are made of corrosion resistant metals.

• Bird spikes for protection against droppings.

• With NVG(Night Vision Goggles), this should be customized(optional)

• Photocell option for automatic activation at night

• No regular maintenance

• Uses 96% less power than an incandescent light

• With surge protection up to 2KV

• Excellent shock and vibration resistant

• No RF Radiations, EMC Compliant

• Reversed Polarity Protected(DC Type)

• Corrosion resistant lamp & housing-suitable for off-shore use

• Self-contained wiring compartment-eliminates additional box

• Flashing rate adjustable

• Both NO and NC dry alarm contacts are available, and it will give an alarm in case of power and light failure(optional).

• Available both in single and double type

• 2 years warranty



Advantage:

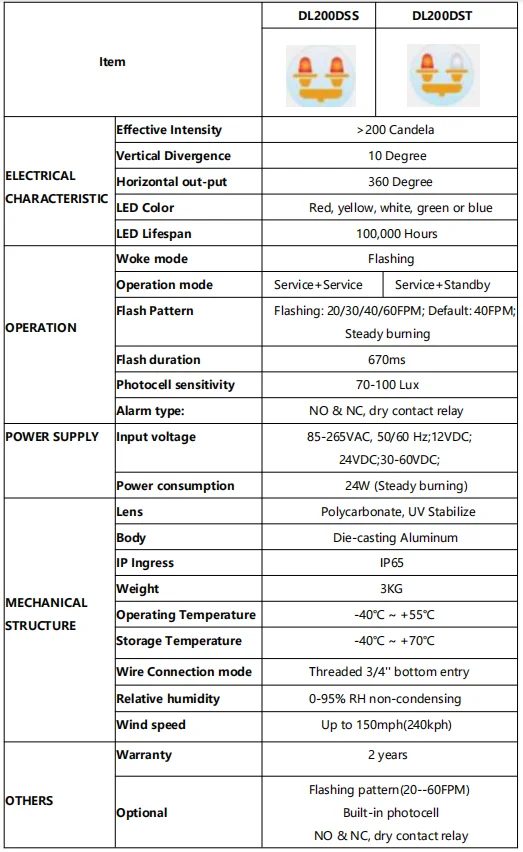

Specifications:





Order Codes
