4MP on vif p2p home POE web network video Xmeye Two way voice intercom Audio loudspeaker MINI IP Pin hole Camera with 3.7mm Lens

Share on (62478034283):


Price:$26.90 - $35.90

Quantity:


Product Overview

Description





This video filmed by this model
Order Symbol:
HDV-XIP4E1-S40-P2.8 4MP IP Camera with 2.8mm Pin-hole Lens
HDV-XIP4E1-S40-P3.7 4MP IP Camera with 3.7mm Pin-hole Lens
HDV-XIP4E1-S4A-F1.56 4MP IP Camera with 1.56mm Lens
HDV-XIP4E1-S4A-F1.7 4MP IP Camera with 1.7mm Fisheye Lens
HDV-XIP4E1-S4A-F1.8 4MP IP Camera with 1.8mm Fisheye Lens
HDV-XIP4E1-S40-L2.1 4MP IP Camera with 2.1mm Wide Angle Lens
HDV-XIP4E1-S40-L2.5 4MP IP Camera with 2.5mm Wide Angle Lens
HDV-XIP4E1-S40-L2.8 4MP IP Camera with 2.8mm Lens
HDV-XIP4E1-S40-L3.6 4MP IP Camera with 3.6mm Lens
HDV-XIP4E1-S40-L4.2 4MP IP Camera with 4.2mm Lens
HDV-XIP4E1-S40-L6 4MP IP Camera with 6mm Lens
HDV-XIP4E1-S40-L8 4MP IP Camera with 8mm Lens
HDV-XIP4E1-S40-L12/16/30 4MP IP Camera with 12/16/30mm Lens


Product Description


SIZE
40*40mm, ODM ACPT
VIEW
90-120°
FOCUS
FIXed
LENS

MICROPHONE
Analog Microphone
SYSTEM
Windows/MacOs/Android/Iphone


Captured.

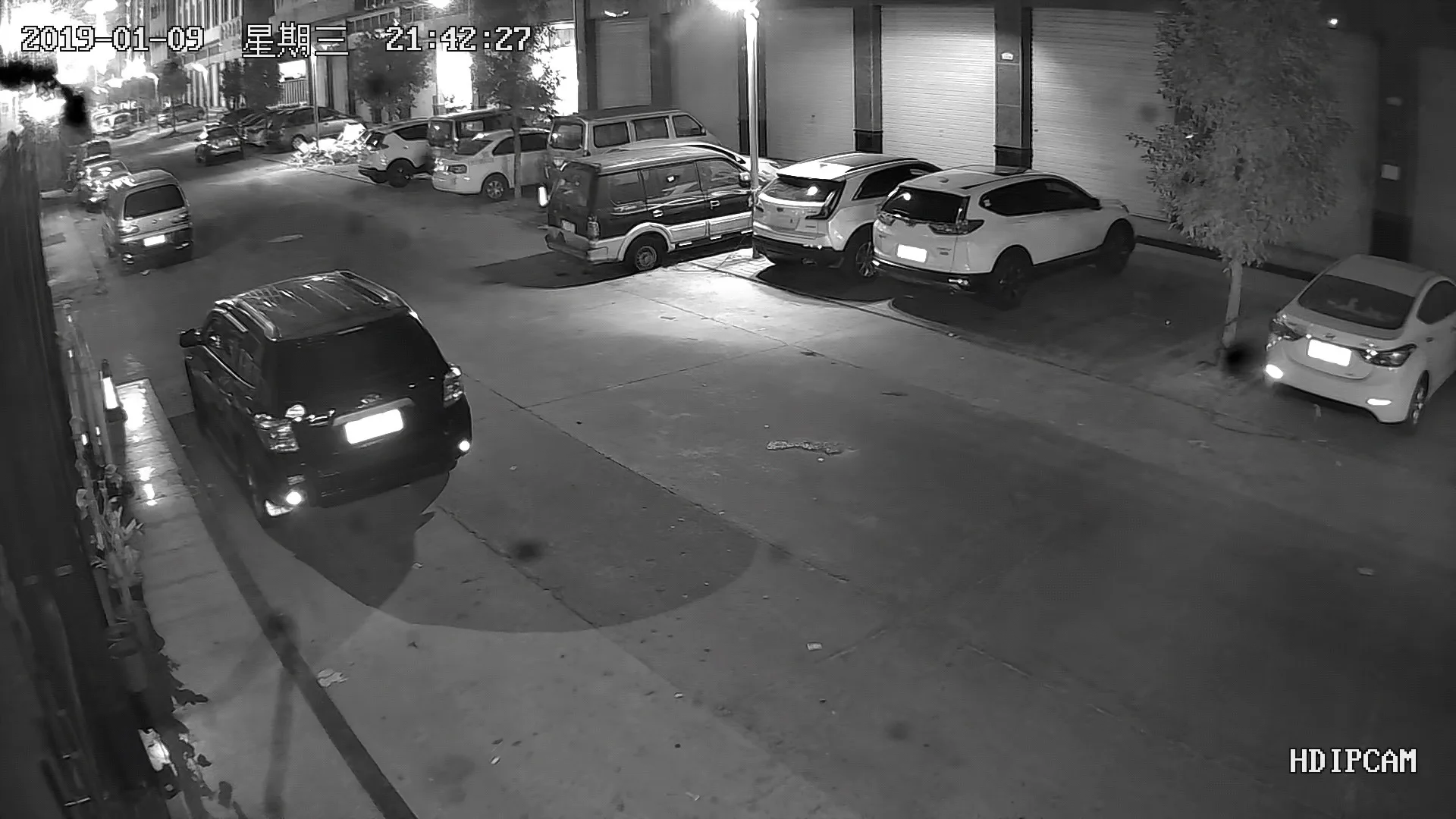

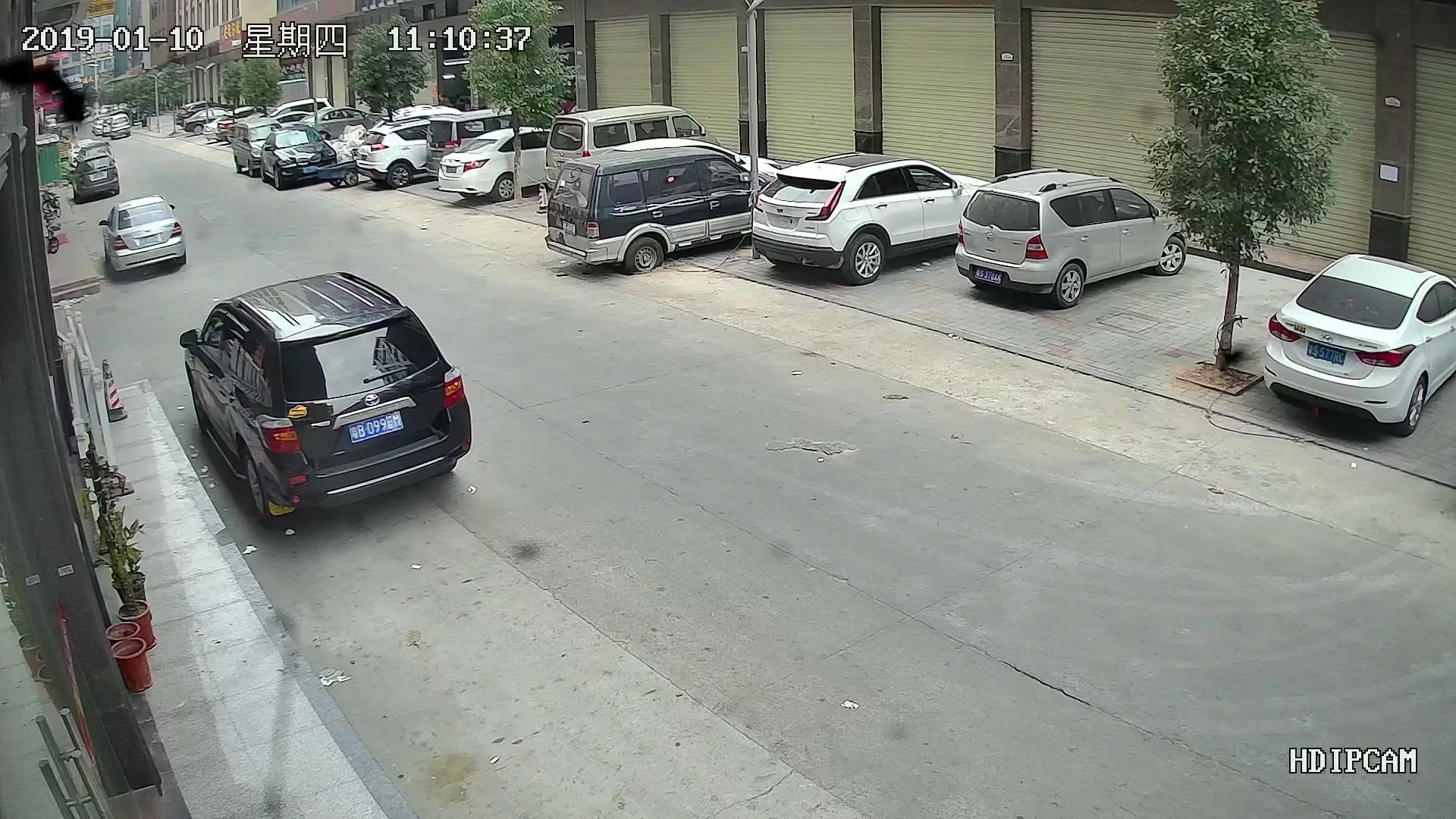

Day time Night time






4megapixel IP Camera
Model
HDV-XIP4E1-S40-P3.7
Lens
2.8/3.7mm Supercone Pin hole Lens
Hardware
sensor
4megapixel 1/2.8” CMOS; color 0.01lux(at)F1.2; black and white 0.001 lux(at)F1.2
Camera Video
Video processing
H.264/H.265 video coding; support dual-stream, AVI format ; support adjustable stream 0.1M~6Mpbs
Frame Rate
4 megapixel 25 frame(full-time) , support to adjust 1~25 framerate;

Video output
main stream:4M 2560*1440@18fps;3MP 2304*1296@20fps;2MP 1920*1080@25fps;
sub stream: 800*448@25fps
Day and night
Support IR-CUT,IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V
Noise reduction
2D/3D Noise Reduction.
Wide dynamic
Digital Wide dynamic
Audio
Audio input
support
Audio output
support
Network Interface
Network
1*RJ45 Ethernet interface, 10/100M self-adaptation and can resist 6kv static electricity,
Alarm
Motion Detection+Email Alert+APP Push
USB
N/A (if you need This function, pls send us inquiry, we will recommend the right one to you.)
TF Card
N/A (if you need This function, pls send us inquiry, we will recommend the right one to you.)
Auto iris
N/A (if you need This function, pls send us inquiry, we will recommend the right one to you.)
Alarm I/O
N/A
PTZ
N/A
Intelligence analysis
Supporting human detection, face detection, and support to customize other intelligent functions
Motor interface
N/A
Network Functions
Protocols
RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc.;
ON-VIF
Support ON-VIF Device, 100% compatible DAHUA, HIKIVISION NVR
RTSP
Support
Local Capture
support JPEG capture
Business functions
Support WEB configuration, real-time video transmission, motion detection and IO alarm linkage end storage, front storage playback/ download, motion detection and IO alarm center remind and screen pop-up linkage, unified client remote monitoring software (UC2) and platform etc. system.
SDK
provide complete development kit SDK;
Phone  (P2P)
(Iphone, Android ), through service “through clouds”, Plug and Play (P2P) iCloud service
POWER/PoE
Power
DC 12V input interface, 2W power consumption
Standard POE
48V of IEEE 802.3 af
Non-standard POE
Customized PoE: 12V-24V, 4/5/7/8 power supply
General Working Environment
Fan / Heater
Auto/Customiezed
Covering
IP65
Temperature
Comprehensive lightning protection, 7 * 24 hours-10℃~65℃ high temperature stable and reliable testing
Humidity
0% ~ 95% RH
Connector
RJ45 , DC 12V (White or Black cable optional)
Dimension
40(L)×40(W)×26(H)mm
Material
All the metal
Weight
0.2kg


Product Usage


    • Product usage introduction

HOW to USE:
On-vif supported, for shooting and recording under MS Windows system, MAC OS, Android,


  • Description of product use effect

Where use this:

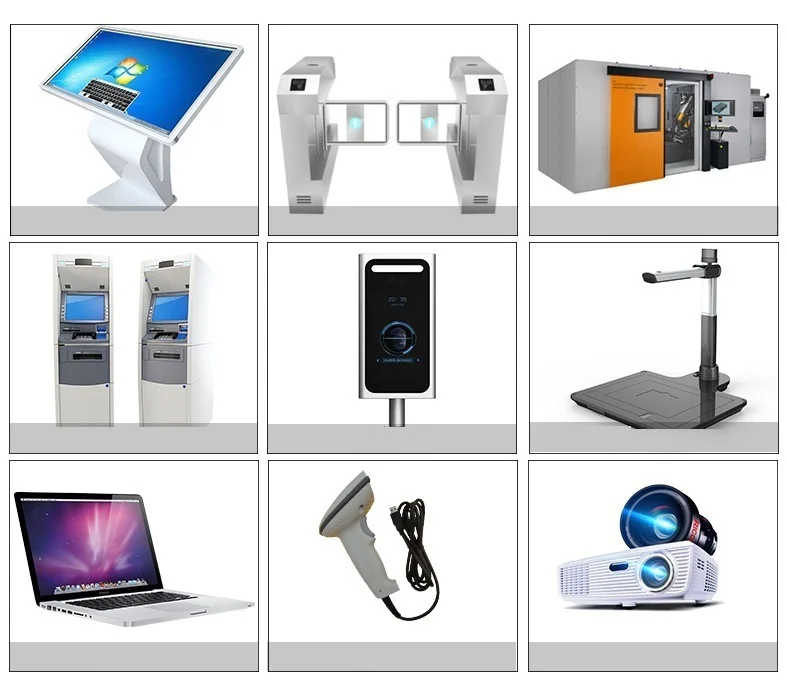

This camera design for Intelligent machines,special Kiosk, VTM, CRS, ATM or other Intelligent machine, mini shell, easy for
install in all of models ATM.


Power.
1.DC 12V input interface, 2W power consumption
2. 48V of IEEE 802.3 af
3. Customized PoE: 12V-24V, 4/5/7/8 power supply
Connection
1. on a LAN network
2. via the Internet.
3. Connected with NVR device
4. Support WEB configuration
Compatibility
1. 100% compatible with Hik vision & Da hua DVR
2. Via RTSP
3. On Vif Device 100% compatible

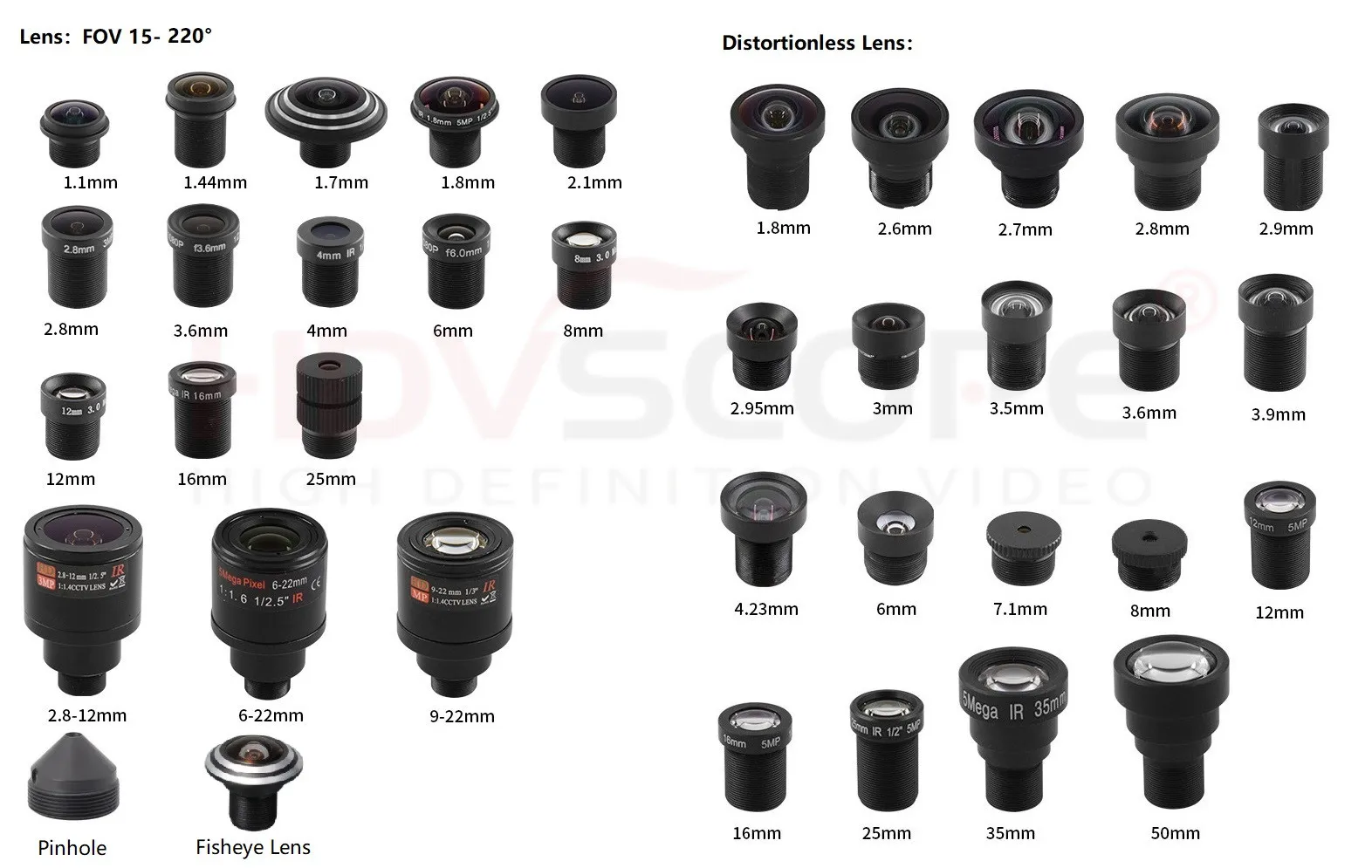

Optional Lens.
We can assemble this camera module for you with different kind of Lens like fixed Pinhole, Board, Button Lens; Autofocus Lens; Manual Varifocal Lens , distortional lens, wide angle lens, FOV from 15° to 220° etc;

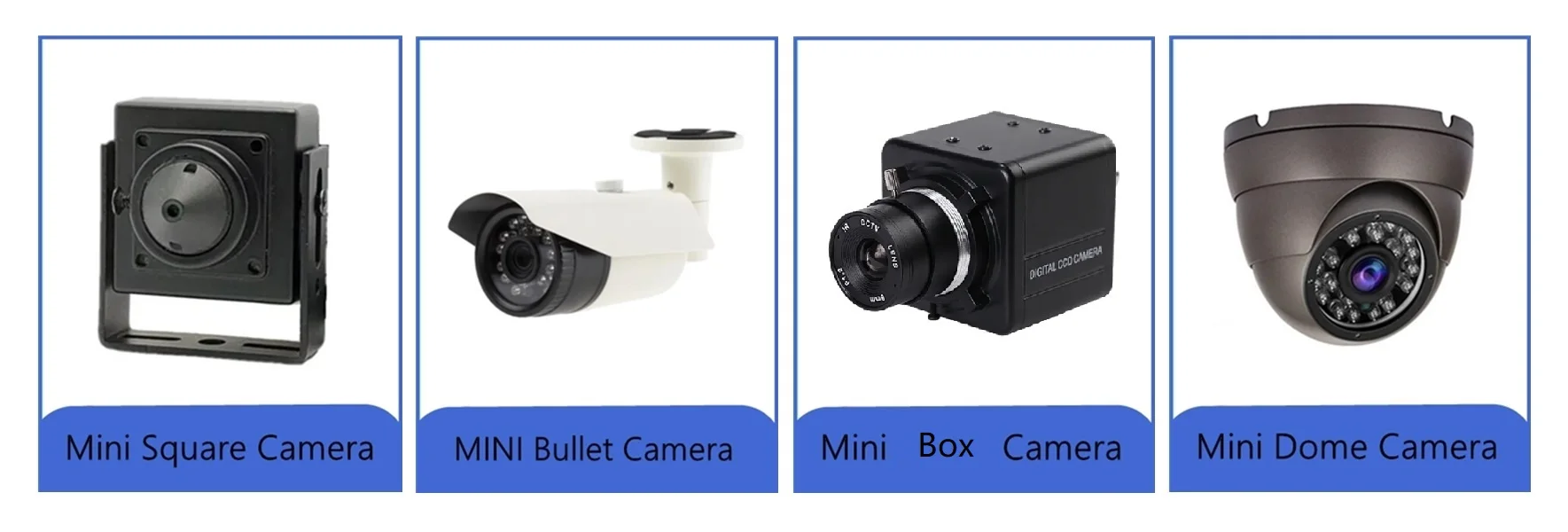

Optional Products shapes.
We can assemble this camera module for you with different shapes like Mini Square/Dome/Box/Bullet etc.


Related Products




Packing&Shipping


1pc cctv camera,1set screws, 1pc manual, 1pc color box
Single Size: 95*65*55mm(LXWXH)
