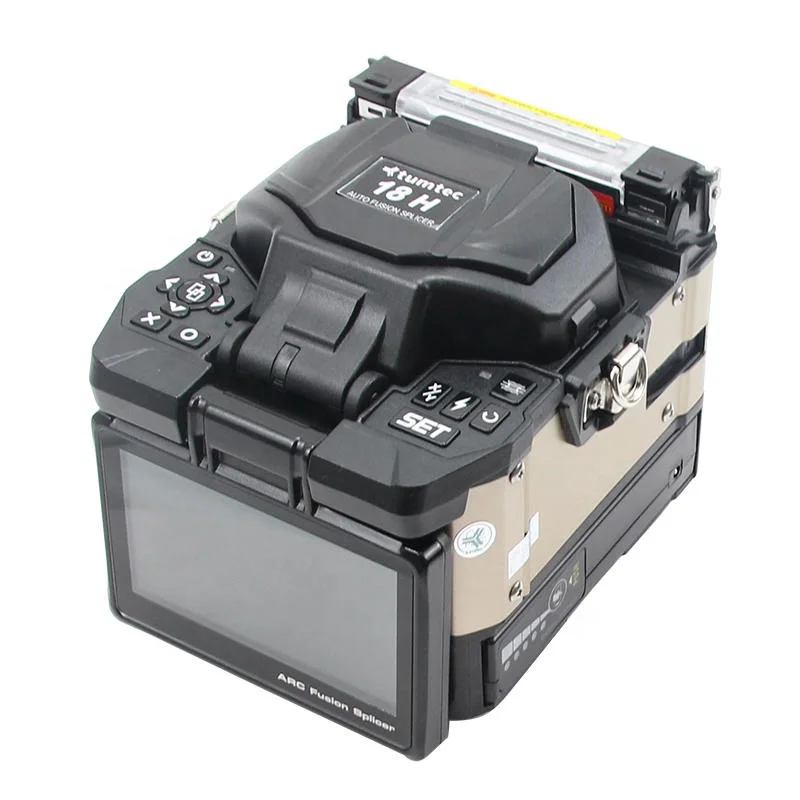

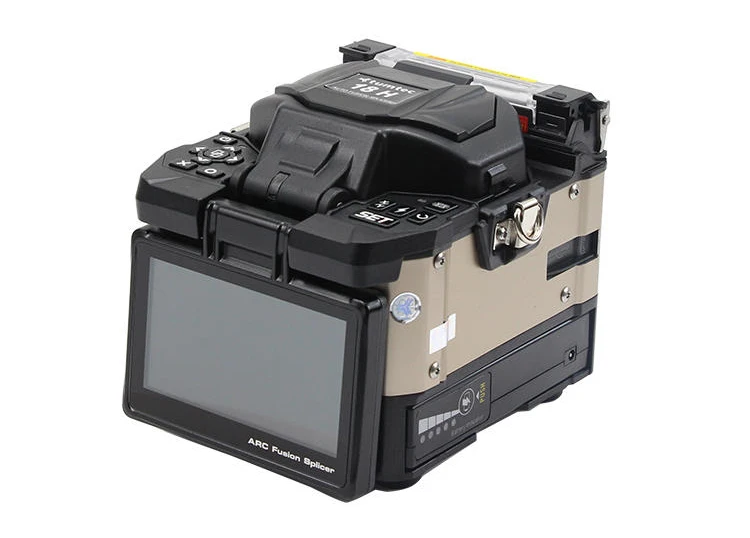

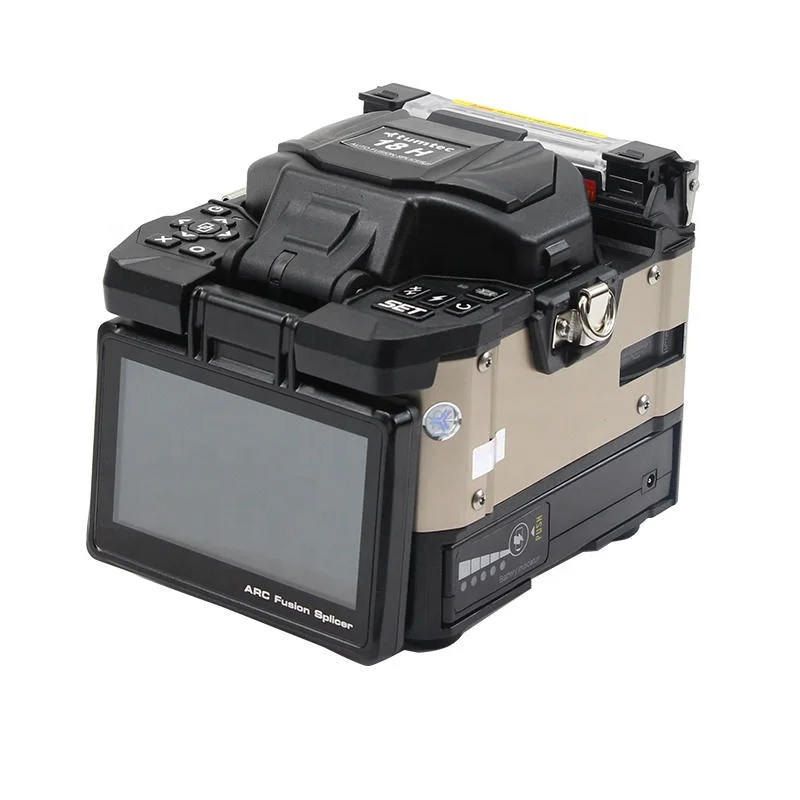

FTTH Tumtec FST 16H optical fiber optic fusion splicer machine FST 18H
- Category: >>>
- Supplier: Shenzhen Huayixin Technology Co. Ltd.
Share on (62478168323):
Product Overview
Description
PRODUCT DESCRIPTION
FTTx Active Cladding Alignmnet Fusion Splicer (18H)
FST-18H is mainly used for fiber-to-home applications. FTTx Cladding Alignment Fusion Splicer,Auto splice mode manifest user-friendly design;Dust-proof,water-proof,high temperature resistance,adapting to various altitude and formidable nature conditions;4.3' ' high reslolution LCD touch screen with 380x magnification,visible clearly bare eyes;Packed with datachable 4800mAh battery,more than 230 times of splicing and heating;3 high-power white LEDs and illuminated keypads simplifies your work at night;Detachable multifunction fixture,suitable for various fiber types.German CNC technique and integrated fiber-adjust frame, which make performance much stable.Built -in Japanese components and Korean chipset.

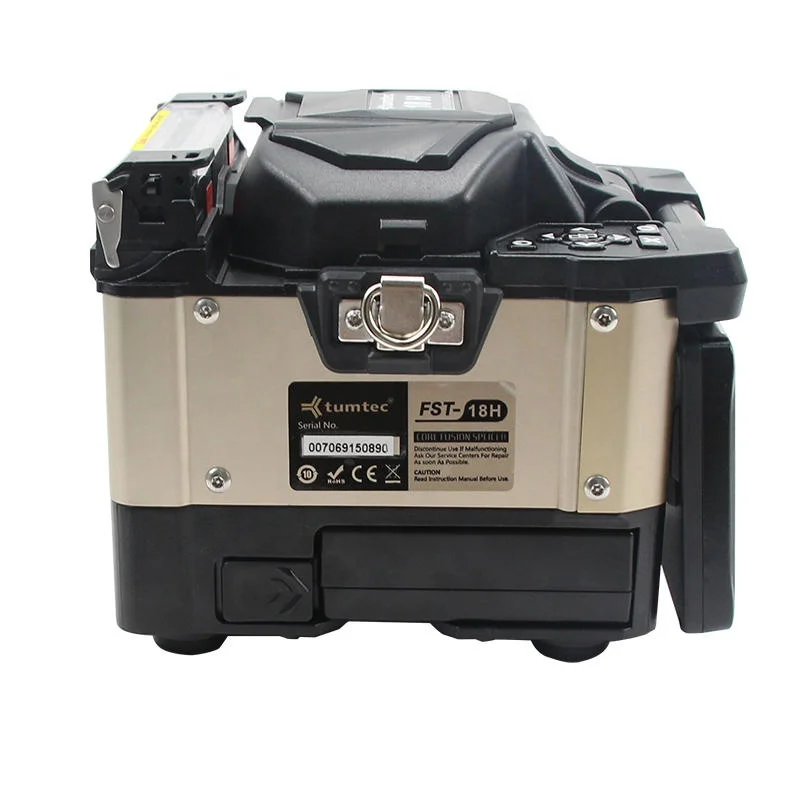

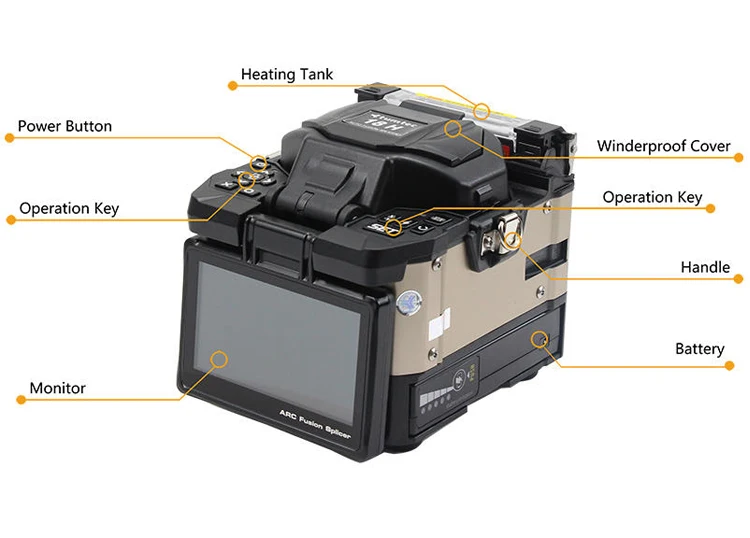

1:The machine's appearance color is black and golden yellow. It is specially used for short distance work and maintenance from optical fiber to home
2:There are four windproof covers (damp proof, dust proof, shock proof and frost proof)
3:FST-18H has three high-power LED white lights, light and dark operation more heart-saving

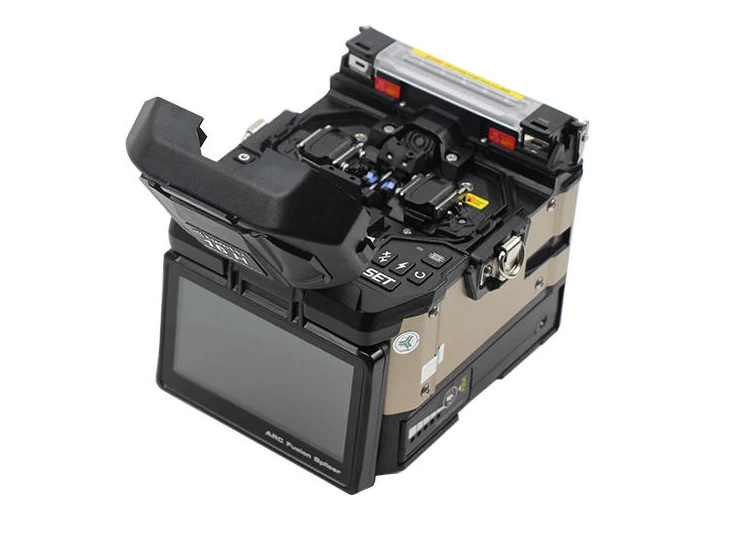

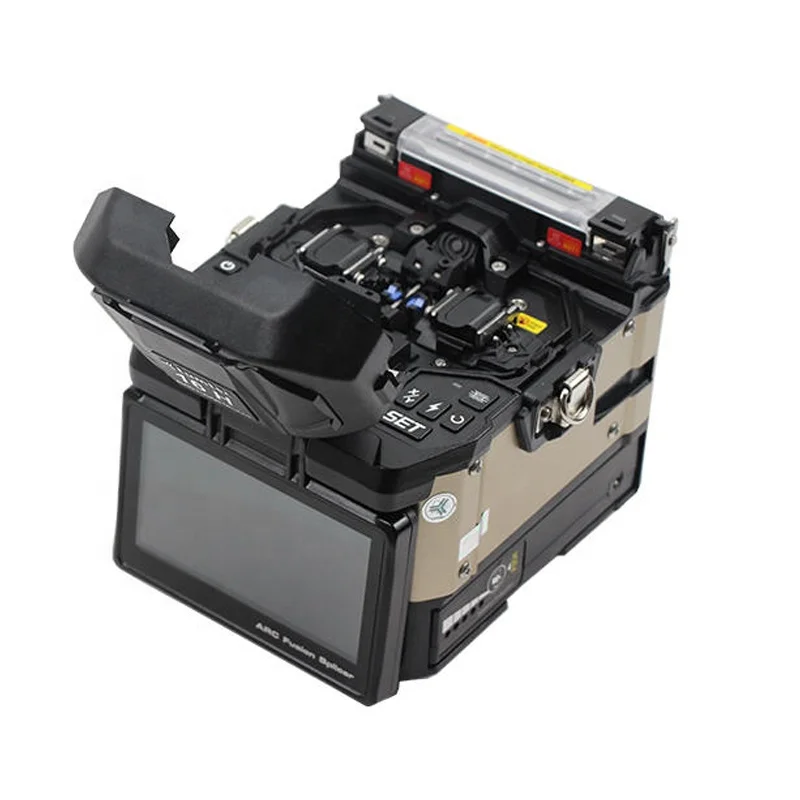

4:The shielding cover is wind-proof, freeze-proof, quake-proof, water-proof, provide the protection for fiber; clear plastic button, for convenient operation, with handle and strap

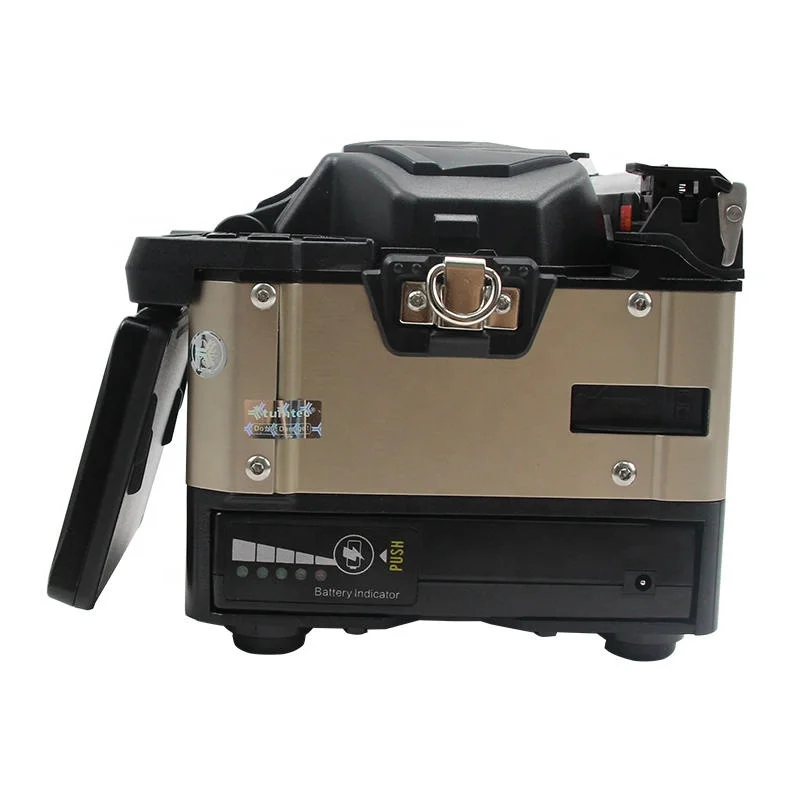

5:Large capacity battery up to 4800 mA, Port Ultra Mini USB 2.0
Basic Parameter
Model | FST-18H |
Appicable Fibers | SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) |
Compatible Fiber/Cable | 0.25-3.0mm/Indoor Cable |
Cleaved Length | Coating Diameter: 0.125-1mm/Cleave length:8-16mm |
Splicing Mode | Preset 41 splicing modes, storable 100 modes |
Typical Splice Loss | SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard) |
Return Loss | ≥60db |
Lighting | Three powerful white LED and iluminated keypads |
Splicing Time | SM fast mode: 6s |
Estimated Splice Loss | yes |
Protection Sleeve Length | 20-60mm |
Heating tank | Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes |
Heating Time | Fast heating time: 13s, Typical Heating Time: 30s |
Results Storage | 1 000 records |
Tension Test | 1.5-2.0N |
Display | 90° bi-directional view,4.3" high resolution display with touch screen |
Fiber View & Magnification | X,Y,XY,X/Y:380×Magnification |
Power Supply | AC Input 100-240V,DC Input 12-15V |
Battery capacity | 4800mAh battery capacity |
Heating times | typical above 180 times(splicing+heating) |
Operating Methods | Button/Touch Screen |
Automatic Calibration | Automatic ARC calibration by air pressure and temperature |
Electrode Life | 3000 ARCS, can be extended by using an electrode grinder |
Terminal | USB 2.0 |
Weight | 1.8 KG (including rubber Bumper) |
Dimension | 140W*165L*138Hmm (including rubber Bumper) |
Operating Condition | Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50℃, max wind 15m/s |
Storage Condition | 0~95% relative humidity, -40~80℃; battery storage: -20~30℃ |
For more information ,contact me freely
