Main Technical datas for high speed automatic slitting machine slitting steel machine aluminum slitting machine:
1.
application
Stainless steel,Aluminium,Hot rolled,Cold Rolled
2.
Thickness of coiled plate
0.3-2mm
3.
Width of coiled plate
1500mm
4.
Slitting speed
0-120m/min
5.
Loading capacity
15T
6.
Coil I.D
510/610mm
7.
Coil O.D
≤1800mm
8.
Slitting shaft diameter
220
9.
Width accuracy
±0.5mm/m
10.
Direction of feed material
from Right to Left or Left to Right(customized
11.
Power Supply
customized
LIST OF EQUIPMENTS UNDER SCOPE OF SUPPLY for high speed automatic slitting machine slitting steel machine aluminum slitting machine:
1. Coil car
2. Decoiler
3. Peeler table,pinch roll,shear
4. Loop Pit I
5. coil guide and pinch roll
6. Slitting machine
7. scrap winder (both sides)
8. Loop Pit II
9. separator and tension table
10. Recoiler
11. Over arm separator in the recoiler.
12. Exit coil car for recoiler
13. Hydraulic system
14. electrical control system

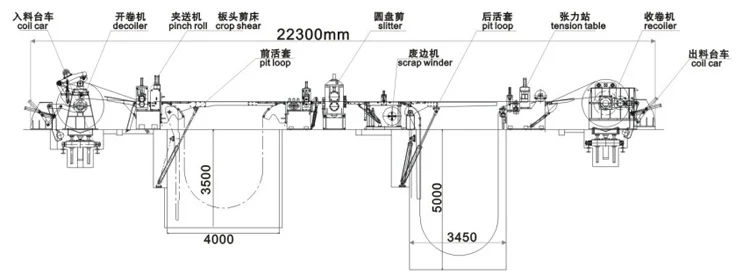

Layout for high speed automatic slitting machine slitting steel machine aluminum slitting machine:
Company Information
Kingjime machine Limited is a TaiWan of Chinese technological enterprise manufacturer with Japanese technology to make steel coil cut to length line ,slitting line ,High Frequency pipe mill machine,feeder machine .We owned National high and new technology enterprise with 40 patents and intellectual property rights over the last for years.welcome to kingjimemachine as they! we have established steady cooperation with customers in over 58 countries
customers
Exhibitions
Certifications
Packaging & Shipping
1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes.spare parts in wooden packing.
2. Delivery: 60-120 days
3. Shipping: All the parts in the containers will be strengthened with the container to prevent the deveices from being slipped
Our Services
Step1: know what machine you need
Step2: design the specific technical plan as per your request
Step3: Discuss and negotiate
Step4: Sign contract and place order
Step5: arrange production
Step6: Finish the production and inspect machine
Step7: Shipping
Step8: Apply visa for installation engineers
Step9: Install machine and teach your operators
Step10: After-sale service
FAQ
(1) What is your advantages?
A1:More than 20 years experience in manufacturing the machines. Professional and rich experienced..
A2:We are a manufacturer, not the trading company. So we can provide the strong and powerful service before and after sales.
A3: Can produce 4 lines per month
(2) Do you have after sales support?
Yes, We have a 25-person -professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.
(3) How to visit your company?
Our factory is located in Dongguan city, near HongKong,Shenzhen and Guangzhou. So there are two ways to our factory. One is by flight, direct from HongKong or Shenzhen or Guangzhou Airport. Another is by fast train, from Guangzhou East train station to Zhang Mu Tou train station. We will pick you up at the train station or airport
(4) What information you need to prepare the quotation:
