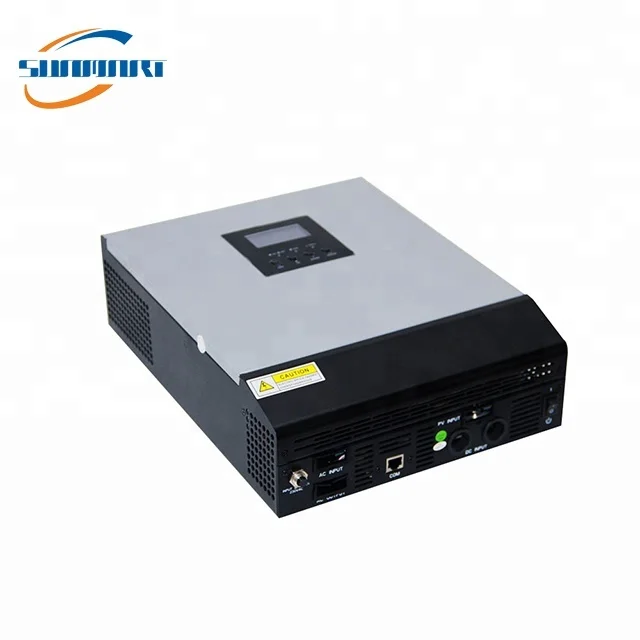

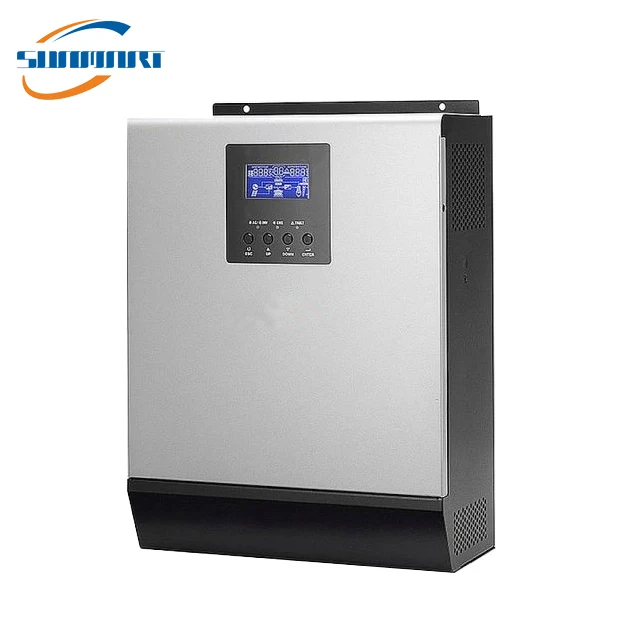

China new product 3KW solar energy inverter hybrid solar inverter

Product Overview

Description

  China new product  solar energy inverter hybrid solar inverter



Feature:

1.Pure sine wave inverter

2.Built-in MPPT solar charge controller

3. Selectable input voltage range and frequency according to city power in yourcountry

4. Charging current is setable according to your battery type

5.Configurable AC/Solar input priority via LCD setting

6.Compatible to mains voltage or generator power

7.Auto restart while AC is recovering

8.Overload and short circuit protection

9.Smart charging system optimizes battery performance

10.Cold start function





Specifications:

Model No.		MPS3K-24
Rated power		3000VA /2400W
Input	voltage	230VAC
	selectable voltage range	170-280VAC (for personal computers) 90-280VAC (for home appliances)
	Frequency range	50Hz/60Hz (auto sensing)
Output	AC voltage regulation (Batt.mode)	230VAC±5%
	Surge power (5 seconds)	6000VA
	efficiency (peak)	93%
	transfer time	10ms(for personal computers);   20ms (for home appliances)
	waveform	pure sine wave
Battery&              AC charger	battery voltage	24VDC
	floating charge voltage	27VDC
	overcharge protection	31VDC
	maximum charge current	20A/30A
	MAX PV array power	600W for 25A  ,  2000W for 60A
	MPPT range@ operating voltage	30~66V
	maximum PV array open circuit voltage	75VDC
	maximum charging current	25A/60A
	maximum efficiency	98%
	standby power consumpsion	2W
Physical	Dimension, D*W*H(mm)	100*272*385
	Net weight (kgs)	7KG
operating Environment	humidity	5%-95% relative humidity ( non-condensing)
	operating temperature	0℃-55℃
	storage temperature	-15℃-60℃

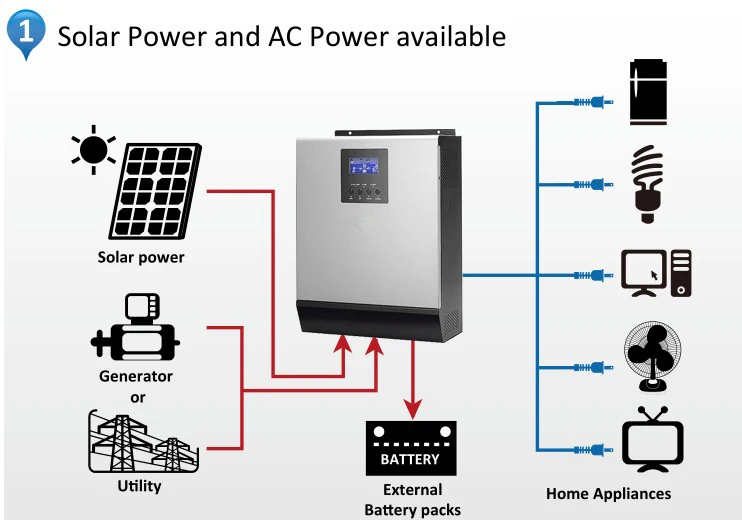

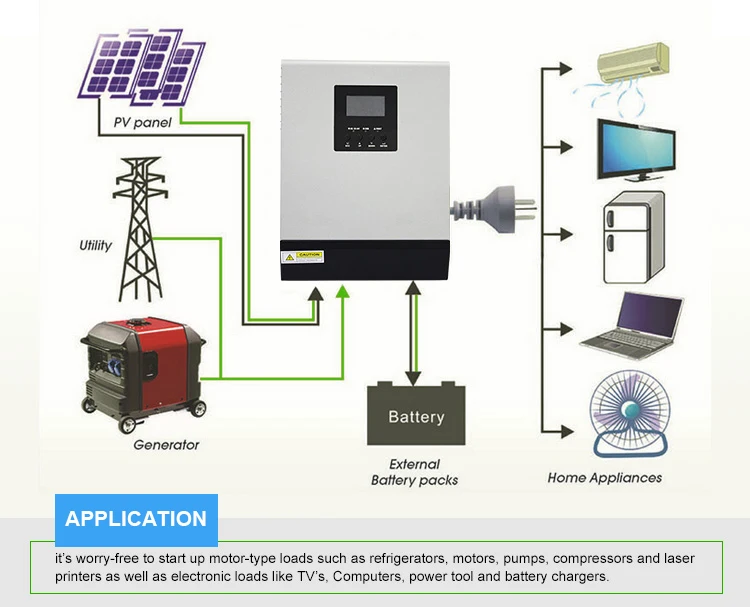

System Diagram :

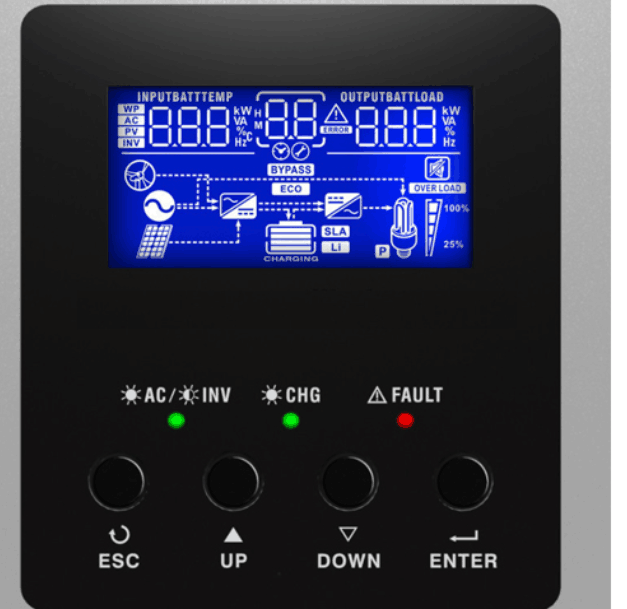

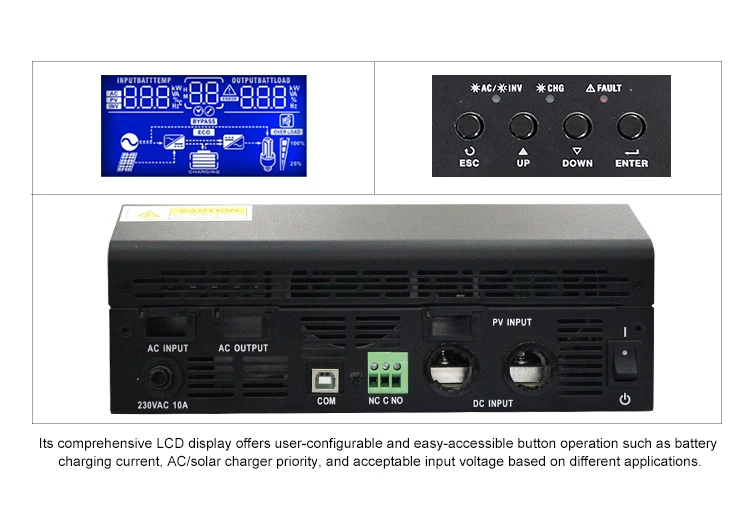

Inverter Detail







Parallel Connection:

Can support 9unit connect in parallel , single phase output :

Can support 9unit connect in parallel , 3phase380V output :

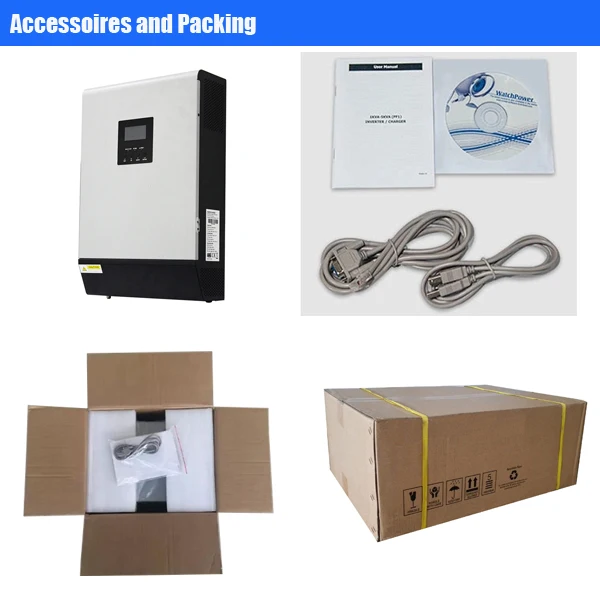

Packing







Factory View



Certificate :



FAQ

Q1. What's the payment term?

A. We accept TT,30% deposit and 70% balance before shipment.



Q2. How's the delivery time?

A. usually it will take about 5-10 days for production 50pcs





Q3. Could you offer Form A or C/O ?

A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.



Q5. Would you accept to use our logo?

A. Yes, But MOQ should be more than 100pcs



Q6. We want to know month capacity.

A. It depends on which model. For example for relay type small capacity , month capacity can reach near 2000pcs   and big capacity near 3000pcs.

Q7. Where is your market?

A. Our products are popular in Russia, Indonesia, Philippines, Italy, America, Pakistan and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.



Q8. Does the inverter connect with solar system ?

A.Yes.Because of the unique feature which combine invert,charge and AC auto-transfer switch into one complete system,made inverter not only connect with solar system,also could be used in& officer equipment,household items,power tools ans etc..



Q9. What kind of certificate you have ?

A. Our company already achieve ISO, CCC, and for products, we have CE, SONCAP, GOST, UL(pending) .
