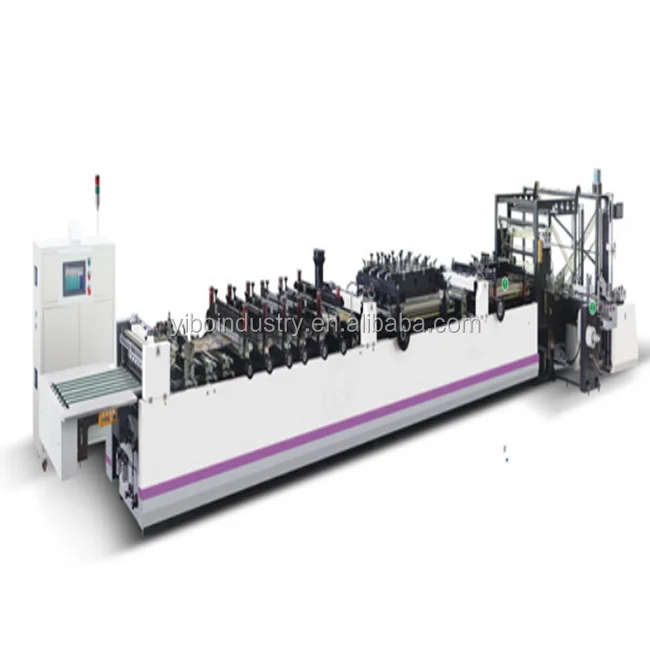

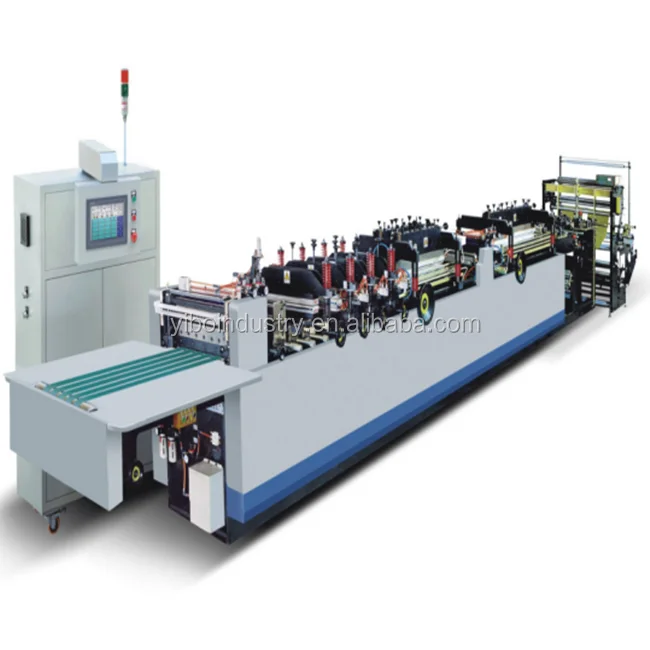

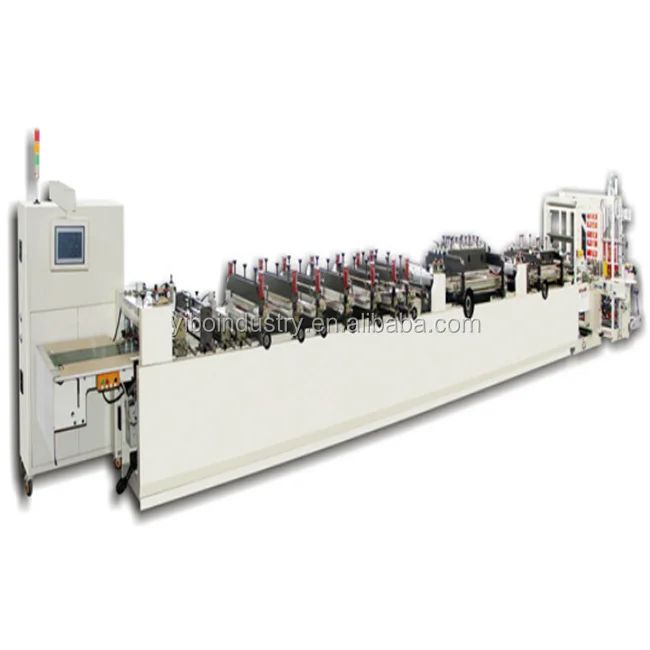

high speed 3 side sealing,center sealing/middle sealing bag making machine
- Category: >>>
- Supplier: Wenzhou Yibo Trade Co. Ltd.
Share on (62478351128):
Product Overview
Description
Product Description
Feature
This machine processing and assembly is superior, shape is beautiful and structure is reasonable. The whole machine can run
smoothly with low noise. Bag hole can be punched accurately. The speed is fast. The machine adopts PLC two servo traction control,
temperature centralized control, reducing electricity consume. The feeding system adopts constant tension control, and ensures the

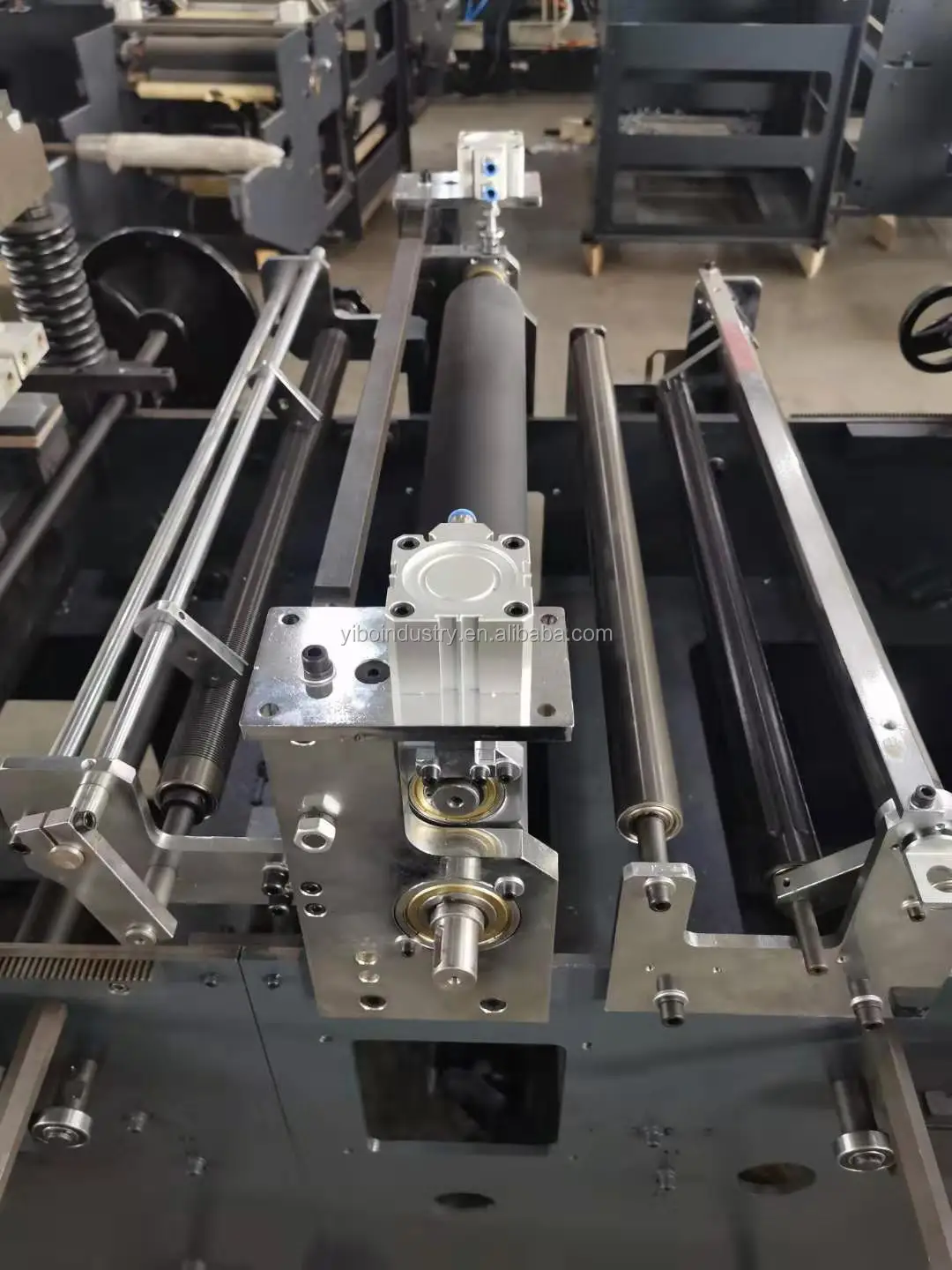

smoothness of the material and the accuracy of the control. Middle tension floating roller adopts dynamic compensation mode, to
make the process of pulling material fluctuates slightly. Tension control is stably.
1. Technical Parameter:
Function: Three side bag,Middle-side (gusset) sealing Bag
Main Electric Device: Two Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 14
Road, Tension control unwinding.
Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function
which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
Max working speed: 150 times/min (For gusset bag about 120 times/min)
Max unwinding line speed: ≤38 meter/min (subject to base material)
Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)
Max width of bag: 500mm
Max size of roll material: φ600×1050mm（Diameter×Width）
Location precise: ≤±0.5mm

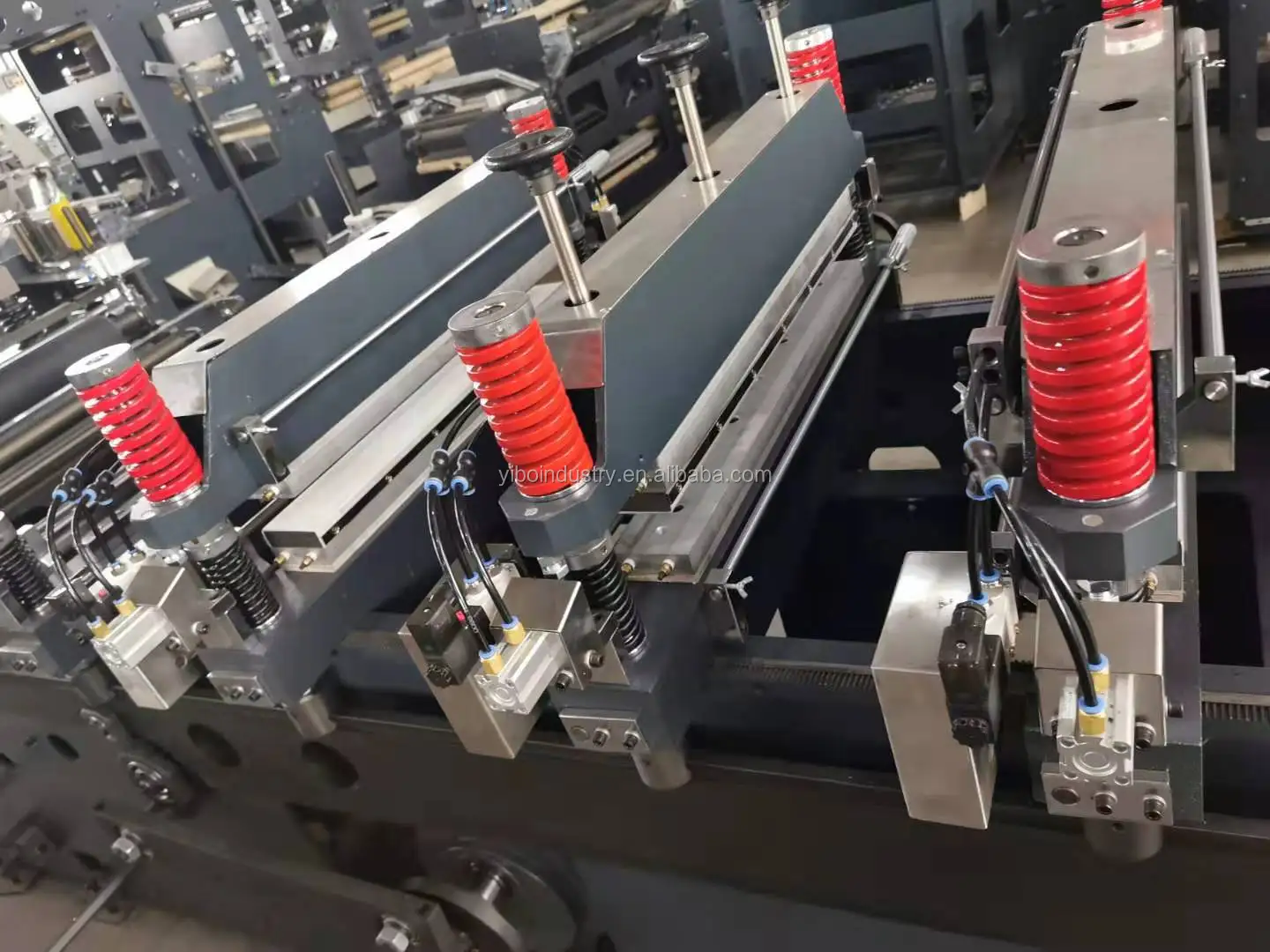

Heating sealing knife quantity: 4 set Longitudinal Knife, warming and cooling up and down.
Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
Temperature electric heating quantity: 12 piece.
Temperature range: 0~300℃
Total Power: 30Kw (Starting power is about 25kw, in condition of keeping warm, power is about 20kw)
Overall dimension: 10500×1600×1950mm（L×W×H）
Net weight: About 5500 kg.
Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.
This machine processing and assembly is superior, shape is beautiful and structure is reasonable. The whole machine can run
smoothly with low noise. Bag hole can be punched accurately. The speed is fast. The machine adopts PLC two servo traction control,
temperature centralized control, reducing electricity consume. The feeding system adopts constant tension control, and ensures the
smoothness of the material and the accuracy of the control. Middle tension floating roller adopts dynamic compensation mode, to
make the process of pulling material fluctuates slightly. Tension control is stably.
1. Technical Parameter:
Function: Three side bag,Middle-side (gusset) sealing Bag
Main Electric Device: Two Servo Motor, Panasonic PLC, AC motor masterdrive, Panasonic frequency converter, Temperature control 14
Road, Tension control unwinding.
Base material: two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function
which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material.
Max working speed: 150 times/min (For gusset bag about 120 times/min)
Max unwinding line speed: ≤38 meter/min (subject to base material)
Making bag size: length (400mm), It adopts times to send when the length is more than 400mm. (Max times to send is six)
Max width of bag: 500mm
Max size of roll material: φ600×1050mm（Diameter×Width）
Location precise: ≤±0.5mm
Heating sealing knife quantity: 4 set Longitudinal Knife, warming and cooling up and down.
Transverse Knife: 3 set warming up and down. 2 set cooling up and down.
Temperature electric heating quantity: 12 piece.
Temperature range: 0~300℃
Total Power: 30Kw (Starting power is about 25kw, in condition of keeping warm, power is about 20kw)
Overall dimension: 10500×1600×1950mm（L×W×H）
Net weight: About 5500 kg.
Machine steel plate thickness: 10mm (Made in Shanghai, Baosteel)
Control system Model: Japan Panasonic PLC Laminating Film High speed bag making machine control system.

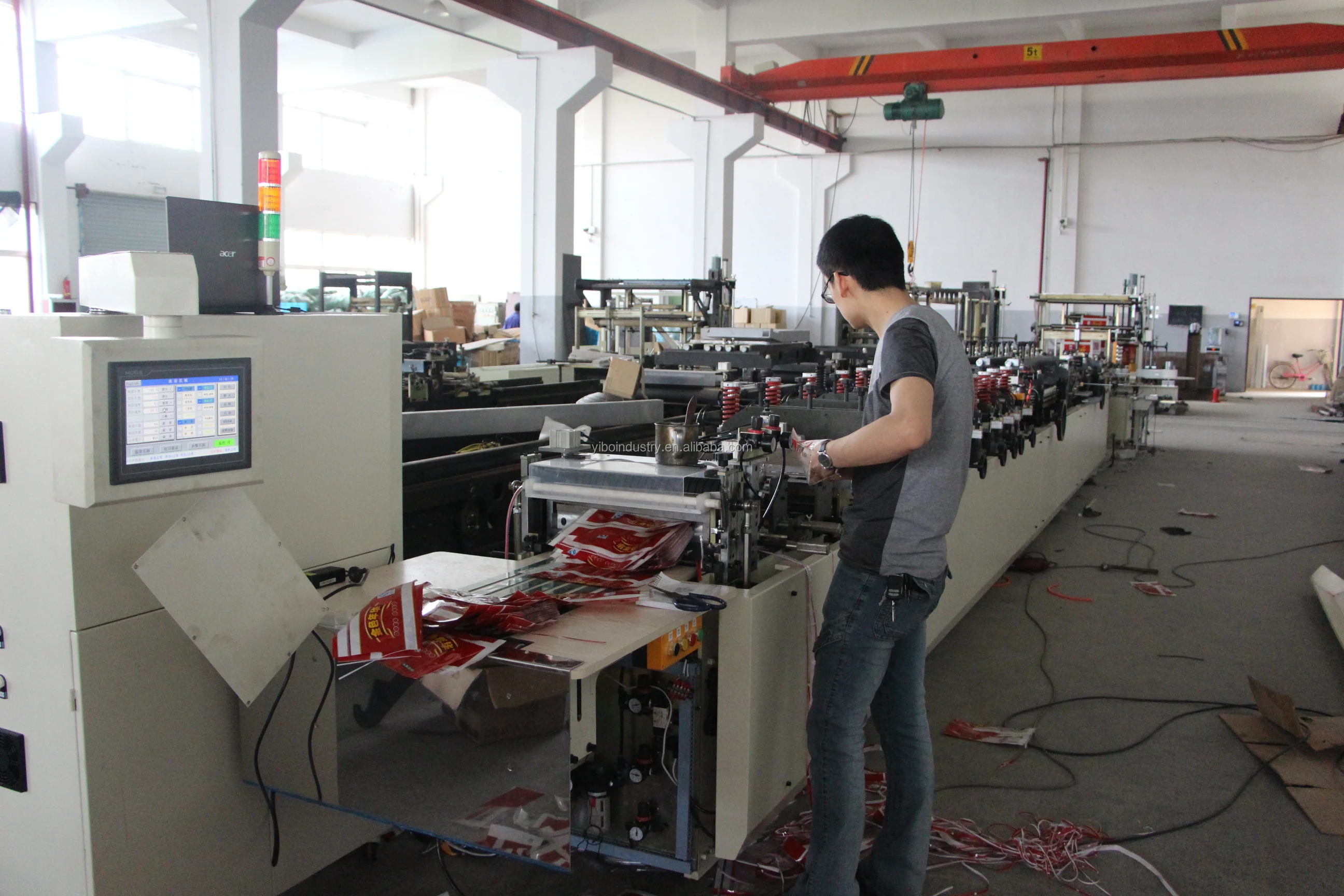

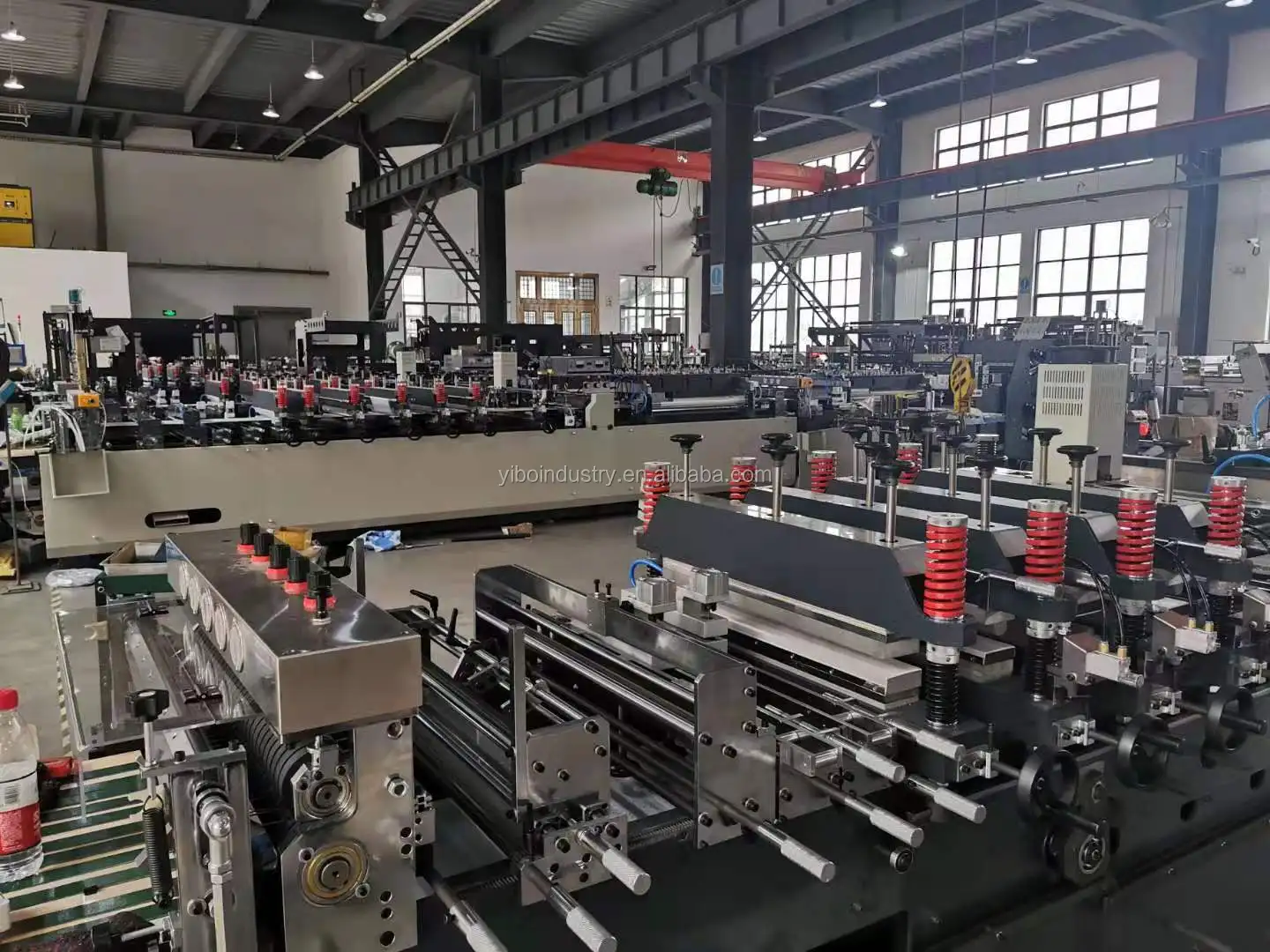

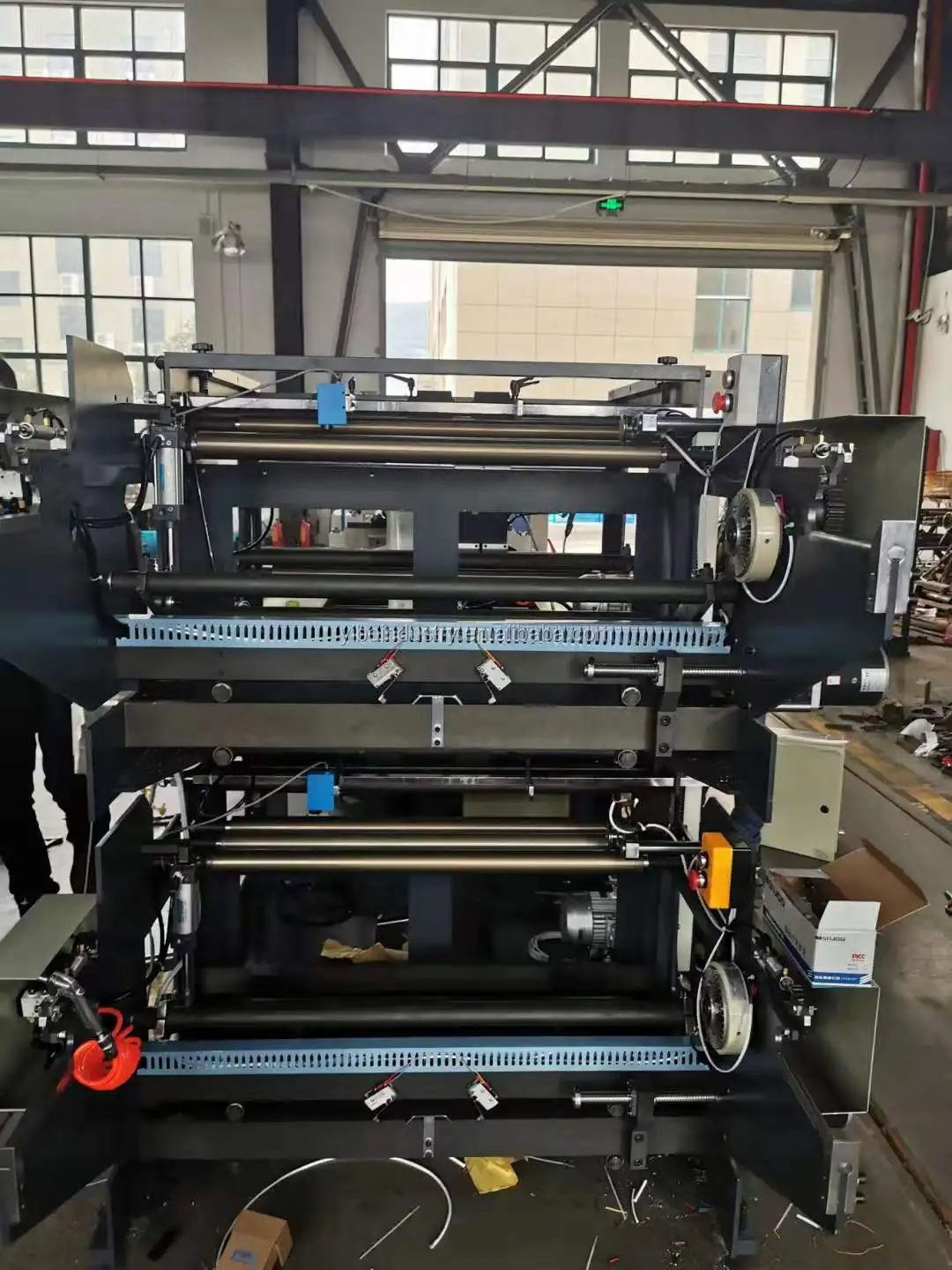

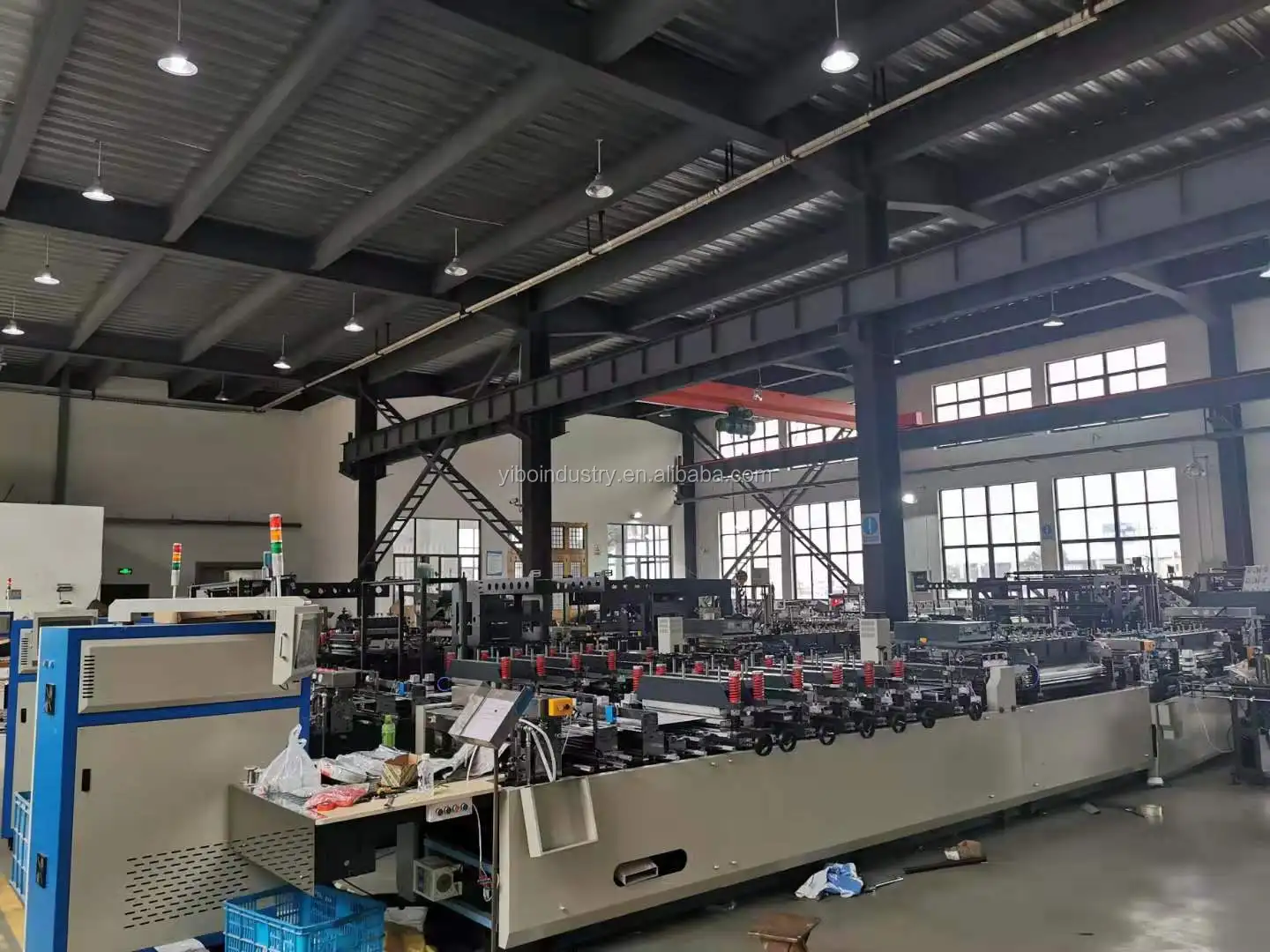

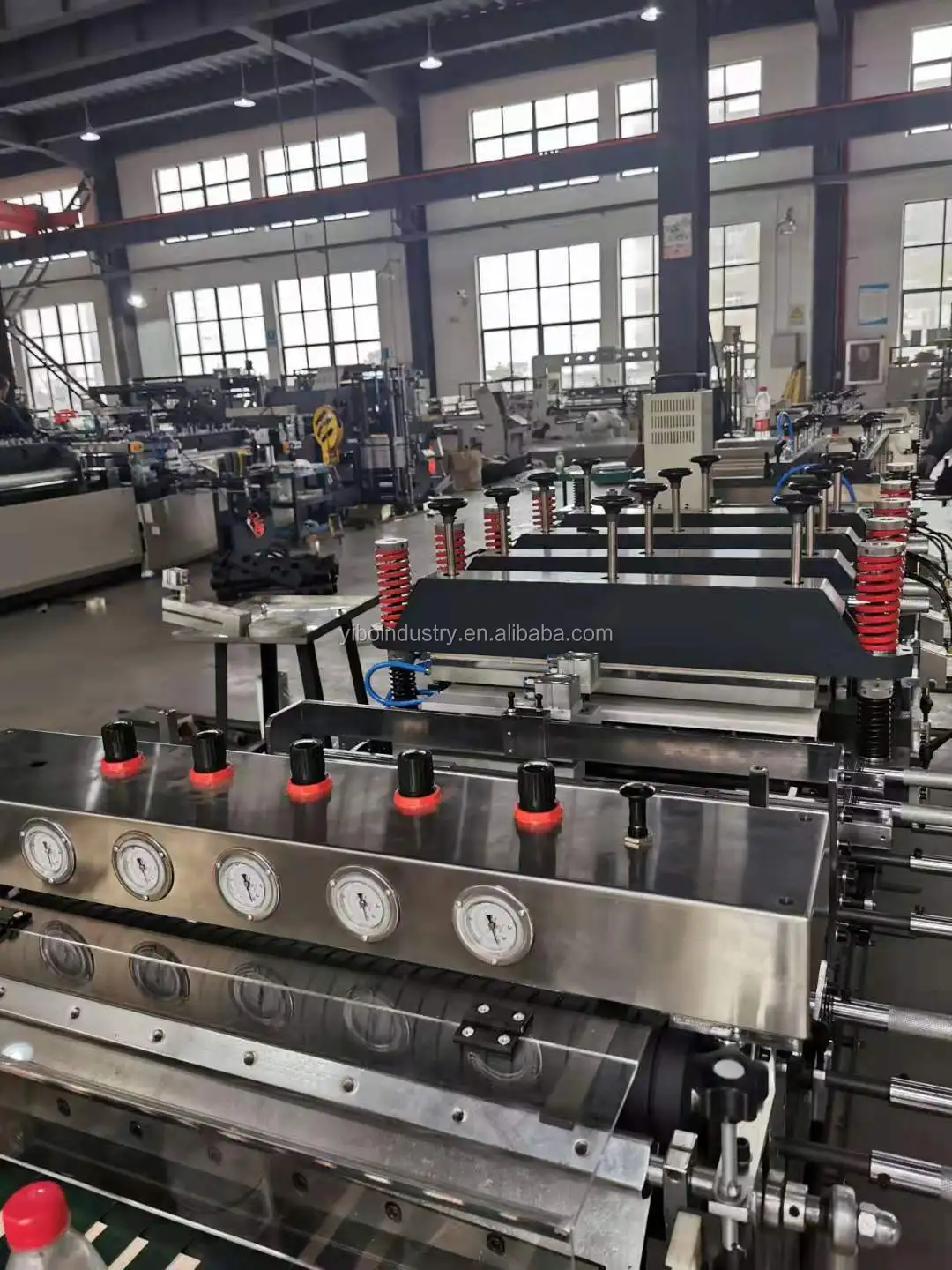

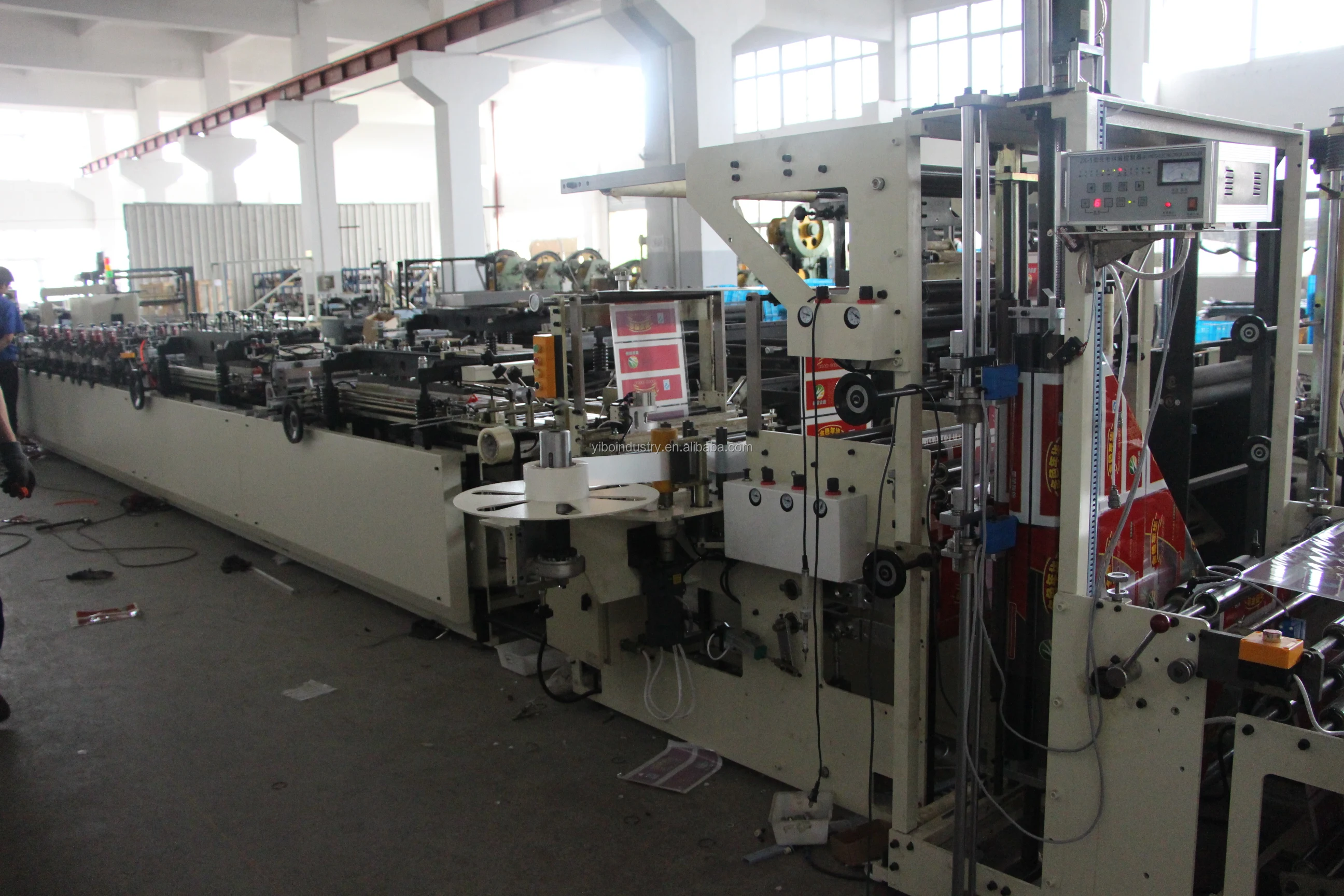

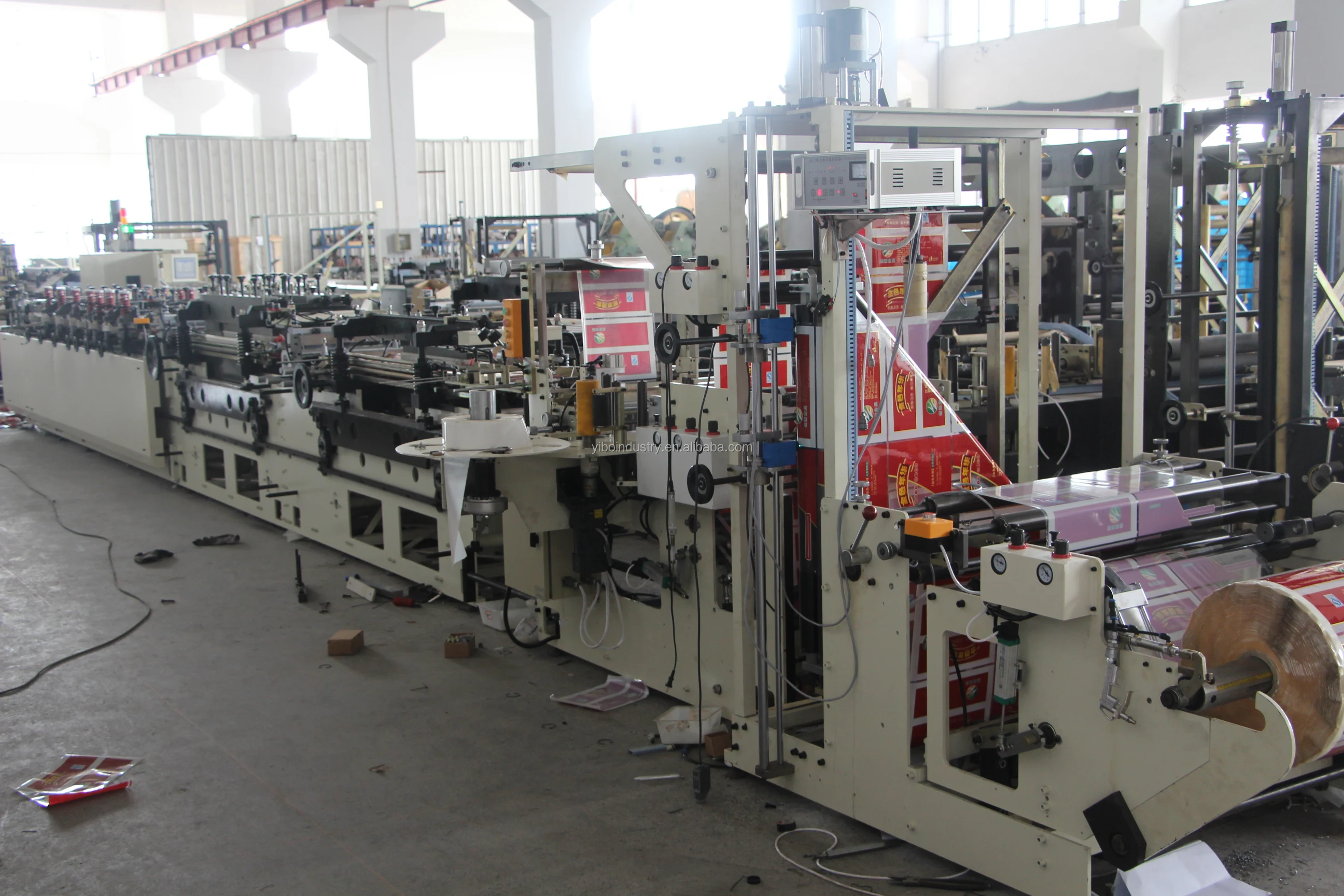

Machine show
