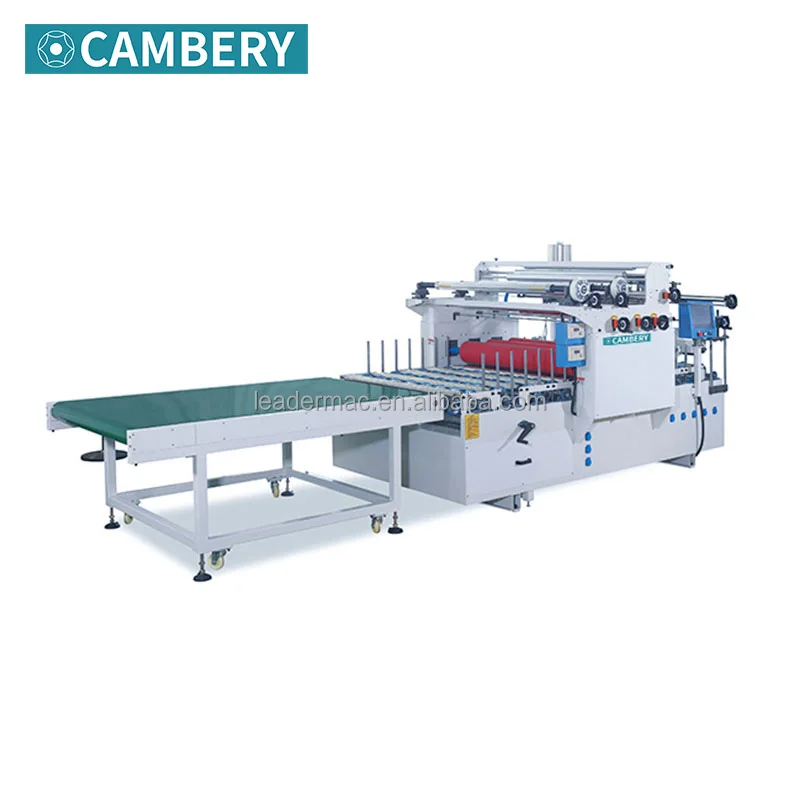

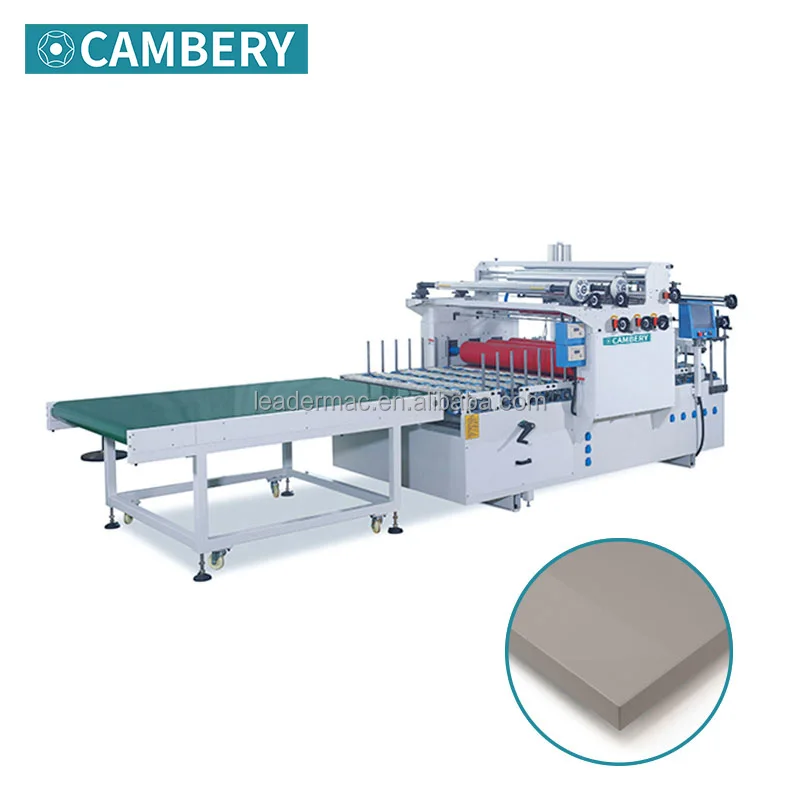

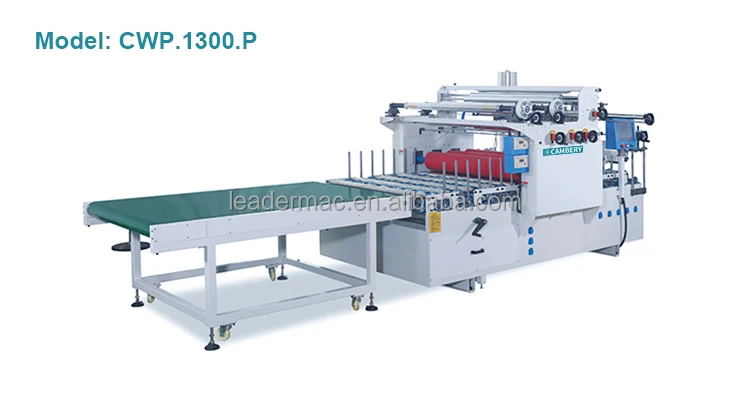

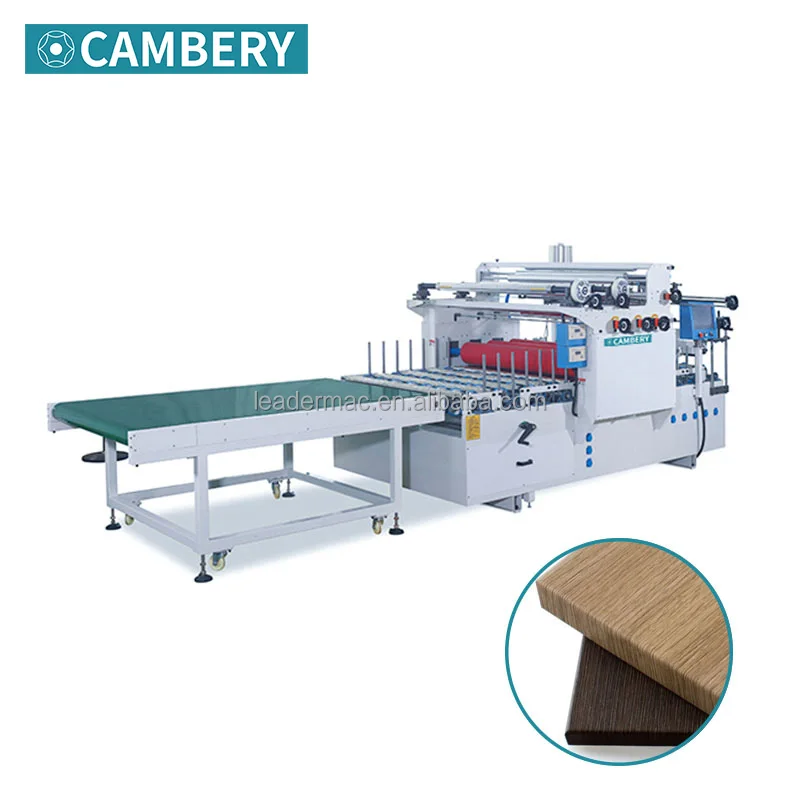

1300 мм, Инженерная машина для обмотки профилей, пленочная композитная машина для обмотки профилей pur
- Category: Laminating Machines >>>
- Supplier: Foshan Leader Machinery Co. Ltd.
Share on (62478377208):
Product Overview
Description
PRODUCT INFORMATION
TECHNICAL CHARACTERISTICS
Overall Size | Approx. 8000*1800*1800 mm |
Weight | Approx. 4500 kg |
Power Supply | 380V 50Hz or customized |
Total Power | 27kW |
Pneumatic Load | 6 bar |
Working Speed | Up to 25 m/min |
Profile Application Spec. | Width: Up to 1300 mm Thick: Up to 90mm |
Foil Application Spec. | Core Dia.: 3in. Foil O.D.: Up to 400mm Foil Width: Up to 1300mm |
Control System | Schneider® PLC with 10in. full color touch screen. |
Glue Melter (200-Liter Drum Melters) | Barrel Type Pail: 200 liter or 55 gallon Pail Diameter: 571 or 567mm Melt Capacity: 240kg/hr Num. of Hoses: 2 Temp. Control Sensor: PT100 Glue Type: PUR |
Electronic Components | Schneider® or equivalent |
Pneumatic Components | AirTac® or equivalent |
DETAILS DISPLAY
STEADY FOUNDATION
● Stable bedframe which is manufactured by a rigid foundation, with superior welding, CNC machining, tempering and painting process.

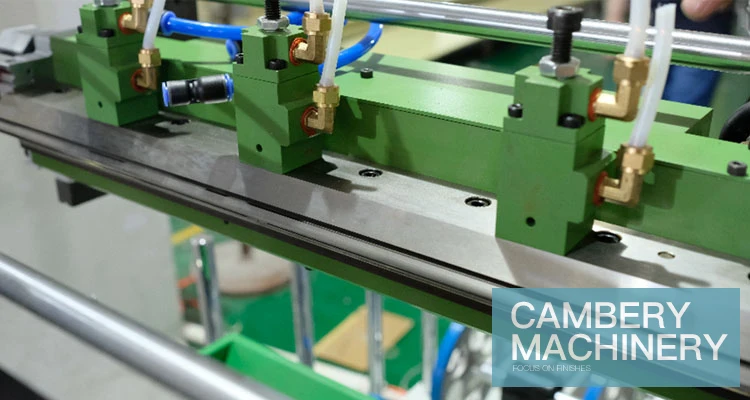

ENCLOSED SLOT NOZZLE
● Japanese SLD steel made.
● Non-stick surface treatment.
● 1300mm adjustable opening and multi-valve glue control application.
● Metal mesh glue filter, easy to replace.
● Non-stick surface treatment.
● 1300mm adjustable opening and multi-valve glue control application.
● Metal mesh glue filter, easy to replace.

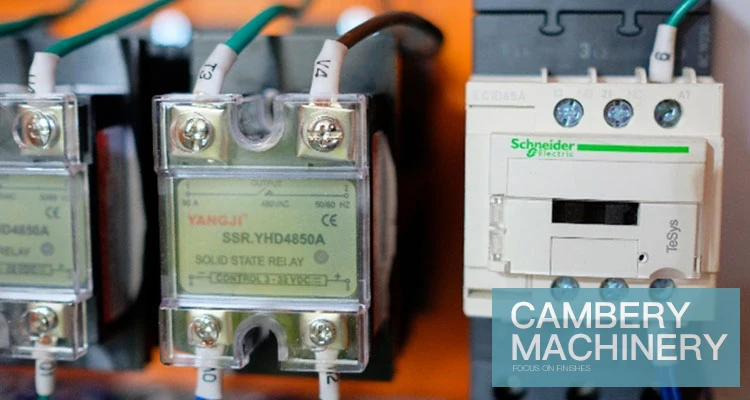

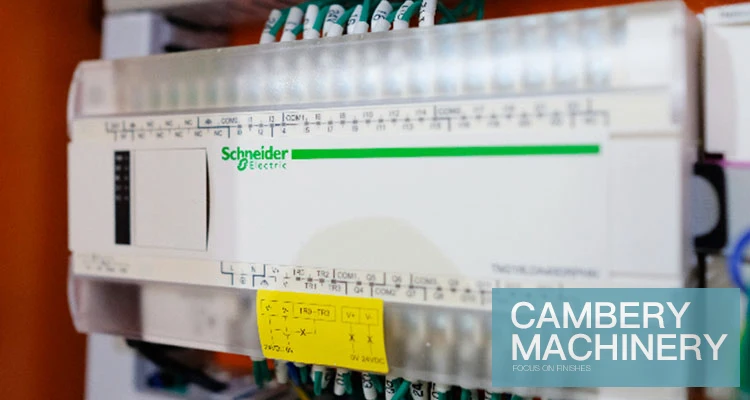

PREMIUM ELECTRICAL COMPONENTS
● Schneider or equivalent CE certificated components.
● PLC with 10 in. full color touch screen.
● Standardized wiring.
● PLC with 10 in. full color touch screen.
● Standardized wiring.

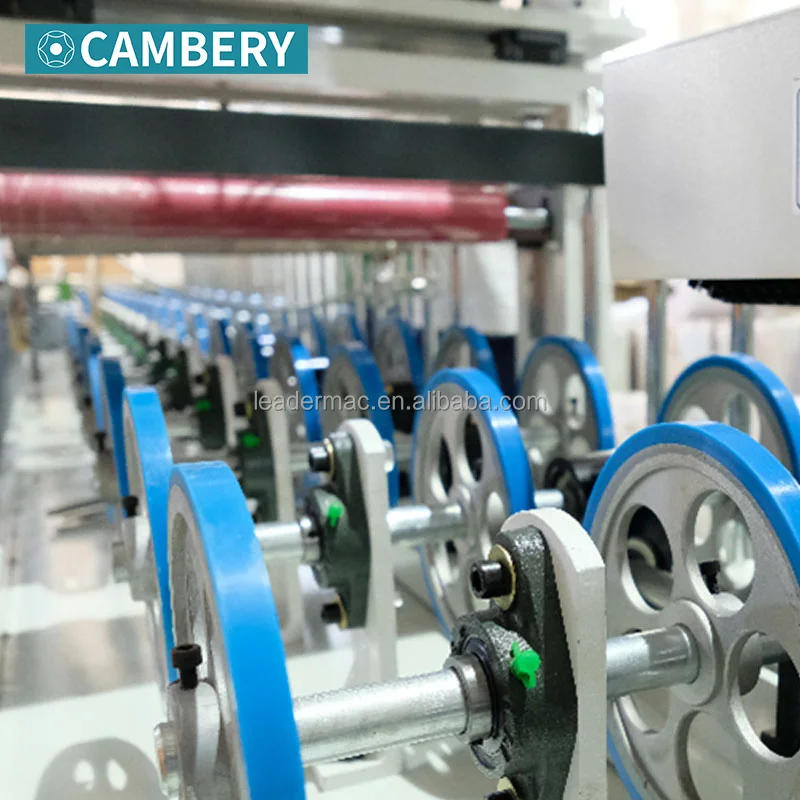

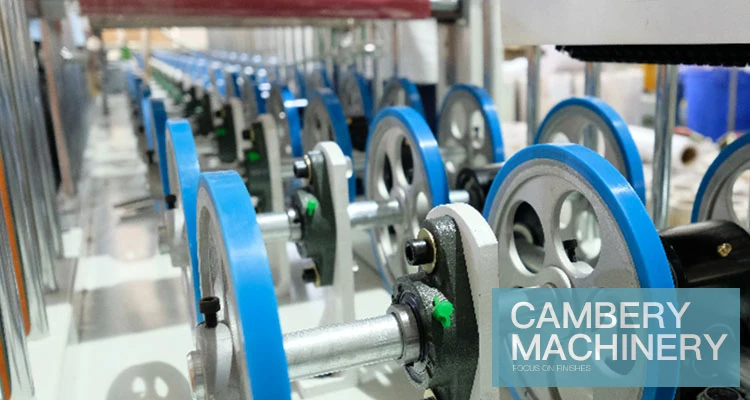

TRANSPORTATION SYSTEM
● Installed with robust aluminum alloy wheels and high-quality metal bearings.
● Fast and flexible adjustment design for different wide production.
● Fast and flexible adjustment design for different wide production.

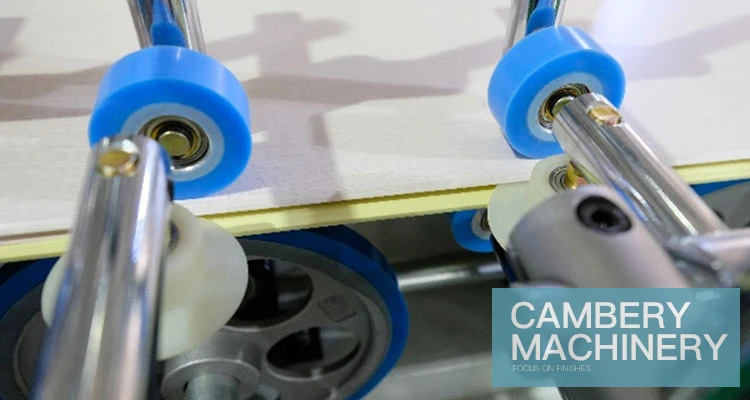

LAMINATION KITS

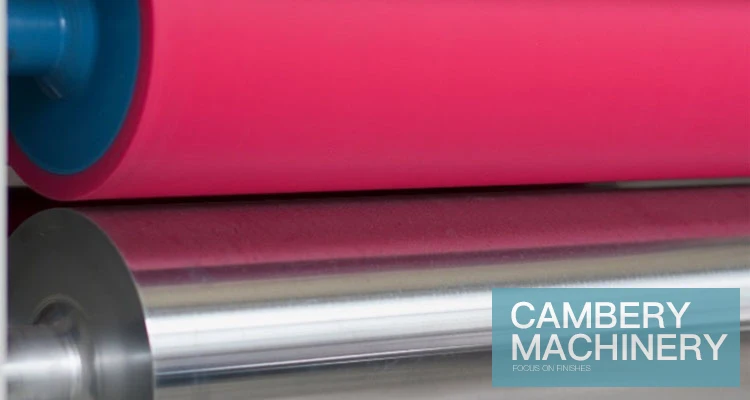

● Multiple silicon lamination rolls and stainless steel rolls.
● Robust pneumatic pressing cylinders.

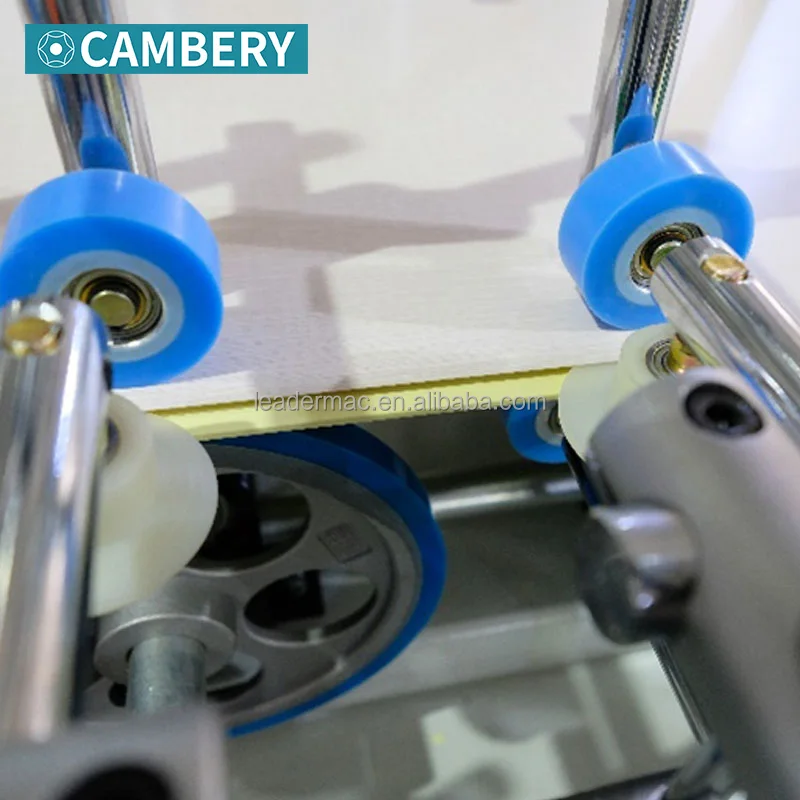

● Universal edge wrapping kits.
● Robust pneumatic pressing cylinders.
● Universal edge wrapping kits.

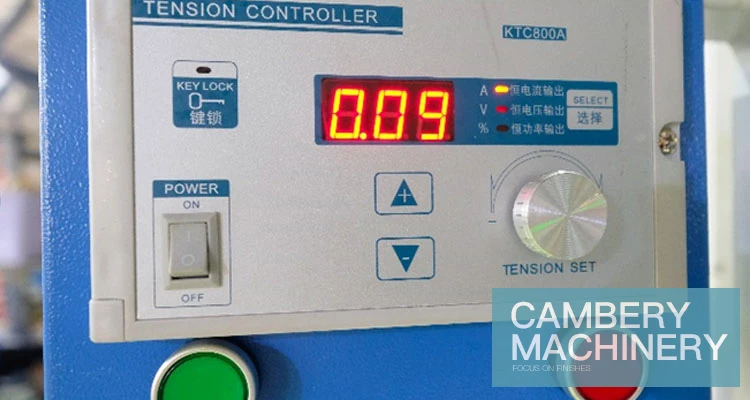

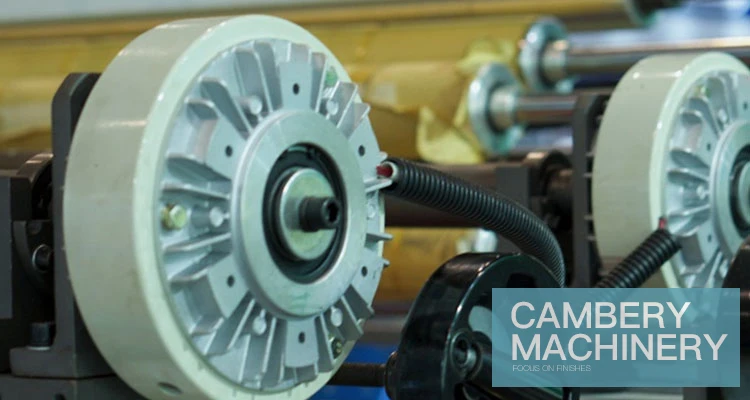

SMART TENSION CONTROL DECOILER
● Individual tension control units.
● Dual foil decoiler.
● Easy load and easy change.
● Dual foil decoiler.
● Easy load and easy change.

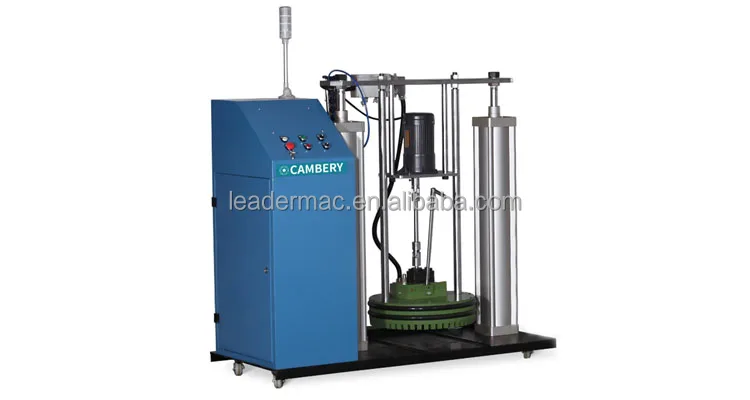

200 LITERS DRUM MELTER
● 55-Gal volume with double feeding tube.
● Hot melting applicator with precise dosage system, easy to reload the glue barrel by the controller.
● Non-stick Teflon surface treatment and quick opening design, which allows the fast and easy operation of the cleaning in less than 10 minutes.
● Fully monitoring and Error indication system to ensure the safety and smoothness of the production.
● Hot melting applicator with precise dosage system, easy to reload the glue barrel by the controller.
● Non-stick Teflon surface treatment and quick opening design, which allows the fast and easy operation of the cleaning in less than 10 minutes.
● Fully monitoring and Error indication system to ensure the safety and smoothness of the production.
APPLICATION
Ideal system with ease and precision for wrapping of wood, extruded plastics and metal substrates with various papers, foil, PVC or veneer in roll.
