Pcb Board Assembly printed circuit board pcba Electronic PCB SMT pcb factory manufacturer for 5g
- Category: >>>
- Supplier: King Field Electronic Co. Ltd.(Shenzhen)
Share on (62478391507):
Product Overview
Description
Pcb Board Assembly printed circuit board pcb pcba Electronic PCB SMT pcb factory manufacturer for 5g
PCBA Printed circuit board production Details
Specification of copper PCBA pcb circuit board
| Copper pcb Product Name | Metal pcb Circuit board |
| pcb board Layers | Mass production:2-58 layers/Pilot run:64 layers |
| pcb Max.Thickness | Mass production:394mil(10mm)/Pilot run:17.5mm |
| pcb Material | FR-4(Standard FR4,Mid-Tg,FR4,Hi-Tg,FR4,Lead free assembly material), |
| Halogan-Free,Ceramic filed,,Polyimide,BT,PPO,PPE,Hybrid,Partial hybrid,etc. | |
| pcb Min.idth/Spacing | Inner layer:3mil/3mil(HOZ),Outer layer:4mil/4mil(1OZ) |
| pcb Max Copper Thickness | UL certificated:6.0OZ/Pilot run:12OZ |
| pcb board Min.Hole Size | Mechanical drill:8mil(0.2mm) Laser drill:3mil(0.075mm) |
| pcb board Max.Panel Size | 1150mmX560mm |
| pcb Aspect Ratio | 18:01 |
| pcb circuit boards Surface Finishing | HASL, HASL Leadfree, Immersion Gold,Immersion Tin, OSP,ENIG+OSP,Immersion Silver,ENEPIG,Gold Finger |
| Special Process of Electronic PCB | Buried Hole,Blind Hole,Embedded Resistance,Embedded Capacity,Hybrid,Partial hybrid,Partial high density,Back drilling,and Resistance control. |
| Quality Grade of Custom Printed Circuit Board | Standard IPC 2 |
| Pcb Board Size | Min 6mm*6mm, Max 400mm*500mm |
| PCB Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Solder Mask Sides | As per the file |
| Solder Mask Color of Pcb Circuit Board | Green, White, Blue, Black, Red, Yellow |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides of pcb | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | ±0.05mm |
| Other Tech Electronic PCB | Peelable Solder Mask, Stiffener |
pcb pcba
One-Stop Service:
Now we have been a factory which can provide one-stop service,
from the PCB production, the components purchasing to the components assemble.
1. PCB Copy
2. PCB drawing / design according to your schematic diagram
3. PCB manufacturing
4. Component sourcing
5. PCB Assembly
6. PCBA 100% test
OEM/ODM/EMS Services For PCBA:
• PCBA, PCB Board assembly: SMT & PTH & BGA
• PCBA and enclosure design
• Components sourcing and purchasing
• Quick prototyping
• Plastic injection molding
• Metal sheet stamping
• Final assembly
• Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
• Custom clearance for material importing and product exporting
Specification of Rigid-flex pcb circuit board manufacturing
HDI 5G

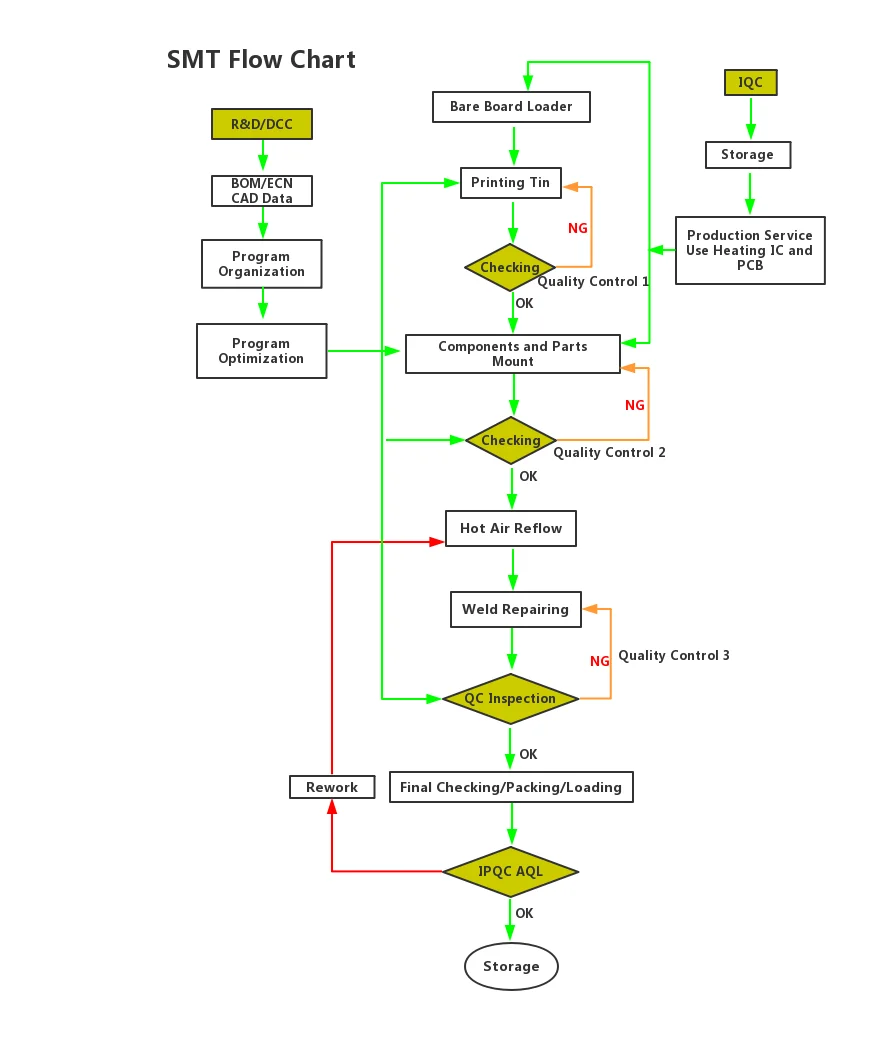

PCBA pcb circuit board Process

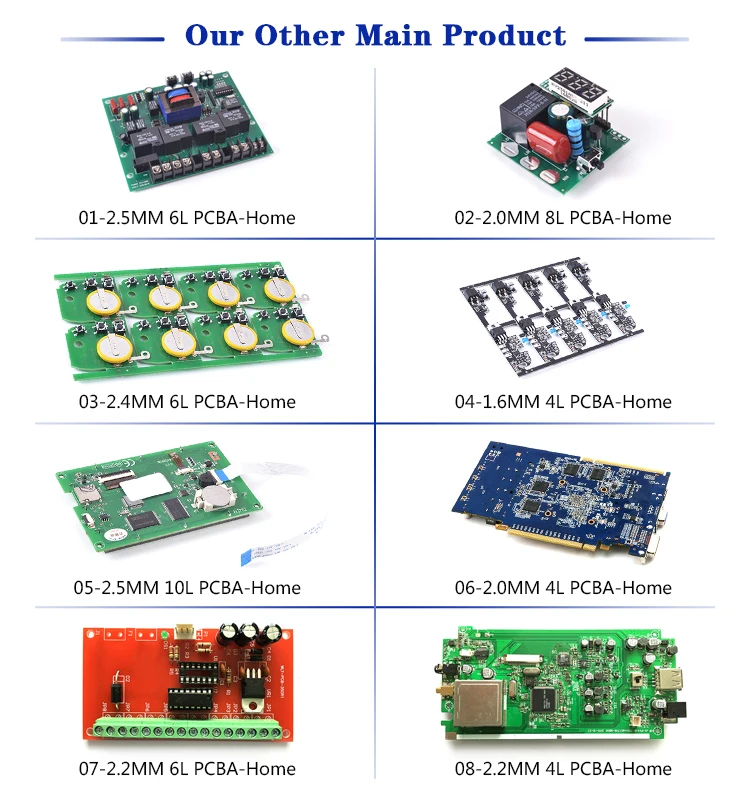

Our other PCBA pcb board main product
Our Advantage
Certification of HDI PCB circuit board pcb
About US
Our Factory of HDI pcb board
Our Exhibition
Our Customer Feedback
Packaging&Shipping
Our company is not only trying to give customers a good product,
but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.
Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.
Regular Cartons Specification.
No. Dimension (L*W*H)
Small Size : 33cm*28.5cm*18.5cm
Medium Size: 44.5cm*30cm*15cm
Big Size: 51.5cm*32.5cm*17.5cm
Customized Cartons:
Carton outside according to the requirements
of customers printed the name of the customer address,
mark, the customer needs to specify the destination and other information.
FAQ
1.What does kingfiled need for a customized PCB order?
When you place a PCB order, you need to provide Gerber or pcb file.
If you do not have the file in the correct format, you can send all the details related to the products.
2.What does kingfield need for a customized PCBA order?
When you place a PCBA order, you need to provide Gerber or PCB file and the BOM list.
3.What is your quotation policy?
For the PCB order in large quantity, we will send you the quotation based on the MOQ of the products concerned.
4.What does Kingfield need for other services?
For PCB clone service, the customer needs to send us the printed circuit board concerned, and also the sharp photos of its front side and the back side.
5.How about the service kingfield offered to the customers?
If you have any questions about our products or company, do not hesitate to send us your inquiry to our customer service representatives. Your satisfaction is our
pursuits.
6.Do you have the capability of manufacturing high frequency materials? Like Rogers?
We can manufacture these, while expensive,pls just contact us for price prior to place the order.
