2020 new price of mobile crane 90 ton SWORC900 Rough Terrain Crane with free spare parts
- Category: >>>
- Supplier: Sinoway Industrial (Shanghai) Co. Ltd.
Share on (62478907231):
Product Overview
Description
Products Description
Cummins electronically controlled engine (off-road：U.S.EPA Tier 3/EU Stage IIIA.), ZF automatic transmission, KESSLER axles are matched optimally, contributing to distinguished power performance; It has good applicability and reliability; CAN bus control system, fault diagnostic system and warning devices ensure safe and efficient operation.
transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic
base, etc.Three operating modes，superior performance of operation on outriggers, which is not less than that for truck crane in a stationary site; unique performance of operation on tires makes it easy to complete the job what truck crane could not finish when it is difficult to deploy outriggers in a confined site; powerful pick and carry capacity makes fast operation of lifting and transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic base, etc.
Swing, rigidly lockable hydraulic suspension technology: the shock absorption function of rear suspension may be performed through the swing mechanism and suspension cylinder when driving on roads, consequently road shock is buffered and travel smoothness is improved; the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended; during operation of crane on tires, when the turntable is turned over ±3°, suspension system may automatically switch over to rigid state, operation safety is ensured.
Cab of integrated design is simple and artistic. All-weather cab has a wide field of view and sliding door saving space and
facilitating operation. It is spacious and comfortable due to ergonomic inner design. Damping suspension seat with high backrest may be adjusted according to operator’s body, and can reduce operator fatigue and optimize productivity. Air conditioner and heater are equipped in the cab. Large screen color display combined with main control panel makes operation convenient and easy, and the operating parameters and working conditions may be seen at a glance.
facilitating operation. It is spacious and comfortable due to ergonomic inner design. Damping suspension seat with high backrest may be adjusted according to operator’s body, and can reduce operator fatigue and optimize productivity. Air conditioner and heater are equipped in the cab. Large screen color display combined with main control panel makes operation convenient and easy, and the operating parameters and working conditions may be seen at a glance.
Product Paramenters
Engine | |
Engine make | CUMMINS |
Type | Six-cylinder,water-cooled,turbocharged,electronic injection |
Rated power | 209KW |
Rated speed | 2100rpm |
Lifting Specification | |
Max. rated lifting capacity | 90000kg |
Min. raged working radius | 2.5m |
Slewing radius at turntable tail (at counterweight) | 4625mm |
Max. load moment | |
Base boom max. load moment | 3140KN•m |
Fully extended boom load moment | 1536KN•m |
Boom Length | |
Base boom | 11900mm |
Fully extended boom | 46000mm |
Fully extended boom+jib | 63500mm |
Lifting height | |
Base boom | 12400mm |
Fully extended boom | 46200mm |
Fully extended boom+jib | 60200mm |
Working Speed | |
Boom raising time | 85s |
Boom extending time | 152s |
Max. slewing speed | 1.8rpm |
Outrigger beam extending/retracting time | 40/30s |
Outrigger jack extending/retracing time | 55/40s |
Hoist speed | |
Main winch max. speed | 125m/min |
Aux. winch max. speed | 125m/min |
Outrigger span | |
Longitudinal | 7800mm |
Lateral(fully/half extended) | 7600/6500mm |
Traveling Specification | |
Max. traveling speed | 25km/h |
Drive type | 4×2/4×4 |
Grade ability | 60% |
Min. turning radius | 7.5m(4×4)/11.5(4×2) |
Noise at seated position | 80dB(A) |
Braking distance (at 24 km/h) | 9m |
Tyre | 29.5R29 |
Mass Specification | |
Operating weight | 58000kg |
Axle load 1st | 30350kg |
Axle load 2nd | 27650kg |

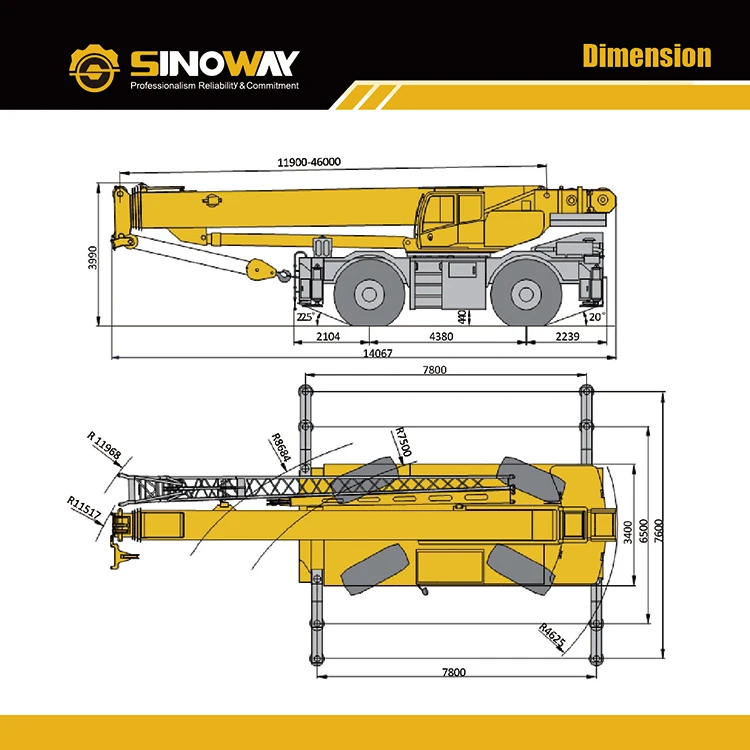

Dimensions | |
Overall size | 14067×3400×3990mm |
Wheel base | 4380mm |
Tread | 2554mm |
Overhang(F/R) | 2104/2239mm |
Extension(F/R) | 5080/264mm |
Min. ground clearance | 440mm |
Approaching/departure angle | 22.5°/20° |
Jib offset angle | 0°, 15°, 30° |
Braking system | |
Service brake | Double-circuit full-hydraulic disc brake |
Parking brake | Spring-loaded brake,hydraulic-released independent disc brake |
