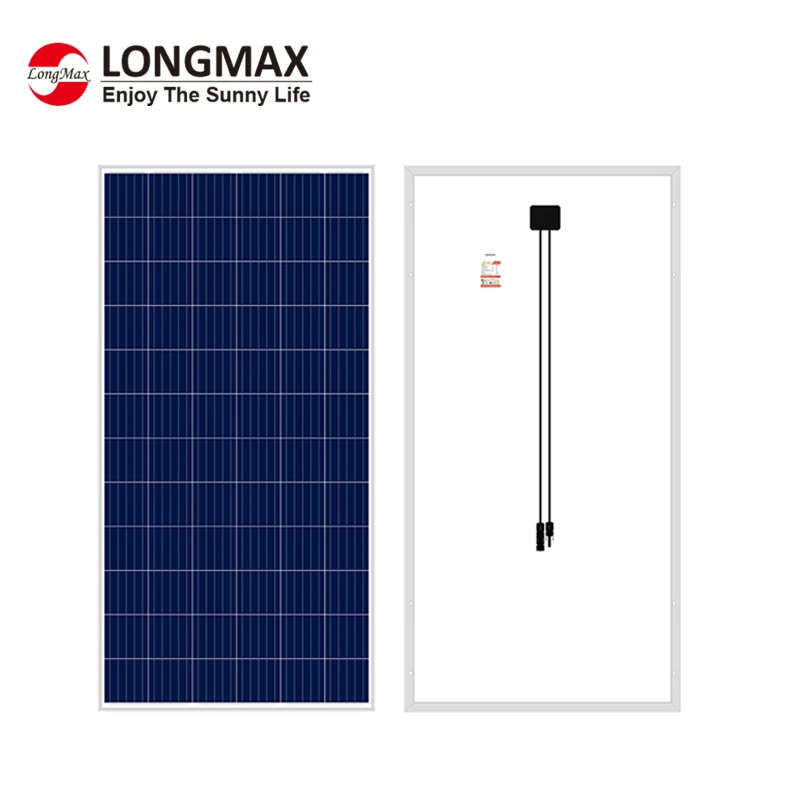

High quality Good price Poly 310 W320W 330W 340W 345W Solar Panal
- Category: >>>
- Supplier: Wuxi Longmax Technology Co. Ltd.
Share on (62479226878):
Product Overview
Description
Product Description
Solar Module | SKT310P-72 | SKT320P-72 | SKT330P-72 | SKT340P-72 | |||
Rated Maximum Power at STC | 310W | 320W | 330W | 340W | |||
Open CircuitVoltage(Voc/V) | 45.2 | 45.6 | 46.3 | 46.6 | |||
Maximum Power Voltage(Vmp/V) | 37.1 | 37.5 | 37.7 | 38.1 | |||
Short Circuit Current(Isc/A) | 9.04 | 9.23 | 9.46 | 9.65 | |||
Maximum Power Current(Imp/A) | 8.37 | 8.54 | 8.76 | 8.93 | |||
Module Efficiency(%) | 16% | 16.5% | 17% | 17.5% | |||
Power Tolerance | -0~+5W | ||||||
Standard Test Condition(STC) | Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5 | ||||||

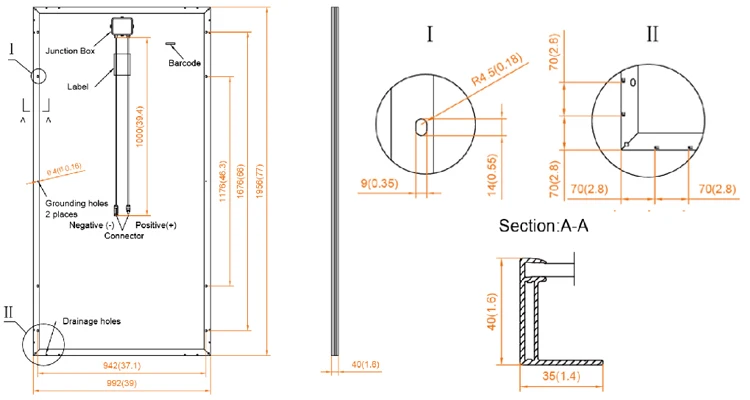

Extermal Dimensions | 1956*992*40mm | ||||||
Solar Cells | Poly crystalline 156*156mm(72pcs) | ||||||
Weight | 23KG | ||||||
Front glass | 3.2mm tempered glass,low iron | ||||||
Frame | Anodized aluminum alloy | ||||||
Junction Box | IP67 | ||||||
Output Cables | 4.0mm2,cable length:1000mm | ||||||
Connector | MC4 Compatible | ||||||
Mechanical Load | 5400Pa | ||||||

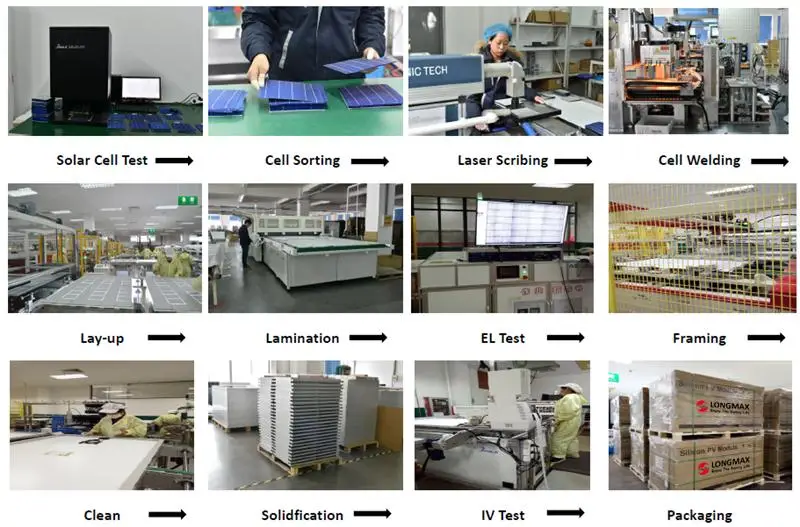

Factory Production Line

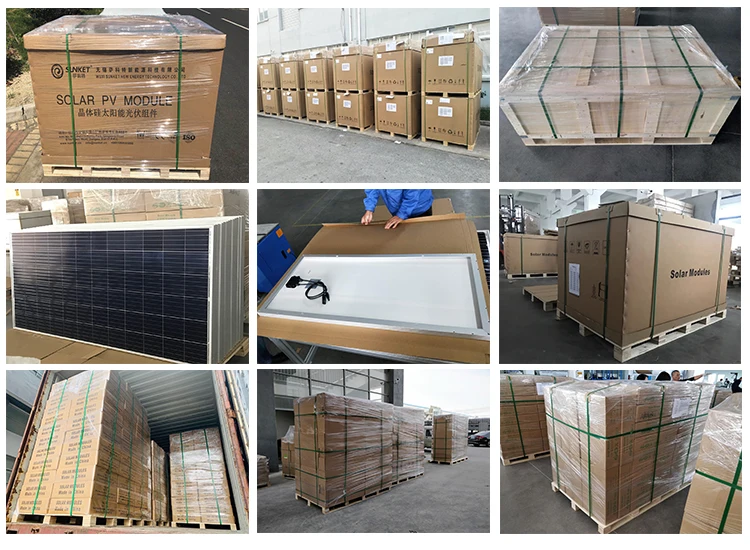

Packaging & Shipping
Company Advantage
Product case
Wanli Group (comercial) Project
YTO(comercial) Project
100MWp in Xuan Tho, Vietnam
30MWp in Liaoning,China
FAQ
Q1. Are you a factory or trading company?
Yes,we are factory, supplying OEM/ODM service.
Q2. What certification do you have?
TUV/CE/ISO report.
Q3. How about you after sales-service?
We provide local service and online service.
Q4. How many day about delivery time?
1. Sample delivered in 3-5 days.
2. Order delivered in 15-20 days.
Yes,we are factory, supplying OEM/ODM service.
Q2. What certification do you have?
TUV/CE/ISO report.
Q3. How about you after sales-service?
We provide local service and online service.
Q4. How many day about delivery time?
1. Sample delivered in 3-5 days.
2. Order delivered in 15-20 days.
