Product Overview
Description
Product Description
stainless steel wire rope mesh net

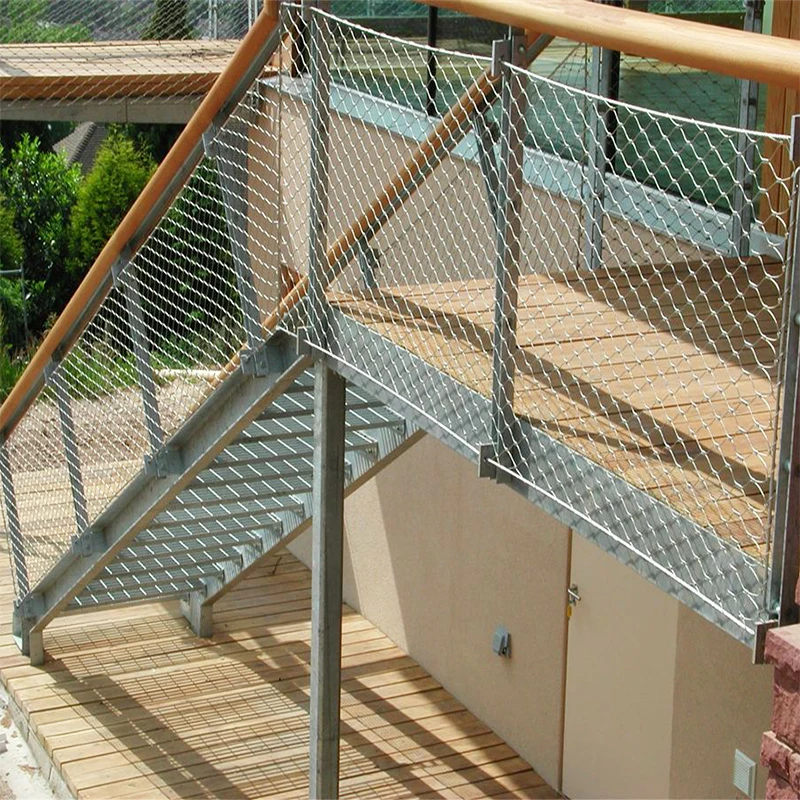

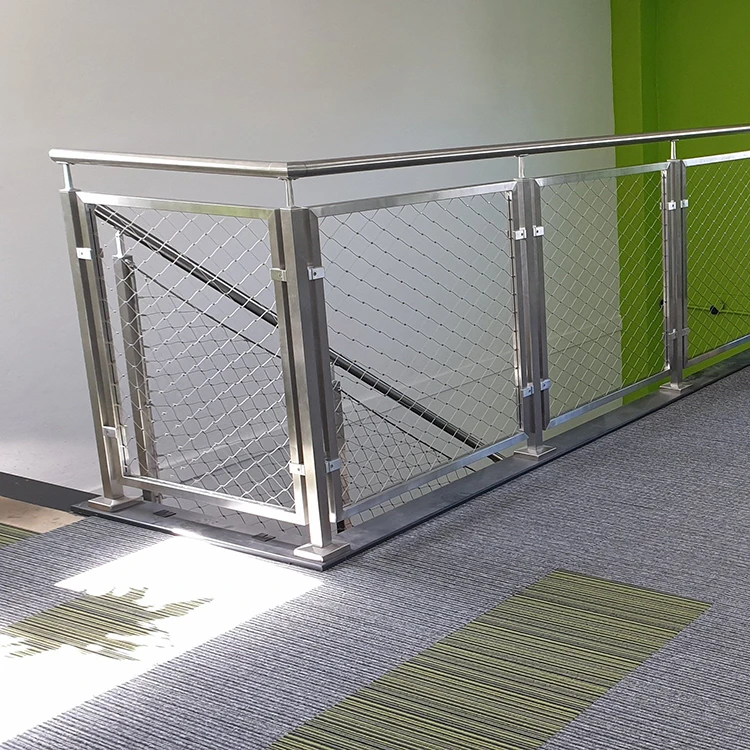

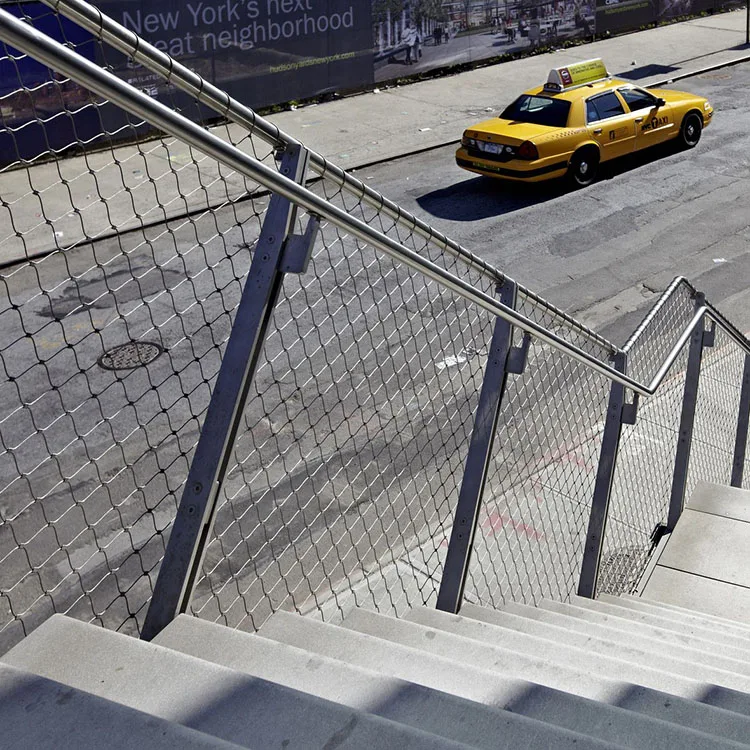

Pliable，transparent arid structures made of stainless steel rope from the series are multifunctionl and durable：mounted on railings or in staircases，they provide support and guidance；on facades ，they can be used as training systems for plants；in large rooms，they will create subtle aceents as fiiggreed partitions. The was subiected to numerous tests and complies with all applicable standards：AS a permanent protective and safety net for bridges or observation platforms，it is absolutely UV-andweather-resistant，unlike conventional knotted plastic fiber nets.
Ferrule Stainless Steel Cable Mesh Specifications | ||
Material | AISI304，304L，316，316L rope | |

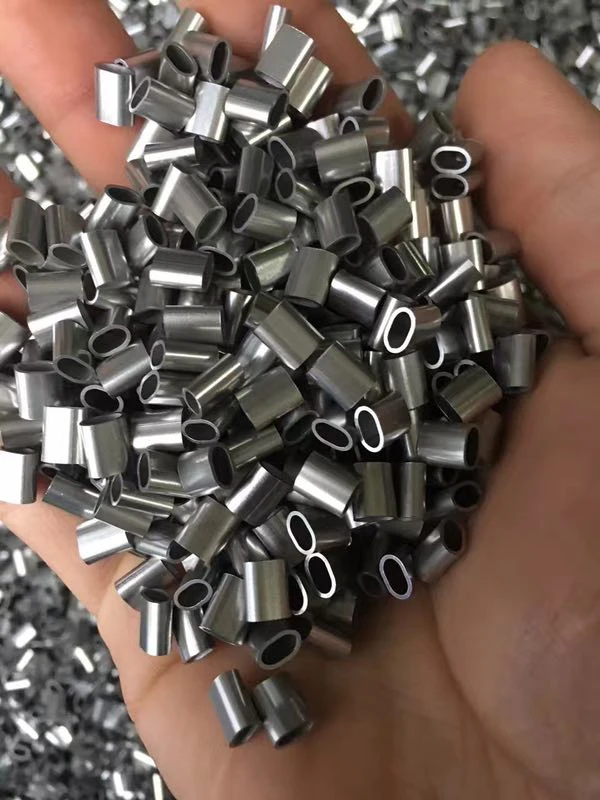

Material Of Ferrules | Nickel-plated copper, 316 stainless steel . | |
Structure | 7x7 and 7x19，1x19 | |
Wire Diameter | 1.0mm，1.5mm，2.0mm，2.5mm，3.0mm etc. | |
Standard mesh opening size | 20mmx20mm-300mmx300mm Customized | |
Mesh Panel Length | 1-10m，Customers' Requirement | |
Mesh Panel Width | 1-20m，Customers' Requirement | |
1Iightweight, high strength 2. Environmental degradation of its no influence 3. Soft touch, efficient and protect birds featherand animal skin 4. Effectively preventing the rodents and its animal bite 5. For rough installation tolerance, high | ||
Stainless SteelCable mesh Type | 1.Knotted mesh | |
2.Ferruled mesh | ||

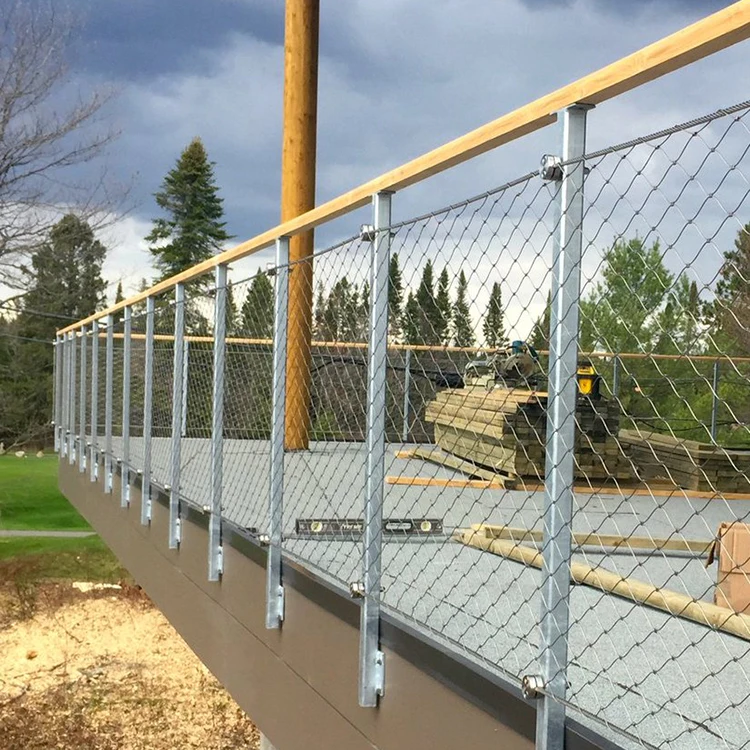

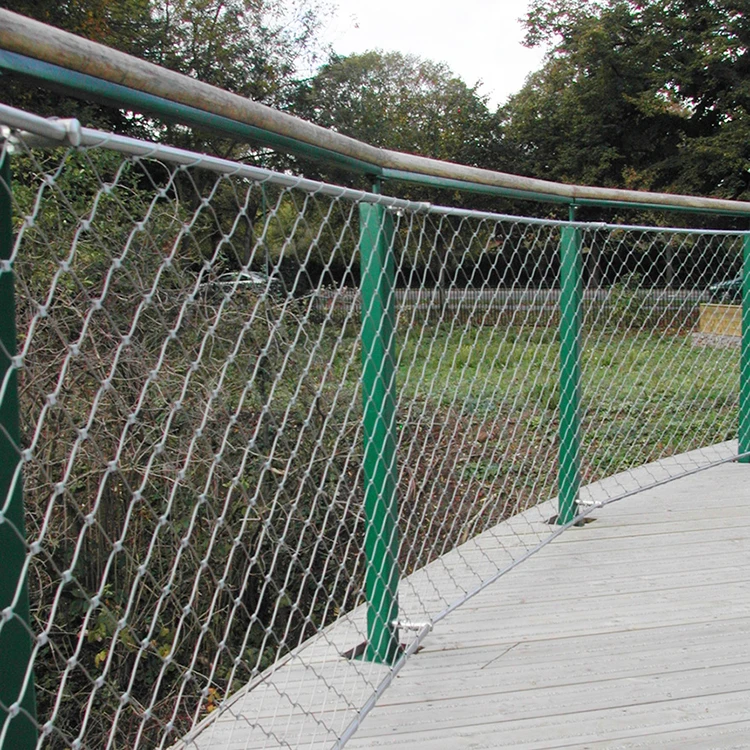

Usage | It widely applied in Bridge safety mesh，Zoo mesh，Fence，Railing，Decorative mesh，Green wall，etc. | |

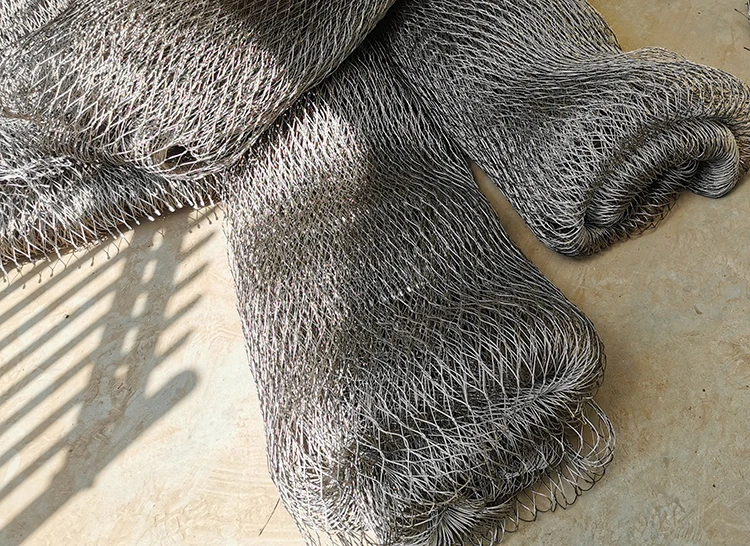

Detailed Images
The rope diameter, mesh and size of stainless steel cable mesh can be customized. Our factory will produce according to your requirements.
Recommended specifications
Stainless steel Webnet with Sleeves Specification | ||||||||||

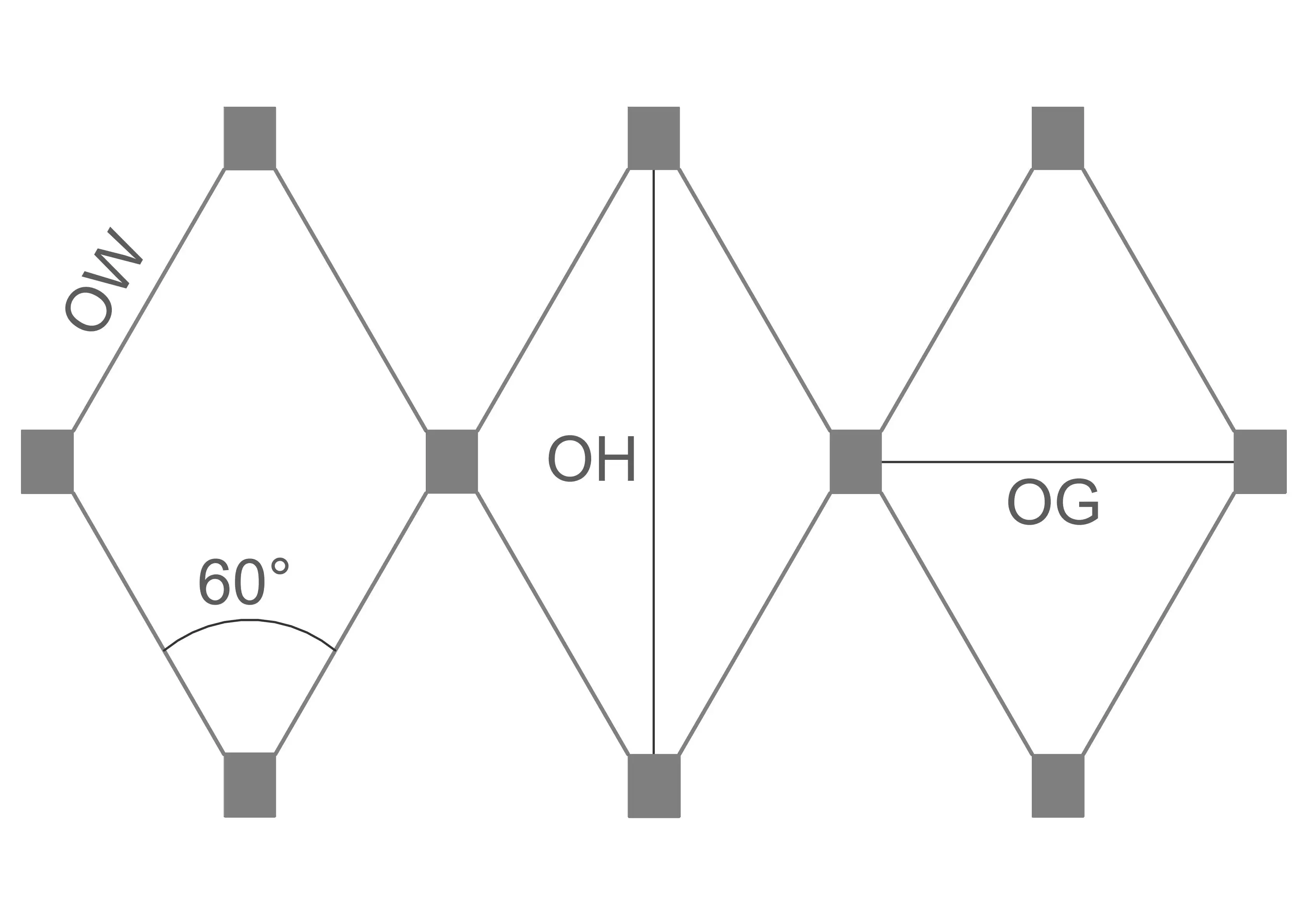

▼We can also produce according to customer requirements. H：Opening Height W：Opening Width 60° Standard （Angle：60°-90°） | ||||||||||
Opening 60° (OWXOH) | 1.0mm （7x7） | 1.5mm (7X7) | 2.0mm (7X7) | 3.0mm (7x19) | 4.0MM (7X19) | |||||
20mm x 35mm | LE-1020 | |||||||||
25mm x 43mm | LE-1025 | LE-1525 | ||||||||
35mm x 61mm | LE-1035 | LE-1535 | ||||||||
40mm x 69mm | LE-1040 | LE1540 | LE-2040 | |||||||
50mm x 87mm | LE-1050 | LE1550 | LE-2050 | LE-3050 | ||||||
60mm x 104mm | LE-1060 | LE-1560 | LE-2060 | LE-3060 | LE-4060 | |||||
70mm x 121mm | LE-1070 | LE-1570 | LE-2070 | LE-3070 | LE-4070 | |||||
80mm x 139mm | LE-1080 | LE-1580 | LE-2080 | LE-3080 | LE-4080 | |||||
100mm x 173mm | LE-10100 | LE-15100 | LE-20100 | LE-30100 | LE-40100 | |||||
120mm x 242mm | LE-10120 | LE-15120 | LE-20120 | LE-30120 | LE-40120 | |||||
160mm x 277mm | LE-10160 | LE-15160 | LE-20160 | LE-30160 | LE-40160 | |||||
180mm x 312mm | LE-10180 | LE-15180 | LE-20180 | LE-30180 | LE-40180 | |||||
200mm x 346mm | LE-10200 | LE-15200 | LE-20200 | LE-30200 | LE-40200 | |||||
▼Mesh Orientation
Note: Panel height and width asked inside frame dimension.

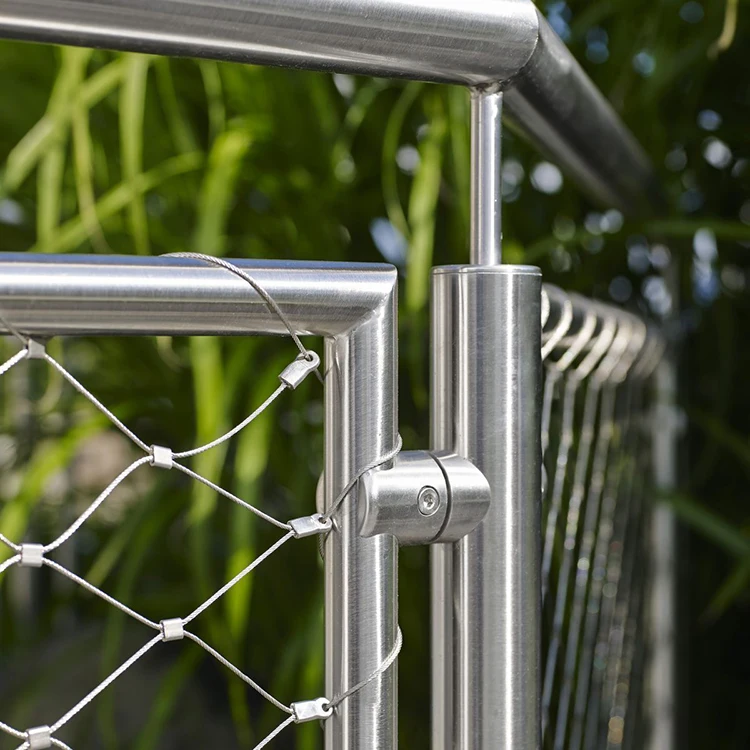

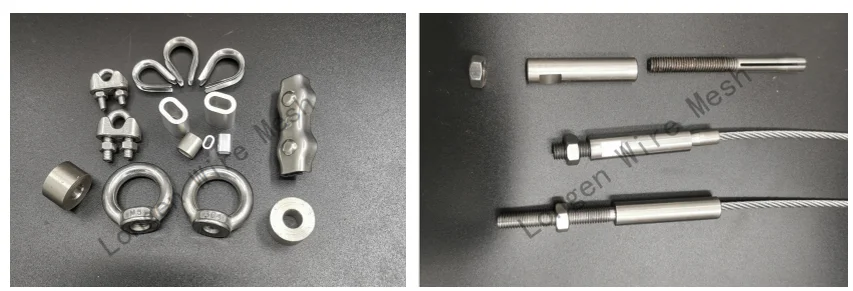

▼Installation accessories
Product Application

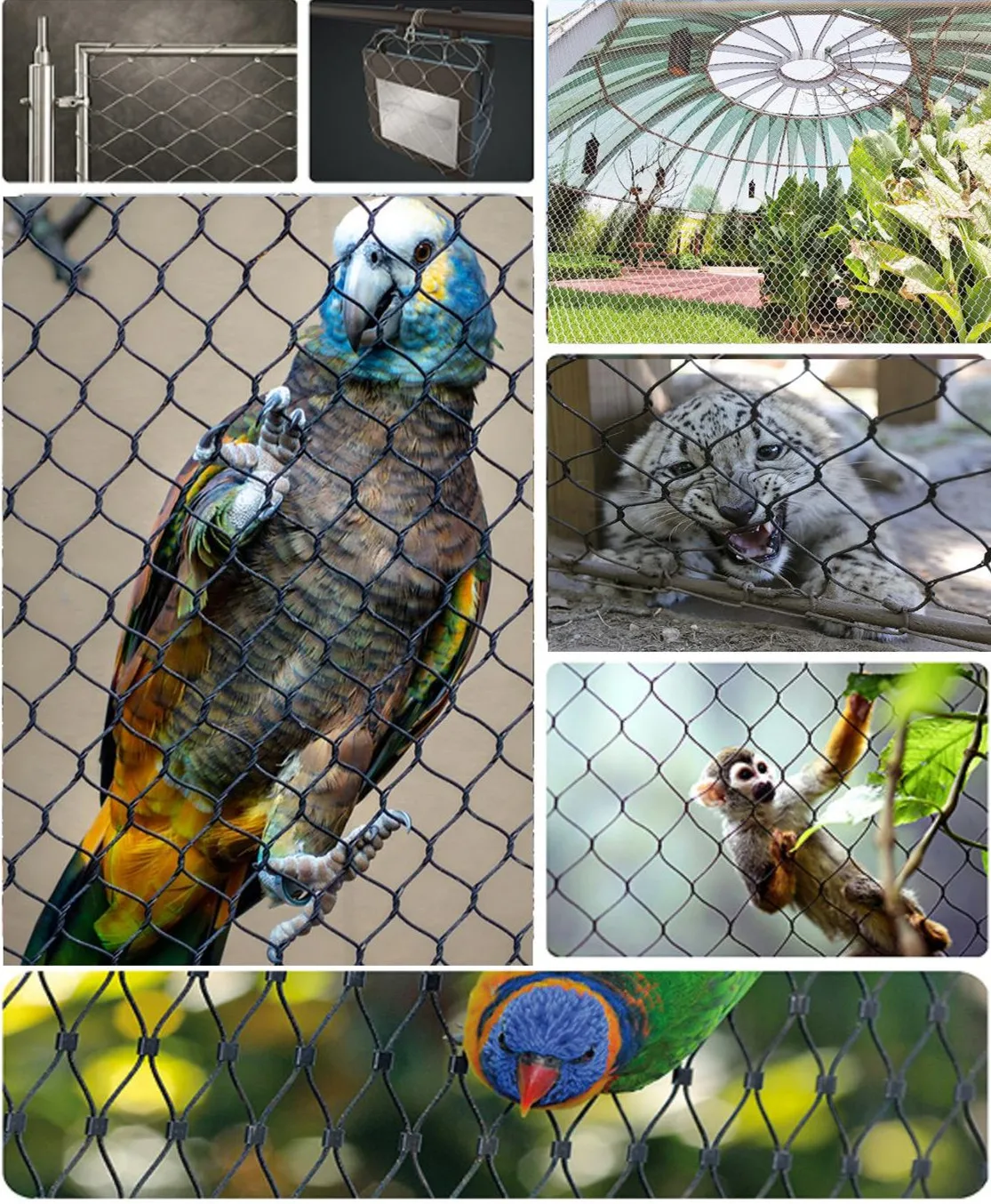

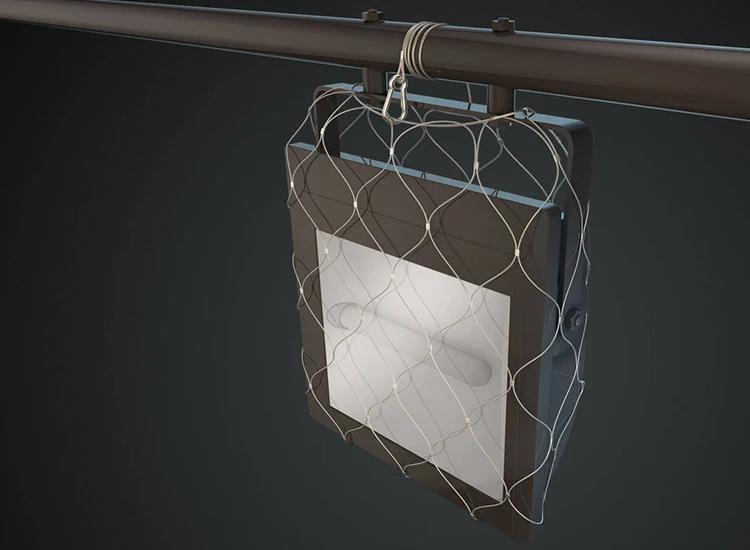

In combination with architectural ropes mesh is used in a wide variety of ways: railing infill, protective nets, safety nets, barricades, fences, zoo enclosures, aviaries, suicide prevention, façade greening, artwork, ball nets, stair wells, skylight protection, fall-stop nets, bridge protection, machine protection, etc.
Company Information
Hebei Longen Wire Mesh Co.,LTD
With 20 years of manufacturing and export experience along with excellent quality, advanced services and competitive prices, Longen Wire Mesh Products Co., Ltd. has won numerous customers' trust and support.We can offer customized solutions for a wide range of stainless steel rope mesh...see more>>
Why Choose Us
＞ 1. 100% QC inspection before shipment.
＞ 2. Competitive price-we are factory，we can provide you the best quality with the low price.
＞ 3. Quick response-professional lines, widely supplier sourcing and we will try our best to reply you at first time.
＞ 4. As long as provide specifications, we can do what you want products.
＞ 5. If the products you receive have any quality problems, we promise to return the goods timely.
＞ 6. Payment-we accept T/T, Western Union and Escrow.
＞ 7. We provide the sample free of charge, but we are so sorry that the courier charge is on your side.
＞ 3. Quick response-professional lines, widely supplier sourcing and we will try our best to reply you at first time.
＞ 4. As long as provide specifications, we can do what you want products.
＞ 5. If the products you receive have any quality problems, we promise to return the goods timely.
＞ 6. Payment-we accept T/T, Western Union and Escrow.
＞ 7. We provide the sample free of charge, but we are so sorry that the courier charge is on your side.
Packaging & Shipping
Delivevr time ：10~20 workinng days after payment receipt confirmed (based on actual quantity)

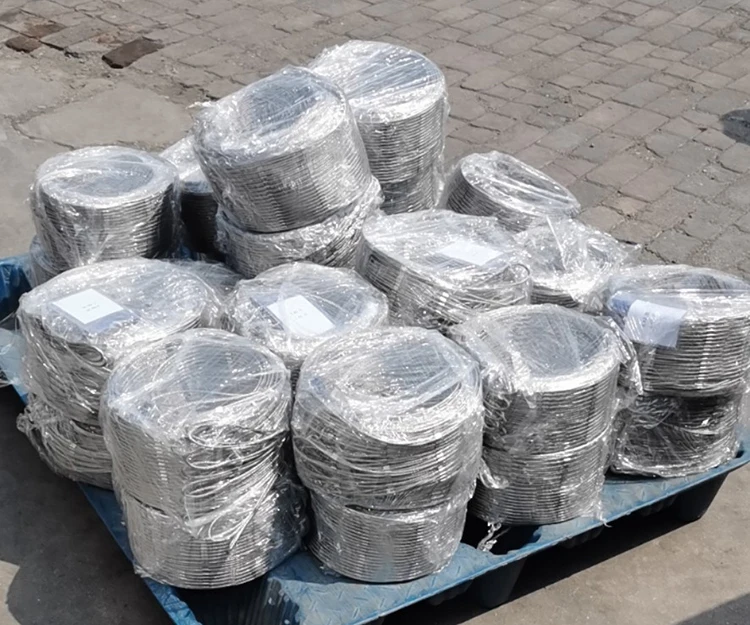

Packing : standard export packing or customized packing as your request.
