21 Years Experience China Top Manufacturer in Plastic Machinery.
PE Pipe Production Machine.

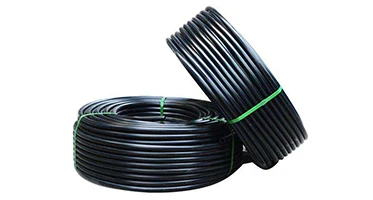

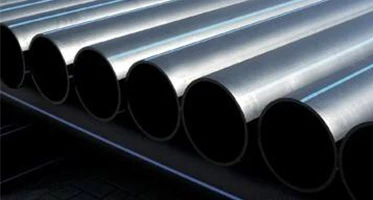

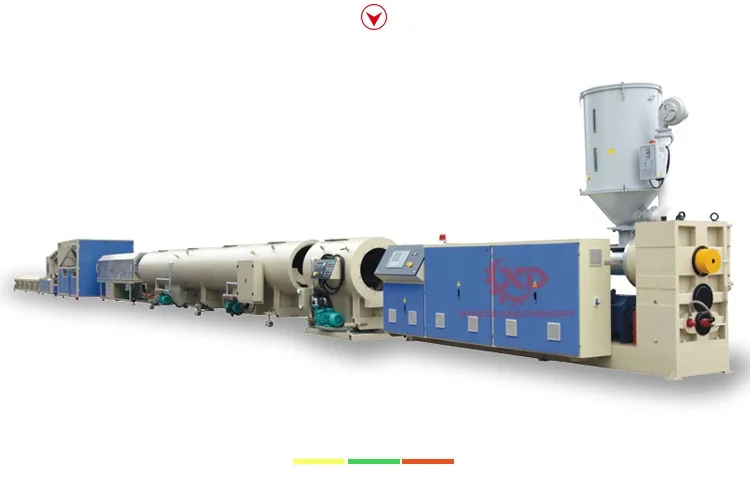

Product description: The PE pipe production line is suitable for the basket-type composite head for polyethylene processing, which not only ensures the stability of efficient extrusion time, but also achieves less stress and higher pipe quality brought by low temperature melt. Composition structure: The host (PLC touch screen operation interface) adopts PE high-efficiency screw, slotted feeder barrel, and is equipped with powerful water jacket cooling. Application: Mainly used for the production of large-caliber pipes, and the pipes produced are widely used for special-purpose pipes such as water supply pipes, gas pipes, chemical pipes, agricultural irrigation and people's daily life.

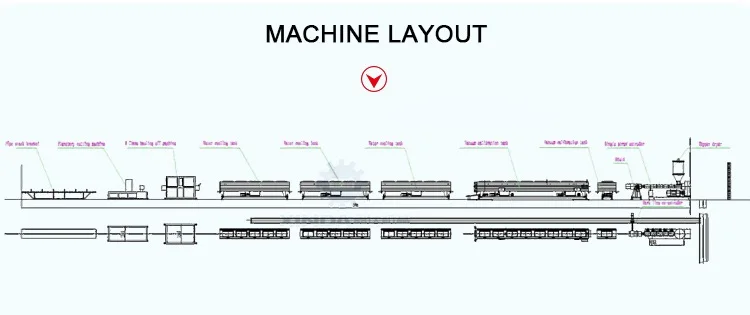

Production process raw material auxiliary preparation → mixing → feeding and feeding → forced feeding → conical twin screw extruder → extrusion die → sizing sleeve → spray vacuum setting box → immersion cooling water tank → ink printing machine → crawler → Cutter lift cutting machine → Pipe stacking rack → Finished product inspection and packaging

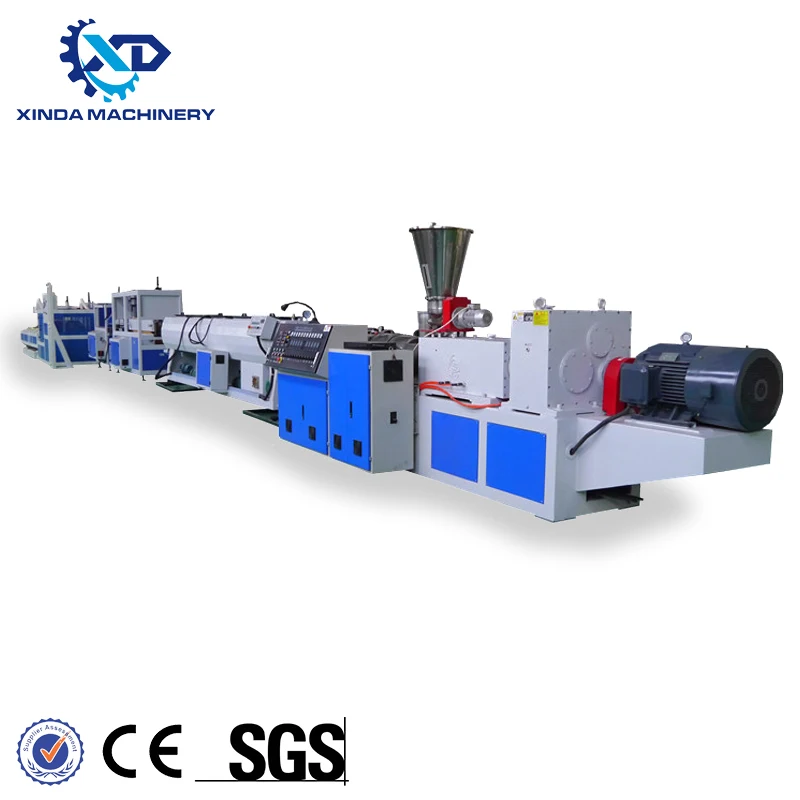

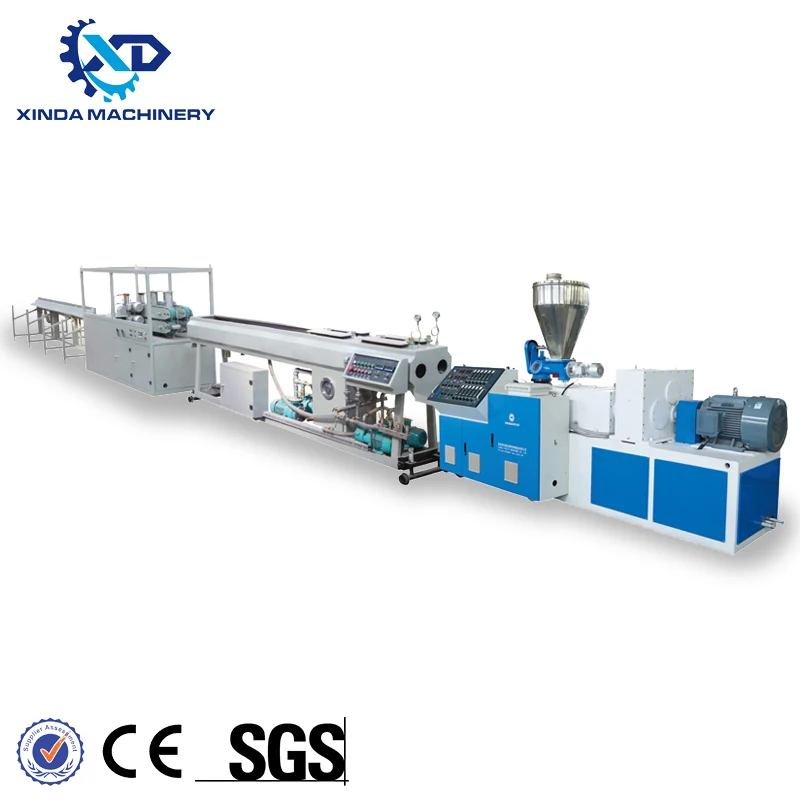

The rigid PVC plastic pipe production line mainly has various pipe diameters in agricultural water supply and drainage, construction water supply and drainage, cable laying and other aspects, and the thickness of the plastic PVC pipe. Machine, turning frame and so on. Screw extruder and traction machine adopt imported AC frequency conversion speed regulation setting, vacuum pump and traction motor both use high-quality products.

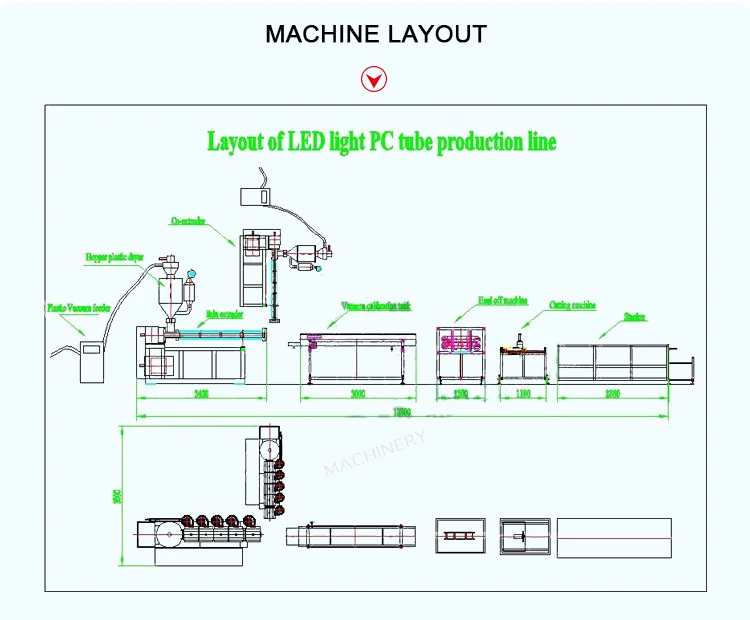

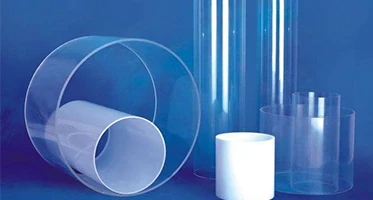

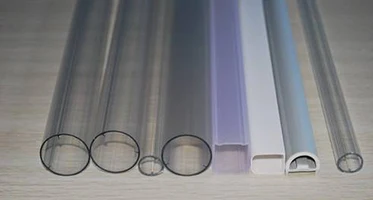

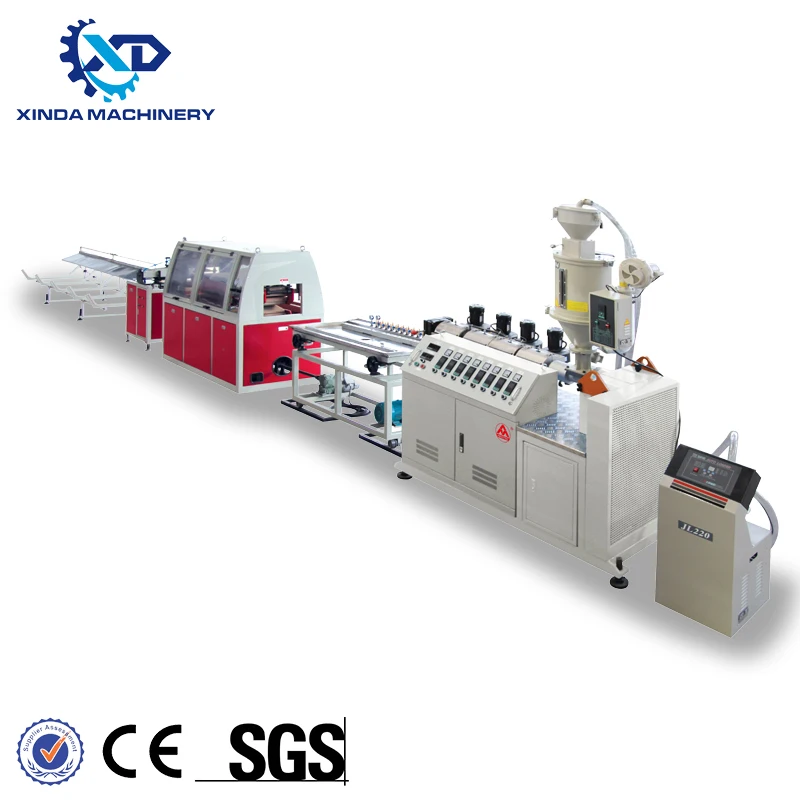

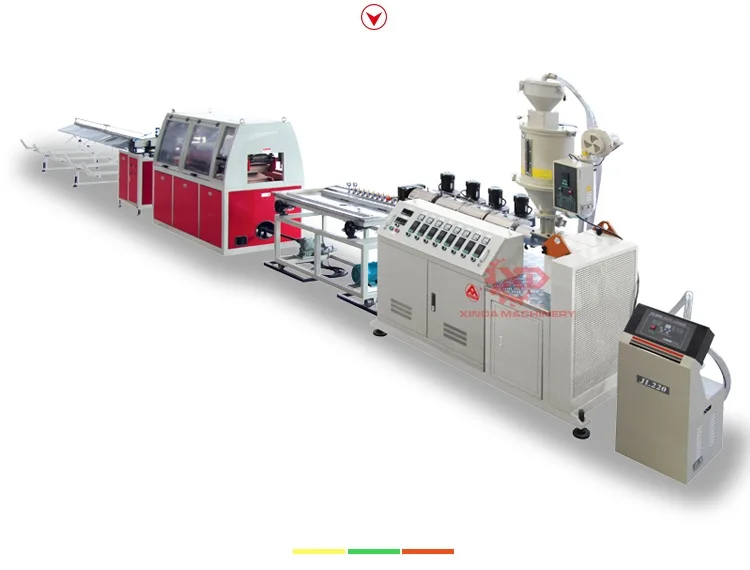

PC lampshade production line is mainly composed of extruder, setting table, tractor, cutting machine, material rack and other parts. The mainframe adopts high-efficiency extruder, frequency conversion speed regulation, and different specifications of mainframes are configured according to various specifications of products. , Cutting length positioning adopts fixed length cut of travel switch, stacking rack, etc.

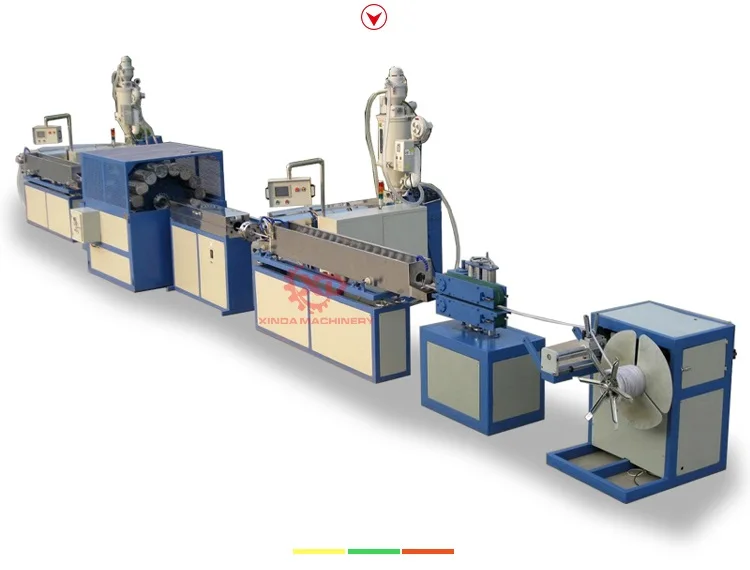

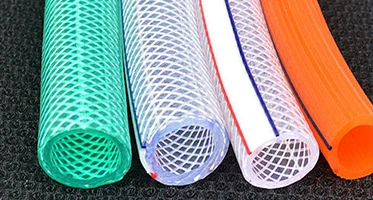

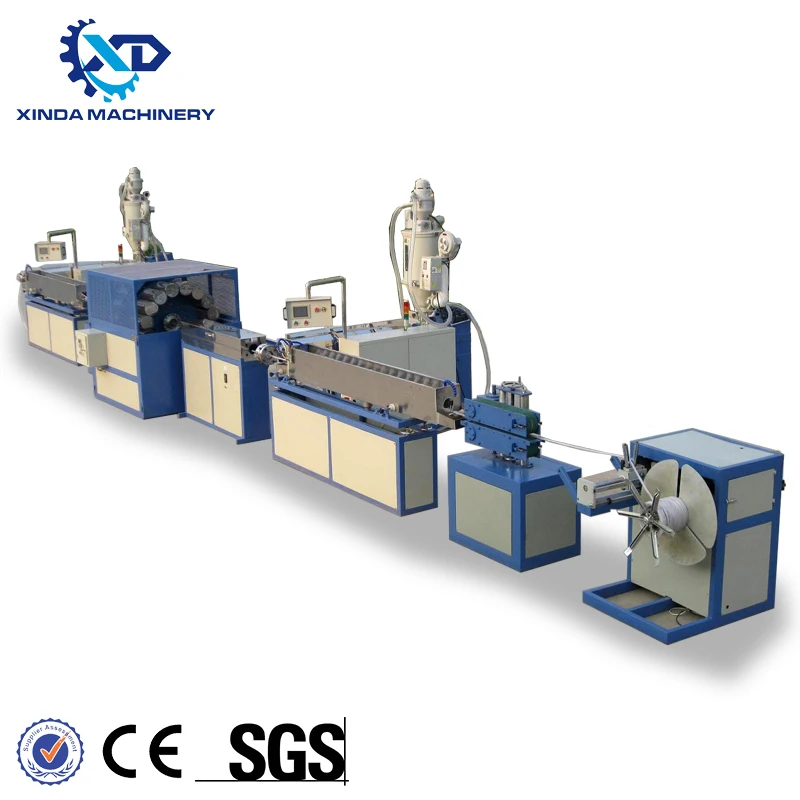

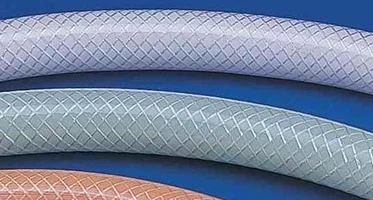

This is specially used to produce PVC transparent steel wire reinforced hose. The wall of the pipe is PVC soft plastic. High-strength wires such as steel wire and glass fiber can be used to wind the pipe to increase its working pressure.
The equipment uses high-speed, high-efficiency extruder to ensure the plasticization quality and output of the material. Specially designed wire spring winding machine, the spring is even and consistent, and the continuous production time is long. The pipe produced by the specially designed pipe head has high transparency, uniform steel wire distribution, and the length can be arbitrarily set. The main electrical components of the unit are imported products, and the operation is stable and reliable. All control buttons of the unit are designed in one piece, which is easy and fast to operate. The production line has beautiful appearance, high degree of automation, and stable and reliable production.
PRODUCT PARAMETERS
21 Years Experience China Top Manufacturer in Plastic Machinery.
PE Pipe Production Machine
Model
Tube Diameter Range
Main Machine Model
Screw L / D Ratio
Maximum Extrusion
Power
SJGZ-200
75-200MM
SJ90
34:1
350KG/H
200KW
SJGZ-450
200-450MM
SJ120
34:1
600KG/H
350KW
SJGZ-630
315-630MM
SJ90 SJ120
34:1
900KG/H
500KW
Would like to know more about Xinda Machinery, contact us for more machine details!
PVC Pipe Production Machine
Model
Tube Diameter Range
Main Machine Model
Maximum Extrusion
Maximum Production Speed
Power
XD-63PVC
Φ16-Φ63 mm
XD-65
180KG/H
12m/min
93
XD-160PVC
Φ50-Φ160 mm
XD-65
250KG/H
10m/min
90
XD-250PVC-A
Φ75-Φ250 mm
XD-65
250KG/H
8m/min
110
XD-250PVC-B
Φ75-Φ250 mm
XD-80
450KG/H
8m/min
135
XD-400PVC
Φ160-Φ400 mm
XD-80
450KG/H
3m/min
170
XD-630PVC
Φ315-Φ630 mm
XD-92
700KG/H
1m/min
210
Would like to know more about Xinda Machinery, contact us for more machine details!
PACKAGING & SHIPPING
Packaging.
Machine: Wood pallet covered by plastic film
Shipping.
35 working days since receiving advance payment.
WHY CHOOSE XINDA MACHINERY
21 Years Experience China Top Manufacturer in Plastic Machinery.
XINDA MACHINERY.
Zhangjiagang Xinda Plastic Machinery Co., Ltd. is appointed to produce plastic machinery
and related products. We have been dedicated to this industry for over 15 years with strong
technology, rich experience and good after-sales service.
1 / Professional installation team who can speak fluent English can help customers
make benefits in a shortest time.
2 / We can produce different products and work out reasonable flow chart as
per customers' requirements to save space.
CERTIFICATES & PATENTS.
International certification, National Certificate of equipment verification, and more than 30 invention patents are done in Xinda Machinery .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate,
Logo trademark registration, etc.
