1. After being dried cleaning, the garments will not be damaged, but clean, well-pressed, soft, non-shrinking, non-folding, non-decolorizing and antiborer. 2. Controlled by computer (except GXSB-6), it has the advantages of automatic adding agent, filtering, draining, extracting, drying. 3. The filter system may keep the solvent clean to ensure washing quality. 4. The drum and other key parts are made of stainless steel. The pneumatic valves are more stable and reliable.
Description
unit
GXZQ-8

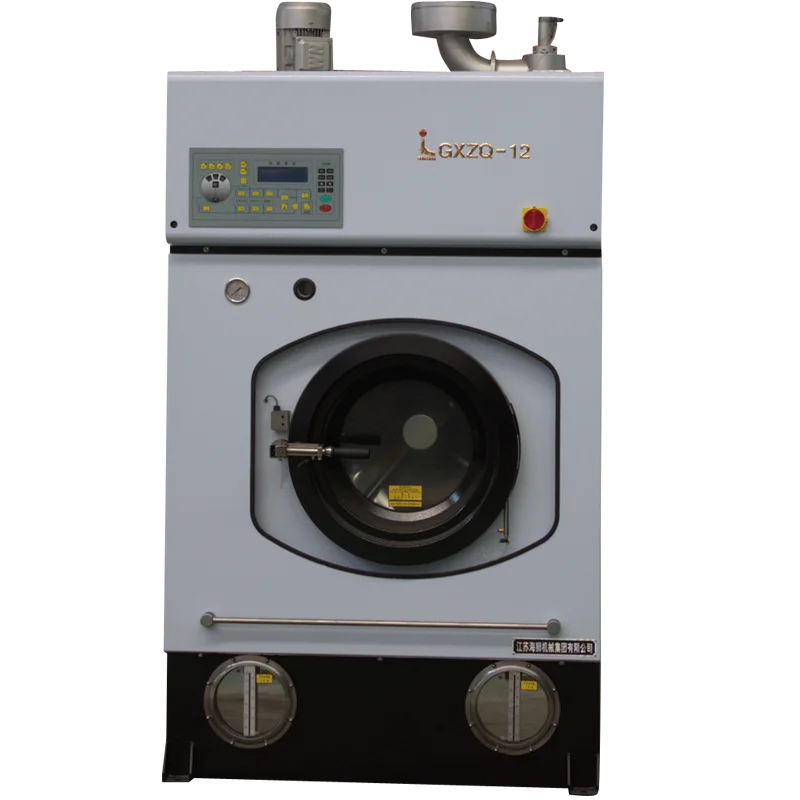

GXZQ-12
GXZQ-22
Capacity(dry load)
kg
8
12
22
Inner drum
mm
650*479
810*475
940*640
Washing/extraction motor power
kW
0.4/1.5
0.55/1.8
3
Filter motor power
kW
0.55
0.55
0.55
Pump motor power
kW
0.75
0.75
0.75
Fan motor power
kW
0.75
1.1
1.5
Distillation motor power(electric heating)
kW
0.75
6
13.5
Drying motor power(electric heating)
kW
0.75
9
13.8
Refrigeration compressor
kW
1.5
2.6
3.8
Washing/extraction motor speed
rpm
40/400
40/400
40/400
Steam pressure
Mpa
0.4-0.5
0.4-0.5
0.4-0.5
Cooling water pressure
Mpa
0.2-0.3
0.2-0.3
0.2-0.3
Compressed air pressure
Mpa
0.5-0.7
0.5-0.7
0.5-0.7
Solvent
PERC
PERC
PERC
Dimension
mm
1680*1000*1890
1650*1160*2120
1620*1970*2320
Weight
kg
790
2300
2300
Company information
Jiangsu Sea-lion Machinery Co., Ltd. is the oldest manufacturer of industrial laundry machines in China possessing a wealth of experience in manufacturing from years of research and development. The Sea-lion factory campus in Zhangjiagang is an impressive vertically integrated design and production facility with a building area of 166,000 SQM and total assets of 520 million RMB.
Sea-lion has the largest product range and most comprehensive variety of laundry machinery in China, including 10 series, 20 varieties and more than 100 types with annual production capacity of 15,000 machines. Sea-lion’s annual sales volume has risen to over 600 million RMB with sales to over 90 countries and territories.
In a world of seemingly unsurmountable challenges, Sea-lion’s perseverance will continue to bring success. Over the past 50 years, Sea-lion is in the era of revolution with many opportunities and challenges. Sea-lion is willing to work together with friends from all sectors of the world to create a better tomorrow by sincere cooperation, win-win development and construction. We believe that we can revitalize the national industry and climb the world peak.
