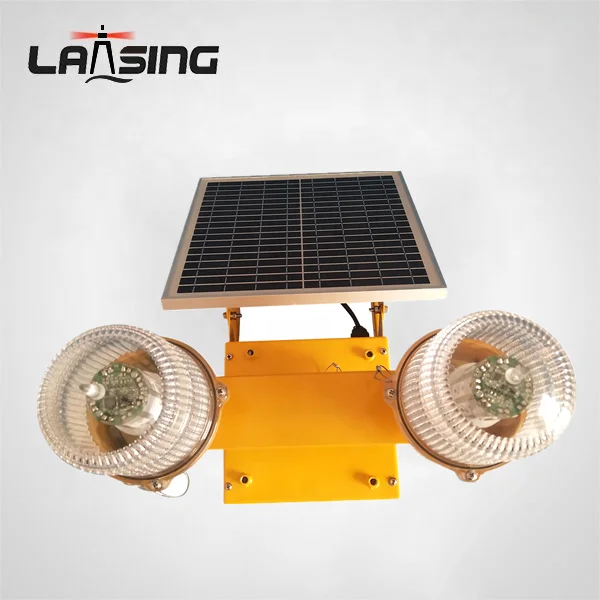

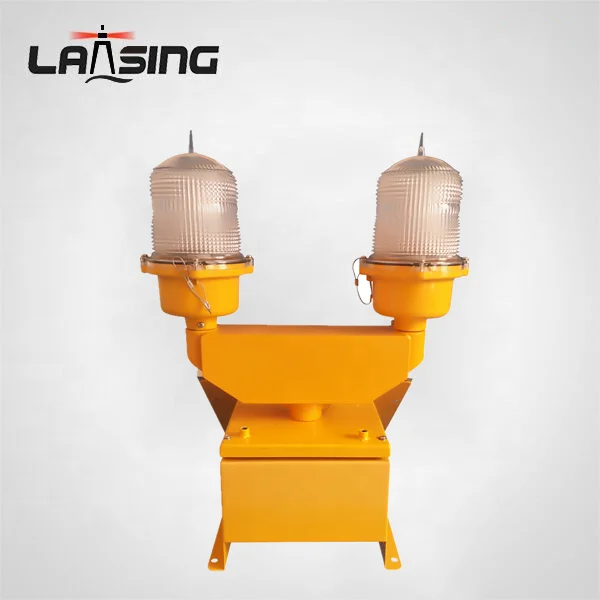

DLT32D LED Double Solar Aircraft warning lamp, Solar Aviation light








 Description


DLT32 Series is solar powered obstruction light. Solar function make it a self-contained and almost car-free light unit.


The light system is composed of 3 parts: light, battery box and solar panel. When the light and solar panel connected to the battery box,  the whole system can be mounted on a tower. Both vertical mounting and horizontal mounting are available.


DLT32 is equipped with a 12Ah VRLA(volve regulated lead acid) rechargable battery which could power the light up to 7 days


when the weather is cloudy&rainy. The 12Ah VRLA battery is also easy to find almost anywhere.


Both single light & double light are available in this series.





Features:


--High quality optics for excellent beam spread control


--Ultra-light LEDs, energy saving


--Self-contained without outside power supply


--Maximum visibility distance 7.6 KM


--Once fully charged, it can work for up to 60 hours


--Auto-off after being packed for 18 hours


--All hardware of obstruction lights are made of corrosion resistant metals.


--Use of quality components and sophisticated technology reduce chances of maintenance and replacement.


--Shock and vibration resistant


--Corrosion resistant and UV stable polycarbonate housing


--Ease of mount, mount accessories available








Specifications:















































































































LIGHT OUT-PUT



SPECIFICATIONS



32.5 Candela



Nominal Night Range



>7.6 KM



LED Color Available



Red



Vertical Divergence



10 Degree



Horizontal Out-put



360 Degree



Illumination



Ultra-bright LEDs



LED Lifespan



100,000 Hours



OPERATION



Autonomy



60 Hours



On & Off Level



70/100 Lux



Flash Pattern



flashing



POWER SUPPLY



Power Source



Solar module, mono-crystalline silicon



Solar Efficiency



13.5%



Max. Power Out-put



6 Watts



Battery Type



VRLA, 10V/8Ah



Battery Capacity



12 AH



Battery Replacement



Yes, replaceable



MECHANICAL STRUCTURE



Lens



Polycarbonate, UV Stabilize



Body



Polycarbonate or Die-casting Aluminum



Water-proof



IP65



Weight



13.5 kg



Temperature Range



-40 ~ +55



Solar panel Dimensions



600mm H*410mm*28mm



Warranty



5 years for light
2 years for VRLA battery
