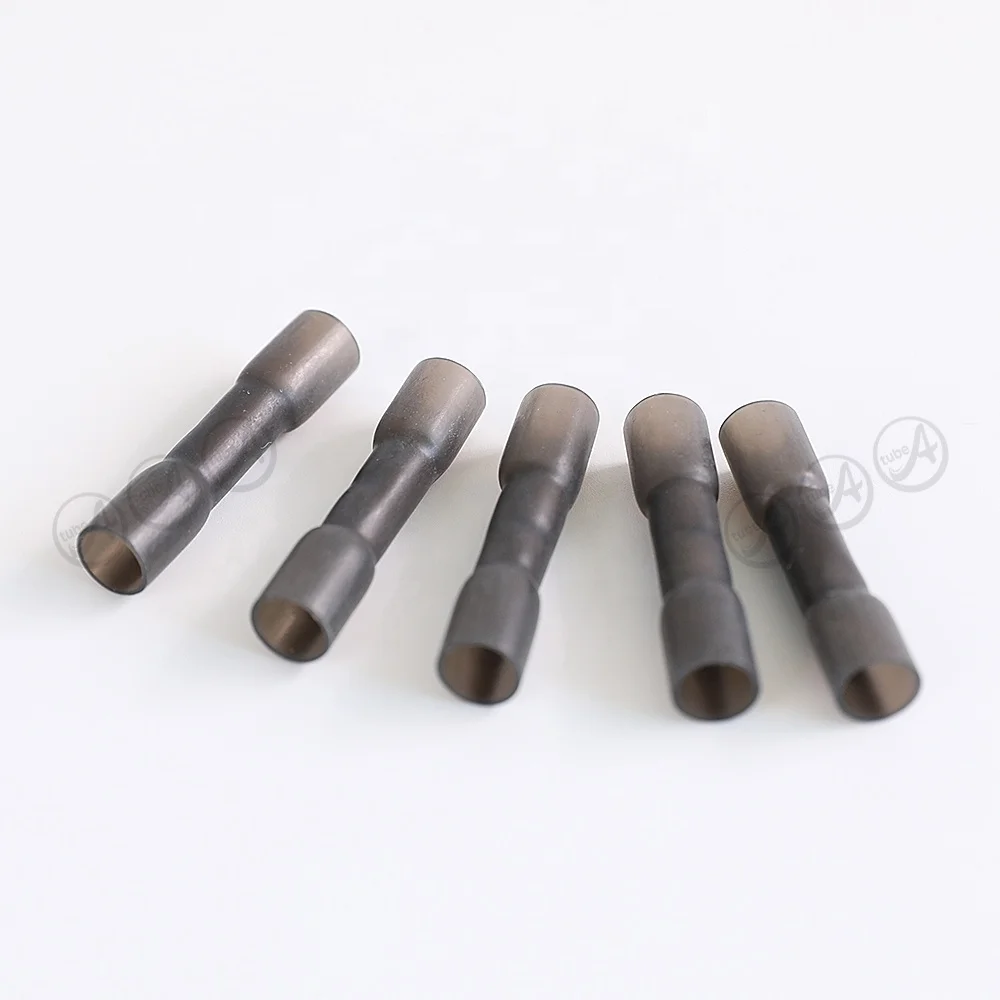

Customized heat shrink Wire connector set with best quality
- Category: Terminals >>>
- Supplier: Huizhou,Yuxuan,New,Materical,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

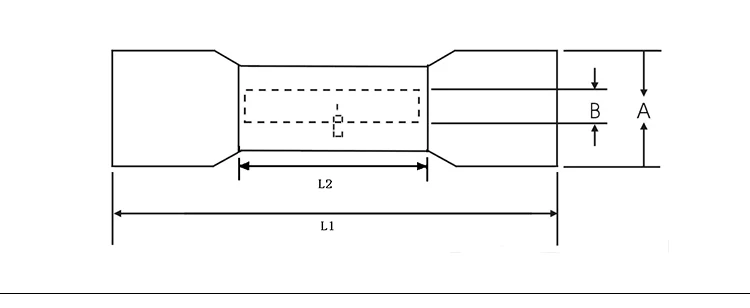

Products Dimensions
Wire Range AWG(MM2) | Copper Tube(mm) | Heat Shrink Tube(mm) | Color | Approval | |||||||||
OD | B | L2 | OD | A | L1 | ||||||||
HSC-0.5 | 26-22(0.2-0.5) | 2.6 | 1.3 | 10 | 4.0 | 3.2 | 26 | Yellow/Clear | ROHS/REACH/CE | ||||
HSC-1 | 22-18(0.5-1.0) | 3.2 | 1.7 | 15 | 5.8 | 4.7 | 36 | Red/Clear | |||||
HSC-2 | 16-14(1.5-2.5) | 4.0 | 2.4 | 15 | 6.9 | 5.7 | 36 | Blue | |||||
HSC-3 | 12-10(4.0-6.0) | 5.6 | 3.6 | 15 | 8.0 | 6.7 | 42 | Yellow | |||||
HSC-3.5 | 14-12(2.5-4) | 3.0 | 5.0 | 15 | 7.5 | 6.5 | 42 | Black | |||||
HSC-8 | 8(10) | 7.0 | 4.8 | 20 | 9.4 | 8.0 | 42 | Yellow | |||||

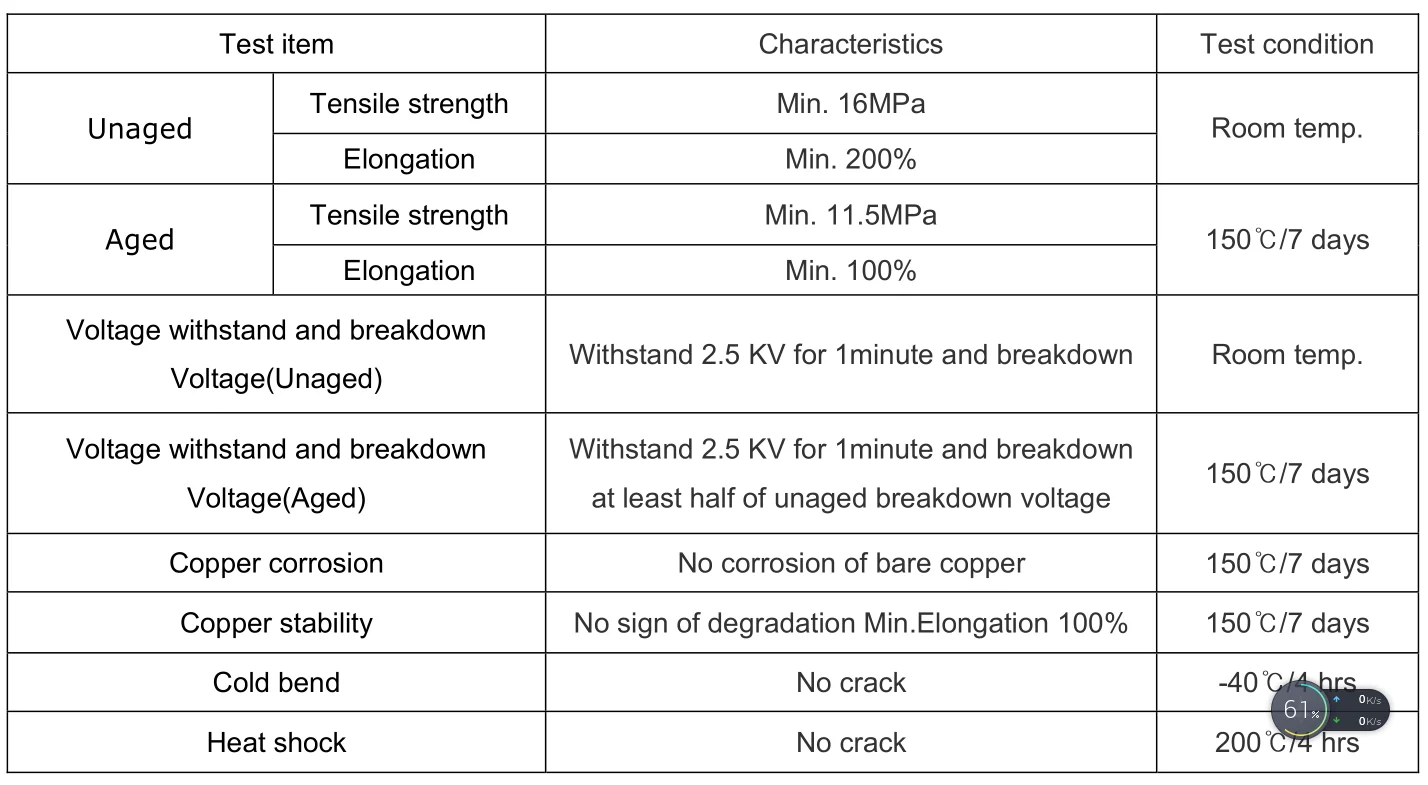

Technical datasheet
FAQ
