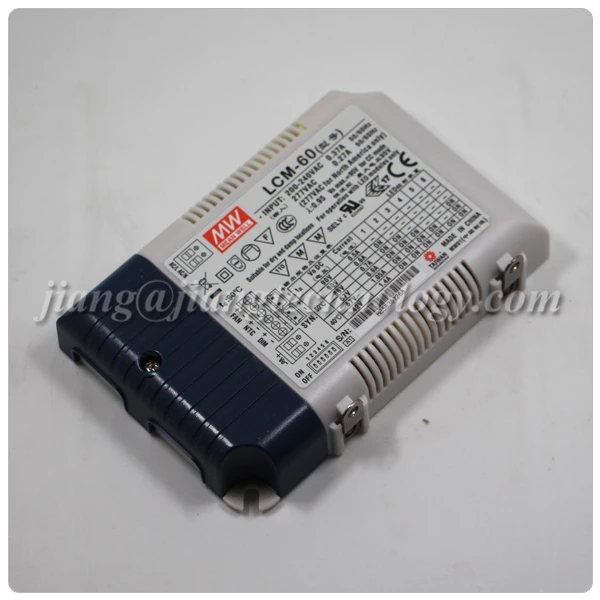

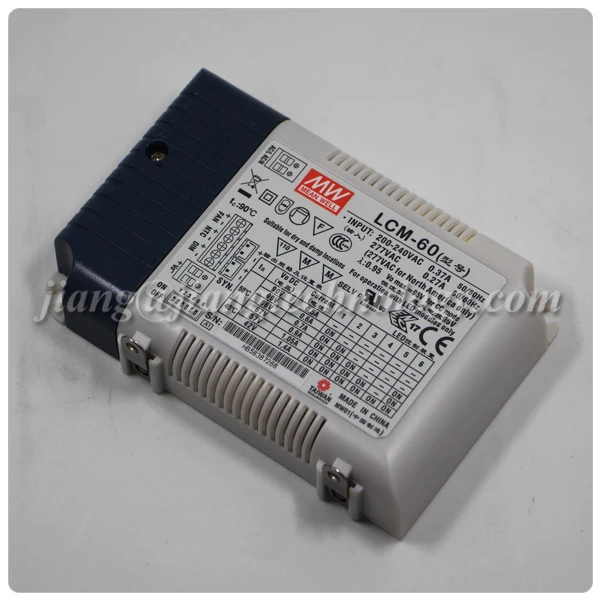

Оригинальный многоступенчатый постоянный ток casambi bluetooth функция LCM 60BLE Meanwell Светодиодный драйвер питания
- Category: Switching Power Supply >>>
- Supplier: Hangzhou Jiang Technology Co. Ltd.
Share on (62479846152):
Product Overview
Description
Product Overviews
Features:
- Constant Current mode output with multiple levels selectable by dip switch
- Flicker free design
- Plastic housing with class II design
- Built-in active PFC function
- Functions: Casambi Bluetooth low energy protocol,push dimming, synchronization up to 10 units
- 3 years warranty
Applications:
- LED indoor lighting
- LED office lighting
- LED architectural lighting
- LED panel lighting
Detailes:
| MODEL | LCM-60BLE | ||||||
| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch | |||||
| 500mA | 600mA | 700mA | 900mA | 1050mA | 1400mA | ||
| RATED POWER | 50.4W | ||||||
| DC VOLTAGE RANGE | 2 ~ 90V | 2 ~ 84V | 2 ~ 72V | 2 ~ 56V | 2 ~ 48V | 2 ~ 36V | |
| OPEN CIRCUIT VOLTAGE | 102V | 76V | |||||
| CURRENT RIPPLE | 5.0% max. @rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| AUXILIARY DC OUTPUT | Nominal 12V(deviation 11.4~12.6V)@50mA for AUX-Type only | ||||||
| SETUP TIME | 1000ms / 115VAC | ||||||
| INPUT | VOLTAGE RANGE | 90 ~ 132VAC 127 ~ 186VDC | |||||
| FREQUENCY RANGE | 47~63Hz | ||||||
| POWER FACTOR | PF≥0.98/115VAC @full load | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load≥60%) | ||||||
| EFFICIENCY | 89% | ||||||
| AC CURRENT | 0.65A/115VAC | ||||||
| INRUSH CURRENT | COLD START 15A (twidth=270μs measured at 50% Ipeak) at 115VAC | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 15 units (circuit breaker of type B) / 25 units (circuit breaker of type C) at 115VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 120VAC | ||||||
| PROTECTION | SHORT CIRCUIT | Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 105 ~ 125V | ||||||
| Shutdown o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||
| FUNCTION | TEMP. COMPENSATION | By external NTC | |||||
| DIMMING | Please refer to "Dimming Operation" section | ||||||
| SYNCHRONIZATION | Please refer to "Synchronization Operation" section | ||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-30 ~ +90°C | |||||
| MAX. CASE TEMP. | Tcase=+90°C | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80°C,10~95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | U8750 approved | |||||
| DALI STANDARDS | Comply with IEC62386-101, 102, 207 | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH | ||||||
| EMC EMISSION | Compliance to FCC part 15 Subpart B | ||||||
| OTHERS | MTBF | 193.6K hrs min. MIL-HDBK-217F (25°C) | |||||
| DIMENSION | 123.5*81.5*23mm (L*W*H) | ||||||
| PACKING | 0.28Kg ; 54pcs/16Kg/1.12CUFT | ||||||

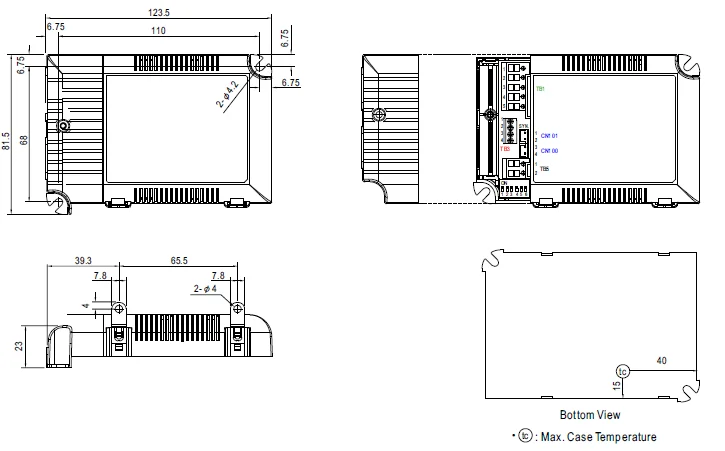

Mechanical Specification:

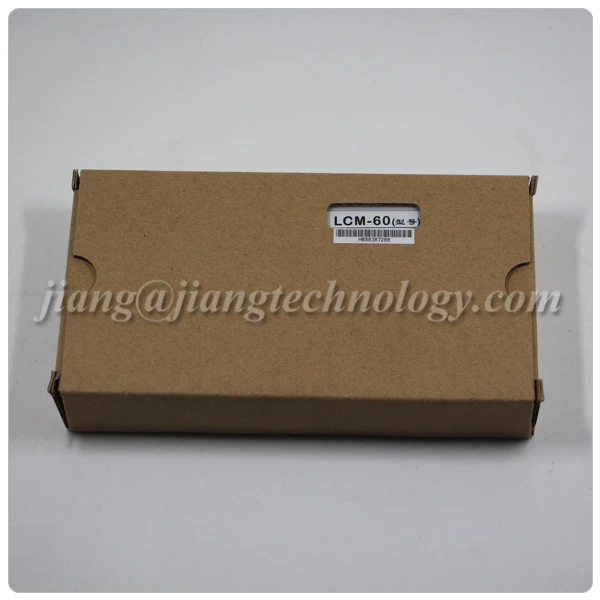

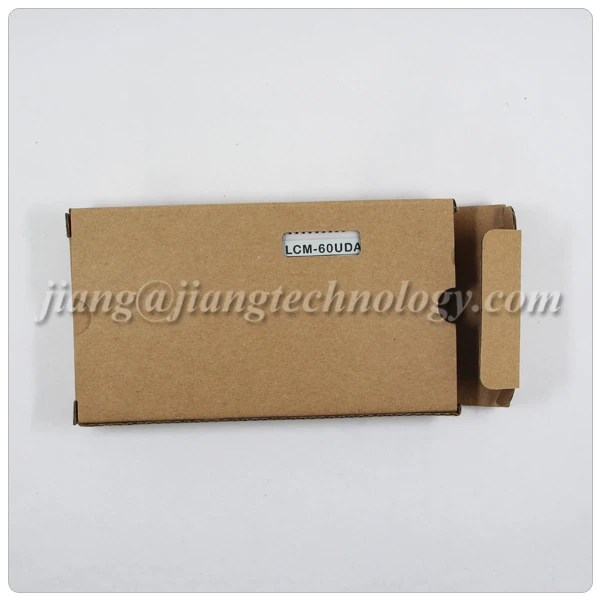

Packing
