Automated AS&RS Pallet Storage Racks warehouse rack automatic Storage System Steel Q235B/LIAN Steel RAL System SL AS004

For customers:

Offering automatic and logistics solutions.

Service content:

Including logistics system project design and planning; exploitation and design of logistics software; electric-control system design and implementation; logistics equipment research and development, design and reformation; project management and after-sales service.

Sunli design:

Calculate and manufacture  storage systems  from the most  basic to the most sophisticated and  advanced solution. Manage your warehouse on an automated storage solution and optimize the floor space , the picking processes.

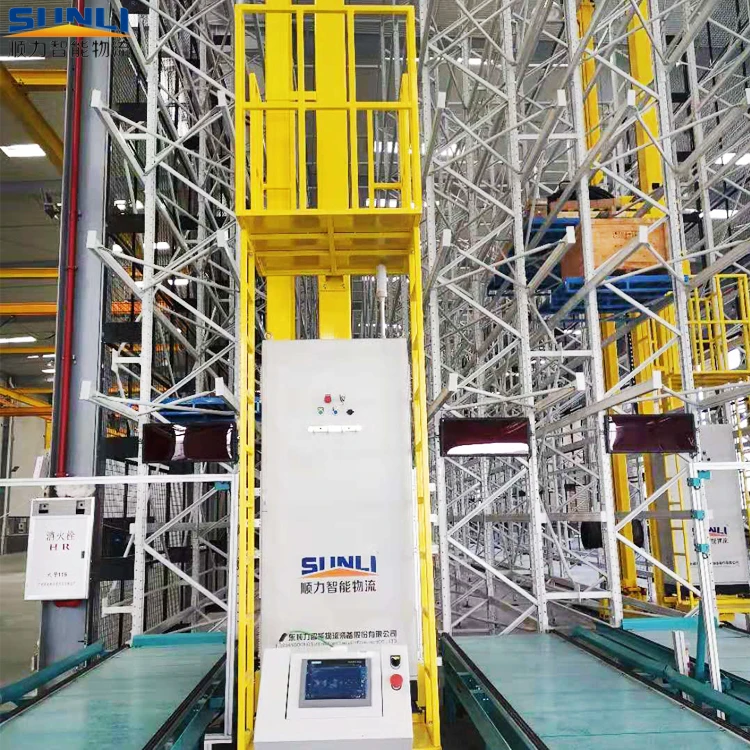

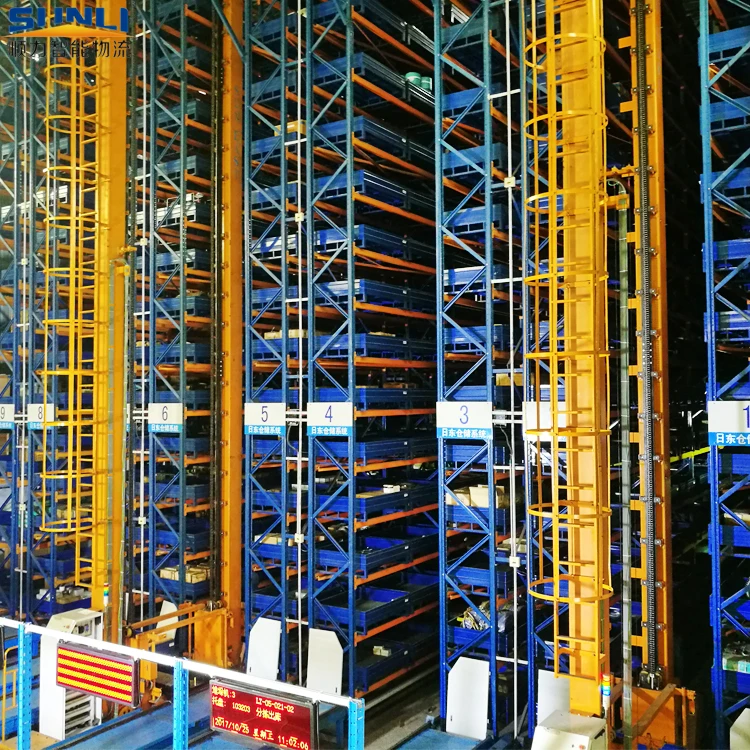

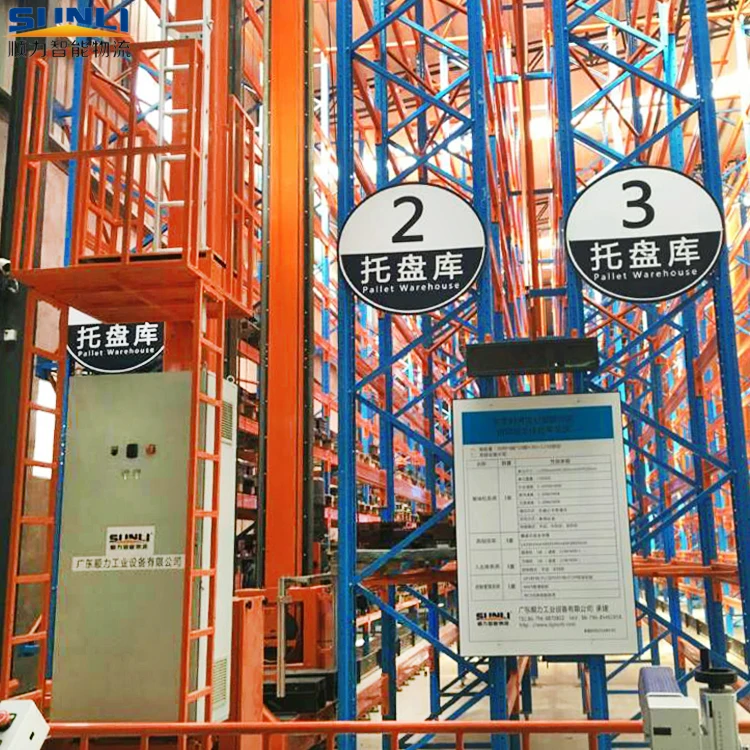

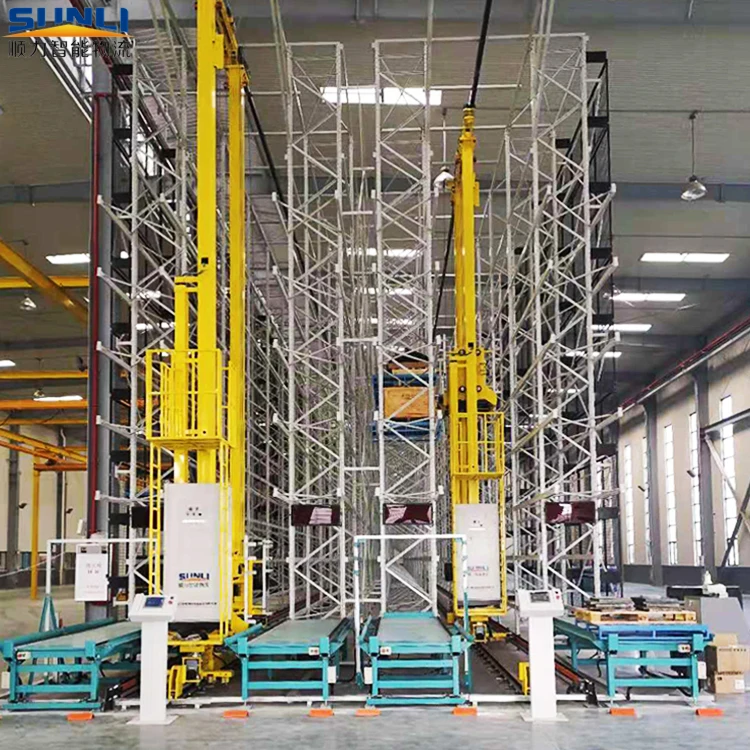

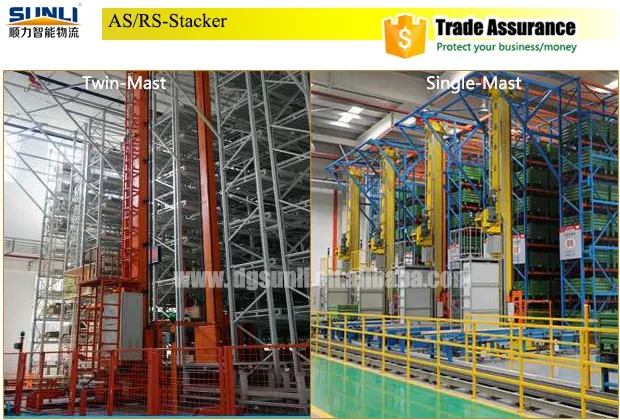

Operated by stacker cranes in AS/RS:

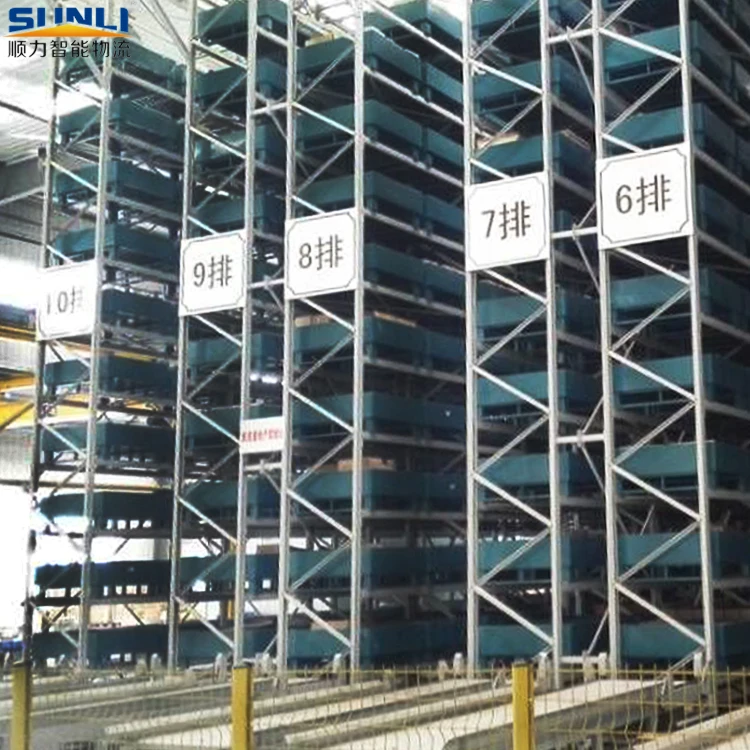

Automatic Storage Retrieval System for palletized goods stored in the high and narrow aisles. The loading units are handled by radio shuttle cart or by automated stacker cranes. These storage solutions can be designed as single or double deep structures, and also as open face solutions for the storage of a single pallet per level and bay.

Pallet racking and multi-layer shelf racking are involved during Automatic Storage Retrieval System.

CONVEYING SYSTEM ( BOX, CARTON SOLUTIONS / PALLET SOLUTIONS )

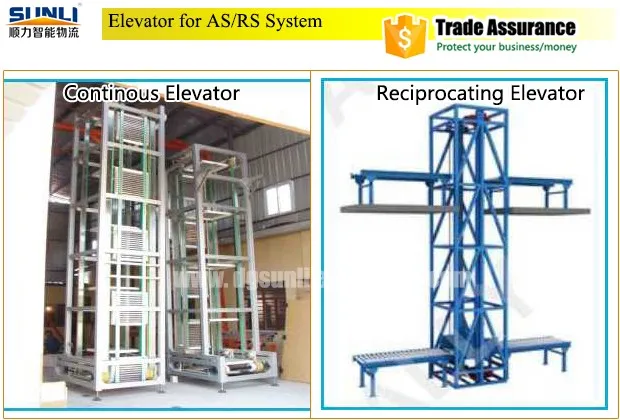

Conveying system is usually equipped in the front or back of warehouse for conveying goods from rack to despatch,  bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining  with lifts, rotating devices and other equipments.

Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by SIEMENS S7-300 controller  can operate all conveyors offline, doing conveying of goods automatically.

WMS SYSTEM

( ADMISTRATOR TO SEND INSTRUCTIONS BY AS/RS )

Hardwares of WMS System: star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods.

Softwares of WMS System:

Operating system: WINDOW 2000X SEVER

Data-base: MS SQL SEVER 2000X

Warehouse management software: WMS

Equipment controlling software: ECS

Bar code management software: RFS

RELATED AUTOMATED STORAGE EQUIPMENTS

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------

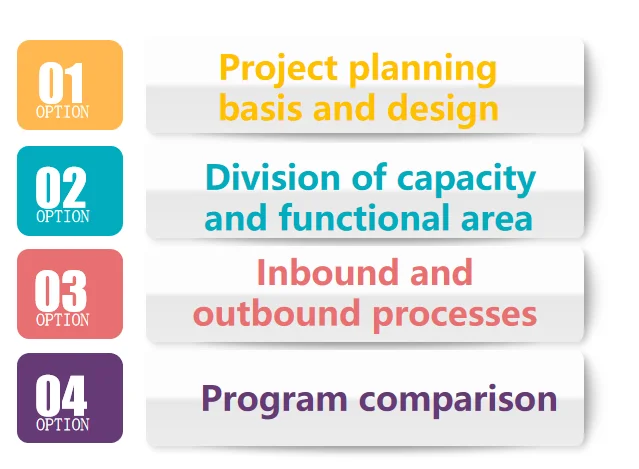

Analysis of Cooperation Program

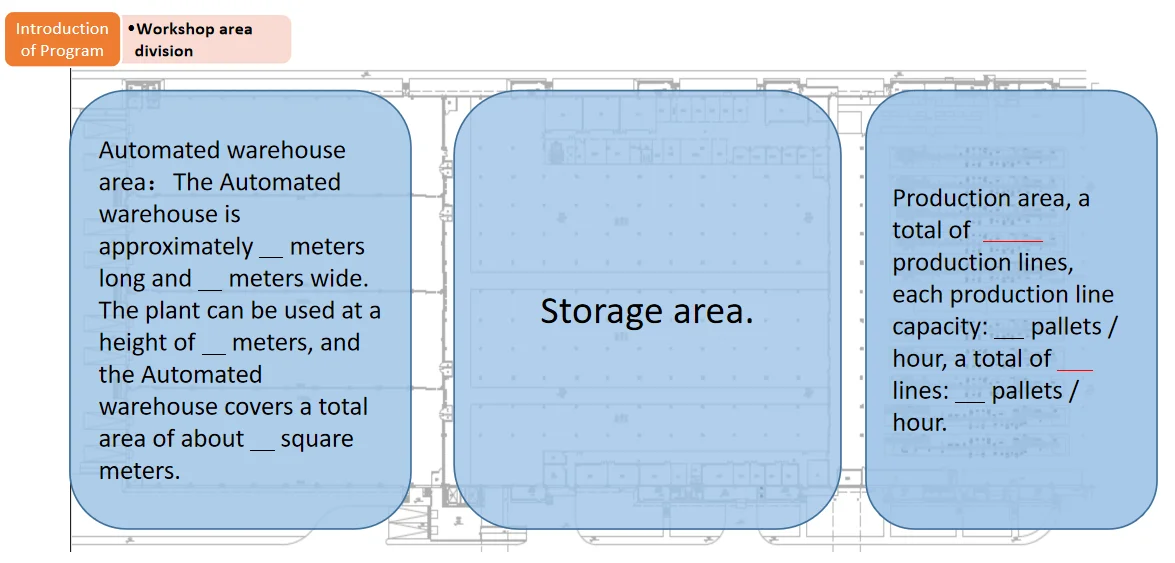

Introduction of Program

Workshop:

1. Extra high cargo size:L × W ×H (Whether to include the height of the pallet.);

    Cargo weight ≤500KG;

2. Regular cargo size: L ×W ×H (Whether to include the height of the pallet.);

    Cargo weight ≤500KG;

3. Number of production lines:

4. Number of automated warehouse

5. How many pallets need to be put into the warehouse per hour,

   and how many pallets are needed to go out of the warehouse.

------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 HOT SALES PRODUCTIONS

1. Automated Guided Vehicles( AGV )   2.  Selective Pallet Rack    3. Metal Shelving Rack    4. Mezzanine Rack

5. Cantilever Rack     6.  Radio Shuttle Rack       7. Automated Storage Racking System       8. Stacking Rack

Our Manufacture Fileds in Guangdong Dongguan Province

Please inform us the listed questions in your inquiry for project /ASRS warehouse.

A) The warehouse layout plans
B) The size of racking(length*width*height)
C) How many bays you want
D) How many layers for each bay that you want
E) The loading capacity of each layer
F) Choose steel panel or wooden veneer

G) The RAL color you want

     Please click PALLET SHUTTLE RACK for more information.

     Please  click SELECTIVE PALLET RACK for more information.

1. Q: Are you a factory or trading company?

A:we have our own factory for manufacturing rack system.

2. Q: Where is your factory located? How can I visit there?

A:Our factory located in DongDuan City Guangdong Province ,China ,You can fly to Guangzhou or Shenzhen  airport  directly  .We will pick you up on Guangzhou or Shenzhen international  .All our clients  ,form home or abroad ,are warmly welcome to visit us!

3. Q: What is the term of payment?

A: 1) T/T payment.     2) LC.

4. Q: What is the raw material of your products?

A: As general, the raw material of steel code is Q235B.

5. Q: Which port will be used as loading port?

A: Shenzhen and Guangzhou port.

6. Q: What is delivery times?

A: It depends on the order quantity and racking types.

7. Q: Are samples available?

A: Yes. Short sections of samples could be provided, they are free of charge, but international courier costs to be borne by clients.
