Small Portable 200w titanium silver gold jewelry laser beam lazer welding machine
- Category: >>>
- Supplier: Wuhan BST LASER Machinery Co. Ltd
Share on (62479896716):
Product Overview
Description
Product Description
150W 200W portable jewelry laser welding machine gold laser welder
Brief Introduction
Best Laser jewelry spot welding machine applies high energy pulse to heat a specific tiny area of certain materials. Laser welding is a new type welding technology, mainly on thin materials and precision components. It can achieve spot weld, butt weld, stitch weld, seal weld. Its advantages are high positional accuracy, being easy to realize robotization.

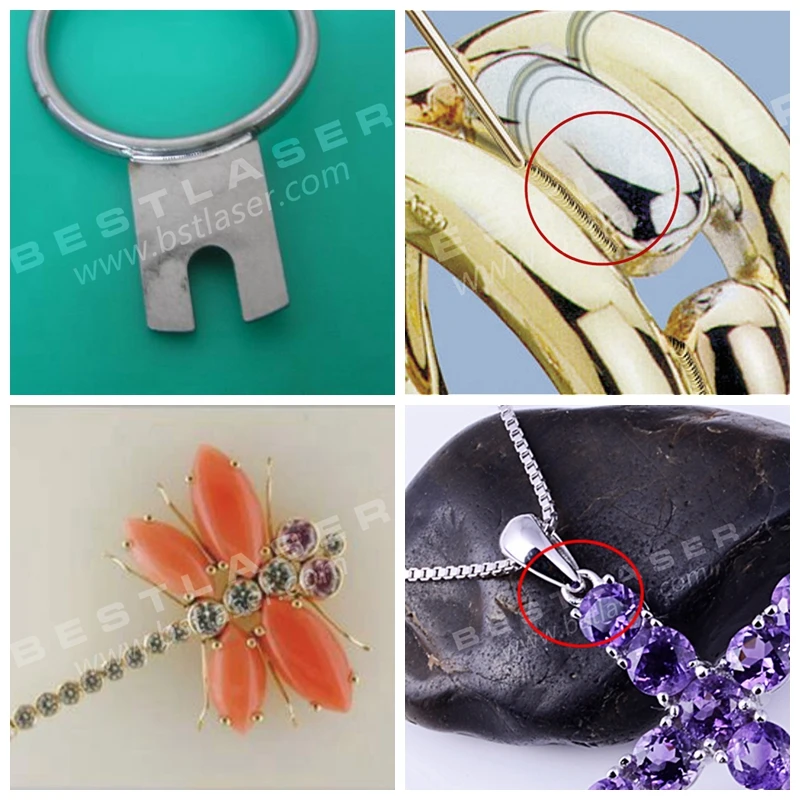

Application
The laser spot welding machine can weld gold, silver, platinum, titanium and its alloy, electric nickel belt and other materials.
It is widely applied for jewelry, medical parts, watches gossamer, integrated circuit, all kinds of tiny heat sensitive parts of precision welding, electronics, communications, machinery, automotive, military, gold jewelry and other industries.
It is widely applied for jewelry, medical parts, watches gossamer, integrated circuit, all kinds of tiny heat sensitive parts of precision welding, electronics, communications, machinery, automotive, military, gold jewelry and other industries.
Technical Data
Model | BE-W150D |
Power | Peak 150w |
Wavelength | 1064nm |
Power Consumption | 3KW |
Pulse Energy | 50J |
Laser Focus | 110mm |
Pulse Frequency | ≤0.1-20Hz |
Pulse Width | ≤15ms |
Protection Gas | Single |
Voltage | 220V/110V |
Observation System | Microscope 10X or CCD camera |
Cooling | Inner Water Cooled |
Controls | Touch Screen or Joystick |
Language | Chinese/English |
Protective Gas | Argon |
Dimension | 850*550*650mm |
Net Weight | 85kgs |
Package Size | 940*650*750mm |
Package Weight | 100kgs |
Machine Features
1.This type machine is designed according to ergonomics, which meets the need of exquisiteness and stable performance of jewelry industry, and is suitable for long and continuous working time
2.Big inner space, convenient for the placing of tools and tongs.
3.A laser spot and parameter switch is installed in the working zone.
4.Being convenient to clean the working zone ant to collect the welding chips.
5. LED-lamp can adjustable brightness to make it clearer when observe the welding area.
6.More subtle laser spot meets the needs of subtle welding.
2.Big inner space, convenient for the placing of tools and tongs.
3.A laser spot and parameter switch is installed in the working zone.
4.Being convenient to clean the working zone ant to collect the welding chips.
5. LED-lamp can adjustable brightness to make it clearer when observe the welding area.
6.More subtle laser spot meets the needs of subtle welding.
Detailed Images

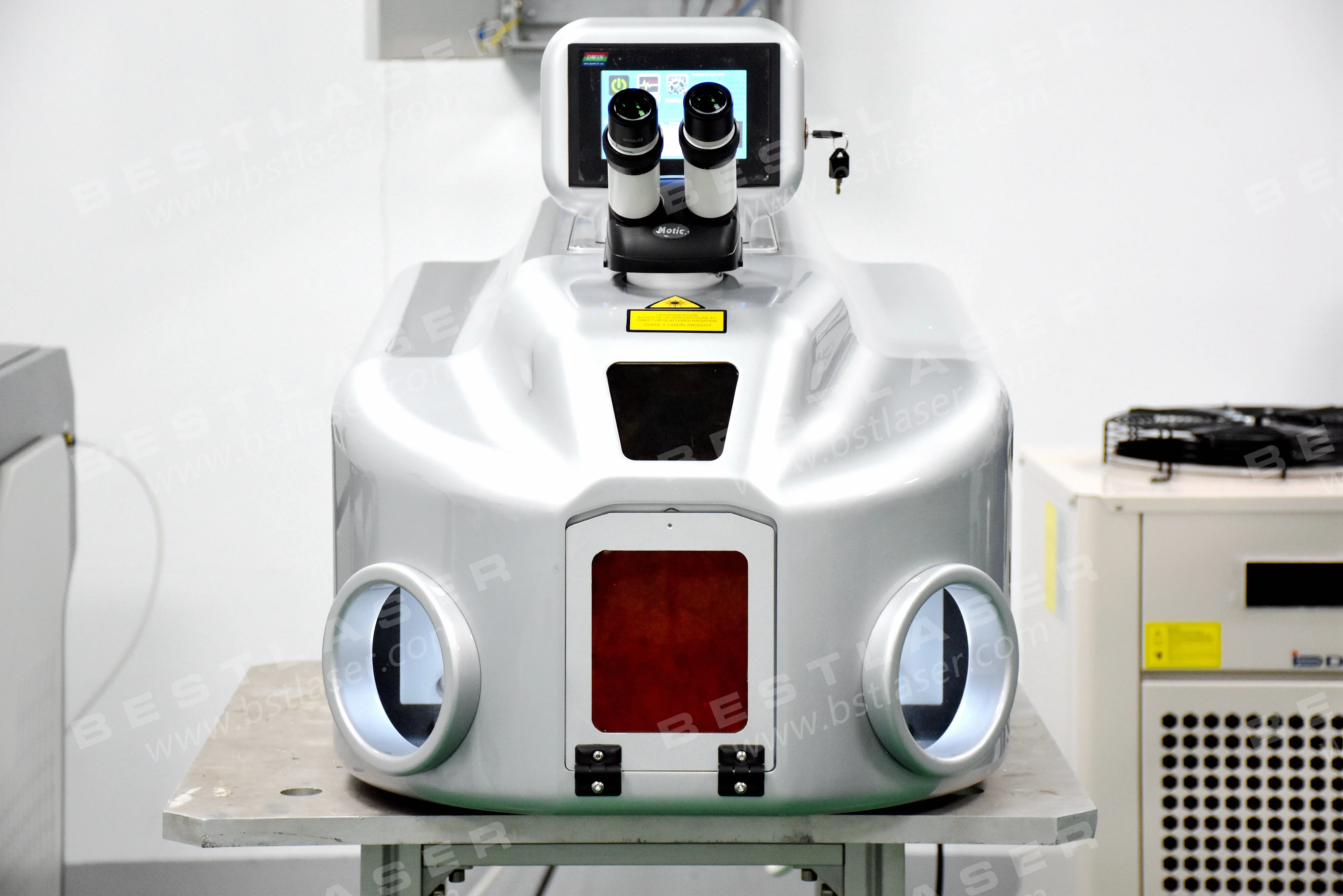

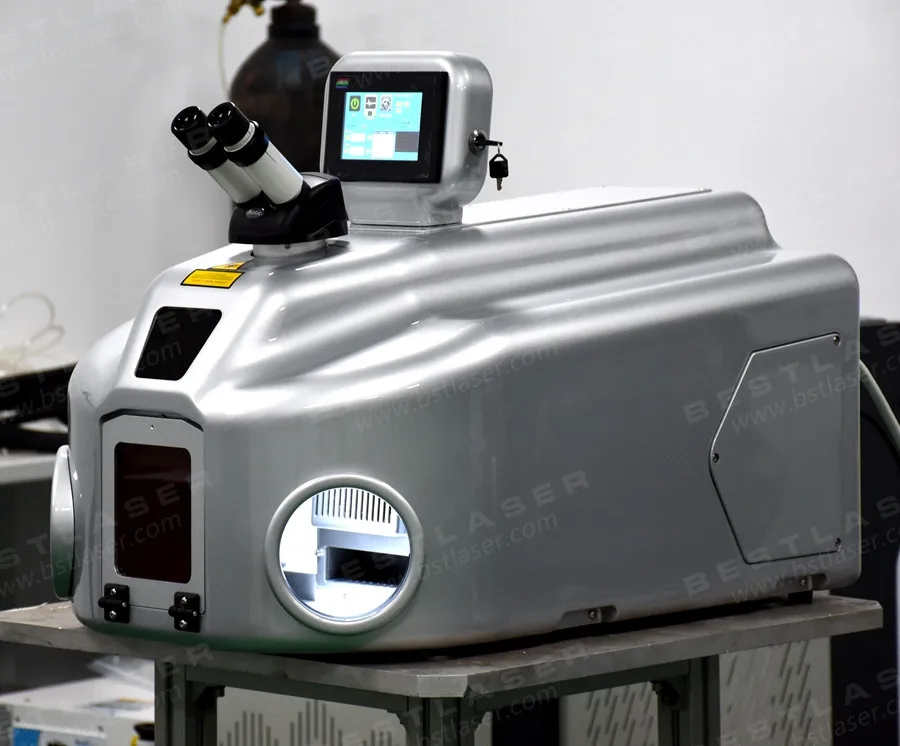

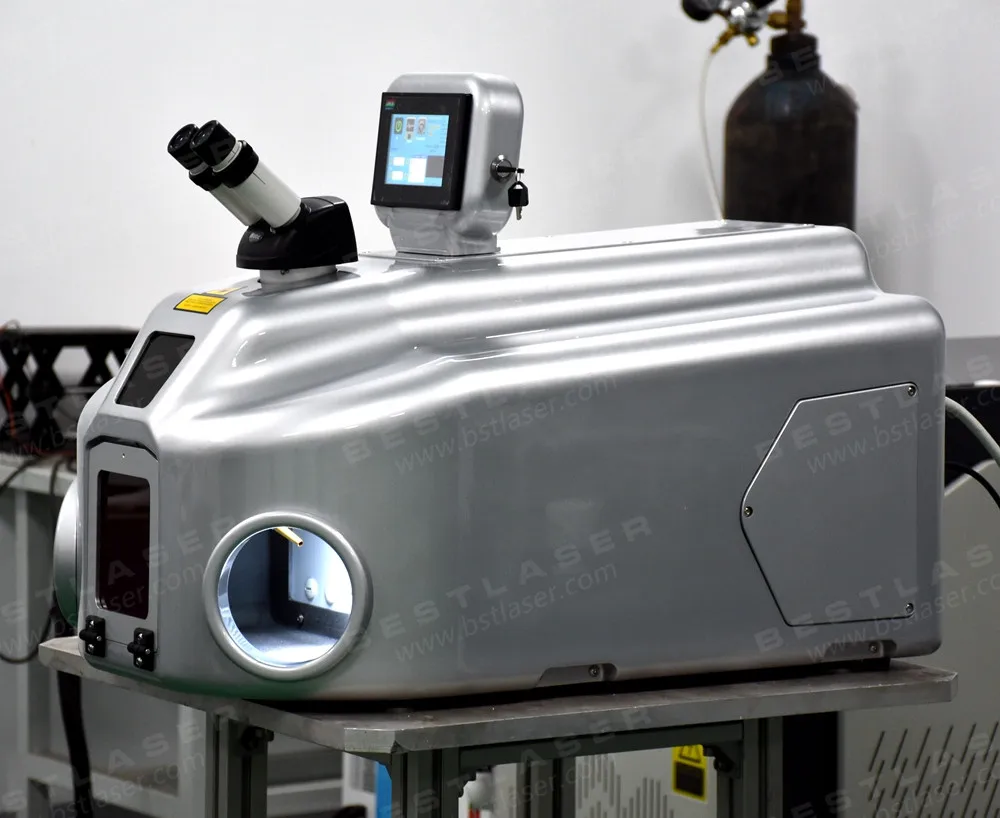

Humanized Design
It adopts latest European portable mini design, scientific streamlined mechanical structure and high-grade alloy chassis, which anti-static, anti-rust, easy moving and saving space.

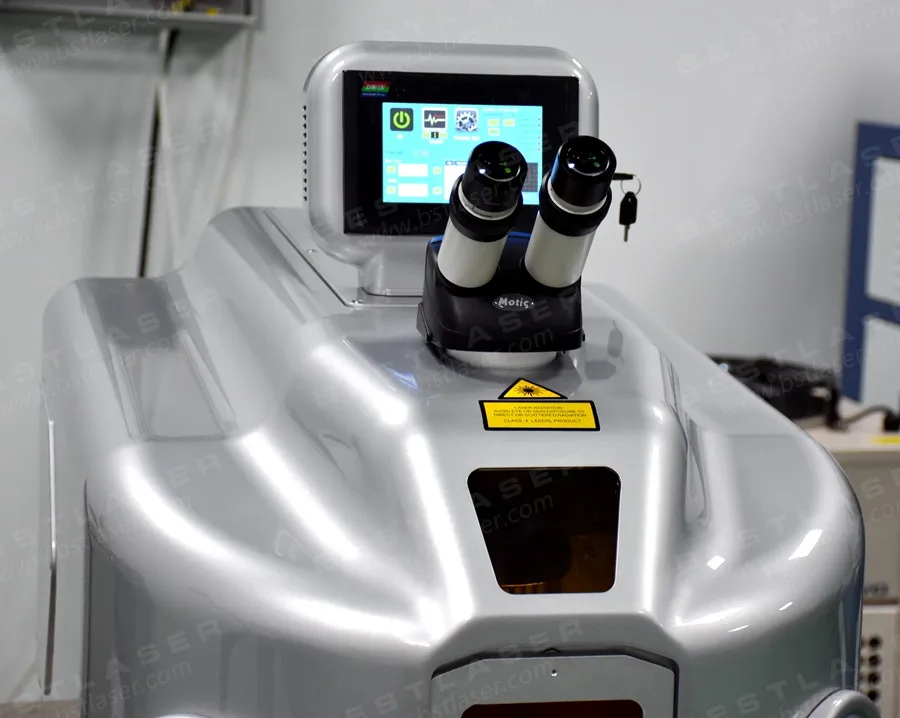

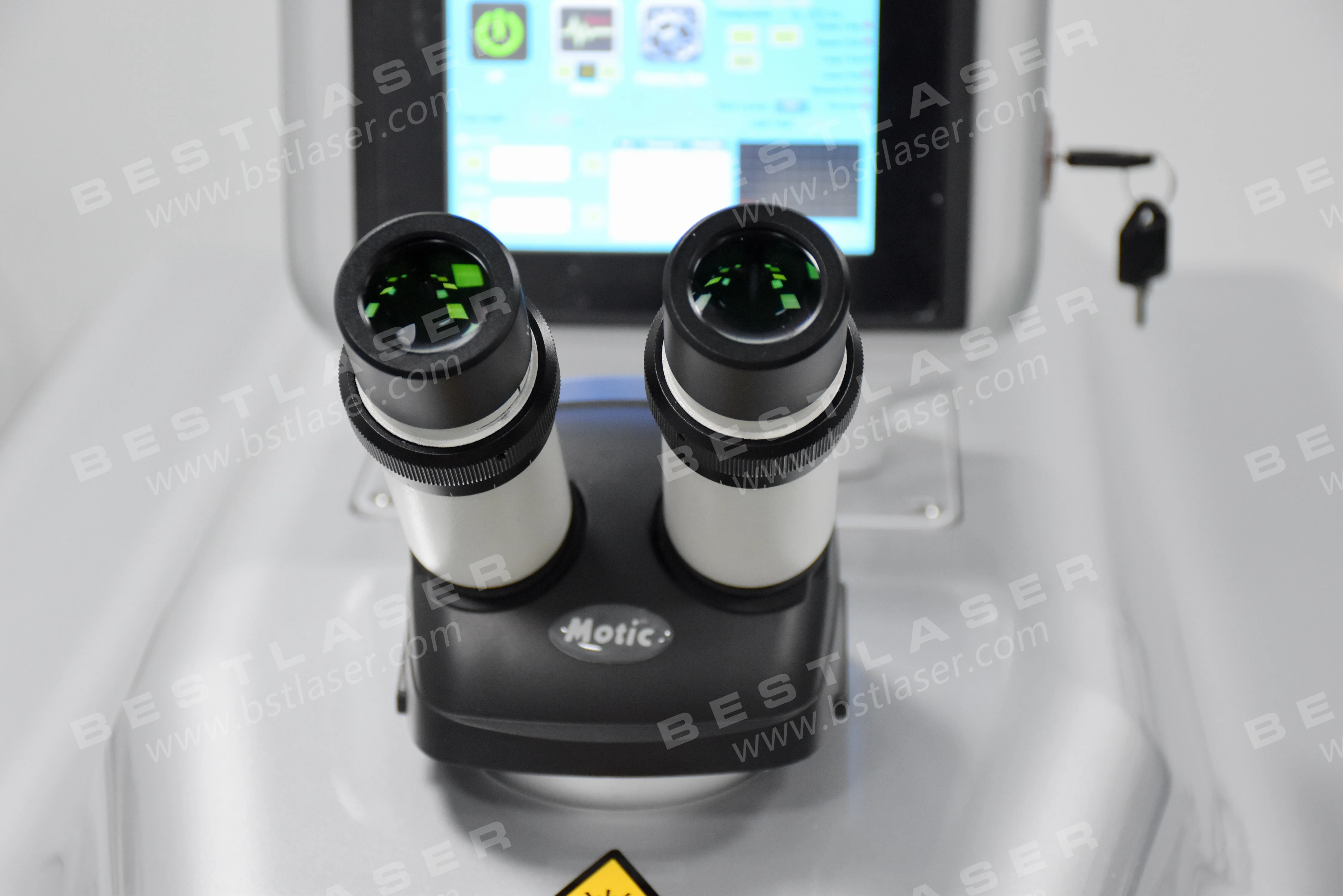

Observation Microscope
It adopts China top quality high-precision microscope(10X/20X), which enable accurate positioning and welding process.

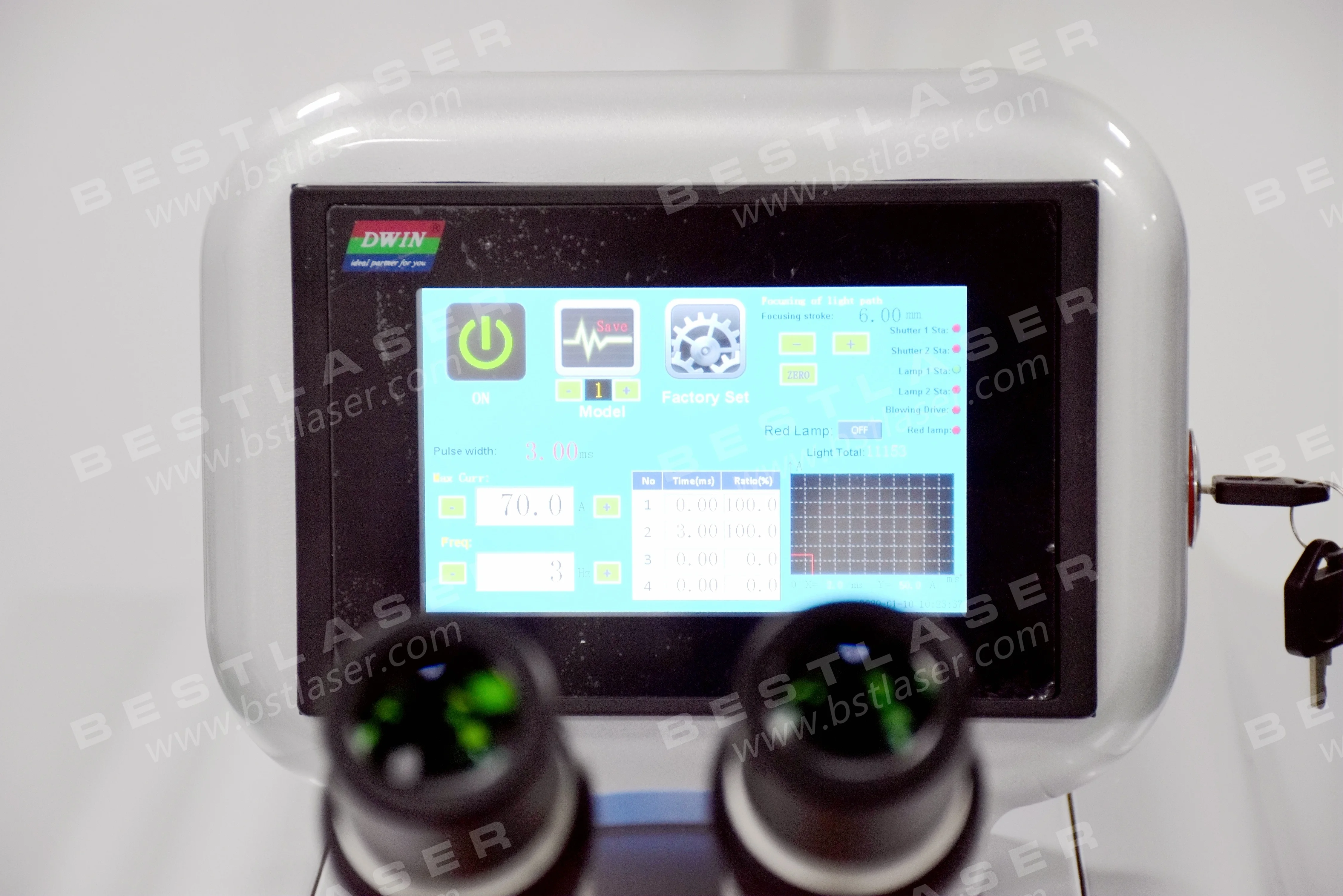

Controlling Screen
It adopts built-in controlling system with touch screen, which ensure high sensitivity and enable convenient parameters setup. Users can set up different parameters(current, frequency, pulse...) according to different materials.

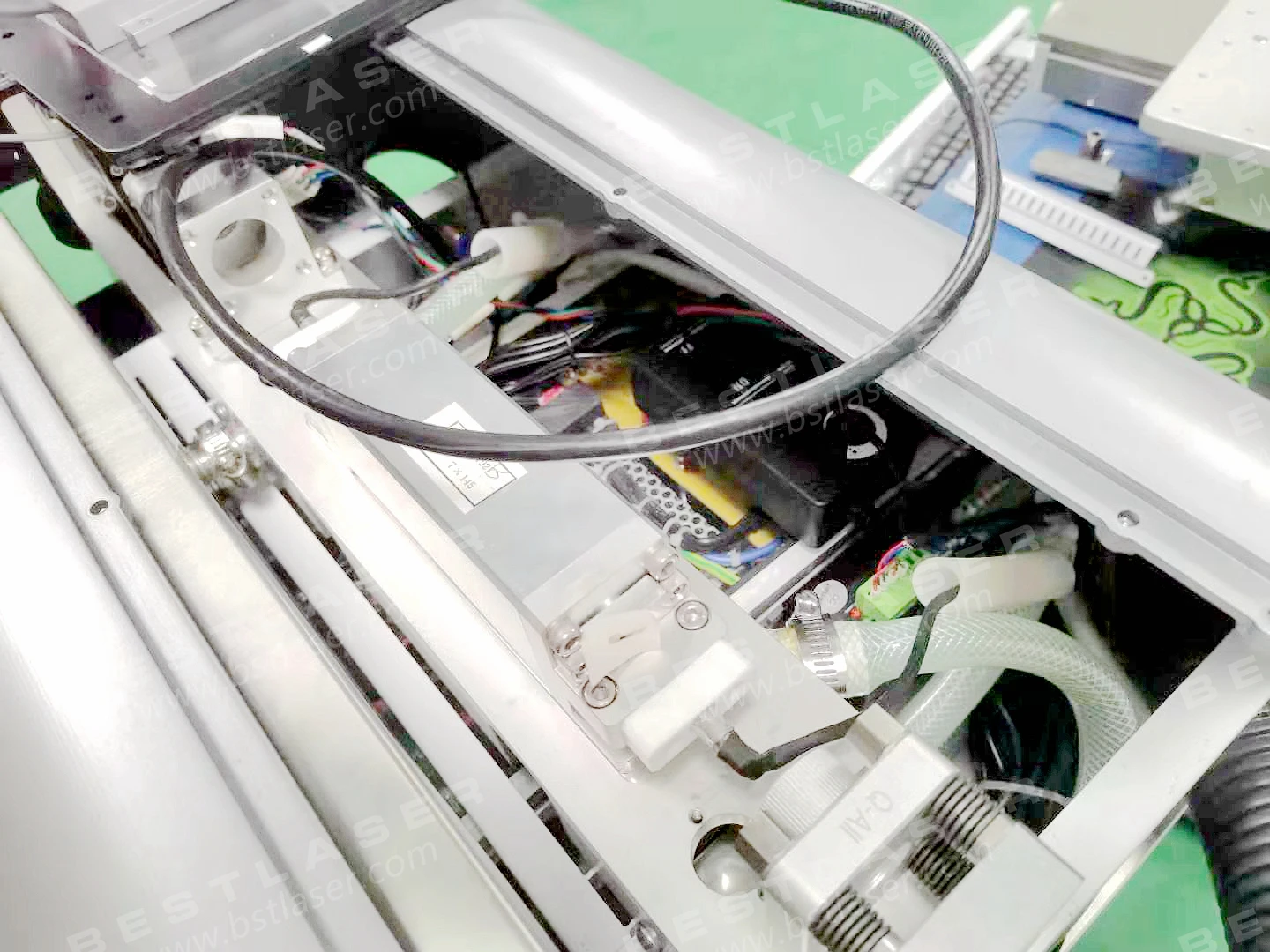

Laser Optical Path
It adopts UK imported Morgan brand optical cavity, which protect the laser source and extend the lifespan.
It adopts Beijing famous brand crystal rod, which designed by China 11th Scientific Research Institute, powerful and not easily damaged.
It adopts Beijing famous brand crystal rod, which designed by China 11th Scientific Research Institute, powerful and not easily damaged.

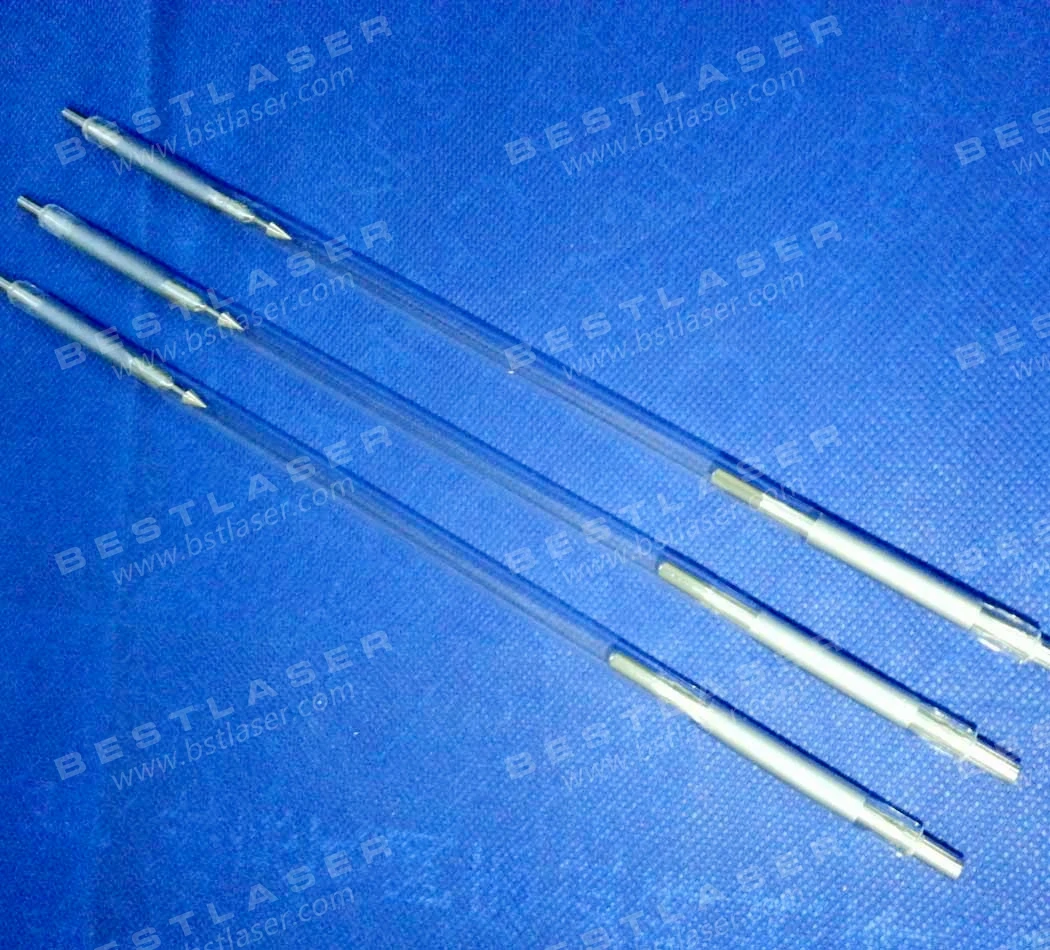

Laser Xenon Lamp
It adopts China top brand original Xenon lamps.
Lifetime: 8,000,000 times,for example,work 8 hours per day,one lamp can use for 6-12 months.
Xenon lamp is the power source of laser, when xenon lamp finished,just need change a new one.
Lifetime: 8,000,000 times,for example,work 8 hours per day,one lamp can use for 6-12 months.
Xenon lamp is the power source of laser, when xenon lamp finished,just need change a new one.

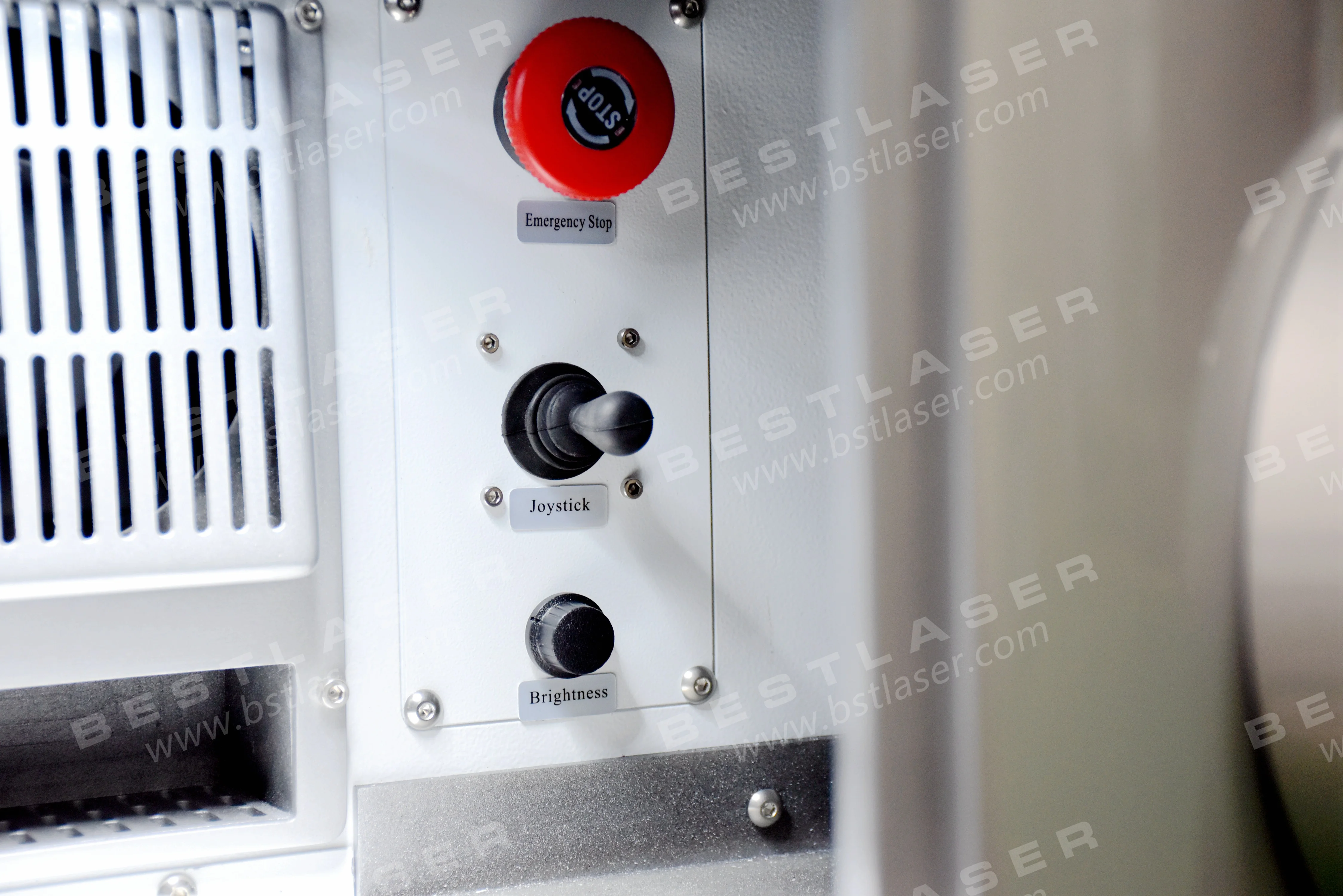

Joystick
When users do welding job, they can also move the joystick to adjust the cursor position to set the parameters.
(Emergency top/joystick/brightness)
(Emergency top/joystick/brightness)

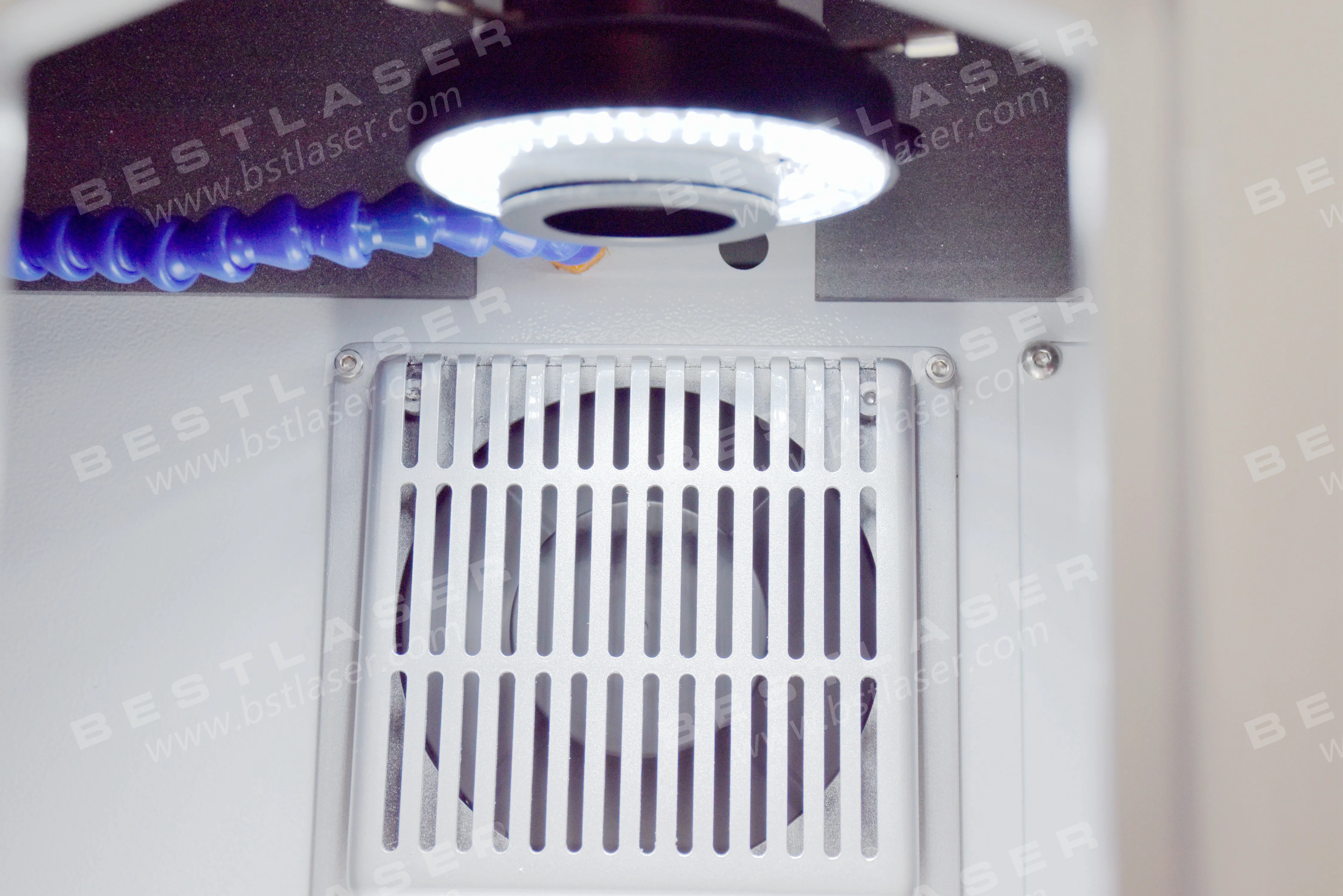

LED Lights
Users can adjust the led lights brightness considering eye comfort.

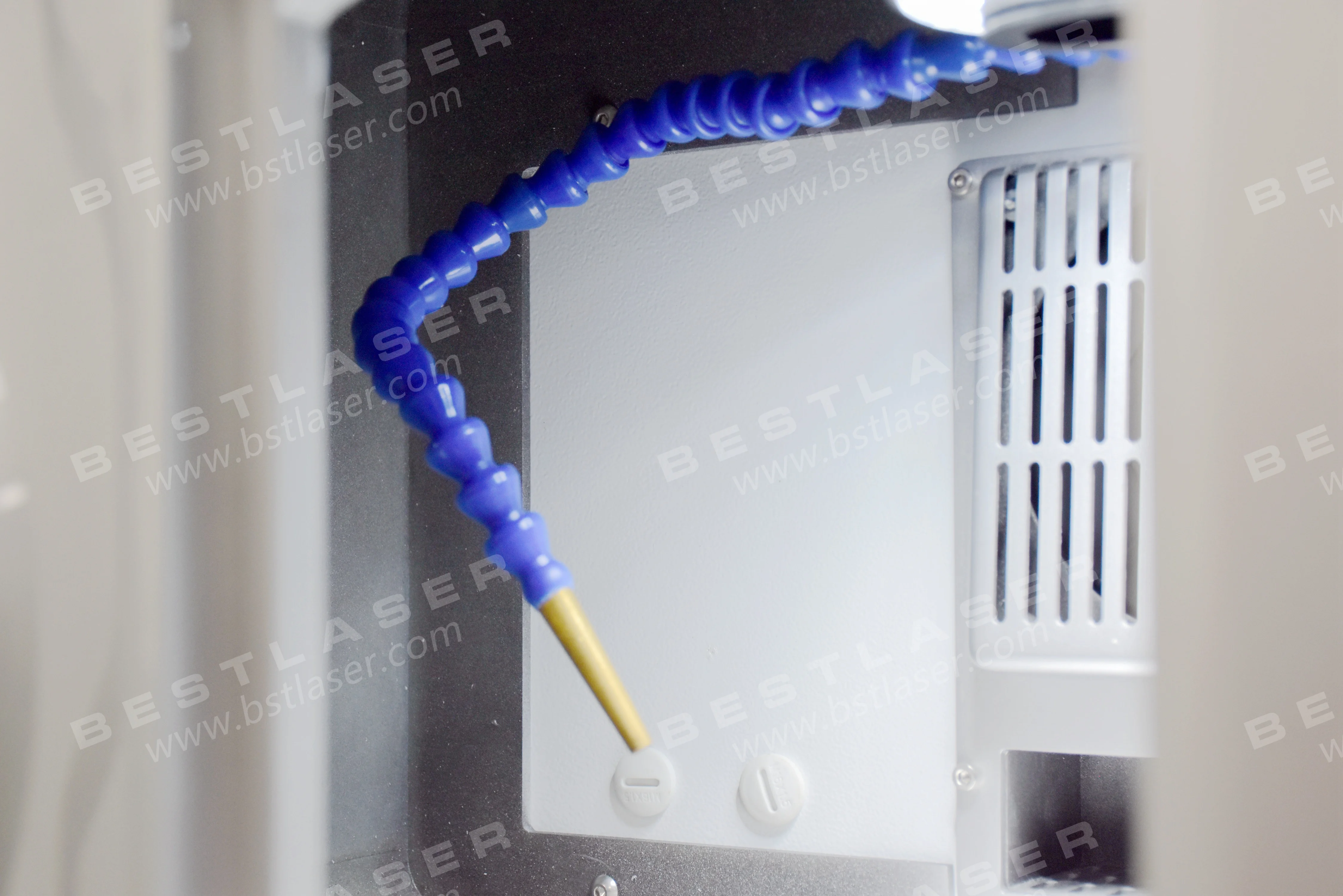

Gas Pipe
To ensure clean welding, it needs blow Argon gas to protect the welding surface.

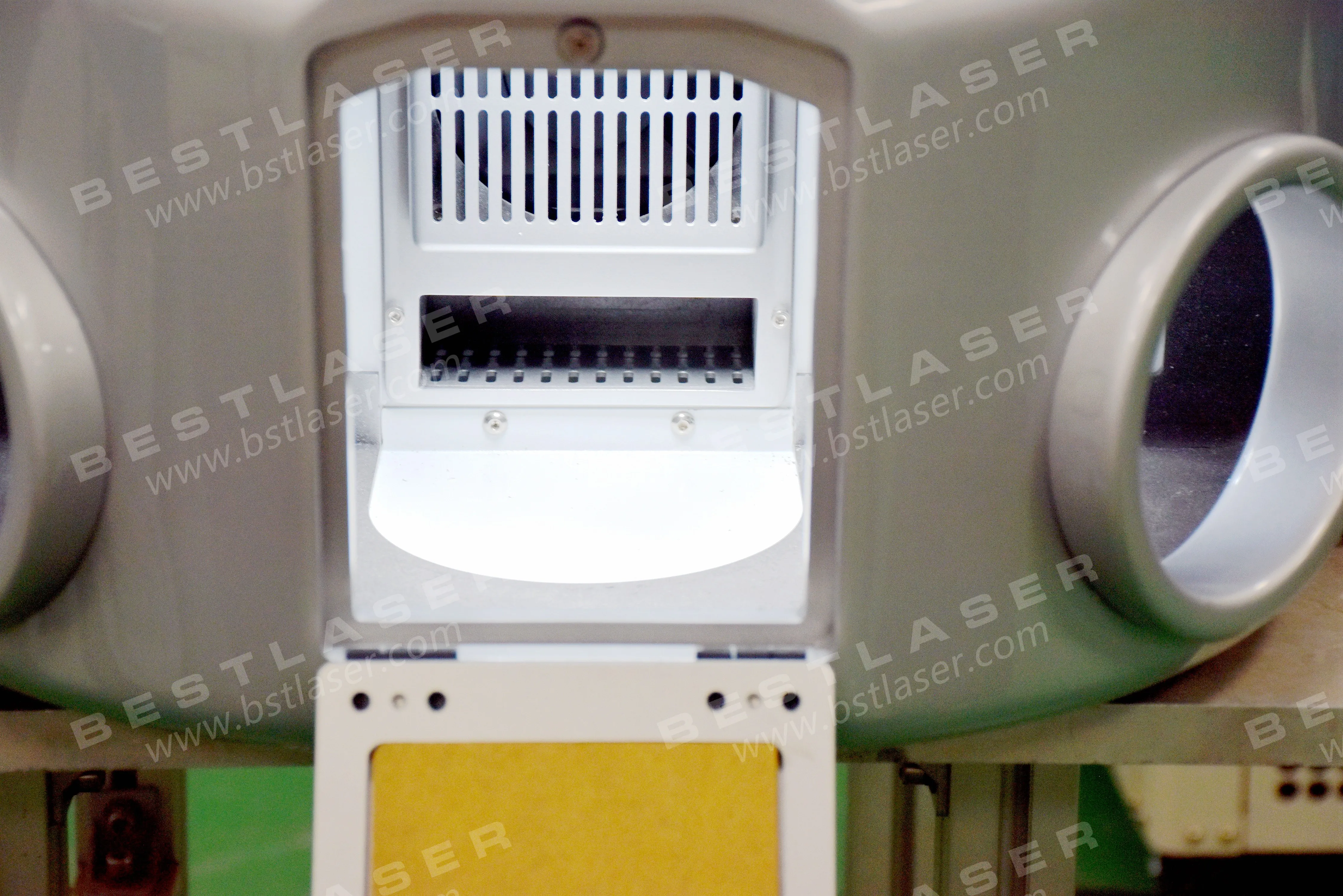

Working Table
It equips with big inner working space, which enable human hands flexible angle.

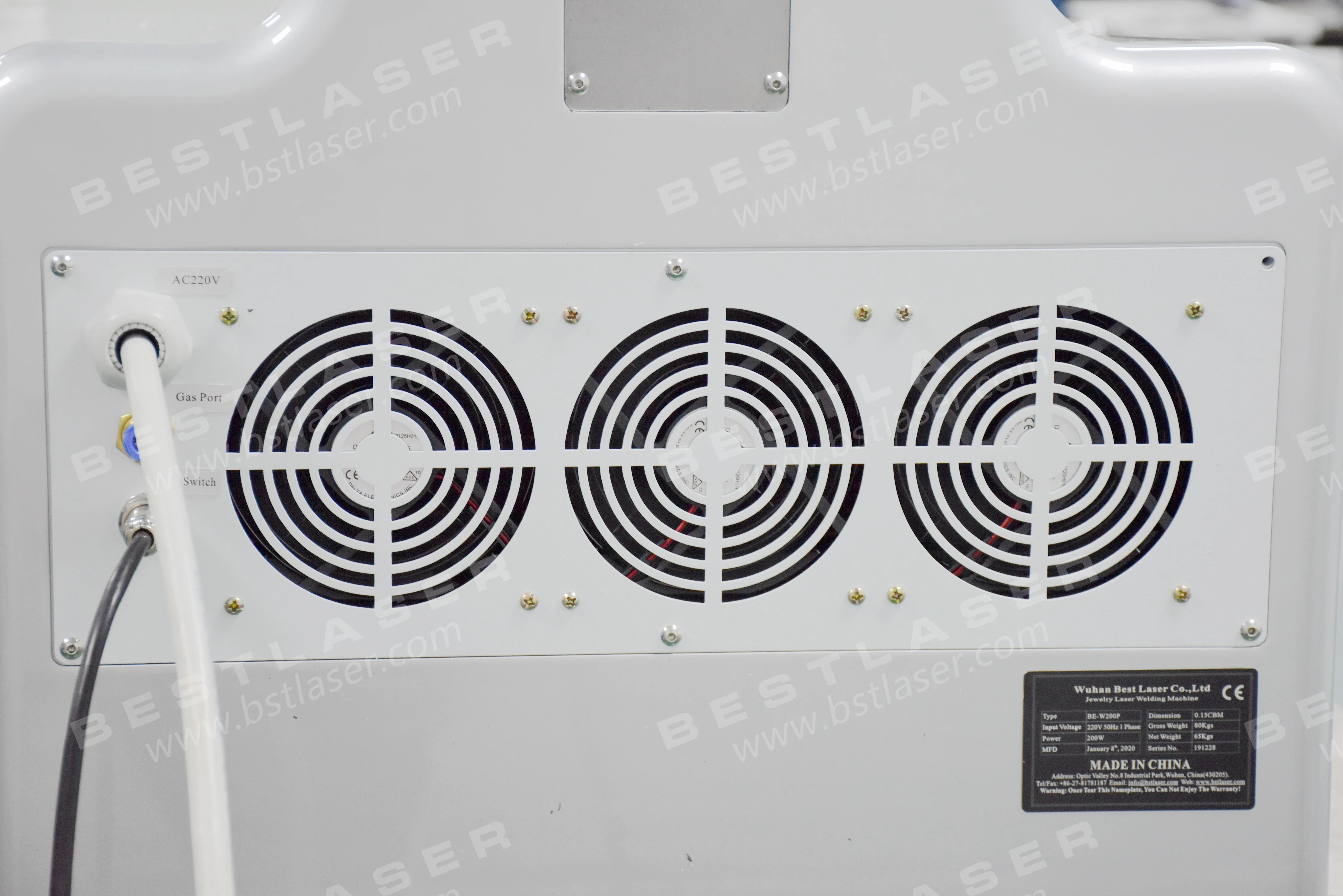

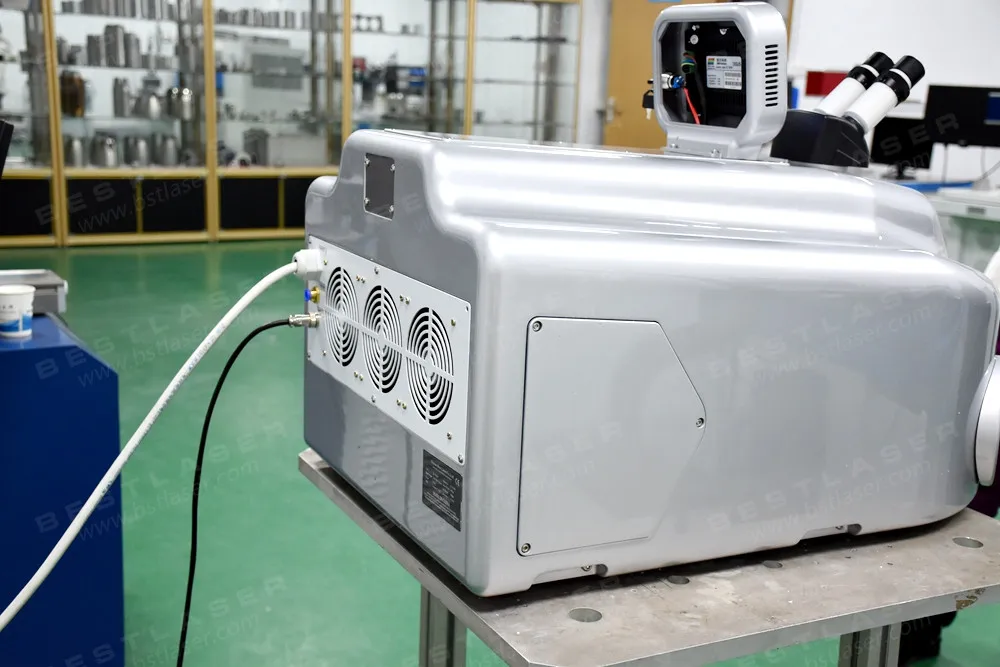

Exhaust Fan
There are exhaust fan on the back side, which helps cooling.
There are water cooling system inside the machine.
There are water cooling system inside the machine.

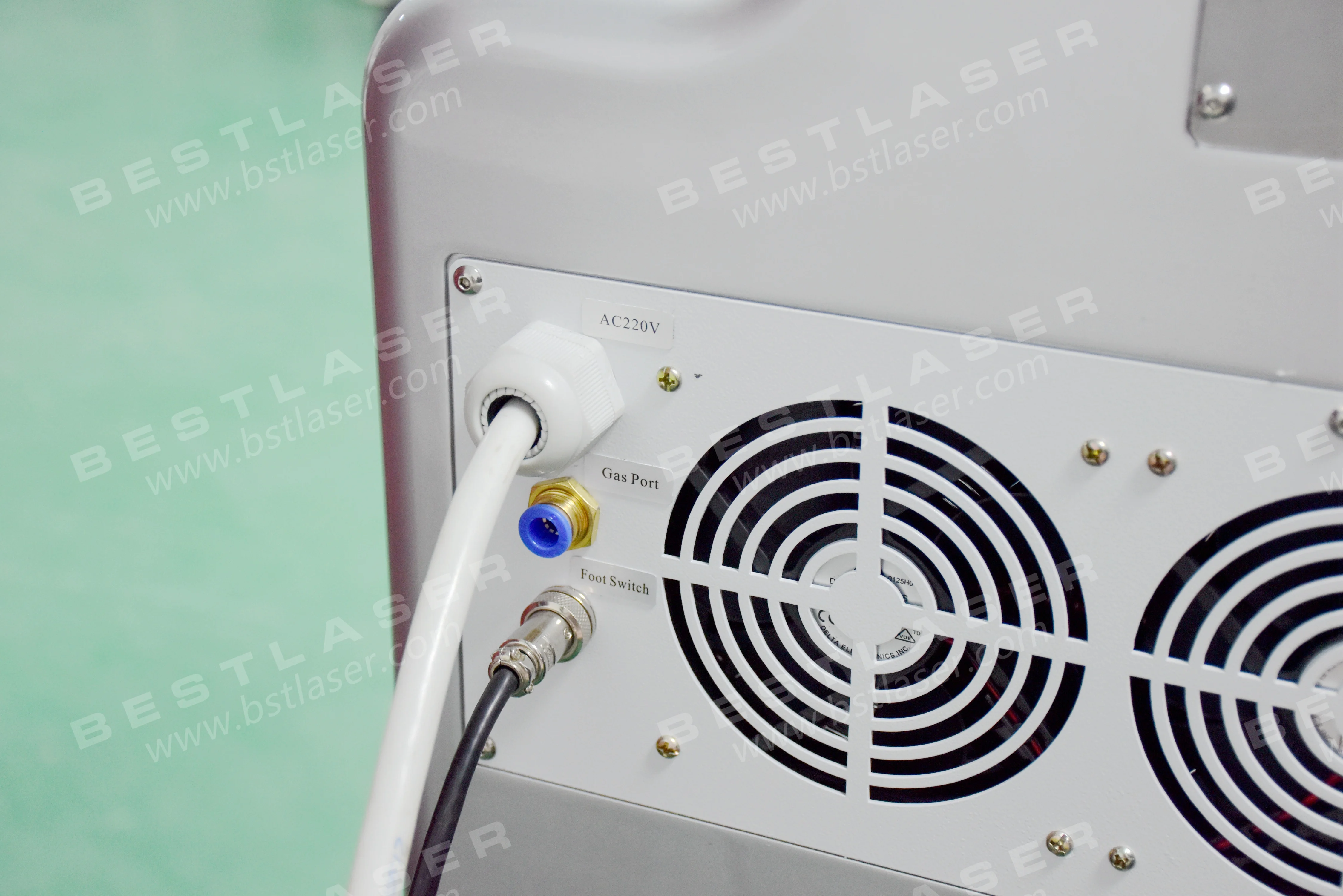

Voltage
Voltage:
Machine voltage is 220v 50hz
Power input/gas input/foot pedal\t
Machine voltage is 220v 50hz
Power input/gas input/foot pedal\t
Packing&Shipping
Step 1
Machine wrapped with plastic film to protect the machine from scratch.
Step 2
Put thicken foam sponge inside the package, to avoid shaking or impact.
Step 3
Professional export wood craftcase, which is strong and environmentally friendly.

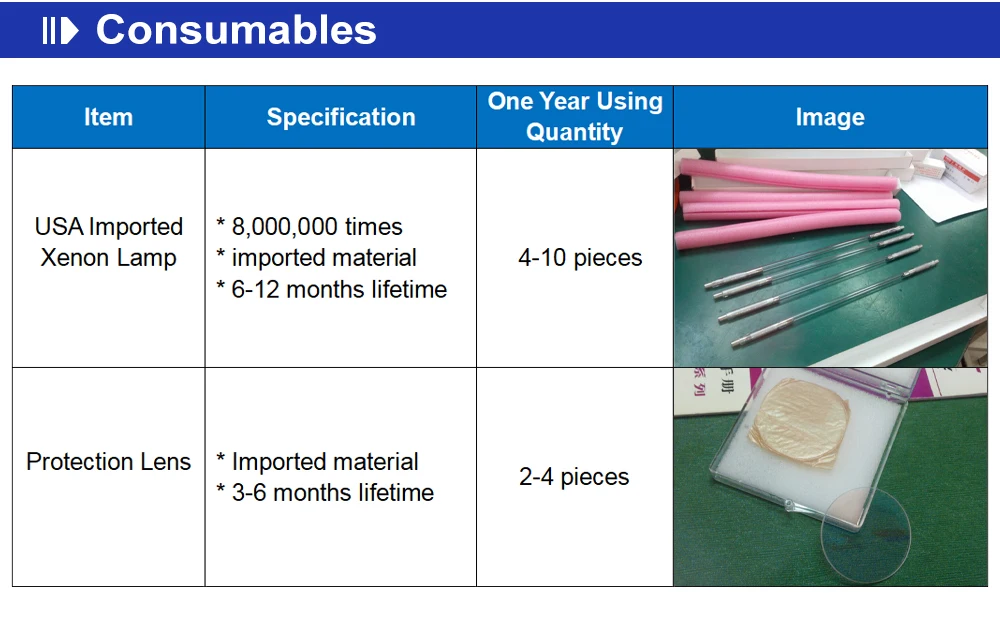

Consumables

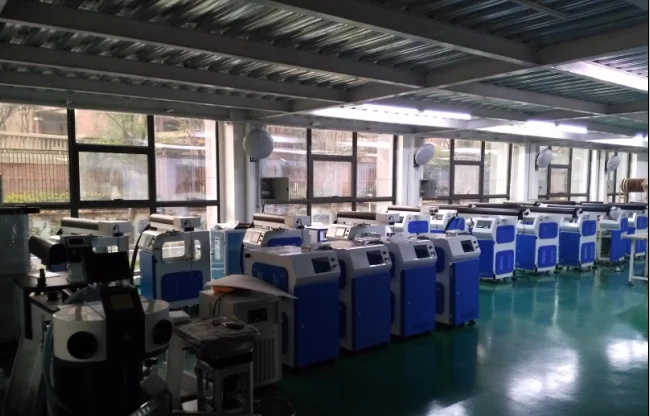

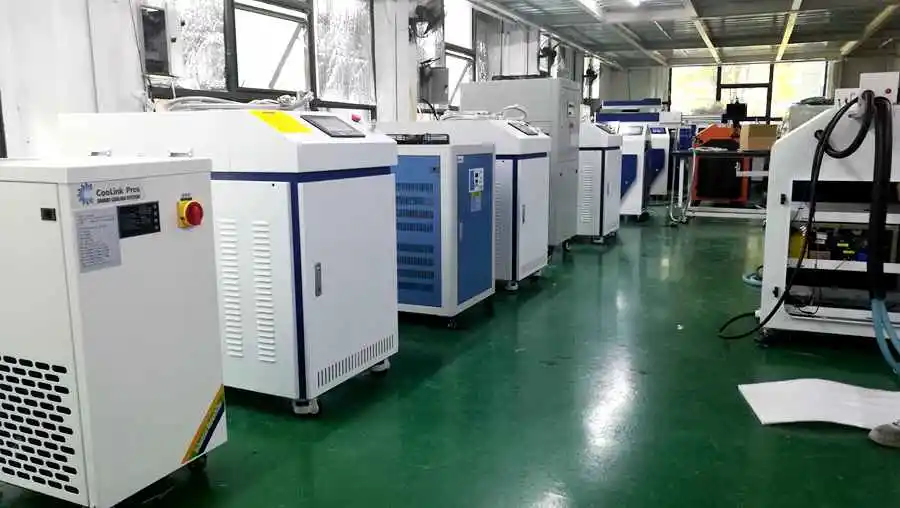

Company Introduction
As 15 years Laser Welding Machine manufacturer, Best Laser is committed to providing customers with high-quality and reliable laser machines.
As a result of our quality control measures, our laser machines all have got CE certification.

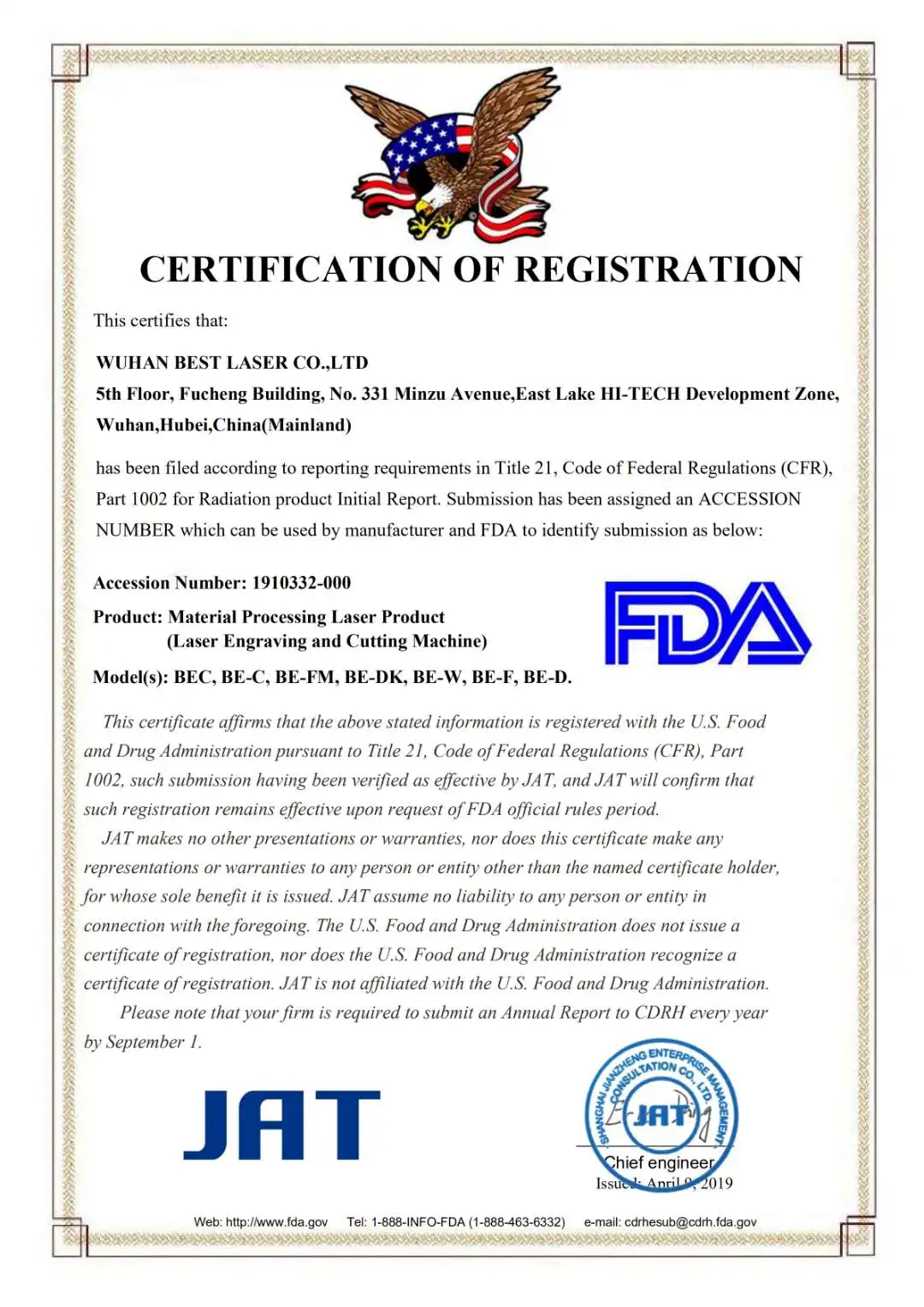

Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
As a result of our quality control measures, our laser machines all have got CE certification.
Best Laser also has got TUV and FDA certificate. High precision, low energy consumption, automatic processing, little environmental pollution and make our products more and more industries played a important role.
Related Products
After Sales Service
Services
---Pre-Sales Service
Free Pre-Sales Consulting / Free Sample Marking
Best Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
---Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Best Laser machines.
Free Pre-Sales Consulting / Free Sample Marking
Best Laser offer 12 hours quick pre-sales response and free consulting. Any kind of technical support are available for users.
Free Sample Making is available.
Free Sample Testing is available.
We offer progressing solution design to all the distributor and users.
---After-sales Services
1. 2 year guarantee for main machine (People damaged are charged).
2. Full technical support\\ by e-mail, call and video
3. Lifelong maintenance and spare parts supply.
4. Free design of fixtures as customers required.
5. Free training installation and operation for the staffs.
---Free Training Service
We insist that our customers receive personal, hands-on training with every machine we sell. This training is free, and we will work with you for as long as it takes to ensure you feel comfortable operating your new laser machine. We pride ourselves on our expertise and our ability to educate our customers in the installation, proper maintenance, and most efficient use of Best Laser machines.
