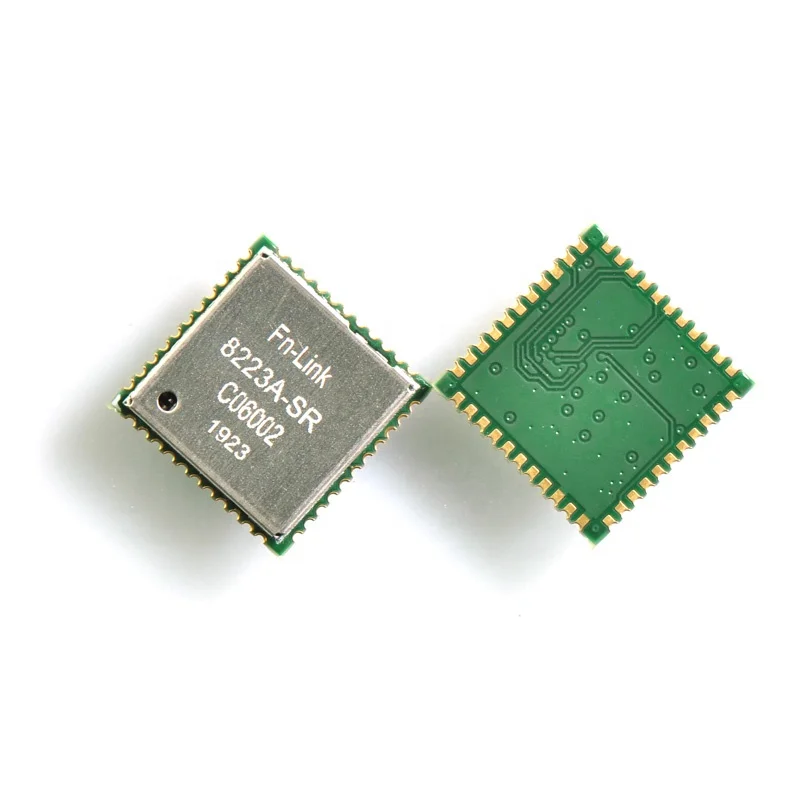

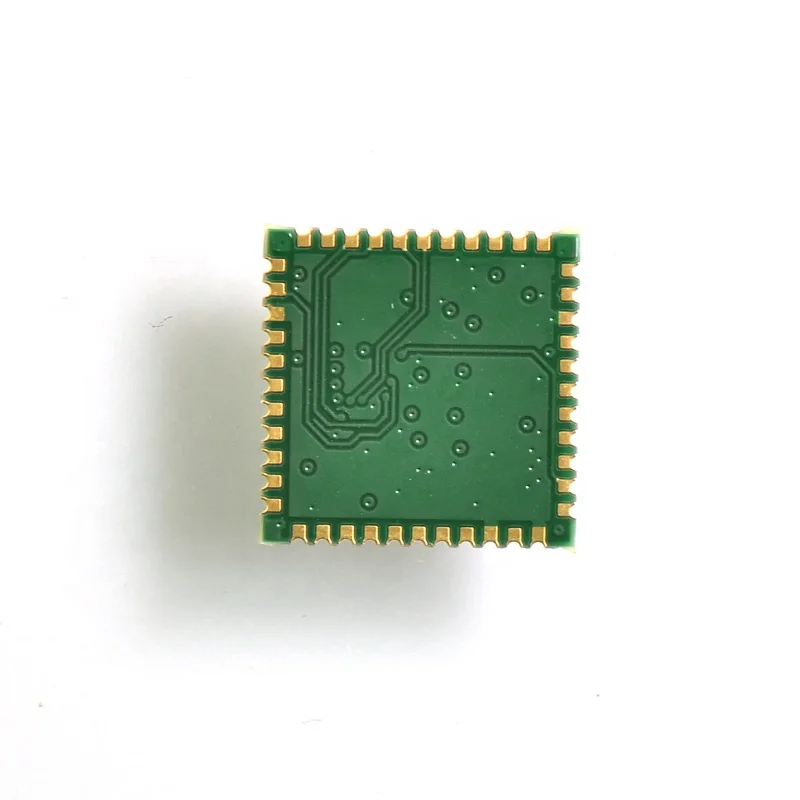

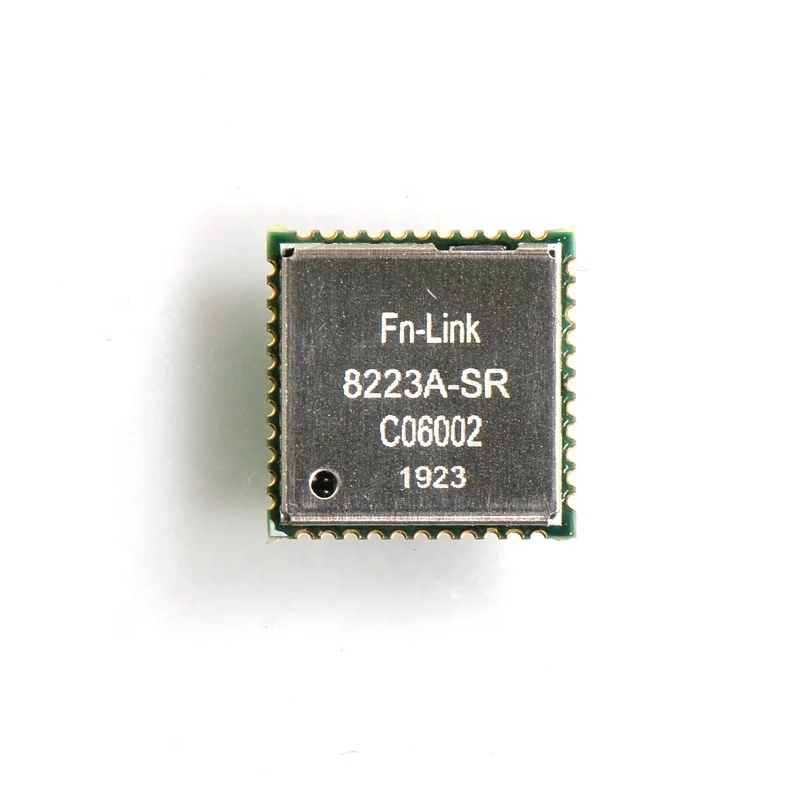

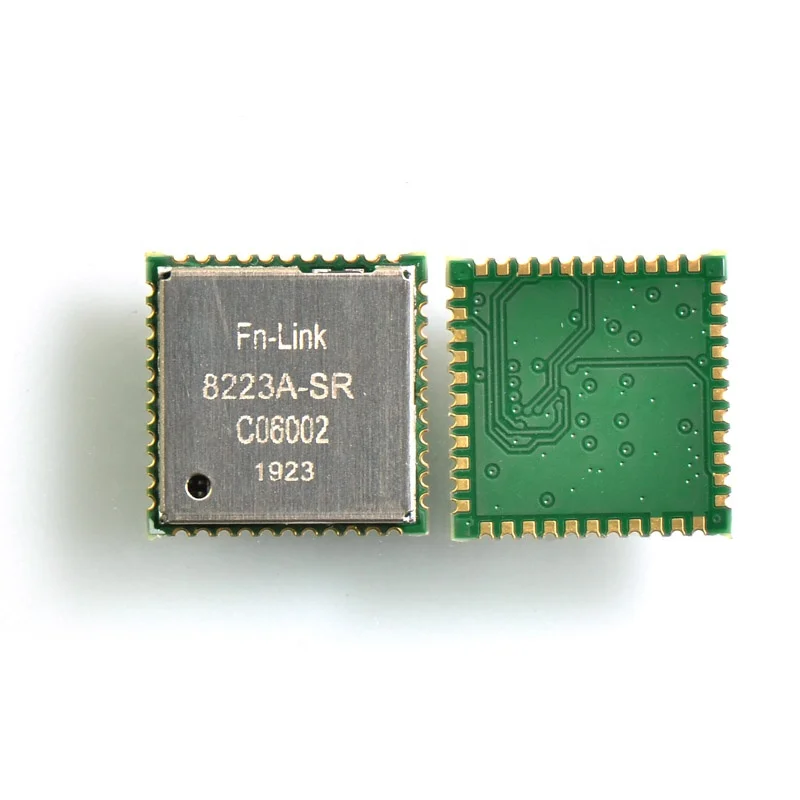

2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC
2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC

2.4G 5G QCA1023 SDIO WiFi Ble Chip RF Transceiver Module For Tablet PC

Share on (62480002018):


Price:$4.40 - $7.50

Quantity:


Product Overview

Description



Product Description


Introduction

The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN.
The integrated module provides SDIO interface for Wi-Fi,UART / PCM interface for Bluetooth.



Features


Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.
802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:

- HCI UART (up to 4 Mbps)
- PCM for audio data







Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products





Detailed Parameters


Model No
8223A-SR
Main Chipset
QCA1023
WIFI/BT Interface
SDIO/Uart/PCM
WIFI Standards
IEEE802.11a/b/g/n/ac
Date Rates
433Mbps
Certification
RoHS,REACH
RF Antenna
External Antenna
OS Supported
Android /Linux/Windows
Operating Frequency
2.4/5.8GHz
Operating Voltage
3.3V
Dimensions
L x W : 12x 12 mm
RF Chains
1T1R
Operating Temperature
-30°C to 85°C
Storage Temperature
-40°C to 125°C

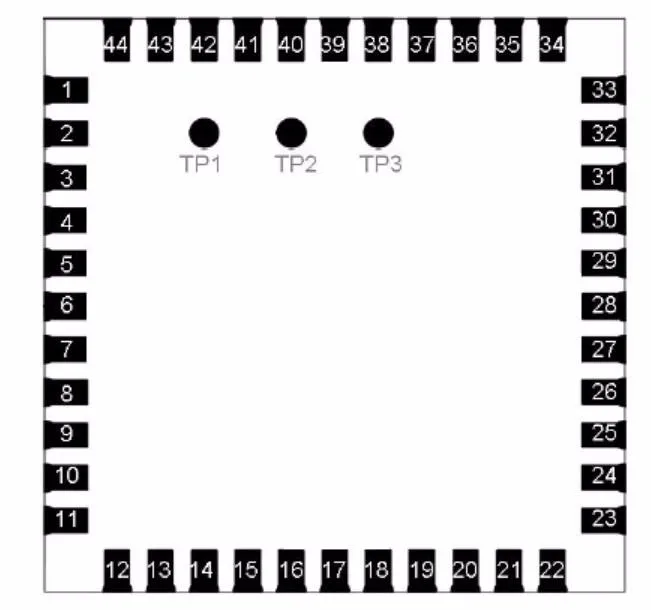

Layout Recommendation





Reference Design





Note


Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
