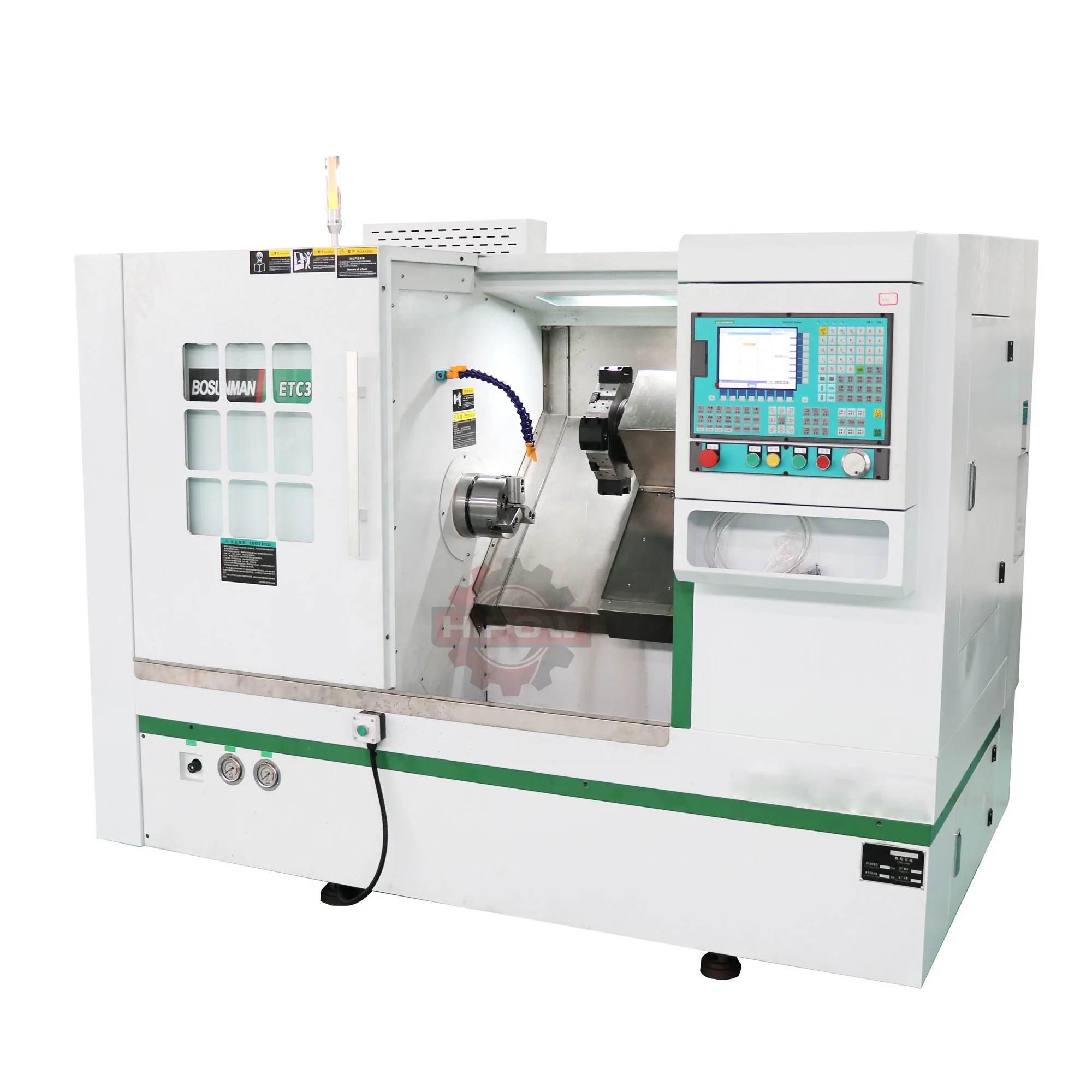

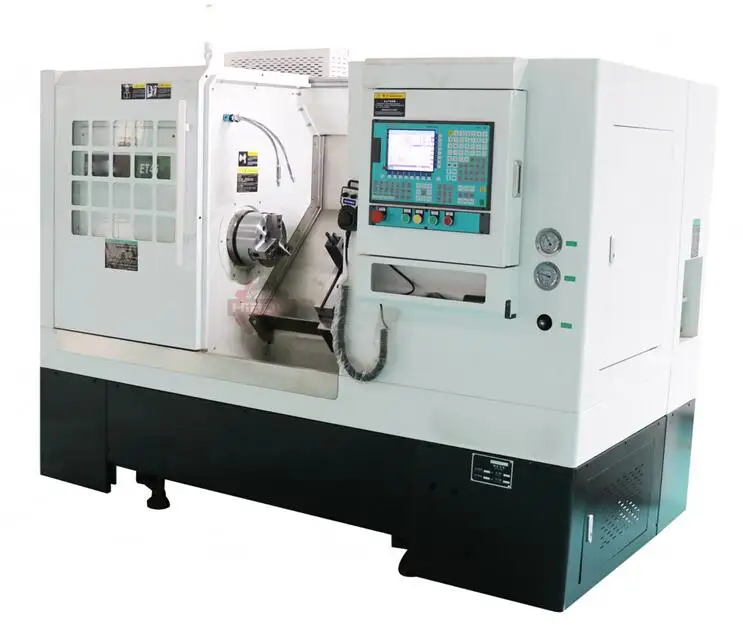

Slant Bed CNC Turning Center TCK46A CNC Lathe Machine |
 |
|

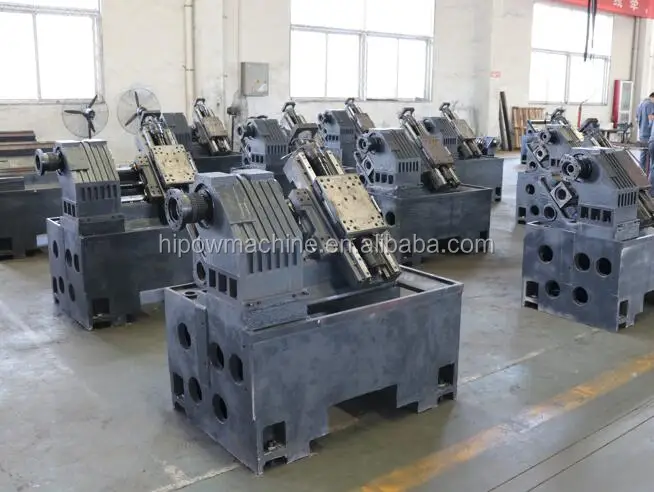

1. High Precision Machine Body
Strictly Processed Hardened-tempered casting machine body make the lathe perform precisely.
2. High Precision Chuck and spindle hole
1). Hydraulic chuck is standard
2). Standard spindle hole is 56mm ,
3. Precision Tool Post
1). Standard electrical 4 position tool post
2). 6/8 Position electrical or hydraulic tool post can be choosen
4. Reliable Control System
1).Standard : GSK980, KND System,
2).Optional:Fanuc,Siemens,Mitsubishi and other customized system
5. Customized Tail Stock
1).Standard tail stock is manual
2).Hydraulic tail stock can be customized
 |
Specification | TCK46A |
Max.swing over bed(mm) | 460 |
Max.swing cross slide(mm) | 170 |
Max.processing length(mm) | 350 |
Spindle Unit(mm) | 170 |
Spindle head form (optinal chuck) | A2-5 |
Spindle motor power(kw) | 7.5 |
Max Spindle speed(rpm) | 3500 |
Spindle bore(mm) | 56 |
Drawing Hole Diameter(mm) | 45 |
X/Y axis lead screw specification | 3210/4010 |
X Max Travel(mm) | 240 |
Z Max Travel(mm) | 350 |
X axis motor torque | 7.5 |
Z axis motor torque | 7.5 |
X/Z Axis repeatability(mm) | ±0.003 |

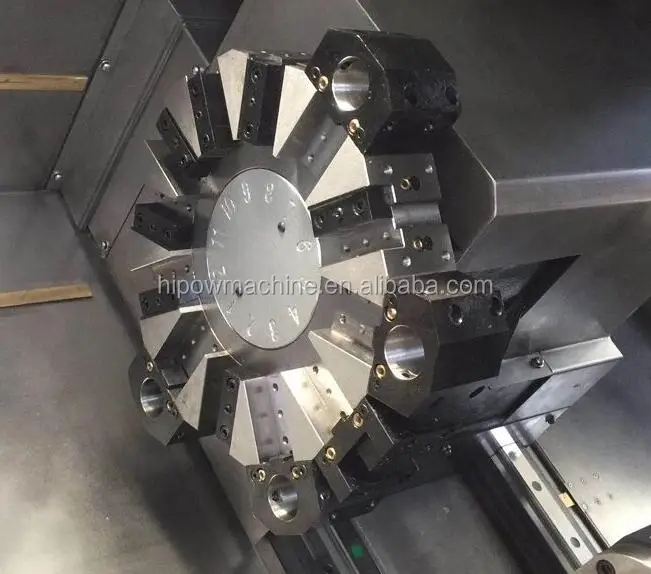

Tool Turret (optional configuration) | 80-8T/12T |
Knife tower Center height(mm) | 80 |
Hydraulic Quill Diameter(mm) | 70 |
Hydraulic Quill Traverse(mm) | 80 |
Hydraulic Quill Taper | MT5 |
Hydraulic Tailstock Travel | 200 |
Machine dimensions(L*W*H) (cm) | 250x170x170 |
Weight(kg) | 2600 |
Company Information
 |
Packaging & Shipping
 |
| Packing of exported CNC machine is usually in wooden case. Small CNC machine can be packed in wooden case in whole. |
FAQ
 | |
| Q1. | How can I get a quotation? |
| A. | Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone. |
| Q2. | Can you provide customized machine or SPM (Special purpose machine)? |
| A. | Yes, we provide smart CNC solutions for our customer, in order to increase efficiency. |
| Q3. | Can you provide training for operation CNC machines? |
| A. | Yes, free training in our factory is available. |
| Q4. | How about your price? |
| A. | Send me details about what you need, you will get the best price in China. The price is competitive over the world. |
| Q5. | What’s the delivery time, and what’s the package? |
| A. | Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package. |
