Промышленное применение, USB GPS ГЛОНАСС, модуль приемника GALILEO, антенна GNSS200L, USB GALILEO GPS GLONASS TOPGNSS приемник
- Category: >>>
- Supplier: Shenzhen Stoton Electronic Technology Co. Ltd.
Share on (62480227434):
Product Overview
Description
Product Description
USB Cable length: 1.5 meters
Applications
Track record of data acquisition
Automatic vehicle location
Driving recorder
Navigation
GPS clock and digital camera
Child/elderly/personal locator and security system
Features
Multi-satellite positioning systems support
GPS/QZSS/GLONASS/GALILEO(GNSS200L)
GPS/QZSS/Beidou
Based on 8030 low power single chip
Sensitivity
Acquisition: -148dBm
Tracking: -167dBm
Low power: 40mA at continuous tracking
SBAS (WAAS, EGNOS, MSAS) support
Higher update rate option (default 1Hz)
RTCM 2.3 4.X support
A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant

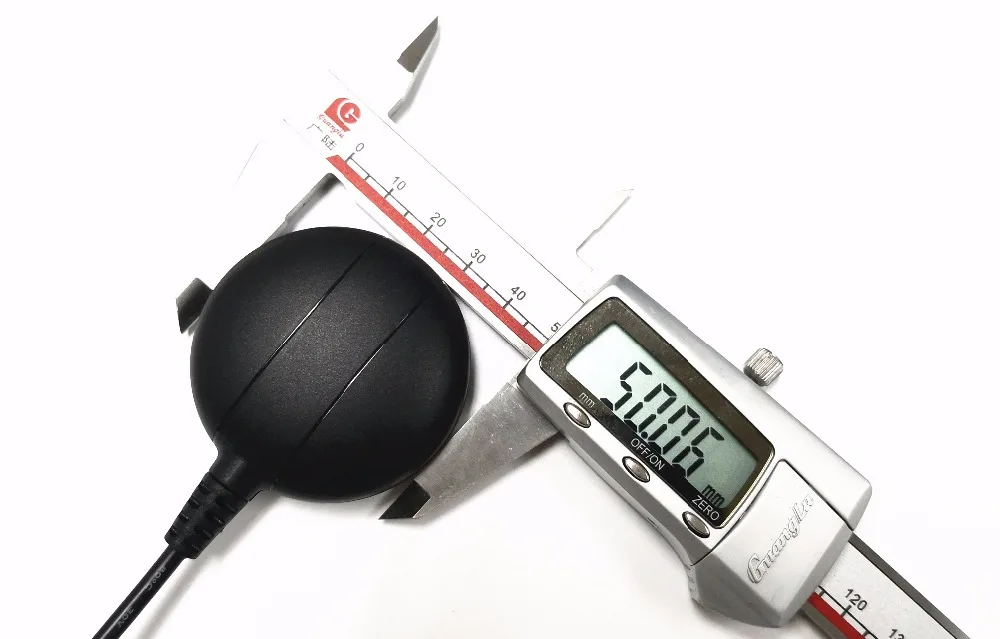

Easy to use: built-in patch 25*25*4mm antenna
Backup battery support for faster position fix
LED for position fix indication
Windows location sensor support
Win7/Win8/win10
LED light: to find the signal
LED flashing: positioned
Protocol: USB
Model: GNSS200L
Performance replacement BU-353S4 GMOUUSE BU-353
Applications
Track record of data acquisition
Automatic vehicle location
Driving recorder
Navigation
GPS clock and digital camera
Child/elderly/personal locator and security system
Features
Multi-satellite positioning systems support
GPS/QZSS/GLONASS(GNSS200L)
GPS/QZSS/Beidou
Based on 8030 low power single chip
Sensitivity
Acquisition: -148dBm
Tracking: -167dBm
Low power: 40mA at continuous tracking
SBAS (WAAS, EGNOS, MSAS) support
Higher update rate option (default 1Hz)
RTCM 2.3 support
A-GPS support, OMA SUPL/3GPP TS25.171 (GSM/UMTS) compliant
Easy to use: built-in patch 25*25*4mm antenna
Backup battery support for faster position fix
LED for position fix indication
Windows location sensor support
Receiver Type | 72-channel 8 engine GPS & QZSS:L1 C/A,1575.42MHz, GLONASS L1OF, 1598.0625~1605.375MHz BEIDOU B1 1561.098 MHz SBAS: WAAS, EGNOS, MSAS |
Horizontal | 2.5m (Autonomous) |
Position | 2.0m (WAAS) |
Accuracy | (including SBAS & QZSS; CEP, 50% 24hr static, -130dBm, >6 SVs) |
Velocity | 0.05 m/s (speed) |
Accuracy | <0.3(heading) (50%@30m/s) |
Time Pulse | 30ns (RMS) |
Signal Accuracy | <60ns (99%) |
Time Pulse Frequency | 0.25 Hz ~ 10 MHz |
Time To First Fix Hot start Cold start | Autonomous 1.5 sec 26 sec (50% -130dBm) |
Sensitivity (Autonomous) | -148dBm (acquisition) -167dBm (tracking) |
Navigation. Update Rate | Max. 10Hz, GPS & GLONASS or GPS & Beidou Max. 18Hz, GPS only Default 1Hz |
Max. Altitude | 50,000 m |
Max. Velocity | <1,852 km/hr |

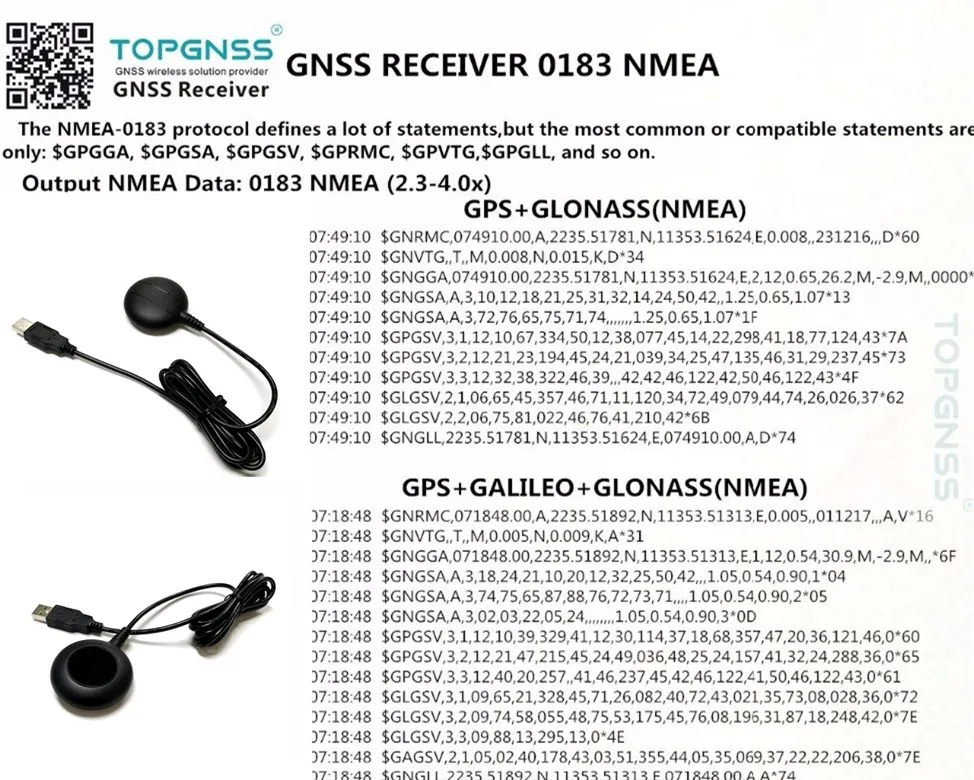

Protocol Support | NMEA 0183 v2.3 and V4.x UART: 9600 bps N,8,1; GGA, GLL, GSA, GSV, RMC, VTG, TXT |
SBAS Support | WAAS, EGNOS, MSAS |
USB GPS GLONASS GNSS driver and test star software, can be downloaded from our server. (we have more than one version of the test software can choose)
- You encountered in the use of any questions or you need to buy more quantity, please contact with usWe can provide professional OEM or ODM services
