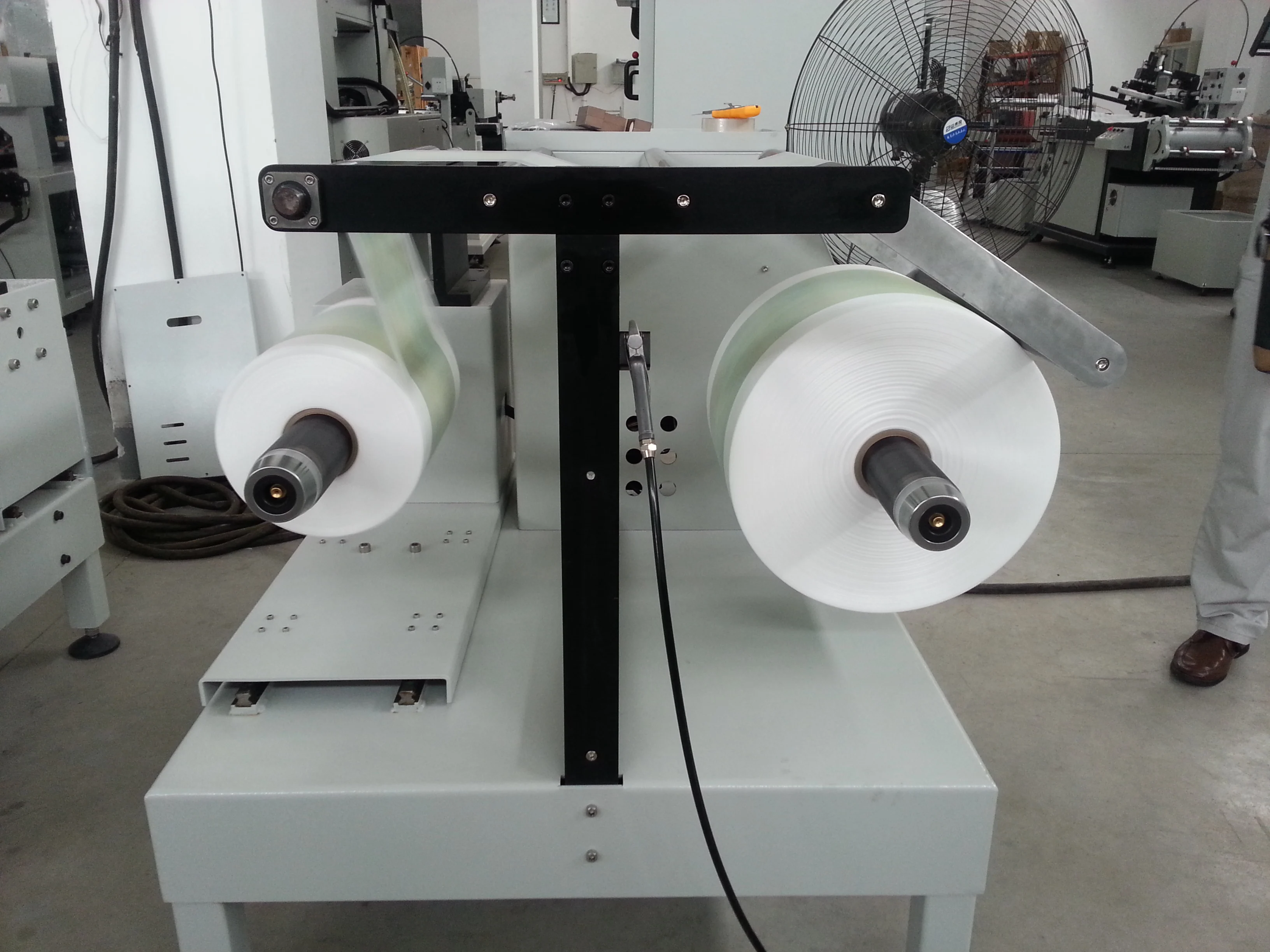

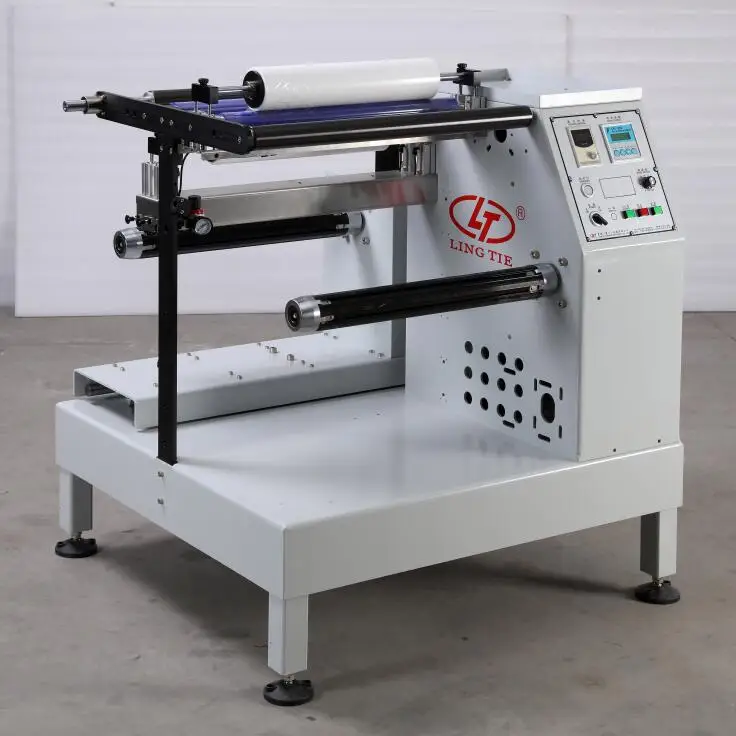

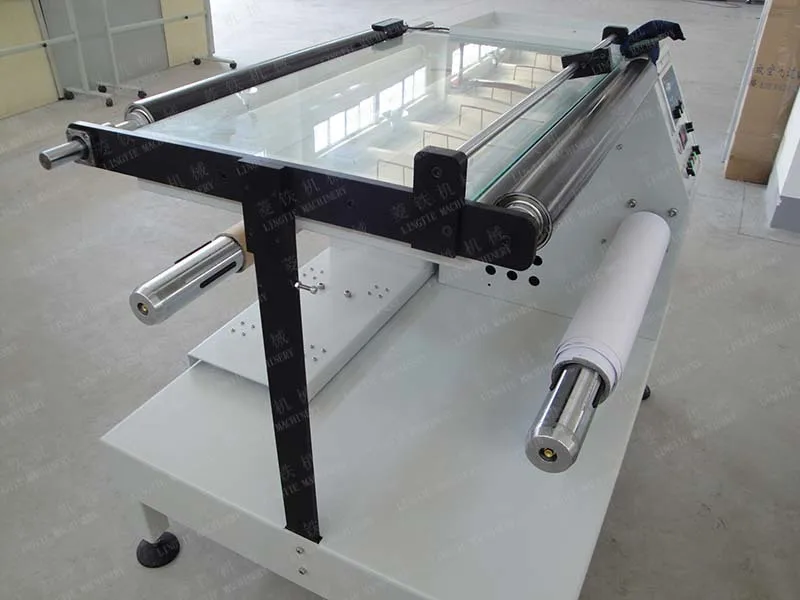

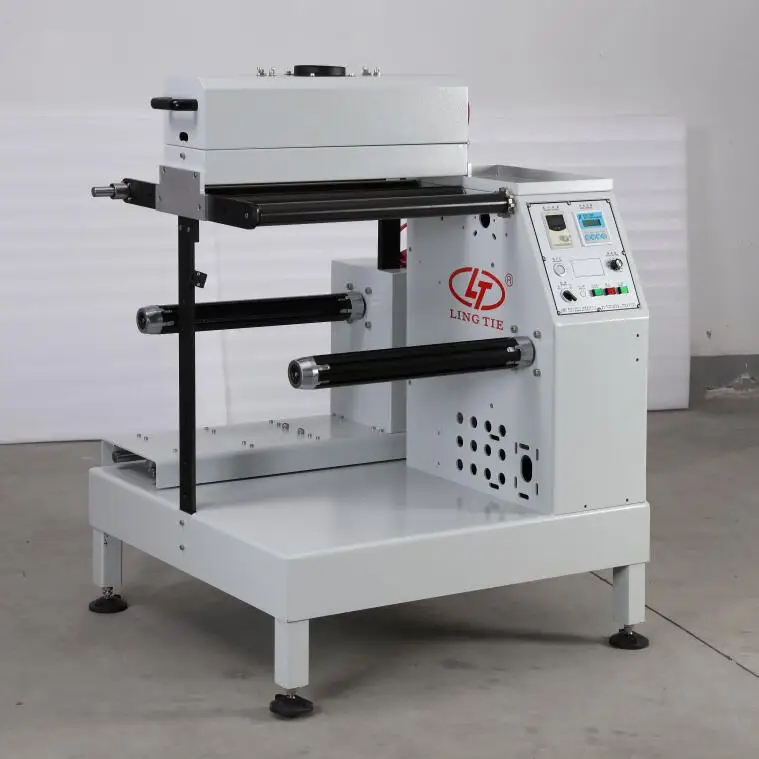

Film Paper Label Roll Automatic Slitter Rewinder

Product Overview

Description

Automatic Rewinding Machine with Web Guide Introduction

1. Unwinding & rewinding air shaft 3" diameter.

2. Air shaft for max.roll width 600mm, max.roll diameter 550mm, max.roll weight 50kg.

3. Sensor adopted for web guide. It works for transparent and non-transparent materials.

4. Magnetic powder brake is used for tension control during rewinding process.

5. Machine automatic stop when the rewinding finish.

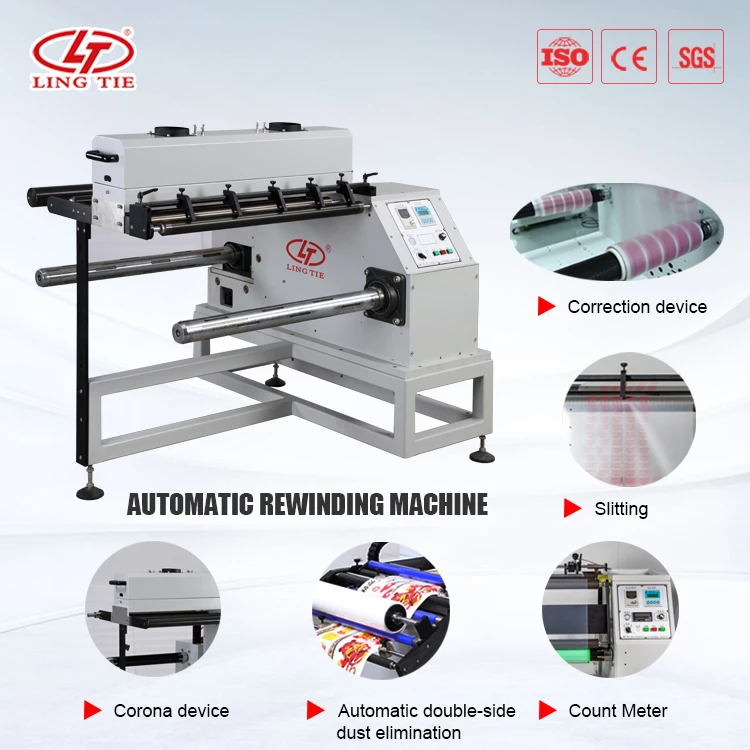

6. Count meter function, slitting function, dust cleaning function and corona function are available for option.







Application :

This automatic rewinding machine with web guide is widely used to rewind various soft materials in roll form, such as plastic film, paper, medical gauze, non-woven fabric , aluminum foil, etc.





Technical Information:

Model	LTD-400B	LTD-600B	LTD-900B
Max.Paper Width	400mm	600mm	900mm
Allowable Weight	30kg	50kg	150kg
Max Diameter	550mm	550mm	550mm
Power Supply	1kw	1kw	1kw
Tension	0-25N	0-25N	0-25N
Net Weight	270kg	350kg	500kg
Machine Size	(L1010xW860xH1120)mm	(L1010xW950xH1120)mm	(L1450xW1300xH1200)mm
