UT King FTTH Fiber Fast Connector Quick Assembly Conector SC APC Splice On Fast Connector 0.2dB
- Category: >>>
- Supplier: Shenzhen UT-King Technology Co. Ltd
Share on (62480282810):
Product Overview
Description

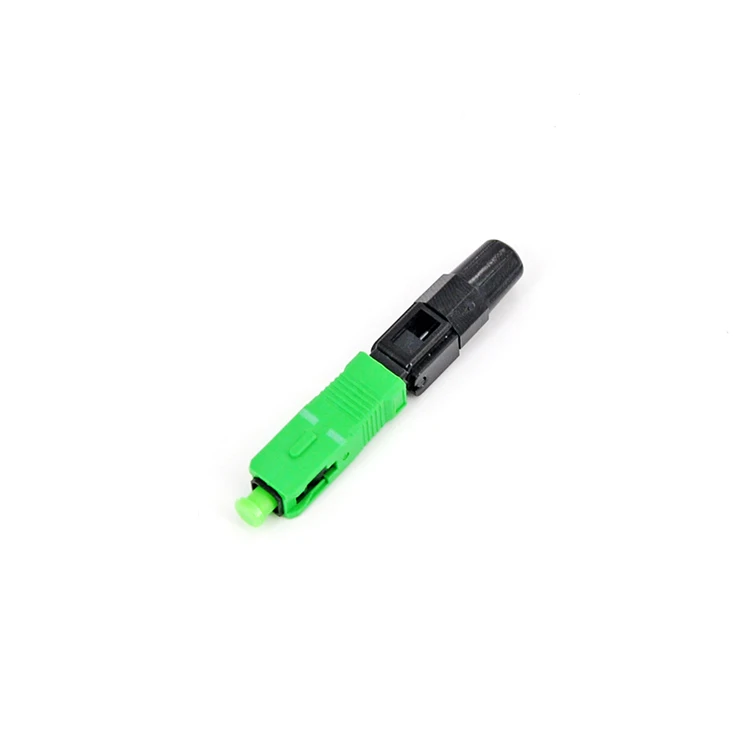

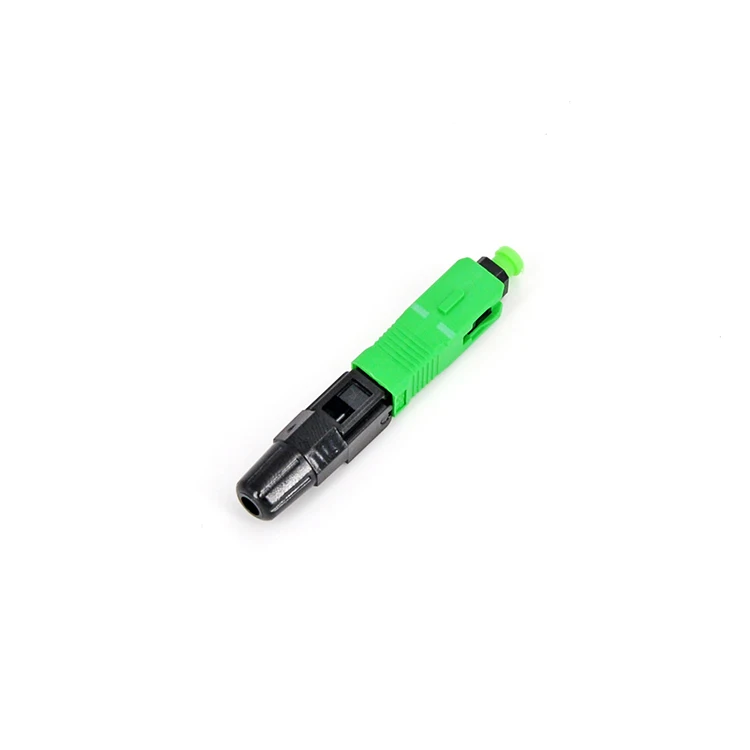

UT-King FTTH Fiber Fast Connector Quick Assembly Conector SC APC Splice On Fast Connector 0.2dB
【About Product】

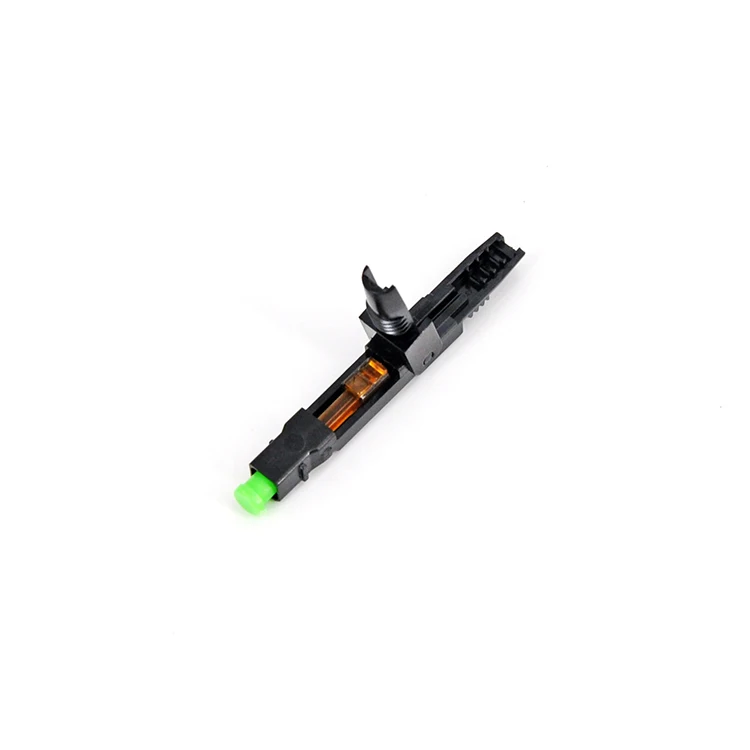

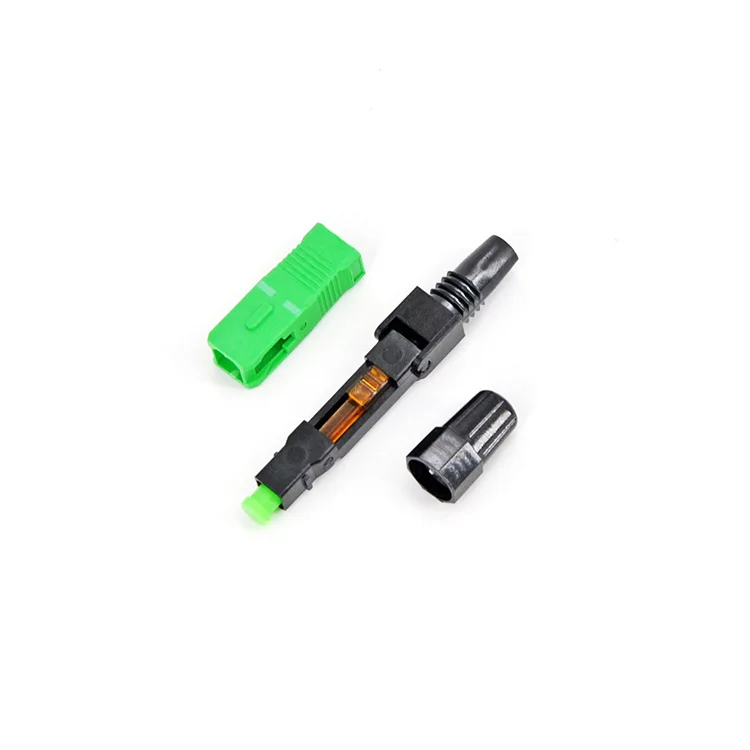

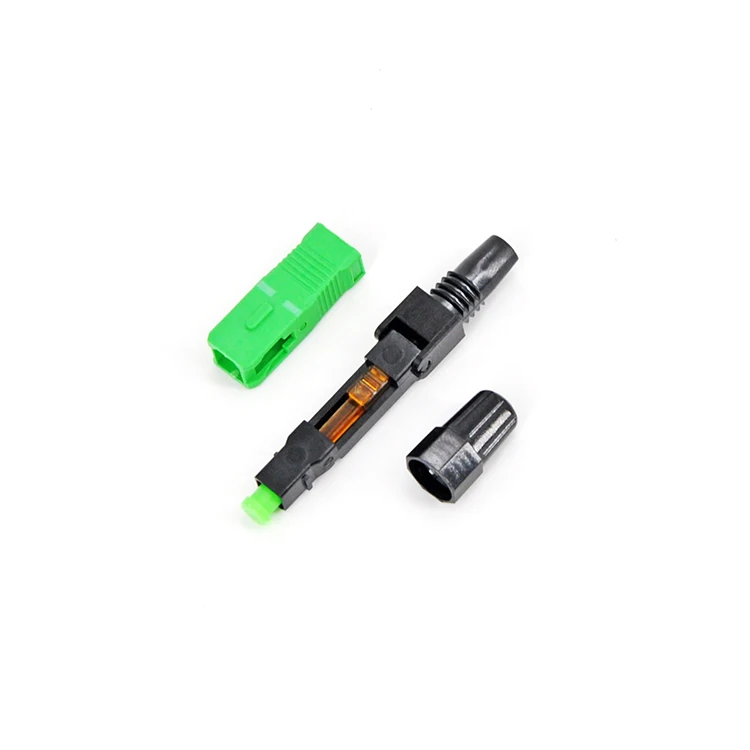

Mechanical Field-Mountable Fiber Optic Connector (FMC) is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embeded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

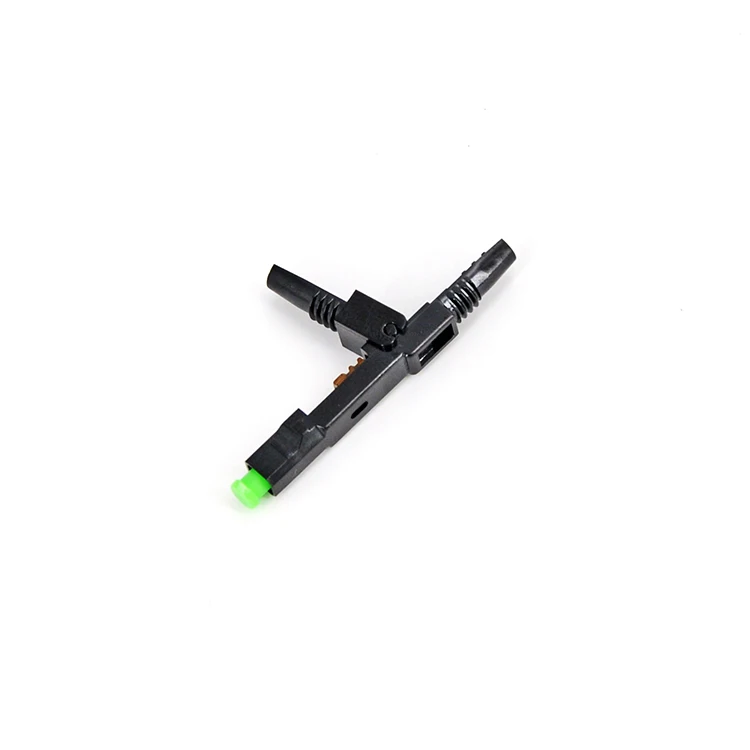

It is designed for high quality and high efficiency for installation, the structure of crimping position is a unique design, and
need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
need not gluing, polishing neither any consumables. Adapted fiber pre-installed structure, and convenient for field installation.
【 Product Features】
1. FTTH project usable
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE
2. Fast, easy, accurate
3. Cost effective
4. Portable
5. Reliable and superior optical performance
6. Cable Tensile test complies with Telcordia GR-326-CORE
【Applications】
1.Used to open the FTTH fiber terminal end.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, maintenance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, maintenance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.
Model No. | UT-SC5501A |
Connector Type | APC |
Length | 55mm |
Applicable for | Drop cable.Indoor cable |
Fiber mode | Single mode or Multi mode |
Operation time | About 50s(no fiber cut) |
Insertion Loss | ≤0.3dB |
Insertion Loss Typical value | 0.2dB |
Return Loss | ≥50dB UPC ≥55dB APC |
Fastening strength of naked fiber | ≥5N |
Tensile strength | ≥50N |
Reusable | ≥10 times |
Operating Temperature | -40~+85℃ |
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Yes,send inquiry,you will get free sample.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, we have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW FOB CIF Shenzhen
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 1 Year for the warranty.
While the warranty is not responsible for those broken by violence or updated with other brands.
