(Basis of calculation: L: 2440mm, W: 1220mm, T: 8mm)
MGO board specification
Length
2400、2440、2700、3000(adjustable)
Width
1200、1220（standard width）
Thickness
3-25mm
Raw Material
Basic materials
MgO ,MgSo4
Reinforce Material
Fiber glass mesh ,No-woven Fabric
Filling Materials
Perlite ,Saw dust
Details Images

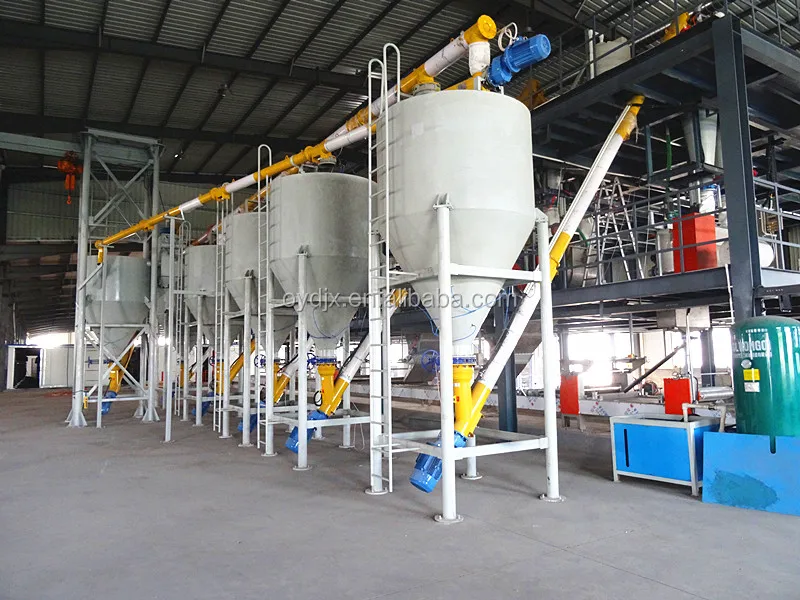

1.Powder Conmveying system
At the scene, the mgo powder packaging bag needs to be transported to the top of the distribution bin through the lifting device, the top knife-cutting device breaks the bag, the magnesium oxide powder enters the distribution bin, and is transferred from the distribution bin to the five storage bins by spiral conveying. It is then helically fed to the corresponding mixer.

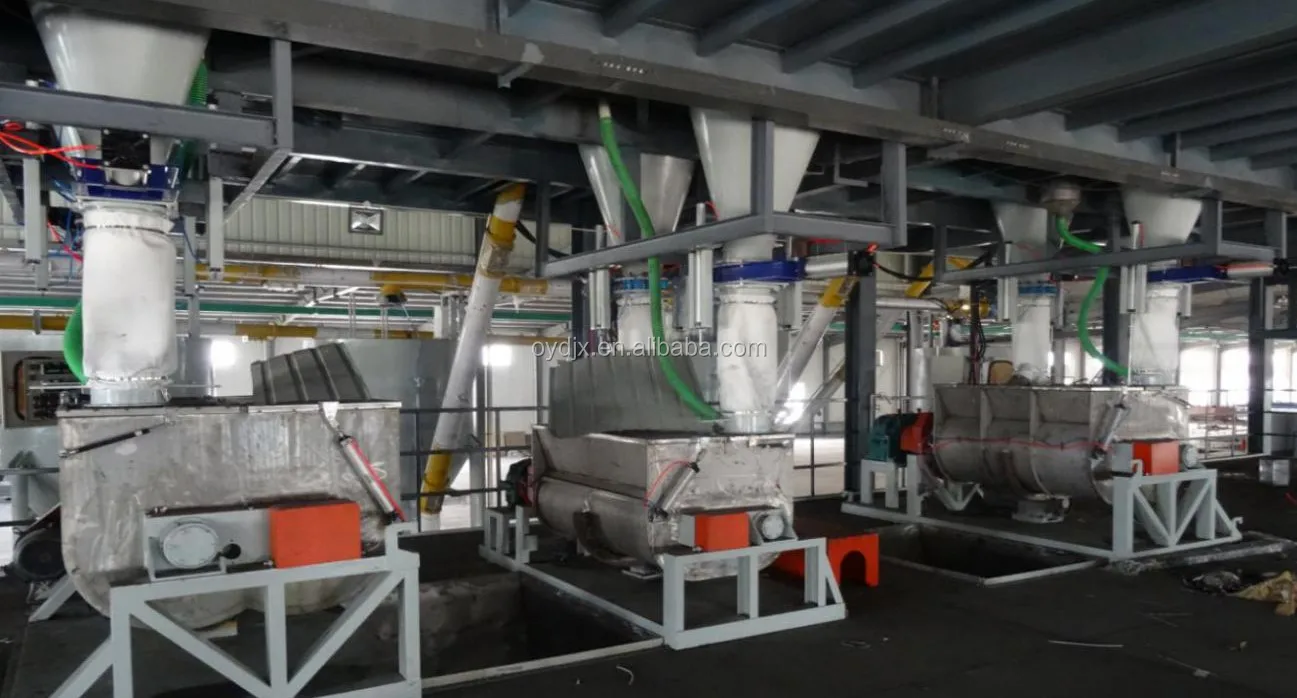

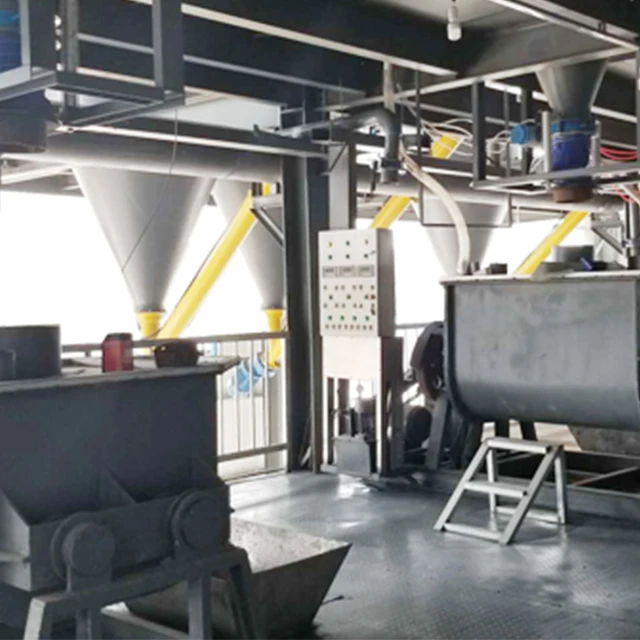

2.Raw material mixing system
Used for mixing evenly middle material ready for stand-by, this mixing machine has advantage of high speed; short time; stiring fully. The mixer is closed, and when feeding material , the feeding exit will connect to the mixer automatic, effectively avoiding dust.
Sanding Material Mixer
Used for mixing evenly sanding material ready for stand-by, this mixing machine has advantage of high speed; short time; stiring fully.
Slurry material mixer
Used to mix evenly all slurry, which will be used to make board surface flat, smooth and beautiful .
3.Automatic Forming system
Full automatic mold feeding -raw material feeding-forming-Cutting
Electrical mould feeding machine
The principle of vacuum is adopted, which uses the vacuum negative pressure to "adsorpt" artifacts in order to achieve the purpose of the clamping workpiece. Moving the mould onto the conveyor for stand-by; no need the manual work and feeding board automatically, which can reduce the labor intensity, improving working efficiency and lengthen the moulds service life

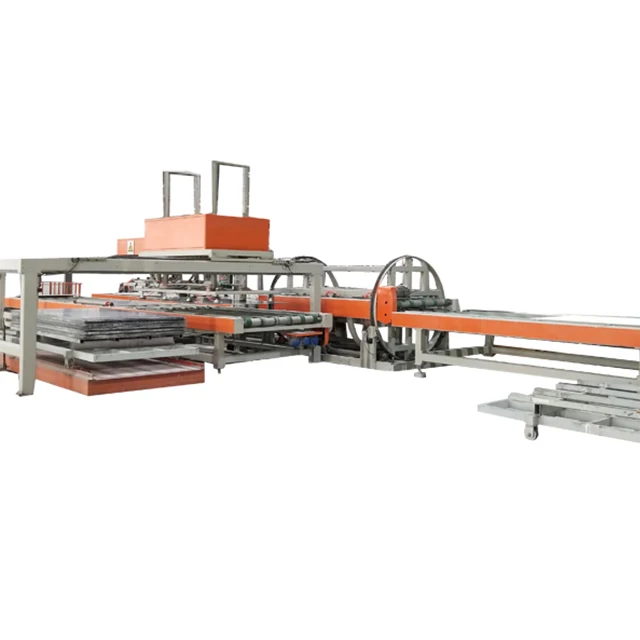

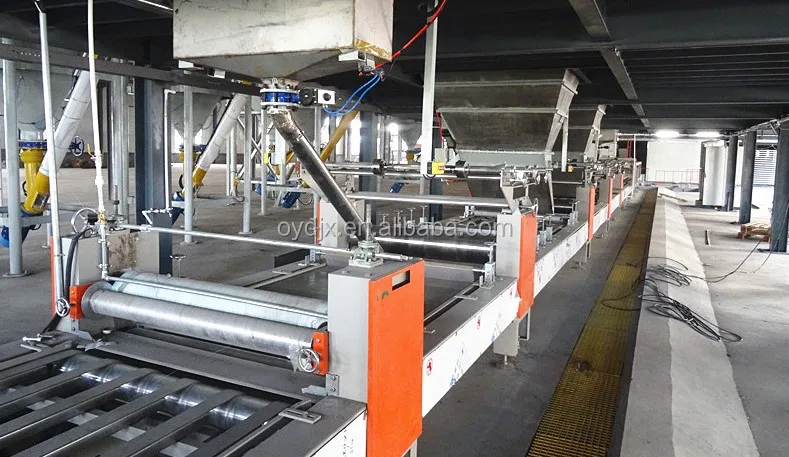

Multifunctional forming system
incluing all configuration of automatic feeding slurry, automatic laying cloth, automatic flatting, 5groups of roller, second -pressing.
Mold releasing system of formed sheets

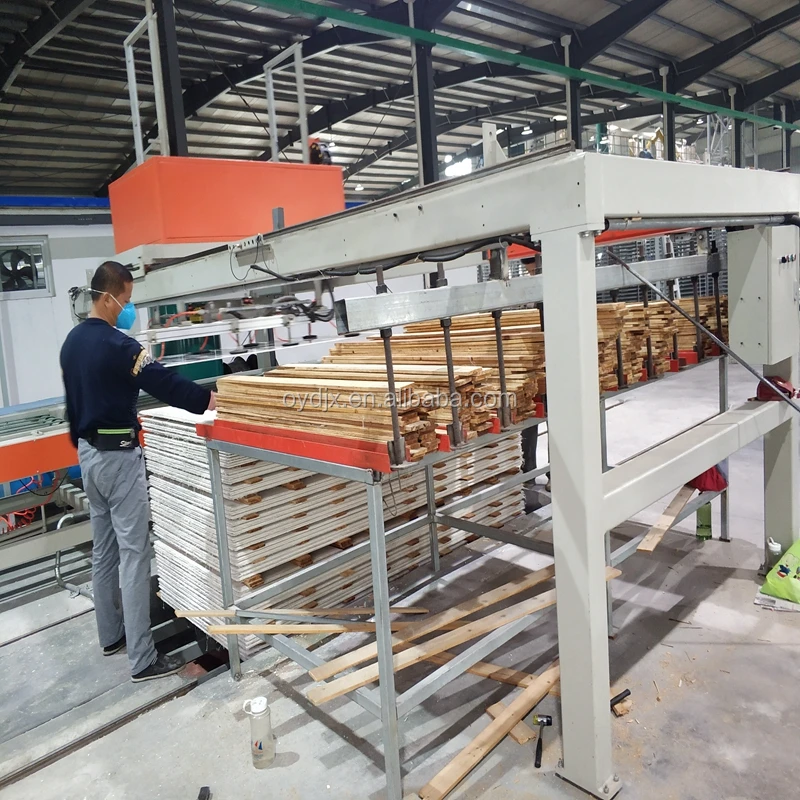

After one time curing, the mgo board is automatically demould, the use of the turning machine and the suction machine saves labor and improves production efficiency.
Feature introduction
1.A radian between the conveyor belt and output machine can help to make the mgo board and PVC mould to separate more easily . Or else , the Sucker will easy suck the PVC mould and mgo board together .
2.The blowers on the convey line ,can blow the dust on the board and PVC mould .
3.The use of the flip machine and the suction cup machine saves labor

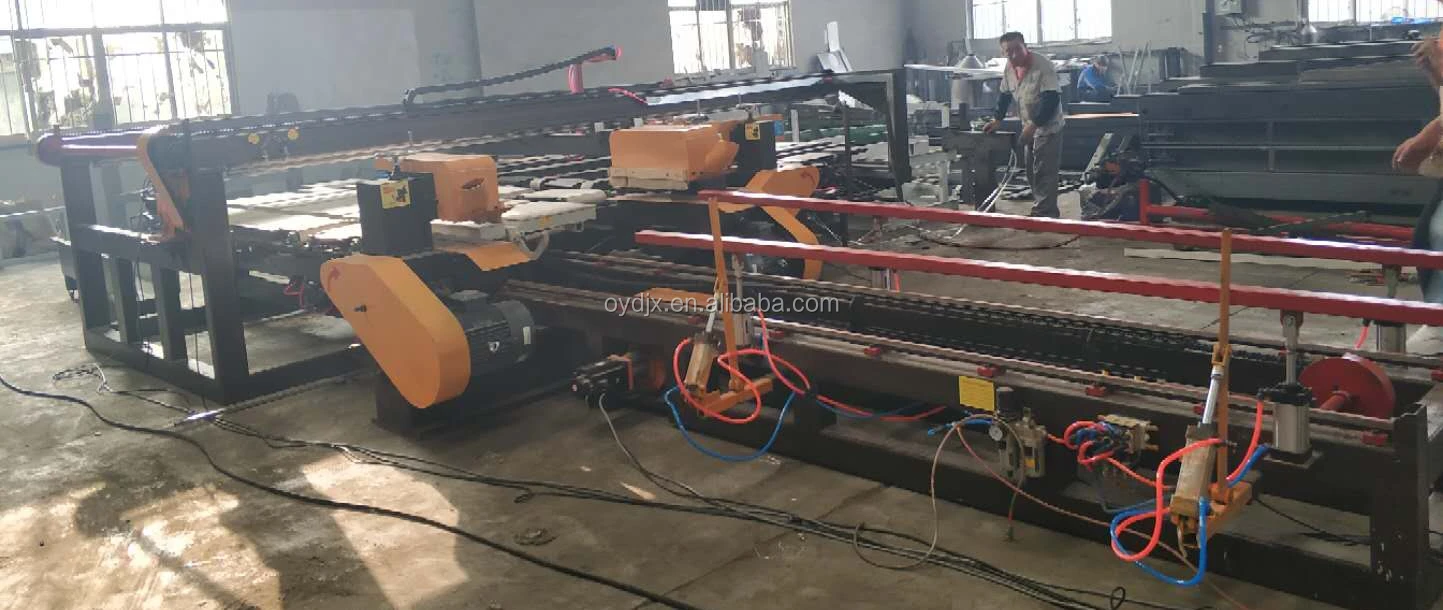

Four-edge cutting machine
cutting the formed board edges, making edge smooth and tidy, reducing error, so as to make the board beautiful

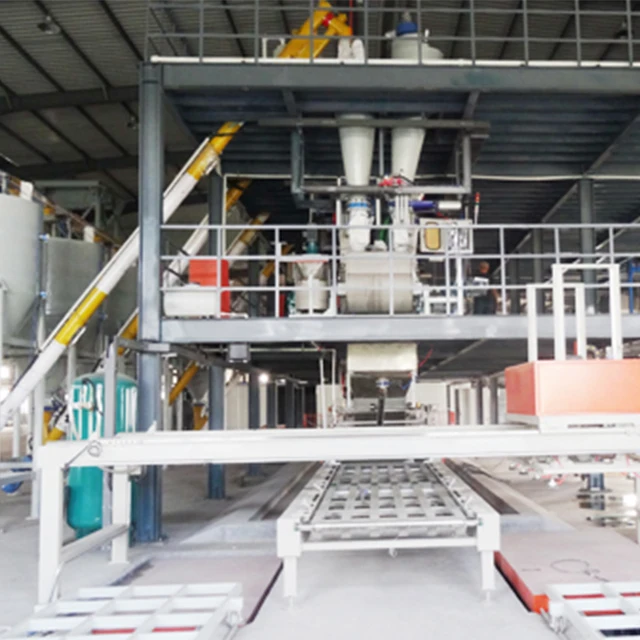

Platform of steel-structure
Equipment function and characteristics：Placing mixing and measuring system; consisting of planking, primary and secondary beams, columns, and ladders, railings
Semi-finished board cage vehicle
The mold, to protect the formed board from being out of shape during conveying and maintenancing process
Our Advantages
1.The structure of the machine is simple and easy to maintain. Extremely low maintenance rate of the consumable parts, and the consumable parts are universal and easy to replace, no specific purchase required.
2.The machine runs stably and the production efficiency is very high. The whole machine uses stainless steel beam bridge to improve the synchronous running stability of the mold, protect the mold, and is very easy to clean.
3.The whole machine use both the shaft and chain hybrid transmission to prevent the stripping and dragging, and improve the product quality and finished product rate.
4.The whole line is made of 304 stainless steel drum the diameter is 240mm, which is suitable for chloride magnesium products, sulfate magnesium products, cement products, non-corrosive and durable, easy to clean.
The whole machine line uses well-known brand general-purpose motor, which is easy to maintain and easy to purchase. The power control system use the international brand Siemens and well-known brand inverter mixed control to reduce the failure rate, maintenance rate so that improve production efficiency.
According to our 23 years’ experience in mgo board field. The automation is the No1 in china, compare to others could help save 30% labor cost.
7.Compare to the old technology, our new solution has higher production capacity. Could produce upto 4000 pieces in 10 hours, higher than the industry standard in this filed.
8.The machine line could be equipped up to three filling materials mixer, could meet the big capacity and the efficiency producing the thick board
8.Equipped automatic flip machine, could stack the board face to face to protect surface. Also could save the labor cost.
9.A set of solutions can produce a variety of plates, whether it is the MgO board or the cement board, to meet the needs of different customers and occupy more market shares.
Packing & Delivery
1.First use plastic film to wrap and cover the machine
2.Pack small parts in plywood box
3.marked with required label or shipping mark .
4.Use steel wire rope to fix the container ,so as to avoid to damage because of moving
