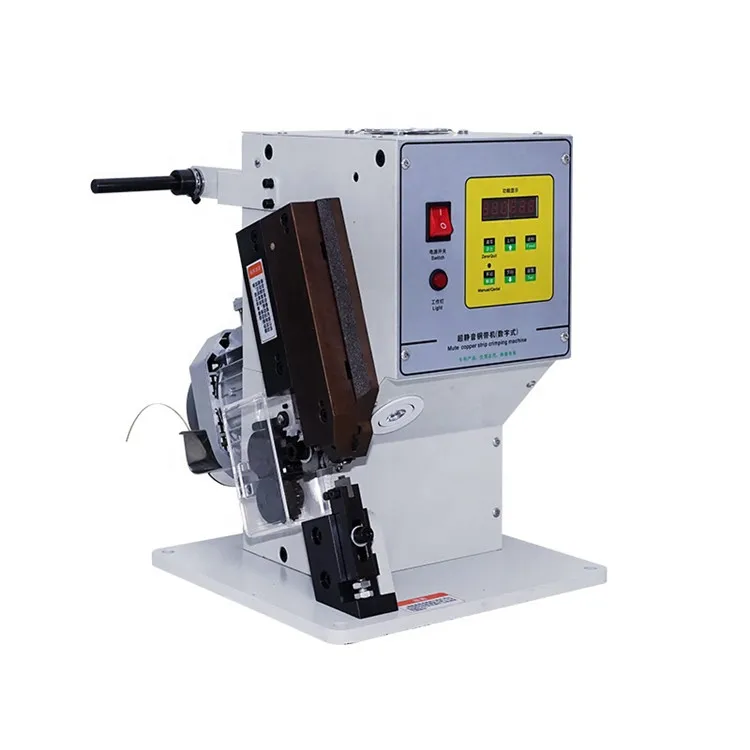

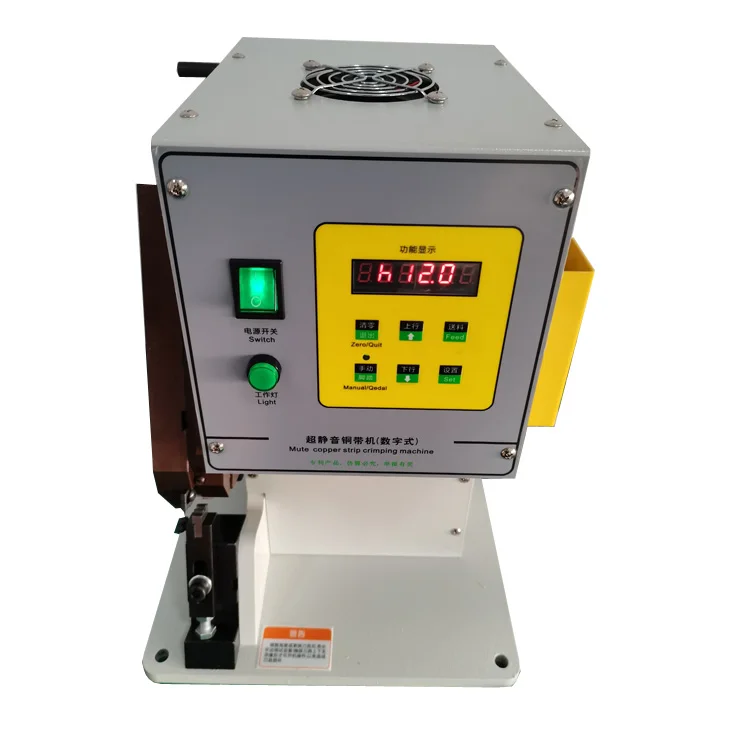

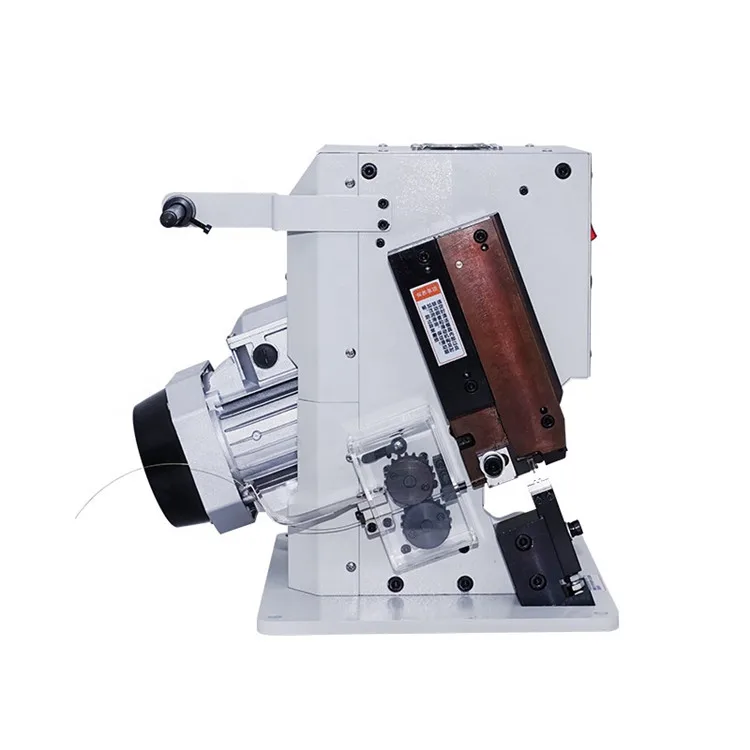

Automatic Mute Copper Belt Crimping Machine Copper Tape Cable Wire Splicing Machine
- Category: >>>
- Supplier: Suzhou Sanao Electronic Equipment Co. Ltd.
Share on (62480340763):
Product Overview
Description
Product Parameter

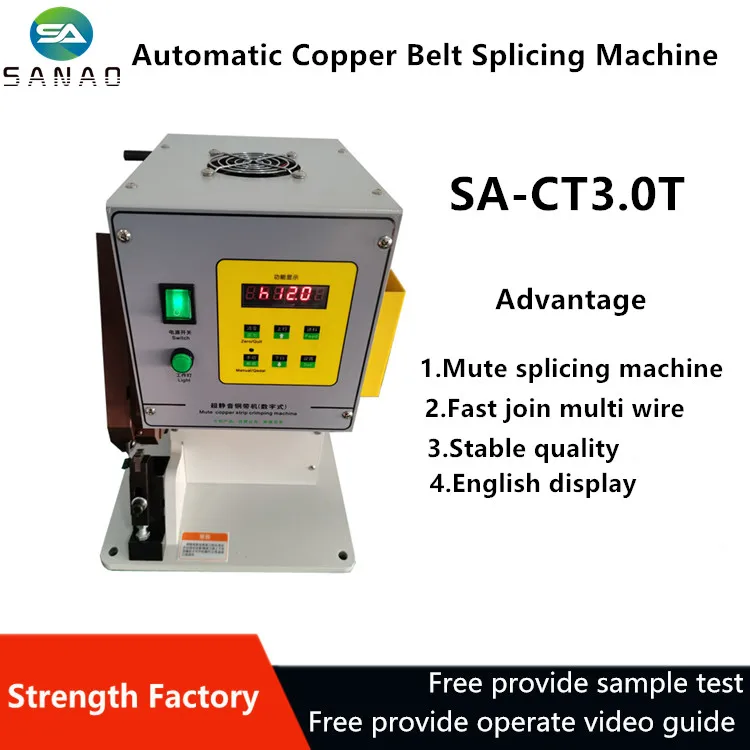

SA-CT3.0T,Copper Tape Splicing Machine for Wire Harness,The wire splicing machine provides an advanced method for producing low-cost, high-reliability Feeding copper belt, cutting, and splicing at one time eliminate the need for expensive pre-formed crimps. This method provides the lowest applied cost available on the market. It adopts an inverter motor that assures noise-free working environment.

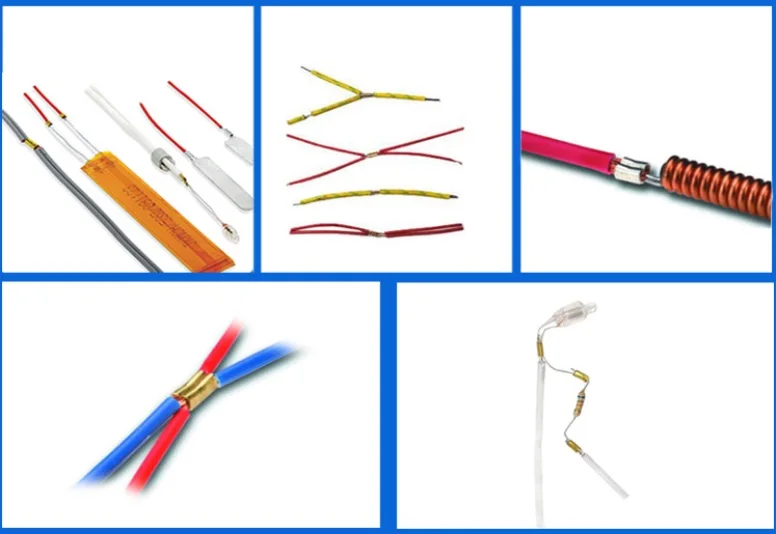

1.This machine is specially designed for riveting wire, with high speed and good quality
2.Using frequency conversion circuit board to control the motor drive the machine spindle, safe and stable.No clutch, high maneuverability
3.Pressing mode connecting wire, instead of the traditional soldering way, no cold welding, air welding shortcomings of air pollution
4.Adopting special continuous copper belt terminal material, cutting, forming and pressing can be completed at one time, which is fast and has no waste material and saves cost
5.The copper belt terminals are treated with special lines, which have strong tensile resistance and stable quality after riveting
6.Energy saving and low working noise
1.This machine is specially designed for riveting wire, with high speed and good quality
2.Using frequency conversion circuit board to control the motor drive the machine spindle, safe and stable.No clutch, high maneuverability
3.Pressing mode connecting wire, instead of the traditional soldering way, no cold welding, air welding shortcomings of air pollution
4.Adopting special continuous copper belt terminal material, cutting, forming and pressing can be completed at one time, which is fast and has no waste material and saves cost
5.The copper belt terminals are treated with special lines, which have strong tensile resistance and stable quality after riveting
6.Energy saving and low working noise
Model | SA-C3.0T |
Voltage | AC220/60HZ |
Motor Power | 750W/RV63/1;15 |
Crimping Force | 3.0T |
Copper Strip Feeding Mode | Motor Drive / Step Feeding |
Maximum Copper Strip Length | 60MM/Maximum Copper Strip Length 22MM |
Maximum Copper Strip Width | 6MM |
Maximum Crimping Width | 6.5MM |
Maximum Crimping Diameter | 6mm2 X 2 |
Operation Mode | Pedal Switch / Single Action |
Dimensions | 300 x 300 x 400 (MM) |
